Will it work with RTX 4000 16-pin connector?

Yes it will. Look on corsairs website, they have the adapters their you can order for this psu, or you can order one from cablemods or somewhere else that makes cables for psus.

If I order now, will you take the money now or when will the goods be?

I ordered 2/14, hasn't shipped yet as of 03/07.

What are the dimensions of this PSU? and how much space in front of the modular connections would you say you needed to plug everything in?

The dimensions are 200mm (7.87 in.) L x 150mm (5.91) W x 86 mm (3.89) H. Not sure about the space in front requirement because I haven't assembled the PC yet.

GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch

(723)

$169^.99 –
Save: 19%

$999^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Sold by MengYuanDianZi

Top Rated

4.2 (24 seller ratings)

Shipped by MengYuanDianZi

Price alert

Add to Wish List

Meet Your Seller

MengYuanDianZi

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

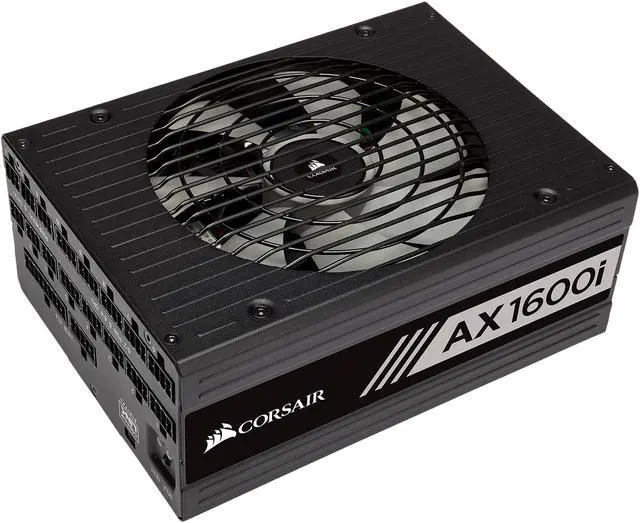

CORSAIR AXi Series AX1600i CP-9020087-NA 1600W ATX 80 PLUS TITANIUM Certified Full Modular Digital ATX Power Supply

(326)(4) Write a Review

Options: ATX 80+ Titanium (1600W)

ATX 80+ Titanium (1600W)
ATX 80+ Platinum (1200W)

ATX
Full Modular
80 PLUS TITANIUM Certified
100 - 240 V 50/60 Hz
+5V@30A, +3.3V@30A, [email protected], [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (326)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

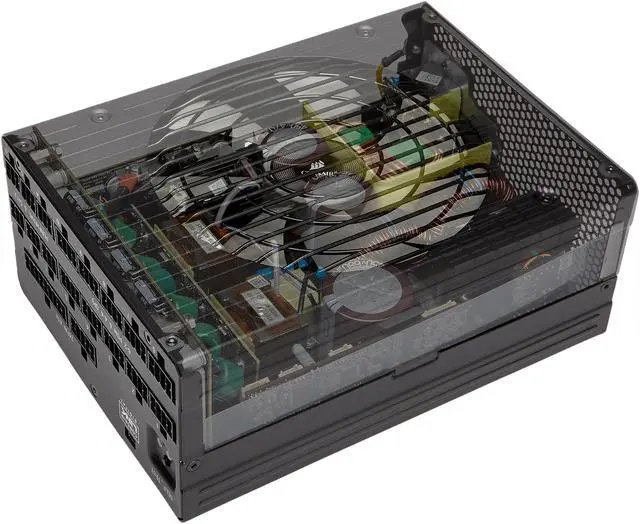

The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.

General
Brand	CORSAIR
Series	AXi Series AX1600i
Model	CP-9020087-NA

Details
Type	ATX
Maximum Power	1600 W
Fans	1 x 140mm Patented FDB cooling fan
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	10 x 6+2-Pin
SATA Power Connector	16
Max PSU Length	200 mm
Modular	Full Modular
Energy-Efficient	80 PLUS TITANIUM Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	15 - 9 A
Output	+5V@30A, +3.3V@30A, [email protected], [email protected], [email protected]

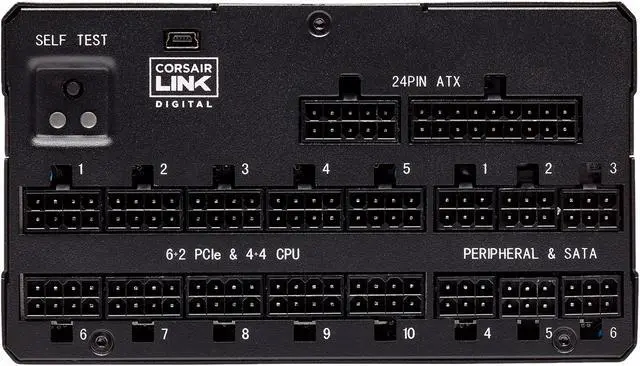

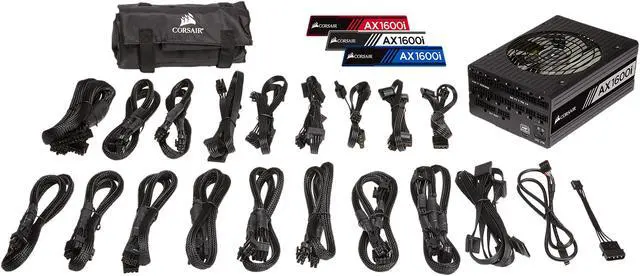

Connectors	1 x ATX (24PIN) (20+4) 2 x EPS/ATX12V (8-PIN) (4+4) 10 x PCI-E (8PIN) (6+2) 4 x SATA (2 SATA) 12 x SATA (4 SATA) 9 x Peripheral (4-PIN) 2 x Floppy Adapter (4PIN) 1 x USB (9PIN)

Features

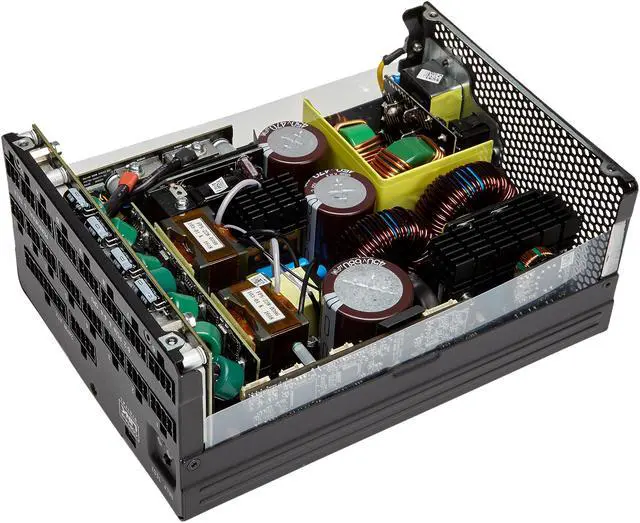

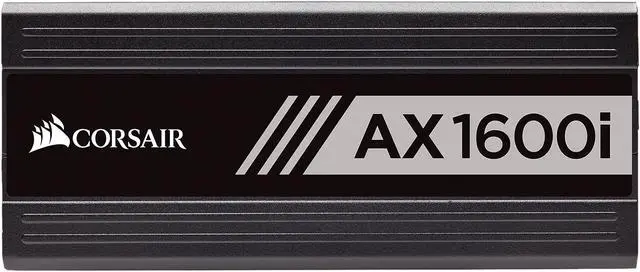

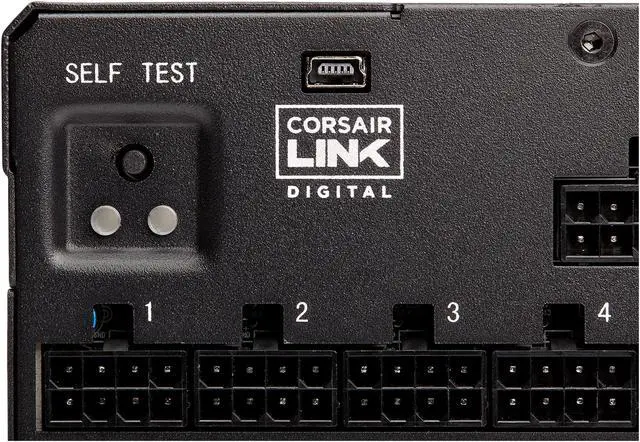

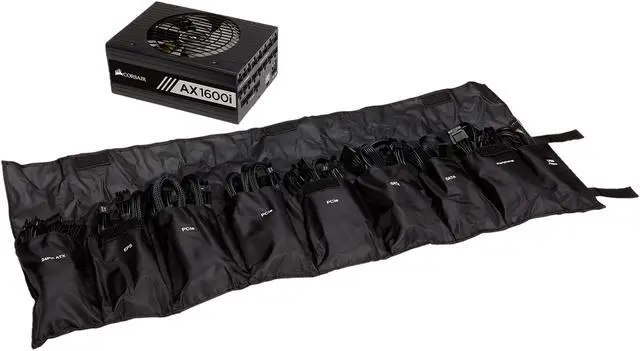

Features	1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power. Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency. The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller formfactor. World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise. Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting. Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop. 140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads. Zero RPM Fan Mode: For near-silent operation at low to medium loads. Choose Your Color: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build. Fully Modular Cables: Use only the cables you need for quick and easy installation Built to Last: Ten-Year comprehensive CORSAIR warranty.

Dimension & Weight

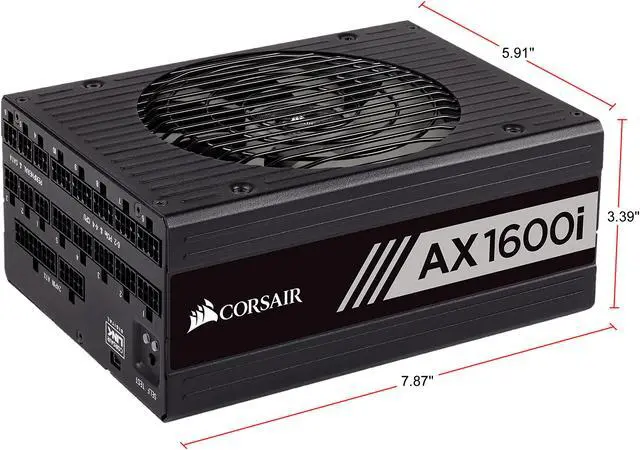

Dimensions	3.39" x 5.91" x 7.87"
Weight	12.80 lbs.
