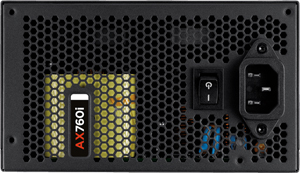

CORSAIR AXi series AX760i Fully Modular Power Supply
An 80 PLUS PLATINUM Certified PSU with breakthrough digital control
The revolutionary AXi Series PSUs are the first desktop PC power supplies to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX760i makes on-the-fly adjustments for incredibly tight voltage regulation which improves overall system stability and reliability. 80 PLUS PLATINUM efficiency means less heat generation and therefore results in quieter fan operation. The 120mm thermally controlled fan uses semi-passive design which stops spinnig at low loads for completely silent power delivery. The fully modular cable design allows for clean system build and better air circulation. Plus, comprehensive protection ensures your system and components remain safe and sound when power anomalies strike.
Real-Time Monitoring and Control with Corsair Link
Put the AX760i under your control by connecting it directly to a USB header on your motherboard with the included cable, or to a Corsair Link Commander (available separately). Then, download the free Corsair Link Dashboard software for unrivaled power supply monitoring and control options.
Monitor power input and output, efficiency, fan speed, and internal temperature, directly from the Windows based application. Or, take it to the next level and set up and modify fan speed profiles, or even select from virtual “single rail” or “multi-rail” software modes, with selectable OCP points.
DSP-controlled, real-time voltage regulation helps ensure that your valuable components receive clean, stable power.
AX760i's extreme efficiency earns it coveted 80 PLUS Platinum certification. Less wasted power means minimal excess heat. This can reduce the strain on your other components, and it can save you money over the long run in the form of lower power bills.
Super-high efficiency has another benefit: silence. The thermally-controlled fan doesn't even spin at low loads. It's ideal if you're building a quiet PC or you just want to reduce the amount of ambient noise in your life.

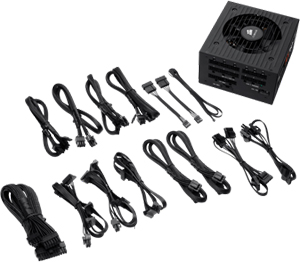

The fully modular cable set allows you to use only the cables you need, and the flat design makes cable routing much easier in tight spaces. You get a clean-looking system build with cables out of the airflow path for efficient space usage that's energy efficient as well.
- Digital Signal Processor (DSP) for delivering extremely clean, efficient power with real-time adjustments
- Corsair Link Integration for monitoring and adjustment of performance, noise, and OCP settings
- Dedicated single +12V rail with user-configurable virtual "single rail" and "multi-rail" software modes
- An ultra-quiet, 120mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature
- 80 PLUS Platinum certified, delivering up to 92% energy efficiency under real-world load conditions
- Universal AC input from 90~264V
- Active Power Factor Correction (PFC) with PF value of 0.99
- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
- Engineered to meet maximum power output at a server-grade 50°C temperature rating.
- Self-test switch to determine PSU functionality even before installation.
- High-quality capacitors provide uncompromised performance and reliability
- Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
