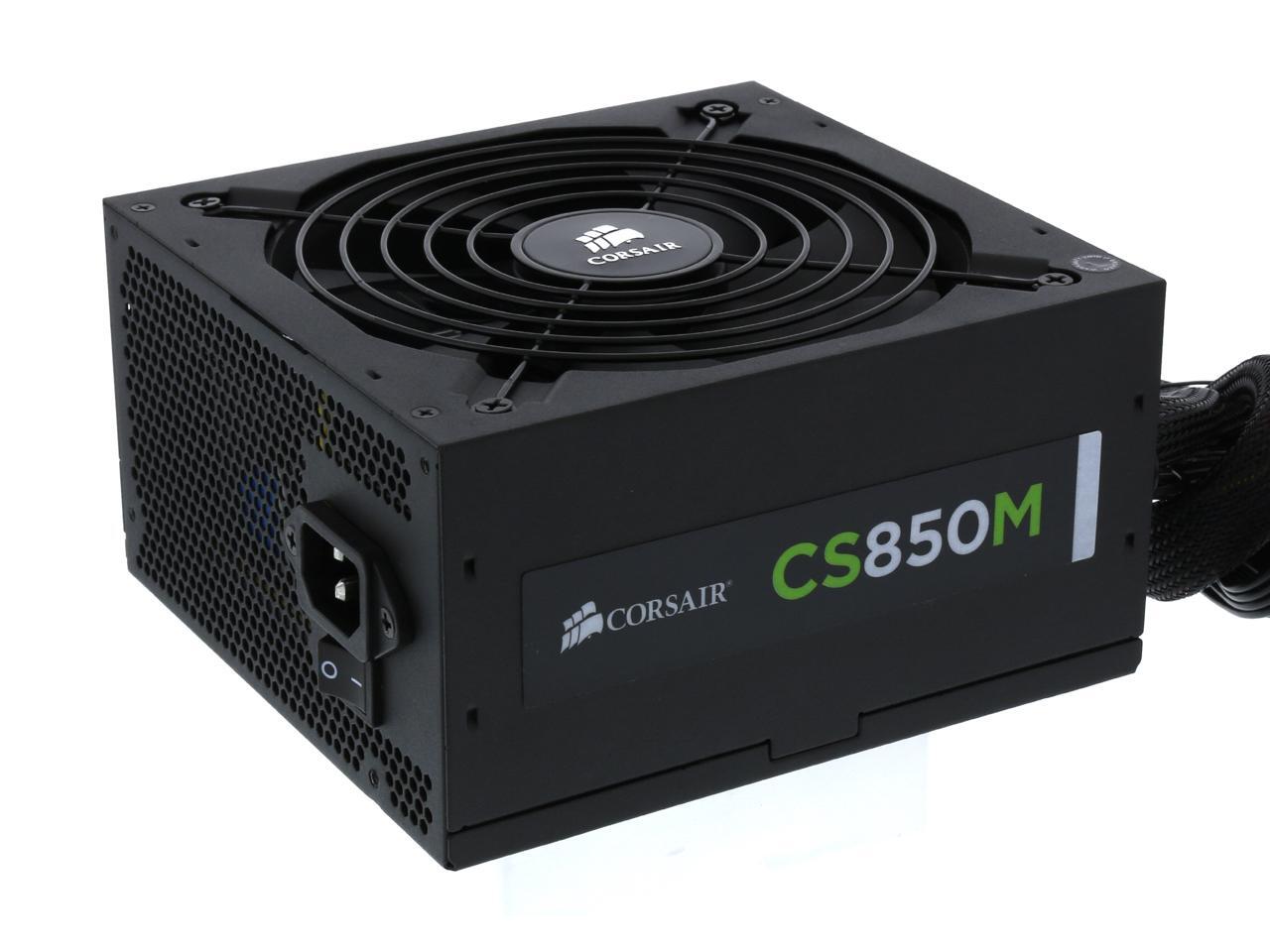

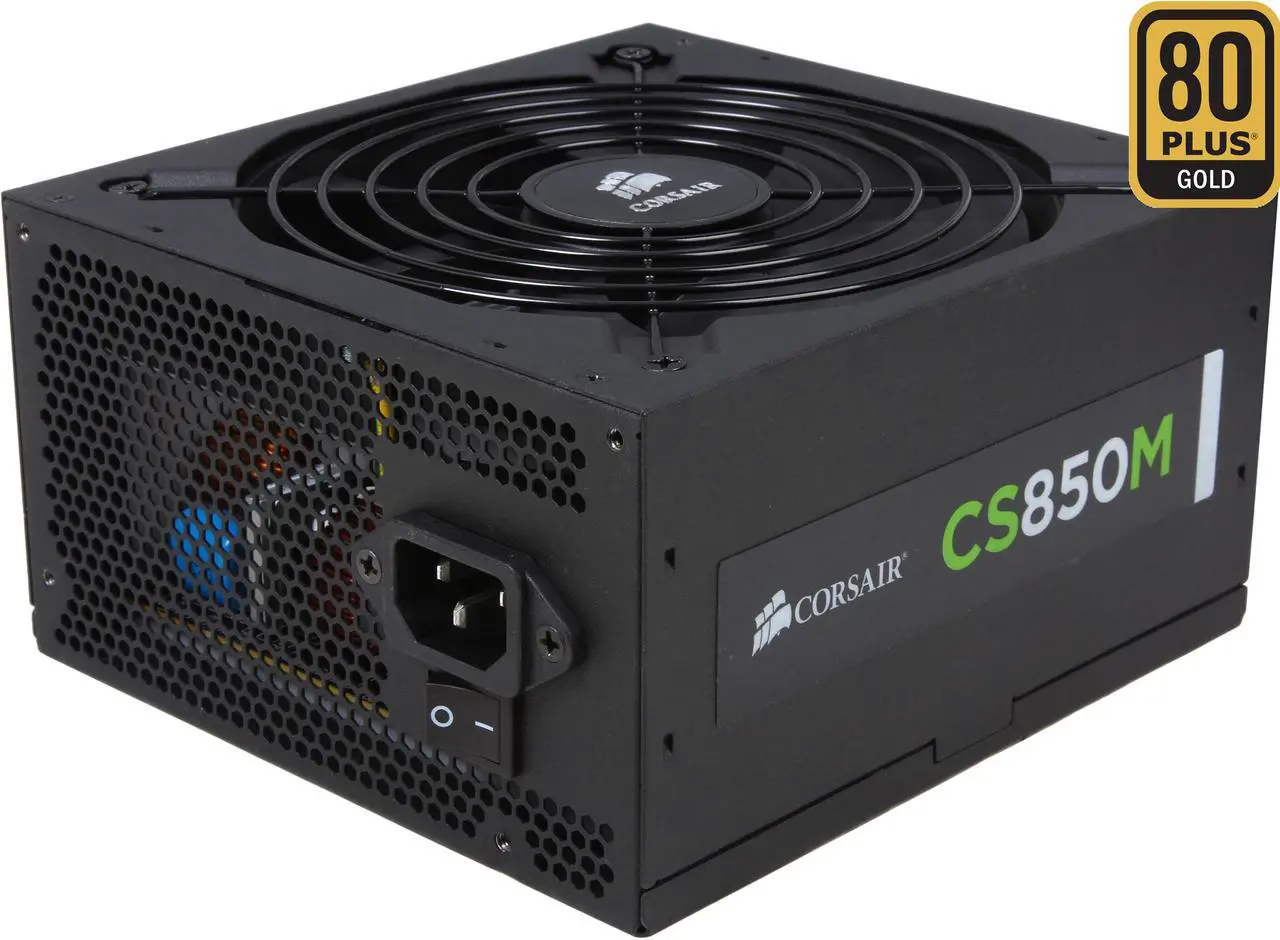

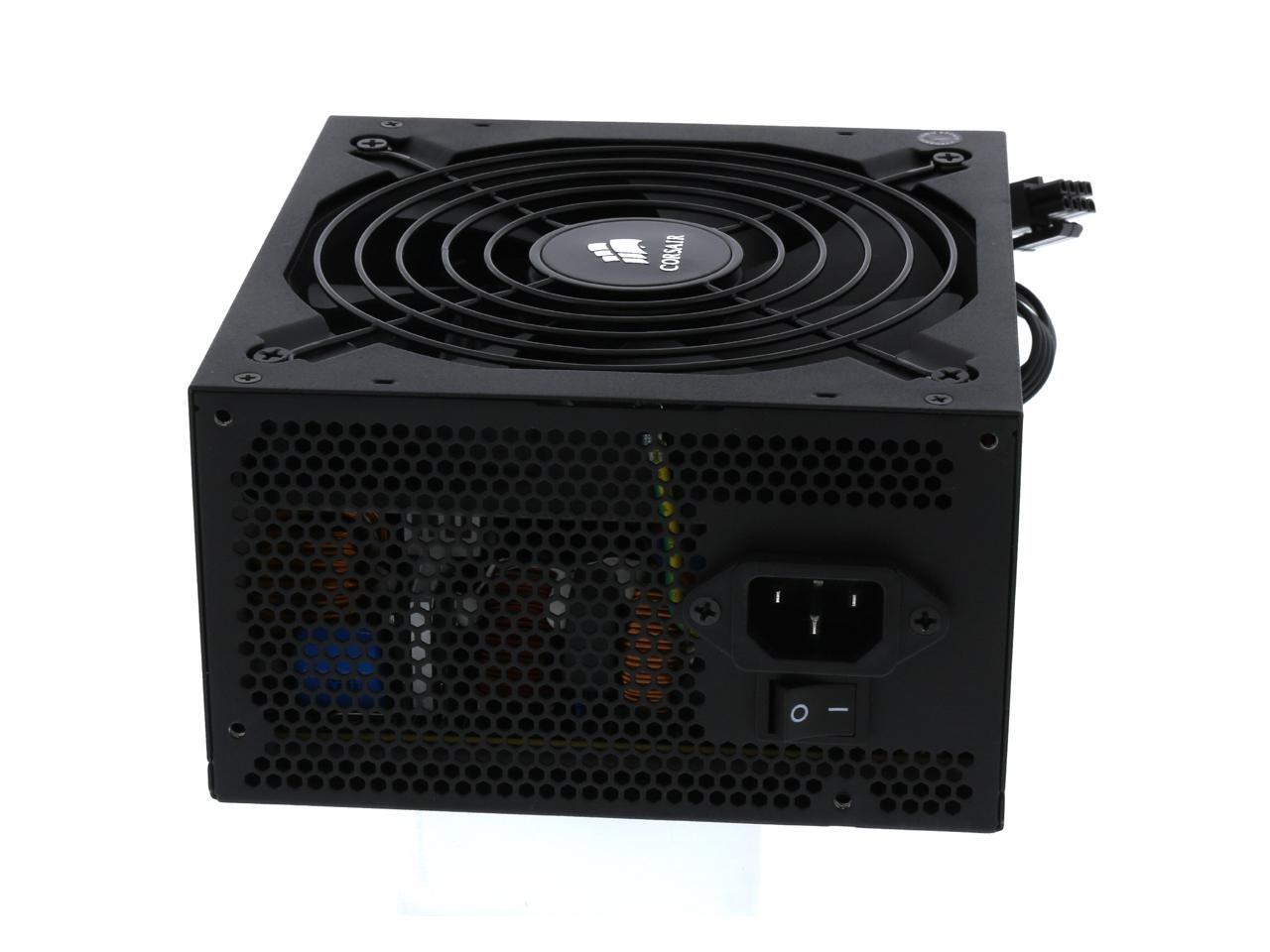

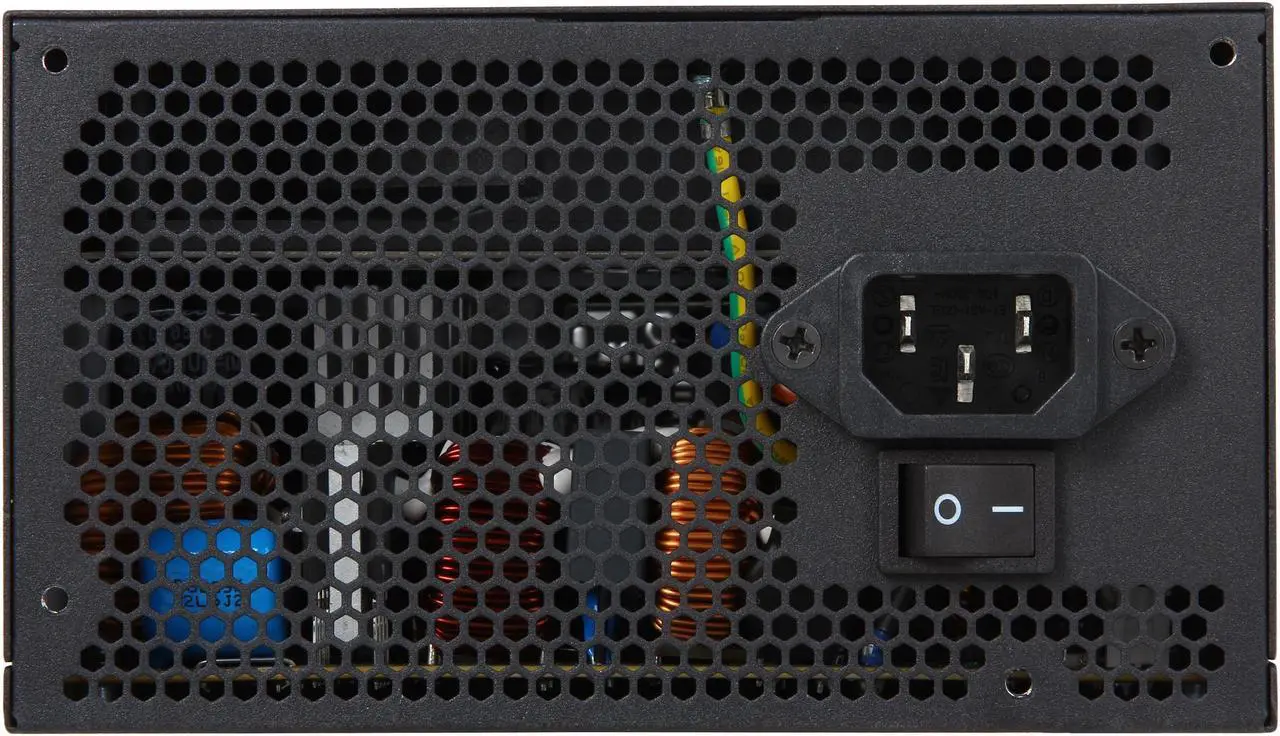

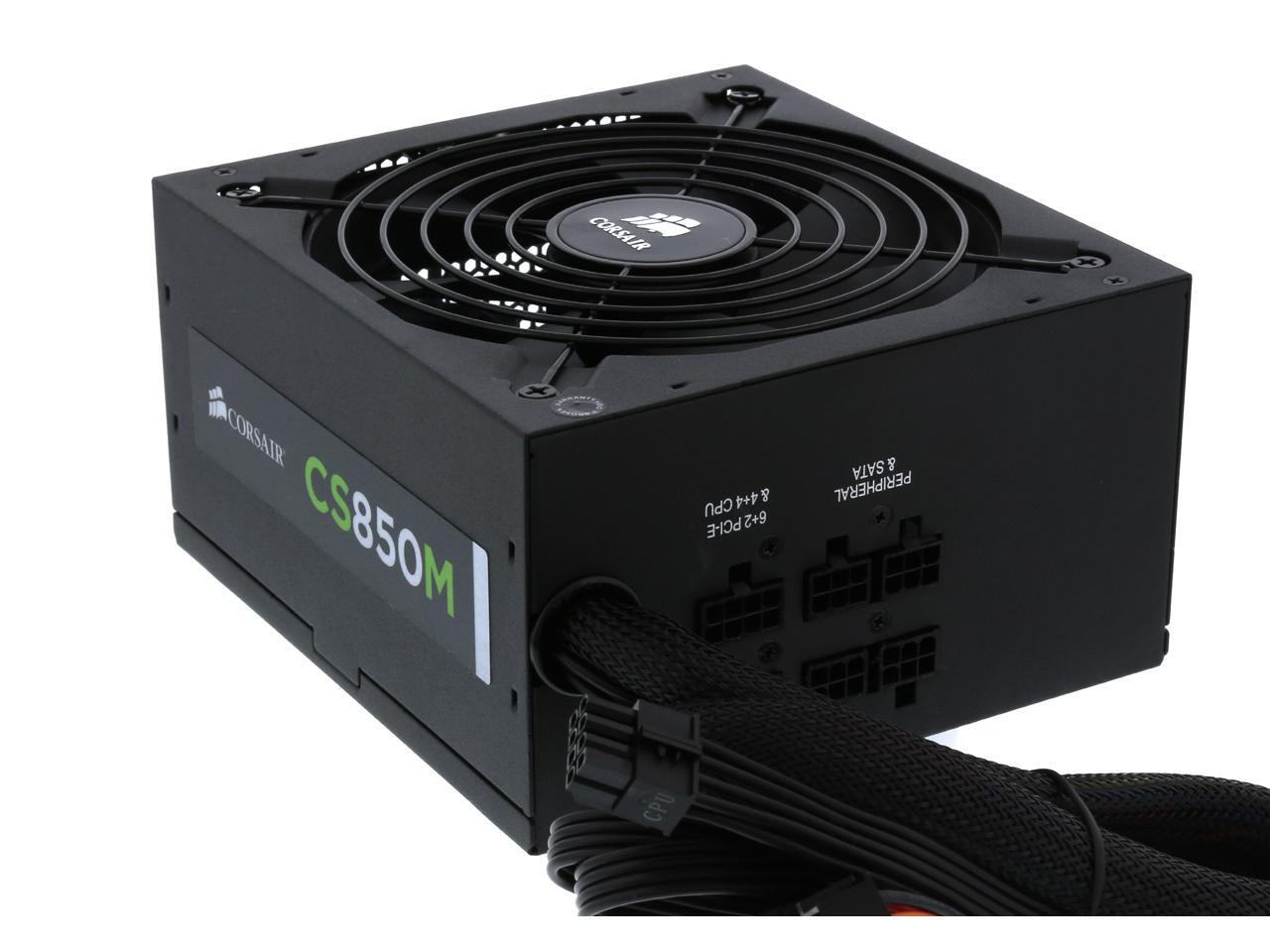

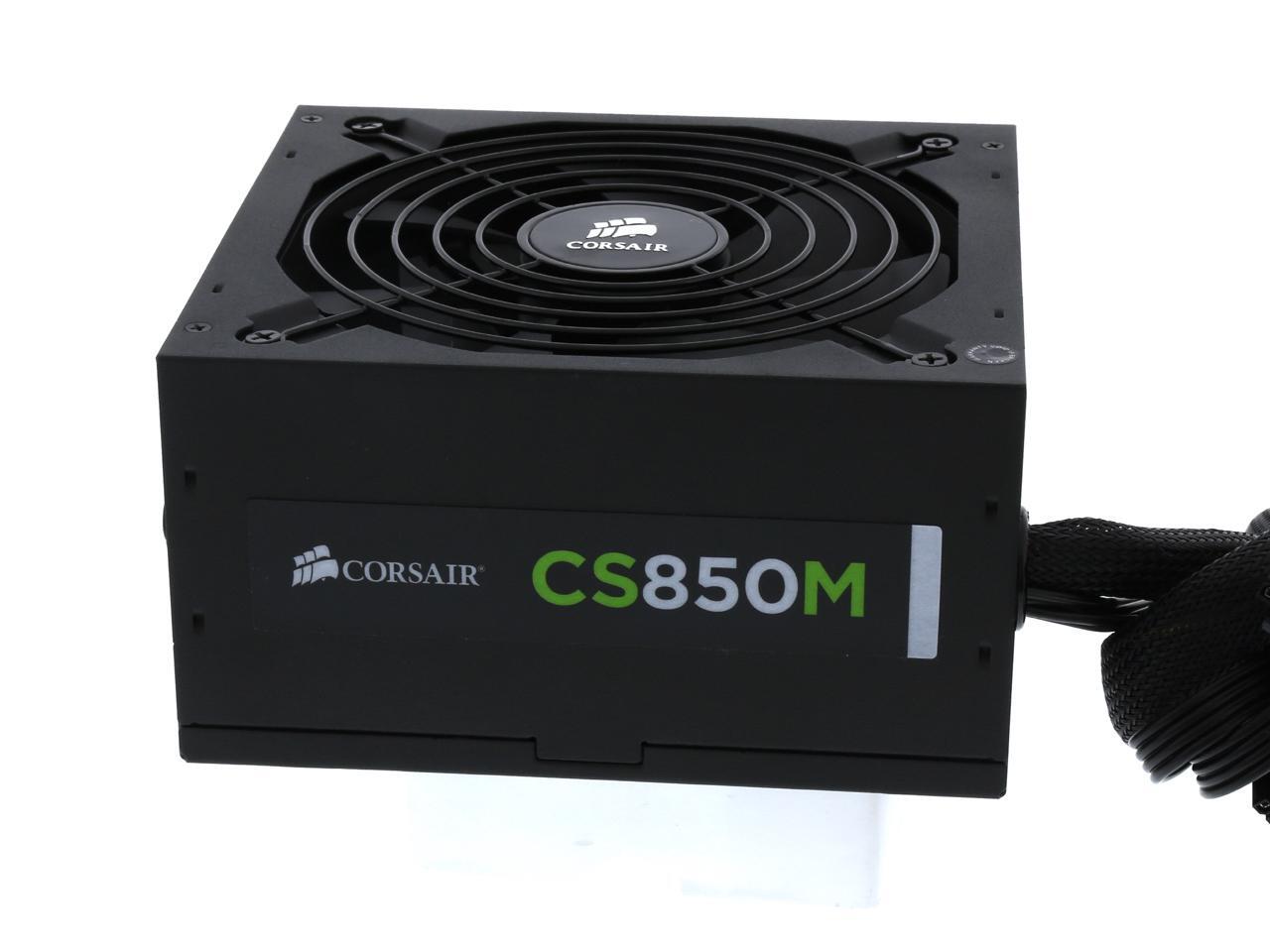

Main image of CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

100%

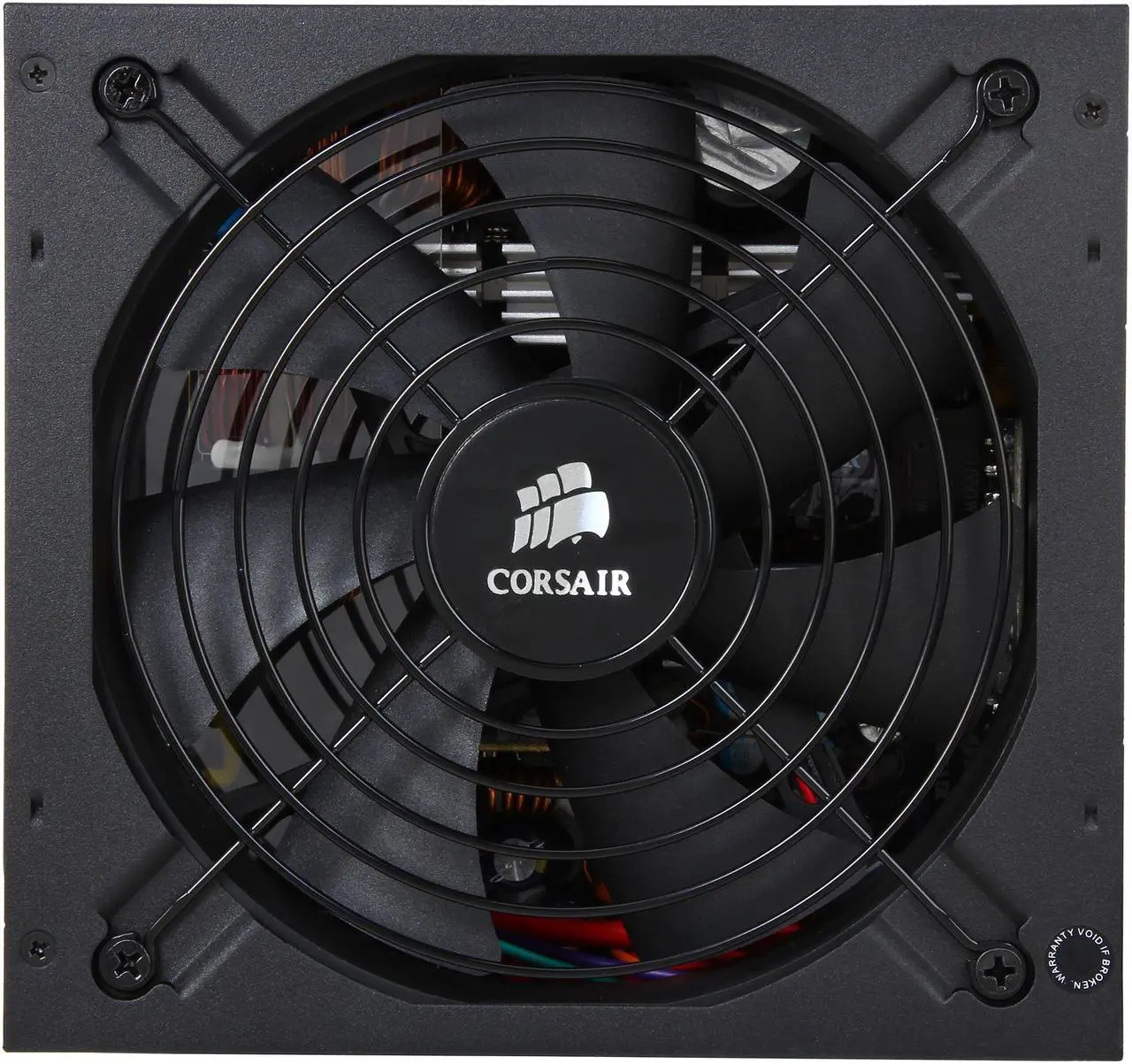

Alt view image 3 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

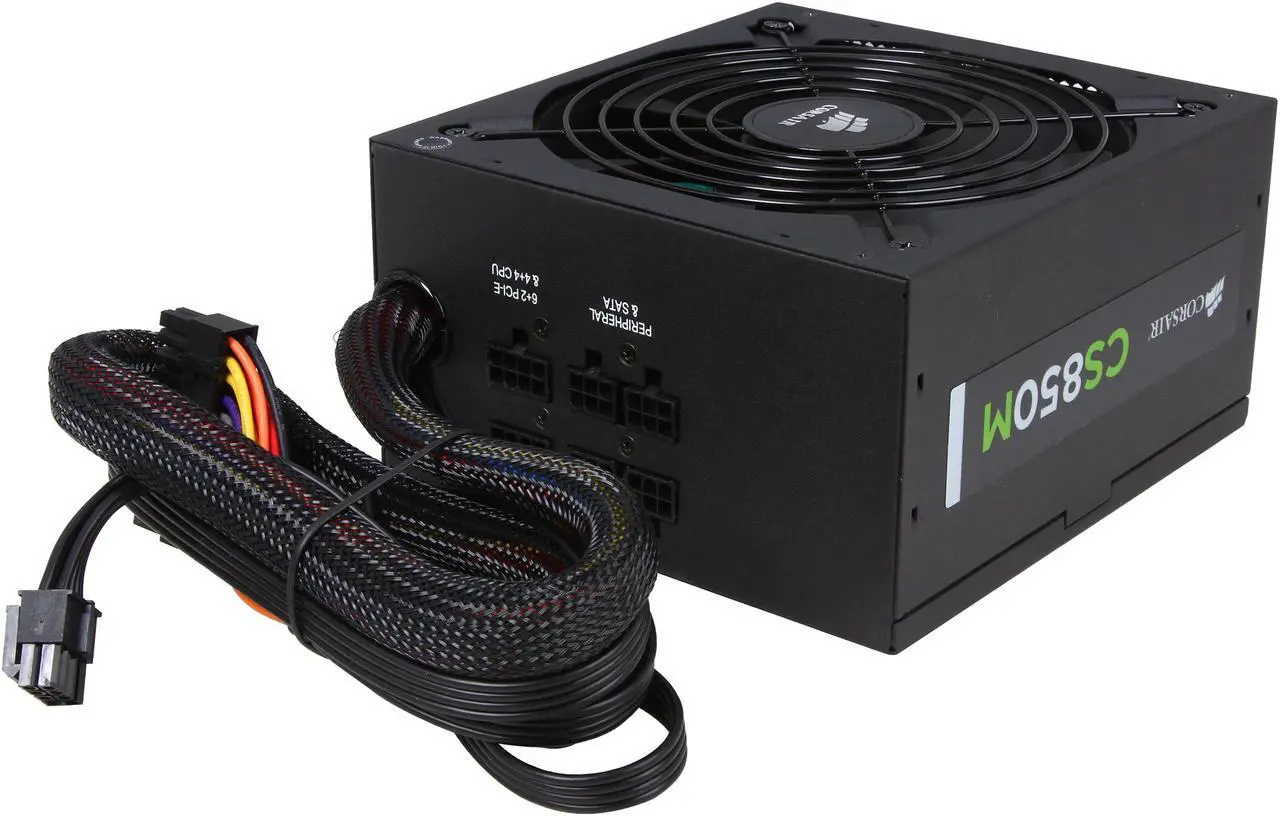

Alt view image 4 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

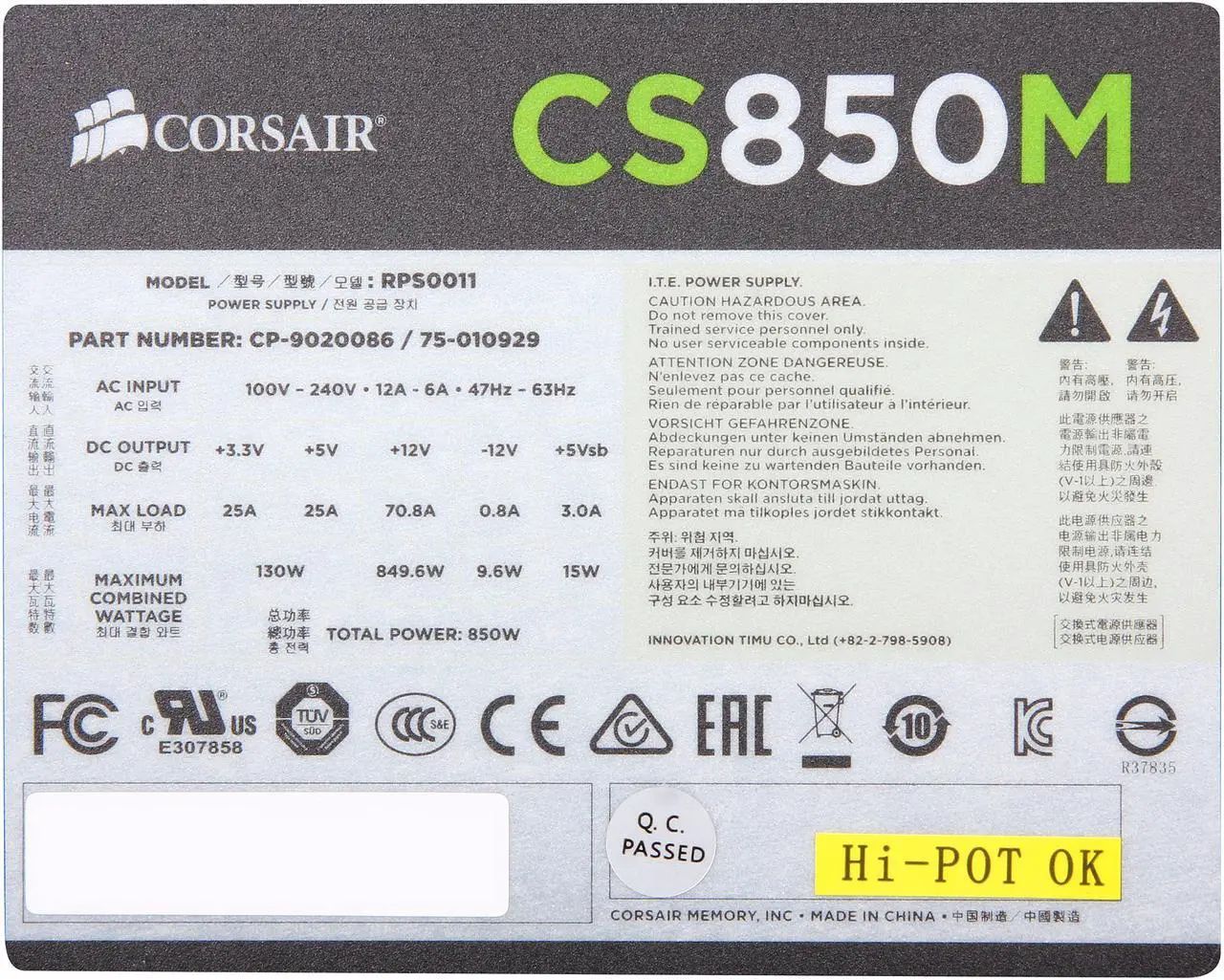

Alt view image 5 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

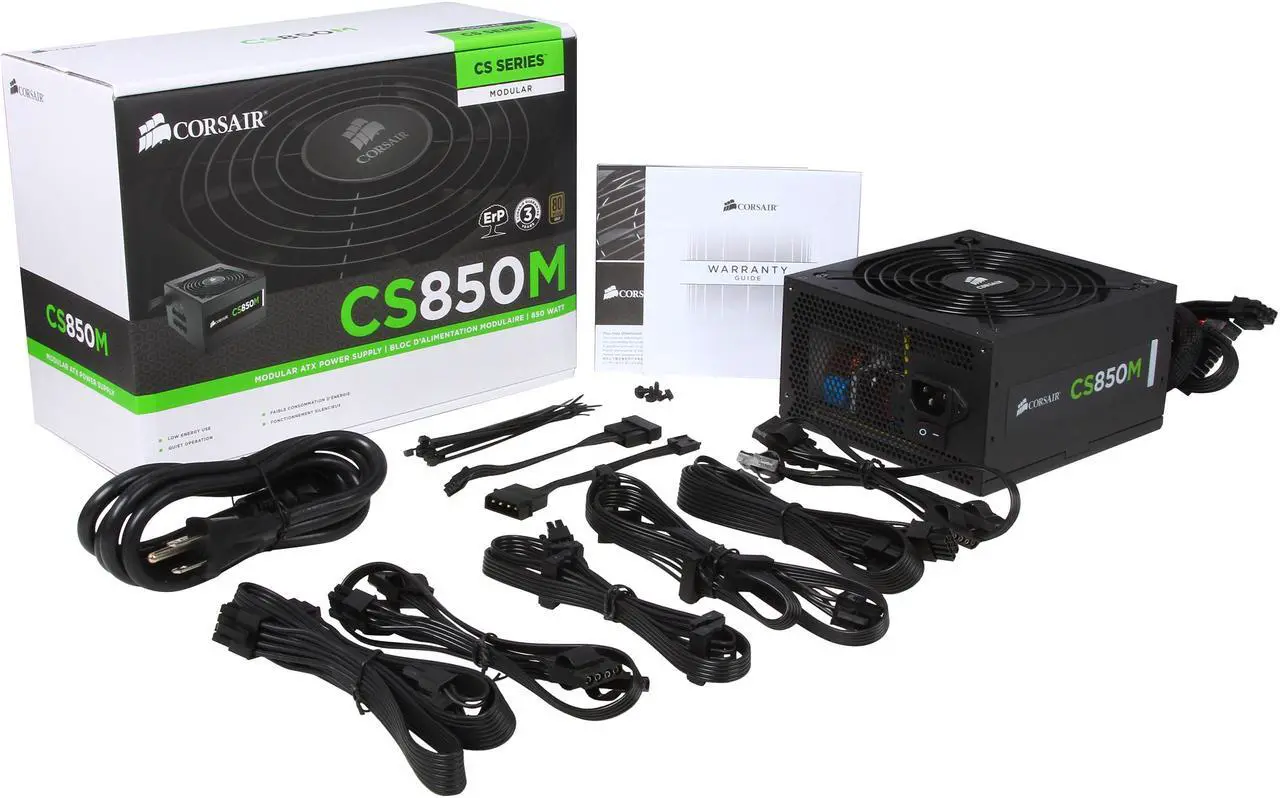

Alt view image 6 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

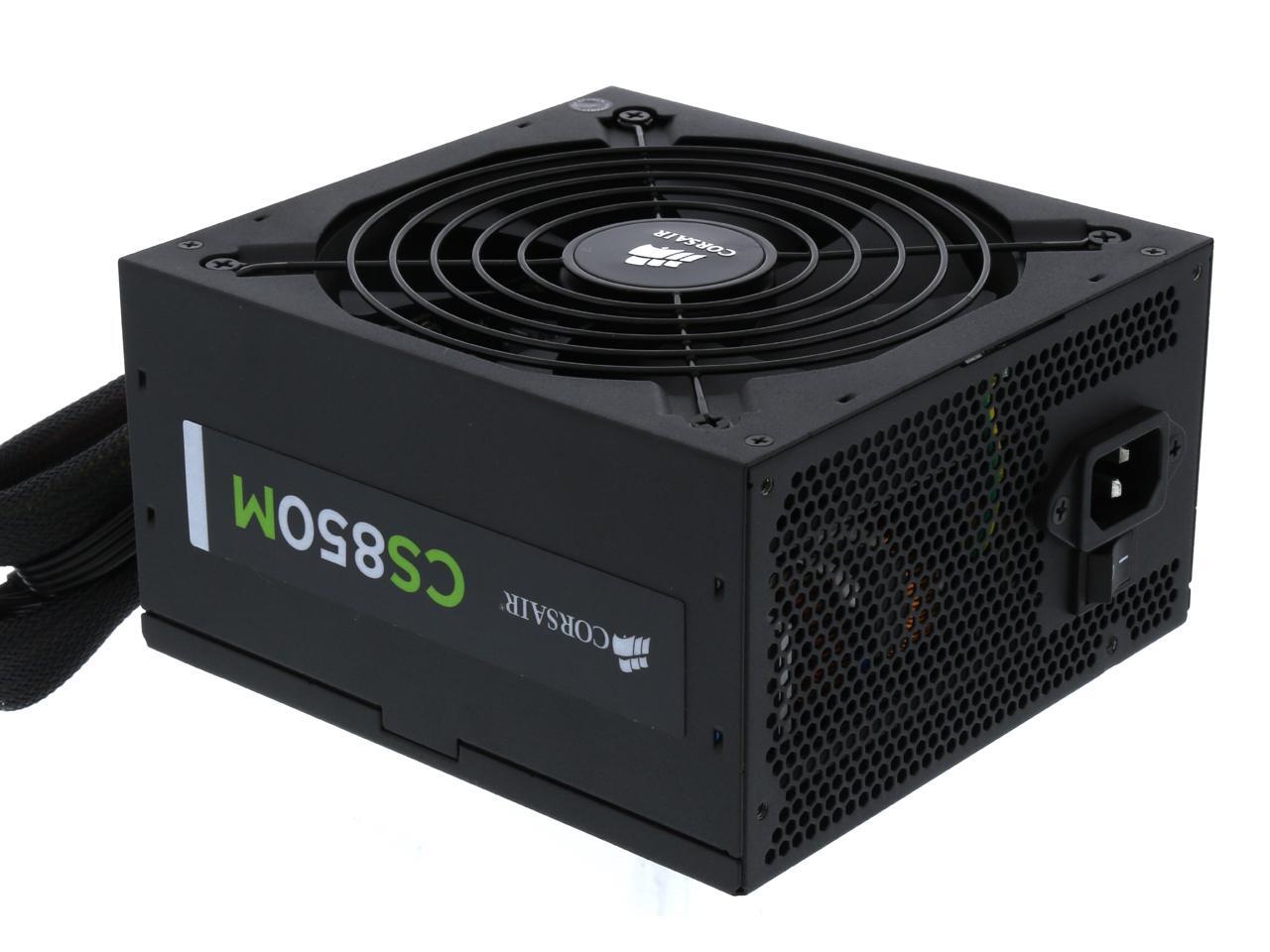

Alt view image 7 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

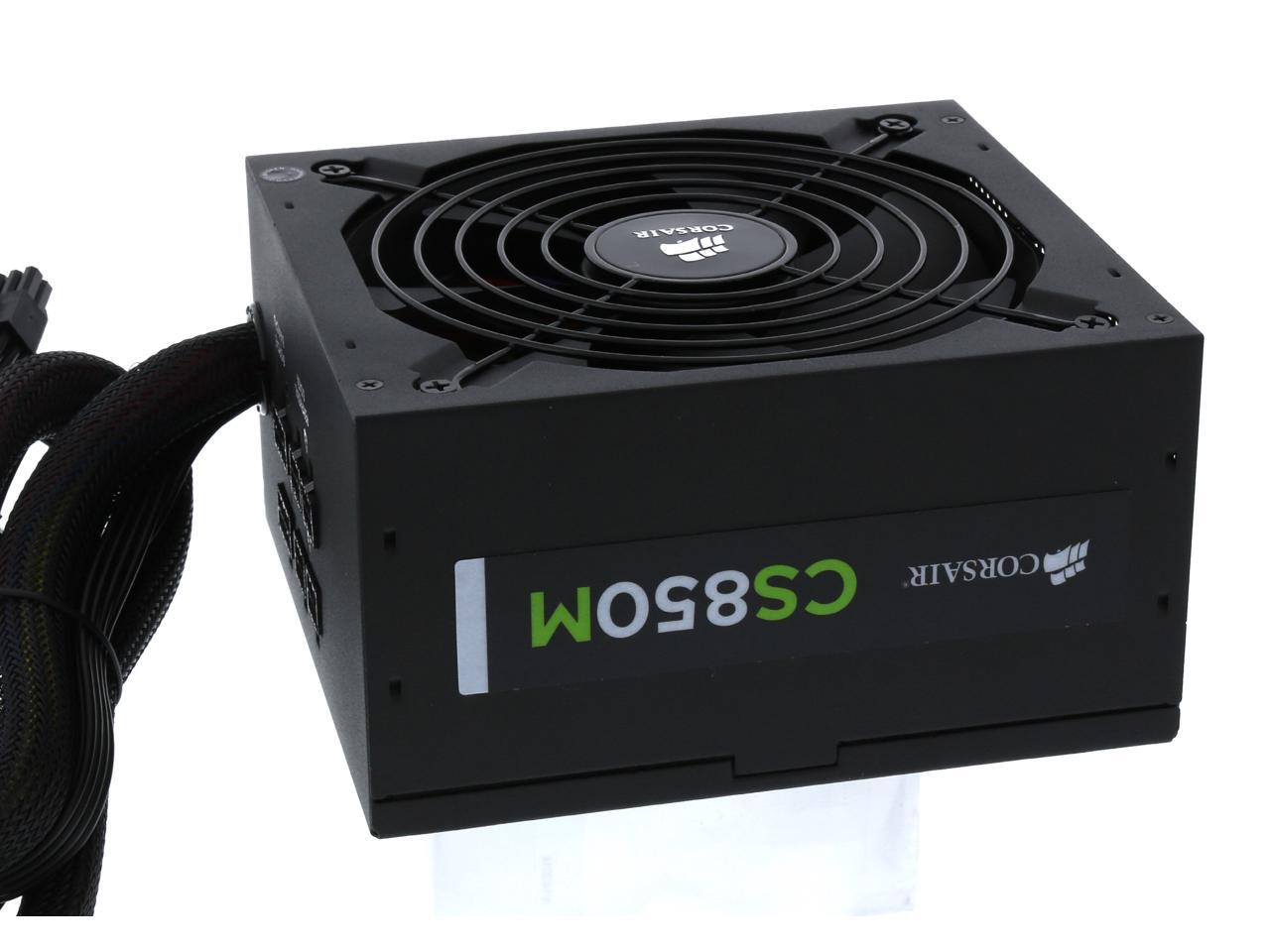

Alt view image 8 of 7 - CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

360^°

Shop All Corsair Products

CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply

Name: CORSAIR CS-M Series CS850M 850W 80 PLUS GOLD Active PFC Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply
Brand: Corsair
SKU: N82E16817139098
Rating: 4 (15 reviews)

(15) Write a Review

ATX12V / EPS12V
Semi-Modular
80 PLUS GOLD Certified
100 - 240 V 47 - 63 Hz
+3.3V@25A, +5V@25A, [email protected], [email protected], +5VSB@3A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (15)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Type	ATX12V v2.4 and EPS 2.92
Maximum Power	850 W
Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Haswell Support	Yes
Modular	Semi-Modular
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	12 - 6A
Output	+3.3V @ 25A, +5V @ 25A, +12V @ 70.8A, -12V @ 0.8A, +5VSB @ 3A
MTBF	>100,000 Hours
Approvals	FCC, ICES, UL, CUL, TUV, CCC, CE, RCM, CB, EAC, KC, BSMI, ROHS, WEEE

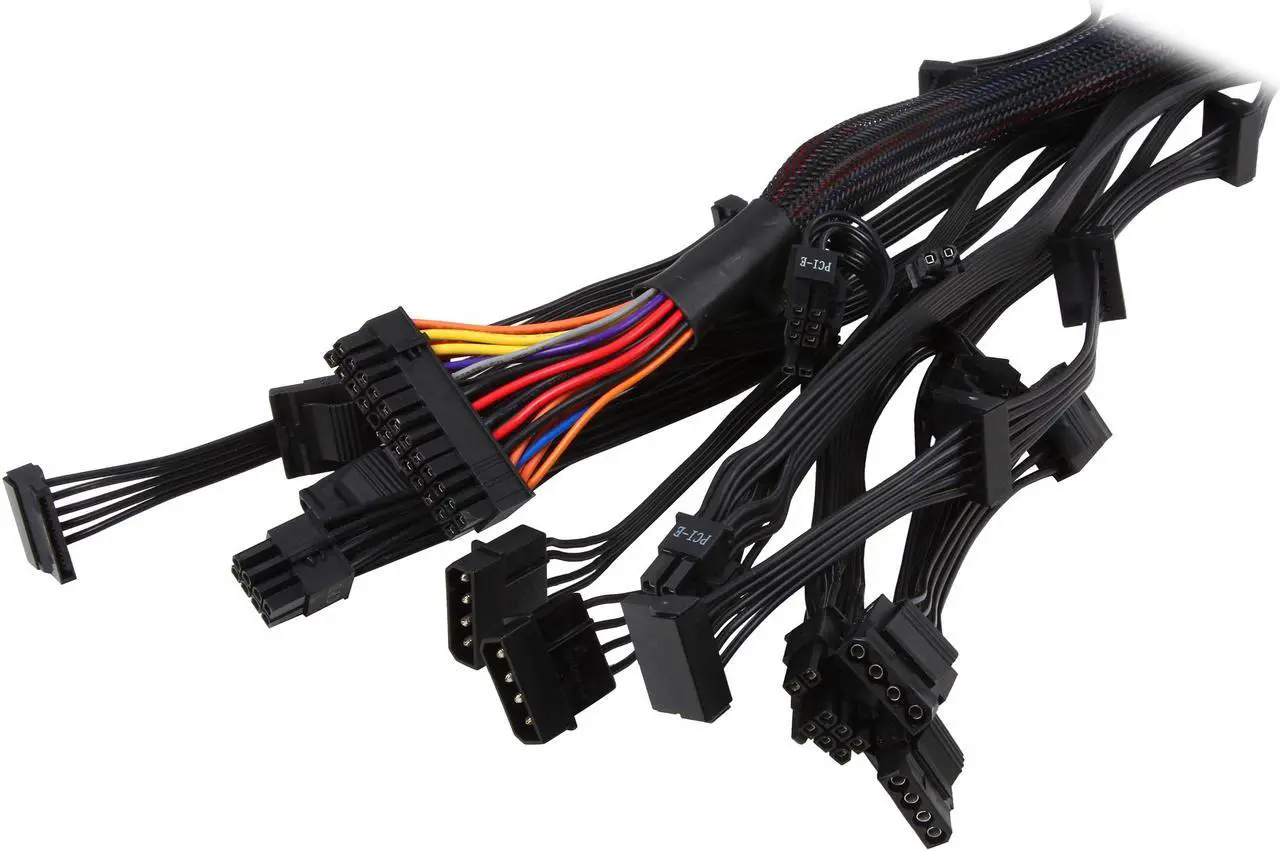

Connectors	1 x ATX Connector 1 x EPS Connector 2 x Floppy Connector 8 x 4-Pin Peripheral Connector 4 x PCI-E Connector 8 x SATA Connector

Dimensions	3.39" x 5.51" x 6.30"
Weight	5.46 lbs.
