Question 1

Does this PSU have cables to plug directly into a fan? My motherboard does not have enough fan headers.

Accepted Answer

No, you will need to purchase a molex to fan adapter or some sort of fan hub like the NZXT Grid v2

Question 2

Is this compatable with the
MSI MPG Z490 GAMING EDGE WIFI LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard?

Accepted Answer

This unit is a standard ATX PSU. It is compatible with all standard ATX motherboards, BUT, it may not have the wattage needed. If you are running a high-end CPU with a TPD of 95 watts or more, a decently powerful GPU, and any optical storage, this will likely not be enough. I strongly suggest you check out a power supply calculator like Newegg's https://www.newegg.com/tools/power-supply-calculator/ to determine what exactly your will need.

Question 3

Does this unit come with a power cable?

Accepted Answer

Yes. New ones always come with ppwer cables, only refurbished ones may have it missing.

Question 4

Will this fit in a normal ATX slot?

Accepted Answer

Yes, it will.  I have an ATX motherboard.

Question 5

what type is the plug of the psu?

Accepted Answer

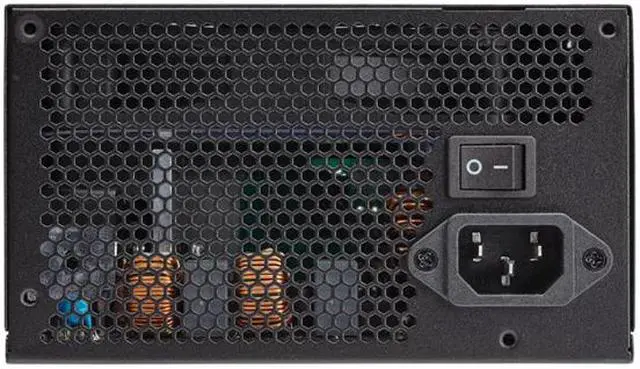

The male end is a standard US 110 volt household plug, the female is the same that is used on most desktop computers, printers and monitors.

Question 6

Can this power supply fit in an ATX mid tower?

Accepted Answer

Yes.

Question 7

Can this be used on a skylake build?

Accepted Answer

Yes it can, you may want a little more watts depending if you modified the build or what not but theres no compatibility issues , i reccomend using PC part picker they do all the math and compatablilty for you!

Question 8

Which cables are directly plugged in to the PSU? I saw the 24 PIN MoBo power but couldn't Identify the other one.

Accepted Answer

It had everything I needed I just had to figure out which was which but it was all there.

Question 9

Is this the CX-M 2015 Edition or the original? If you look at the documentation (and Johnny Guru reviews) the original editions are only rated to run continuously at 30 degrees Celsius, whereas the 2015 edition is rated at 40C. What are the thermals like? Have you had thermal related shutdowns?

Accepted Answer

I purchased the older model. Honestly, if you're PSU is running continuously at 30 degrees C, then you have other issues that are way more important.

Question 10

Where is the link to the rebate? Usually it's right next to the price, which is displayed $20 rebate however, there is no active link.

Accepted Answer

If a rebate isn't listed on the actual product page, you should be able to find it in the following link: http://www.newegg.com/Special/Rebate.aspx?name=Rebate-Center

Brand	CORSAIR
Series	CXM Series CX450M
Model	CP-9020101-NA

Type	ATX12V / EPS12V
Maximum Power	450 W

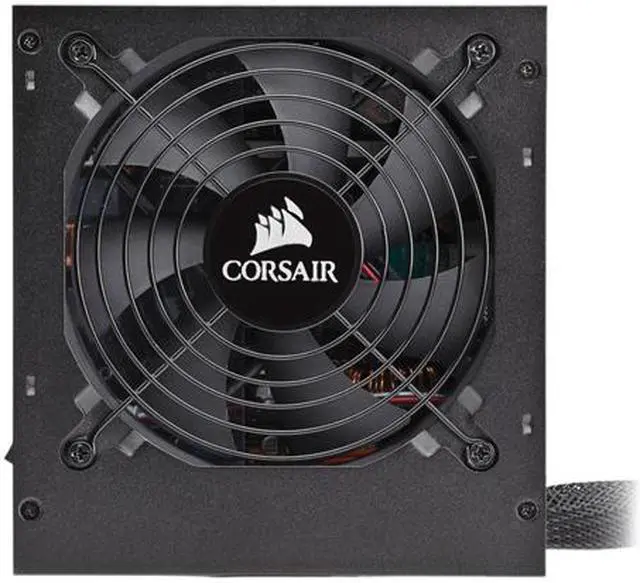

Fans	1 x 120mm Rifle Bearing Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	4
SLI	No
Haswell Support	Yes
CrossFire	No
Max PSU Length	140 mm
Modular	Semi-Modular
Efficiency	Up to 85%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V (Auto-switching circuitry), 90 - 264 V (Universal)
Input Frequency Range	47 - 63 Hz
Input Current	6 - 3 A
Output	+3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A
MTBF	100,000 hours
Approvals	FCC, ICES, CE, C TUV-US, RCM, TUV, CB, CCC, BSMI, CU TR, RoHS, WEEE, RoHS (China), KC

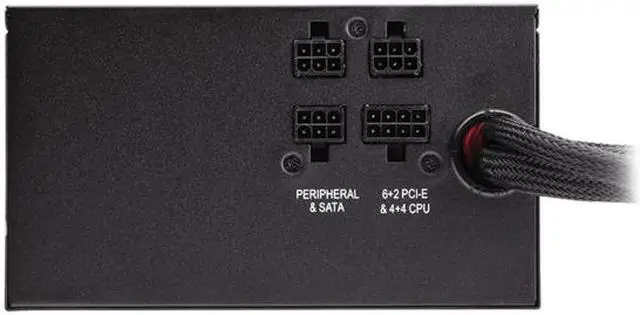

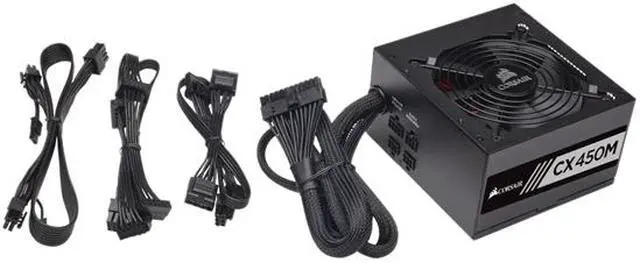

Connectors	1 x Motherboard (20+4-Pin) 1 x CPU power (4+4-Pin, works as either 4 or 8-Pin) 2 x PCIe 6+2-Pin (GPU) 4 x SATA 3 x 4-Pin peripheral 1 x Floppy power

Dimensions	3.39" x 5.51" x 5.91"
Weight	7.21 lbs.

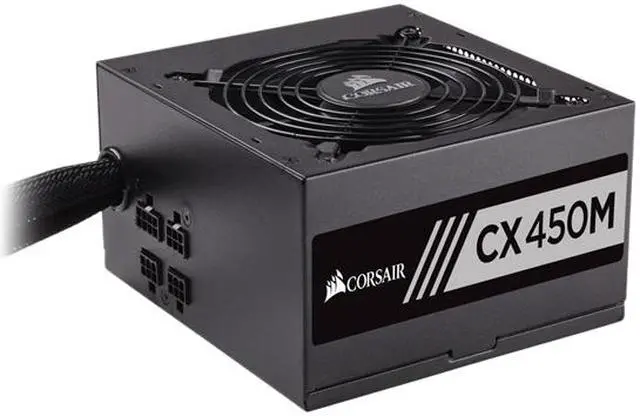

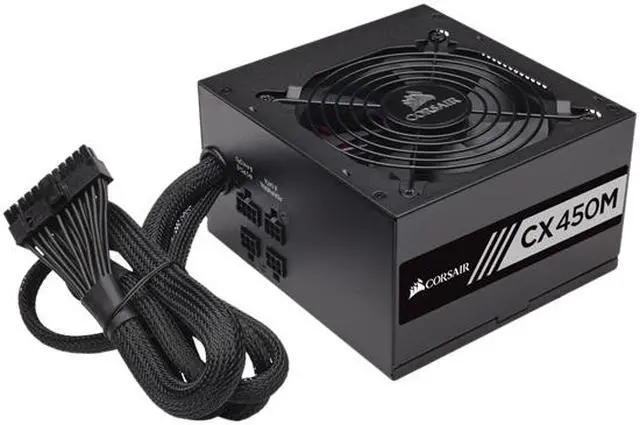

CORSAIR CX-M Series CX450M 450W 80 PLUS BRONZE Haswell Ready ATX12V & EPS12V Semi-Modular Power Supply, CP-9020101-NA
