Will this fit Motherboard: ASRock Fatal1ty X370 Gaming-ITX/ac AM4 ?

I checked the provider website of your motherboard and it clearly says that it supports PCIe 3 x4 M.2 NVME SSD drive This drive should work on it without any issue. Open the CPU tower and loook at the montherboard. There must be a section for M.2 SSD drive with a label on it about PCIe spped. Is should say PCIe 3 x4 NVME.

Would this SSD be compatible with the ASRock Z390 Steel Legend (300 Series) mobo?

Yes, that should work just fine. I have (2) MP510 drives, one with a x370 board and one with a H370M board. Both systems work great. The z390 board you are looking at is nicer than either of my two systems and the z390 supports a 2280 sized M.2 PCIe SSD so you're good to go.

Will this product fit MacBooks with PCe memory from the factory? Will it require an adapter?

Older MacBooks I’m not sure. You’d probably have to open it up and measure the length of the old stick, and check the pins in the interface. I think some might’ve had a proprietary pin out. No adapters for such a thing I’m aware of; it’s too tight in there. Newer MacBooks (at least my 2016 MacBook Pro and onwards) it won’t work at all. All their storage and ram chips are soldered straight to the logic board. Have to replace the whole board if you want to upgrade.

Home
Components & Storage
SSD
Internal SSDs
Corsair
Item#: 9SIC9BAM698215

$79^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Taiwan.

Sold by Multishop Vivora

Shipped by Multishop Vivora

Price alert

Add to Wish List

Meet Your Seller

Multishop Vivora

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

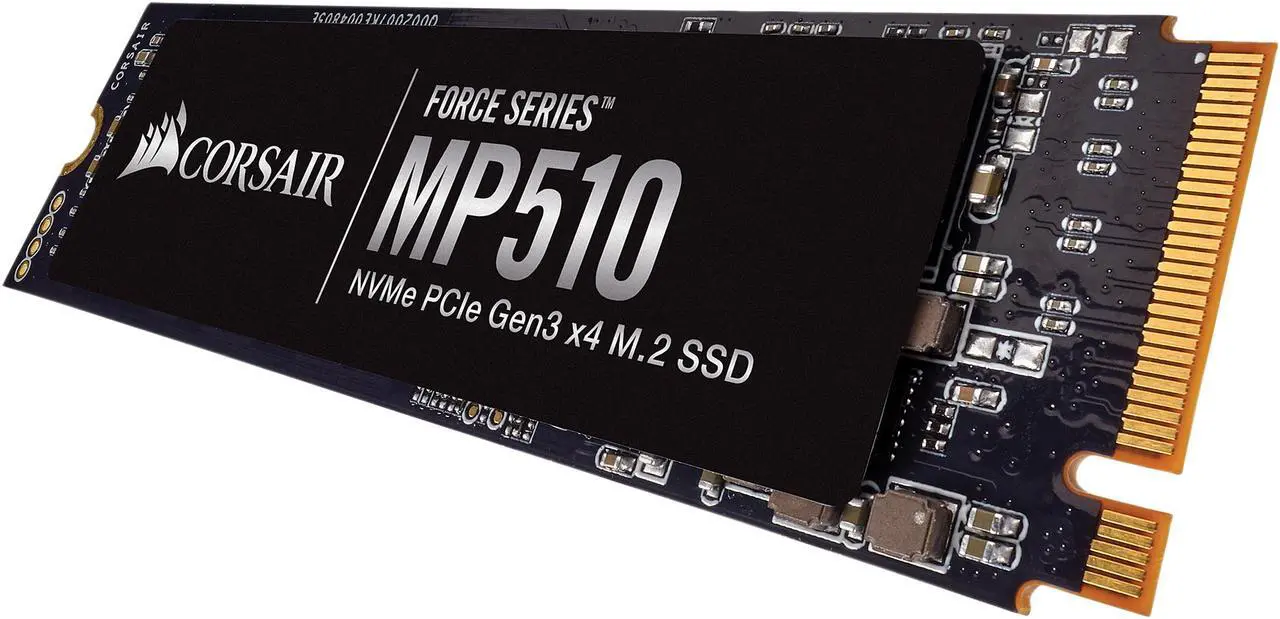

Main image of Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

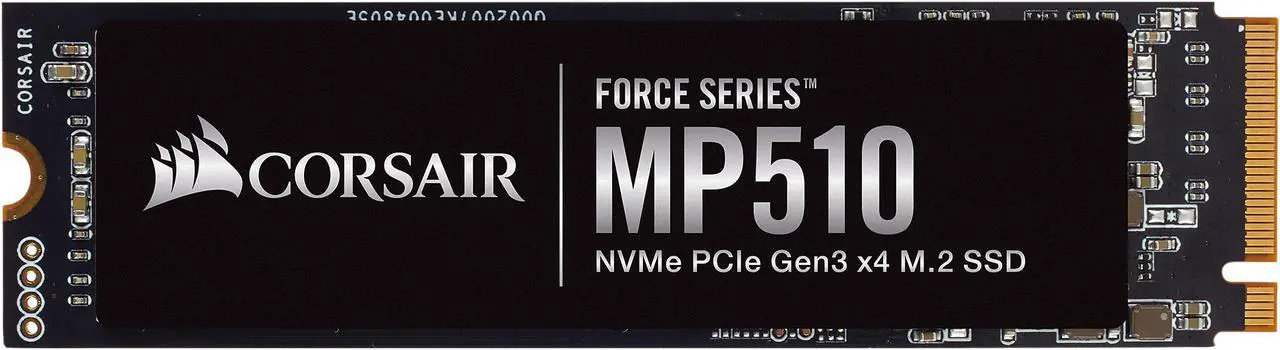

Alt view image 2 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

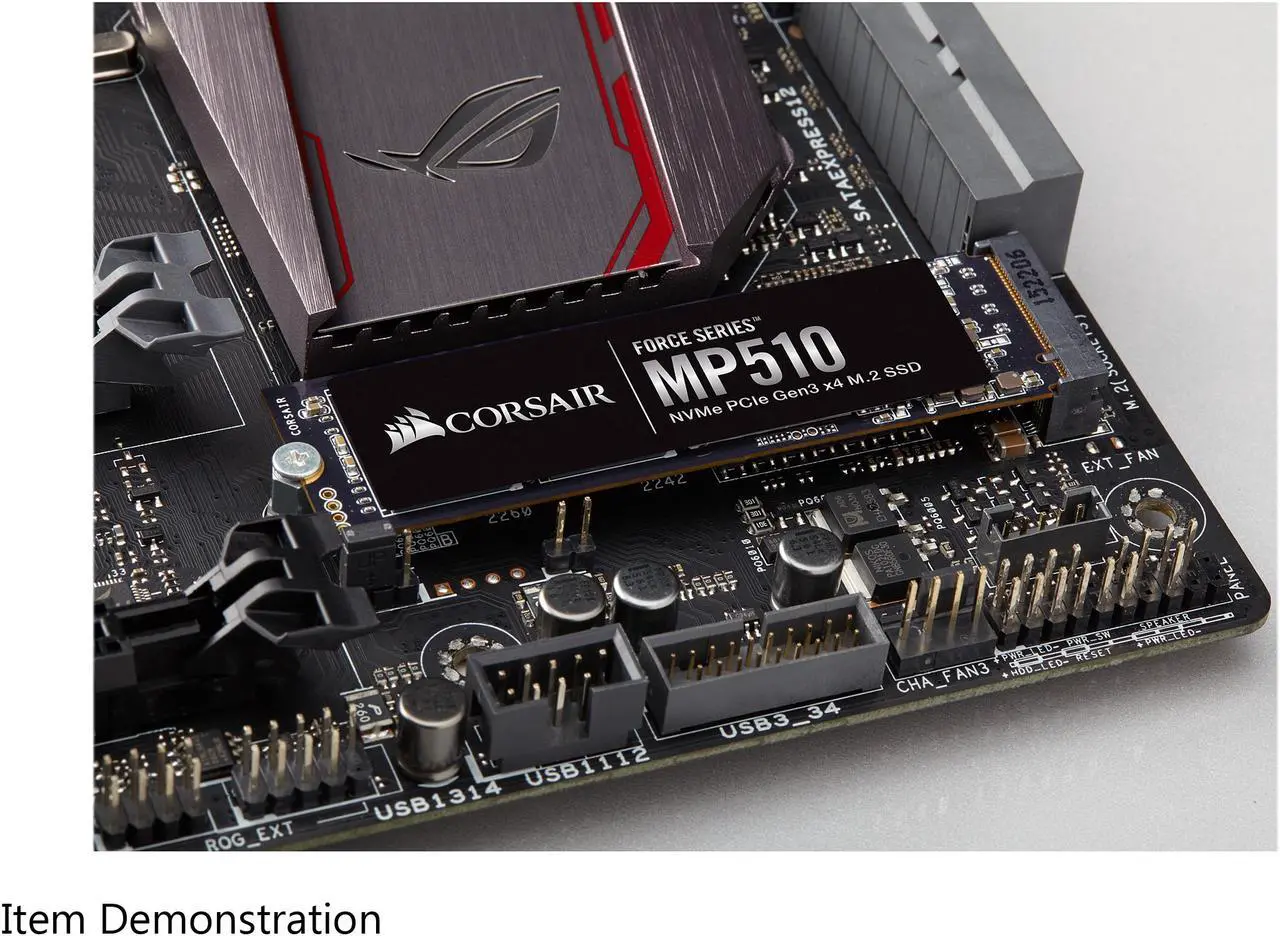

Alt view image 3 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

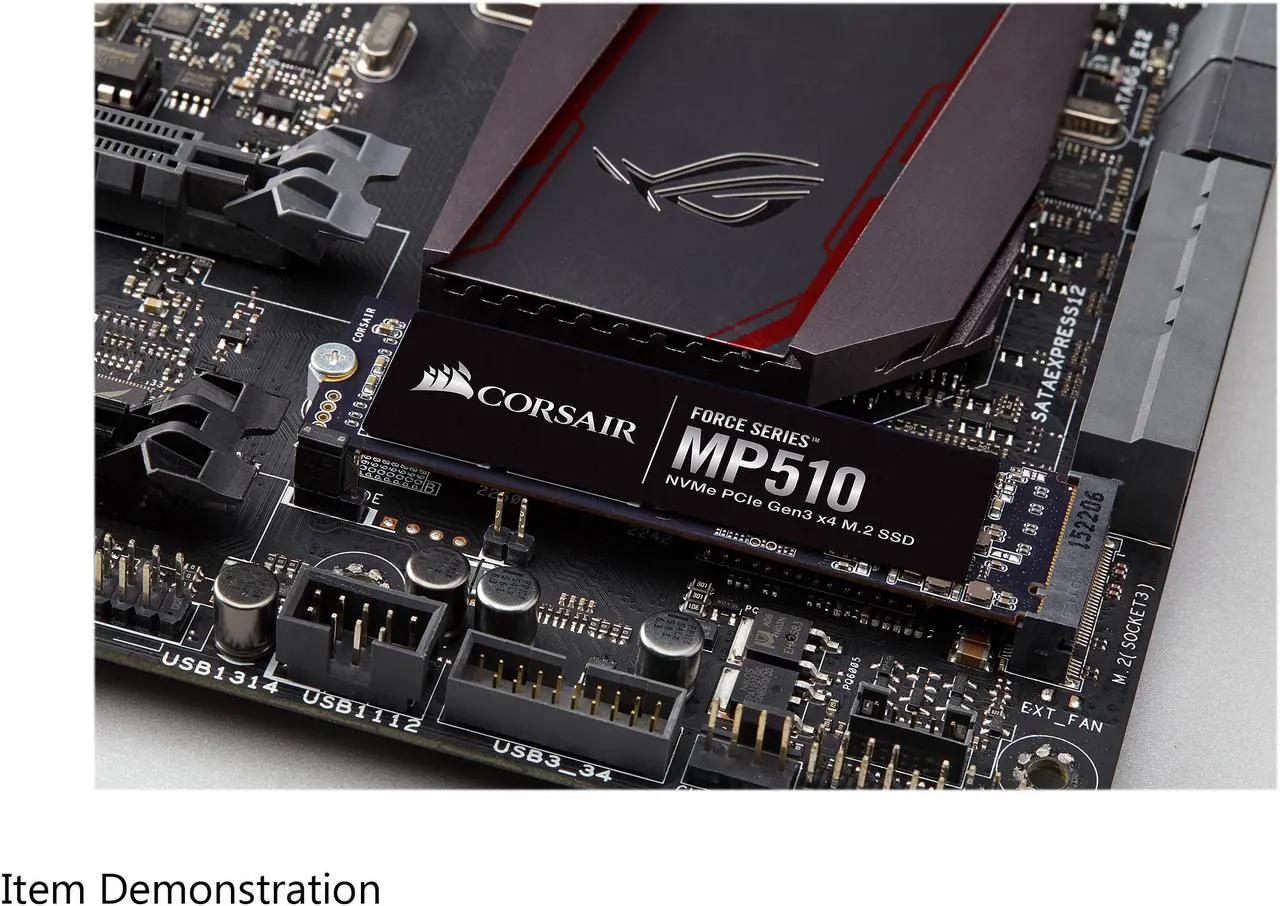

Alt view image 4 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

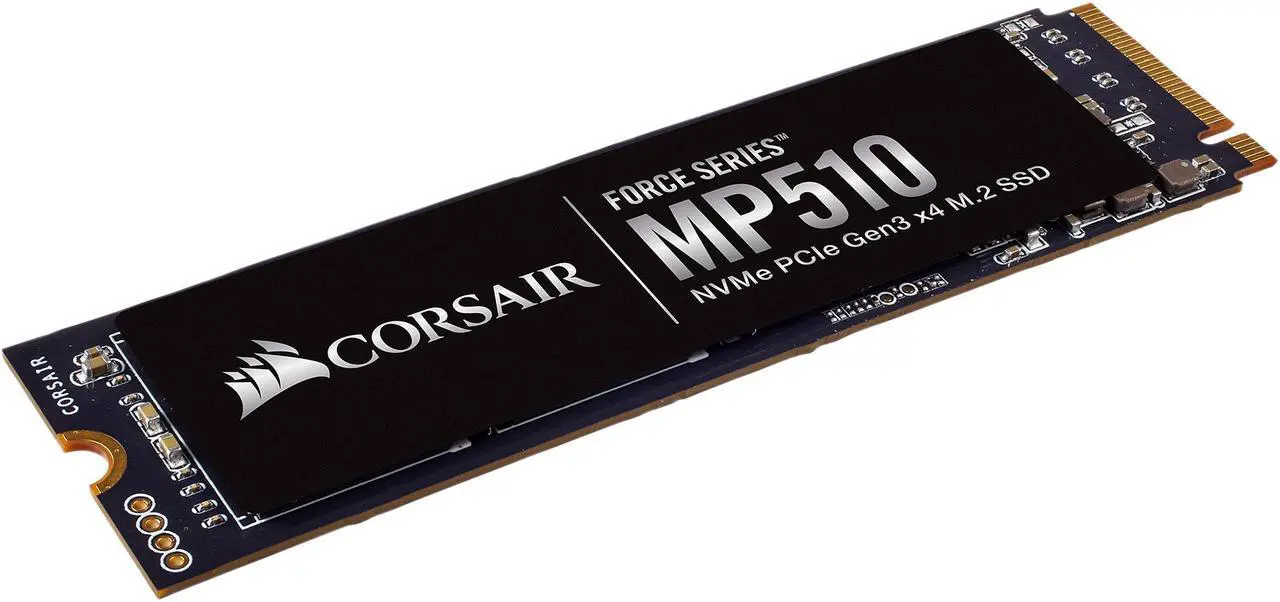

Alt view image 5 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

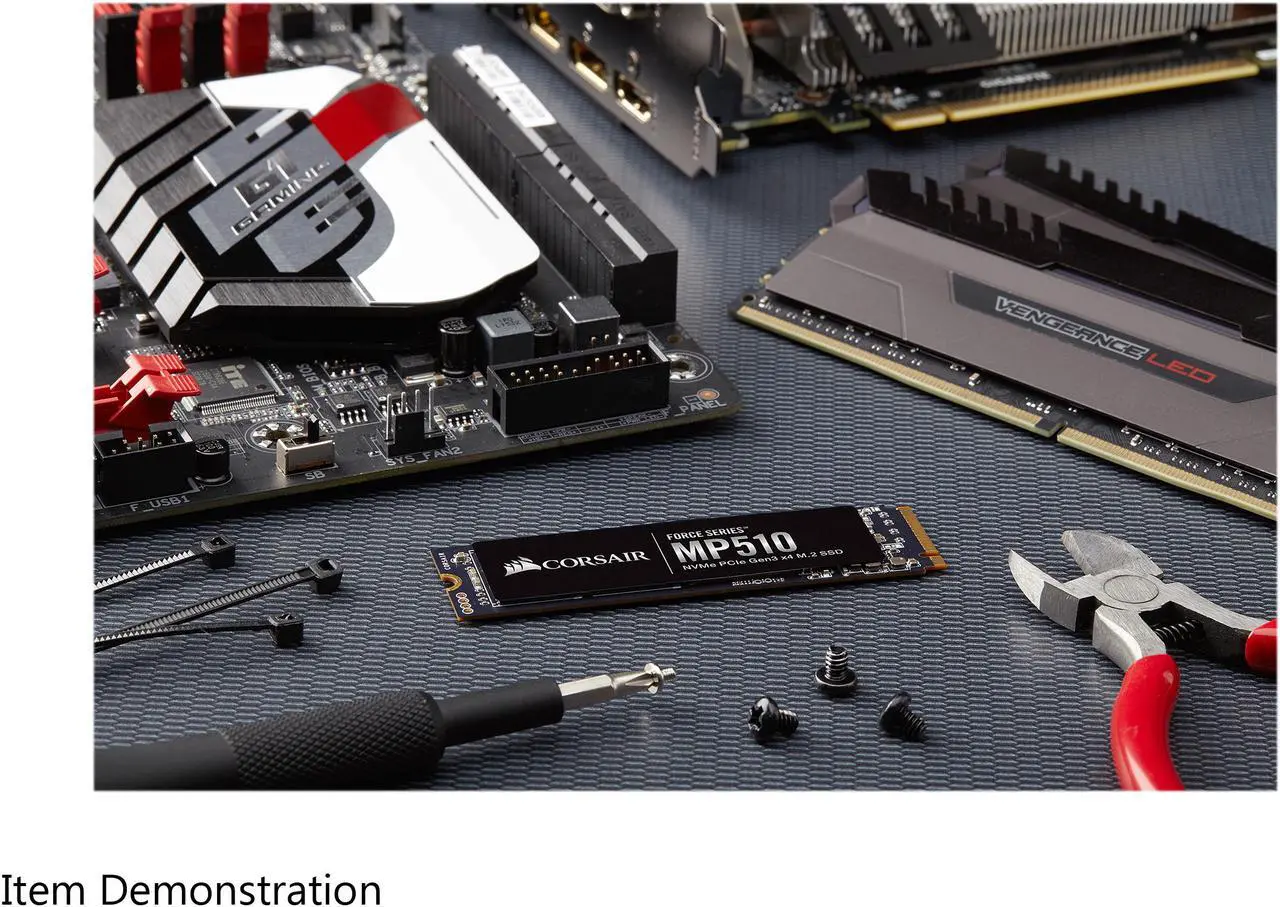

Alt view image 6 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

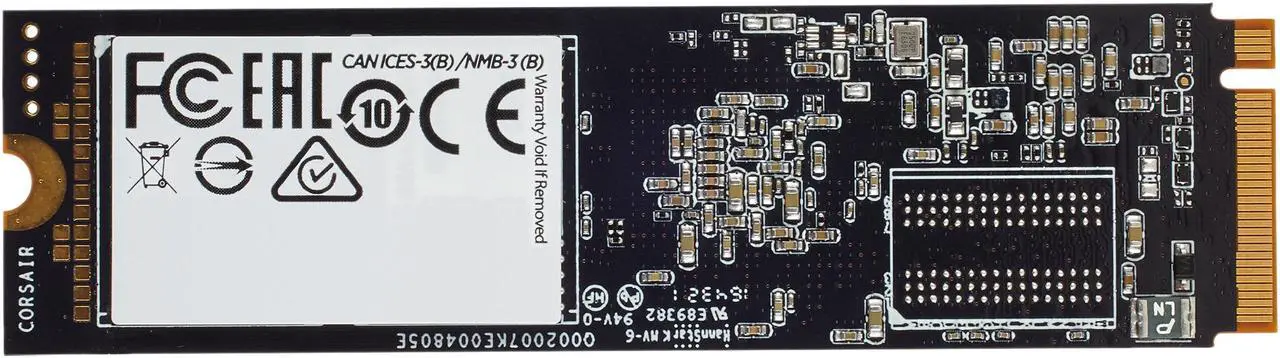

Alt view image 7 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

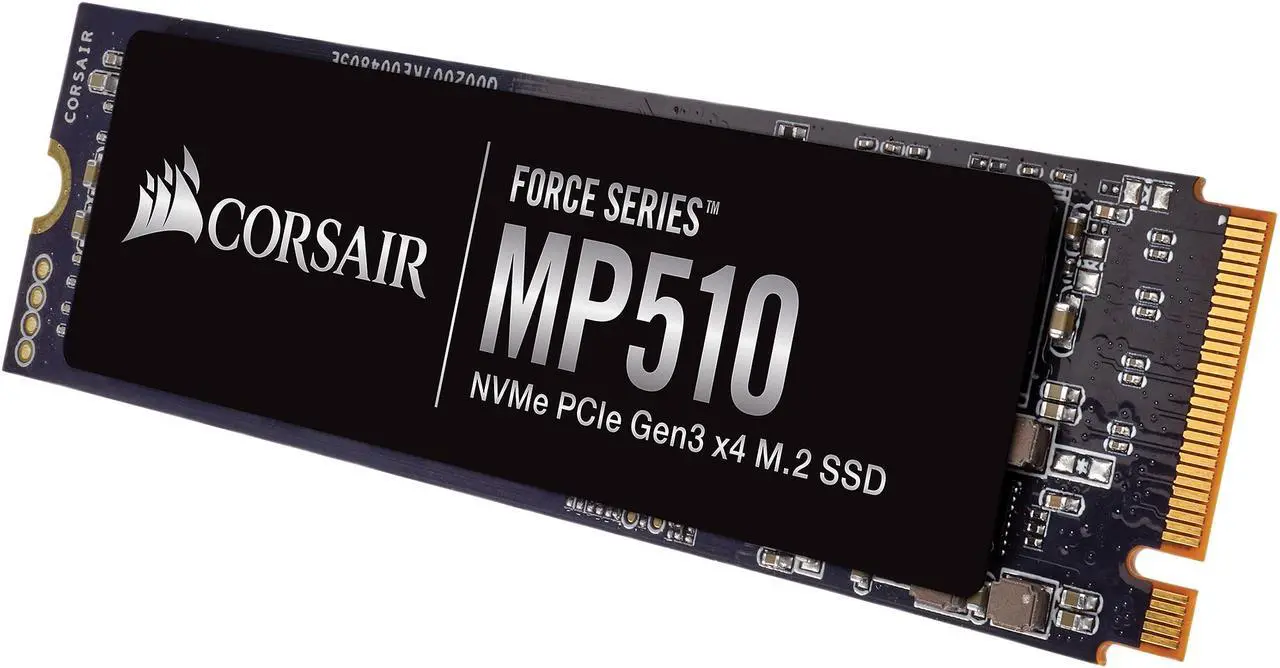

Alt view image 8 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

Alt view image 9 of 9 - Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

Customer images

Shop All Corsair Products | Visit Multishop Vivora Store

Corsair Force MP510 M.2 2280 240GB PCI-Express 3.0 x4, NVMe 1.3 3D TLC Internal Solid State Drive (SSD) CSSD-F240GBMP510

(501)(26) Write a Review

Options: 240GB

4TB
960GB
240GB

Extreme Storage Performance: All-new extreme data performance controller delivers up to 3,100 MB/sec sequential read, and up to 1,050 MB/s sequential write, for blazing fast read, write and response times.
High-speed NVMe PCIe Gen3 x4 M.2 Interface: For simple connection and maximum bandwidth.
High-density 3D TLC NAND: Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.
Compact M.2 2280 Form Factor: Fits directly into your notebook or motherboard.
Corsair SSD Toolbox Software: Enables advanced drive controls from your desktop including secure erase and firmware updates.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (501)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	Corsair
Series	Force MP510
Model	CSSD-F240GBMP510
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Details
Form Factor	M.2 2280
Capacity	240GB
Memory Components	3D TLC
Interface	PCI-Express 3.0 x4, NVMe 1.3
Controller	PS5012-E12

Performance
Max Sequential Read	Up to 3100 MBps
Max Sequential Write	Up to 1050 MBps
4KB Random Read	Up to 180,000 IOPS
4KB Random Write	Up to 240,000 IOPS
MTBF	1,800,000 hours

Features
Features	Endrurance: 400 TBW Extreme Storage Performance: All-new extreme data performance controller delivers up to 3,100 MB/sec sequential read, and up to 1,050 MB/ssequential write, for blazing fast read, write and response times. High-speed NVMe PCIe Gen3 x4 M.2 Interface: For simple connection and maximum bandwidth. High-density 3D TLC NAND: Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years. Compact M.2 2280 Form Factor: Fits directly into your notebook or motherboard. Corsair SSD Toolbox Software: Enables advanced drive controls from your desktop including secure erase and firmware updates.

Environmental
Power Consumption (Idle)	30 mW
Power Consumption (Active)	Average Active Read: 6.1W Average Active Write: 3.5W
Storage Temperature	-40°C ~ +85°C
Operating Humidity	90% RH (40 celsius degree)
Max Shock Resistance	1500G
Max Vibration Resistance	20~80 Hz / 1.52mm 80~2000 Hz / 20G

Dimensions & Weight
Height	3.00mm
Width	22.00mm
Depth	80.00mm
Weight	8.20g
