1 x 24 pin ATX 3 x 8 pin (4+4) (CPU) 6 x 8 pin (6+2) PCIe 8 x SATA 8 x PATA
Cable Spec

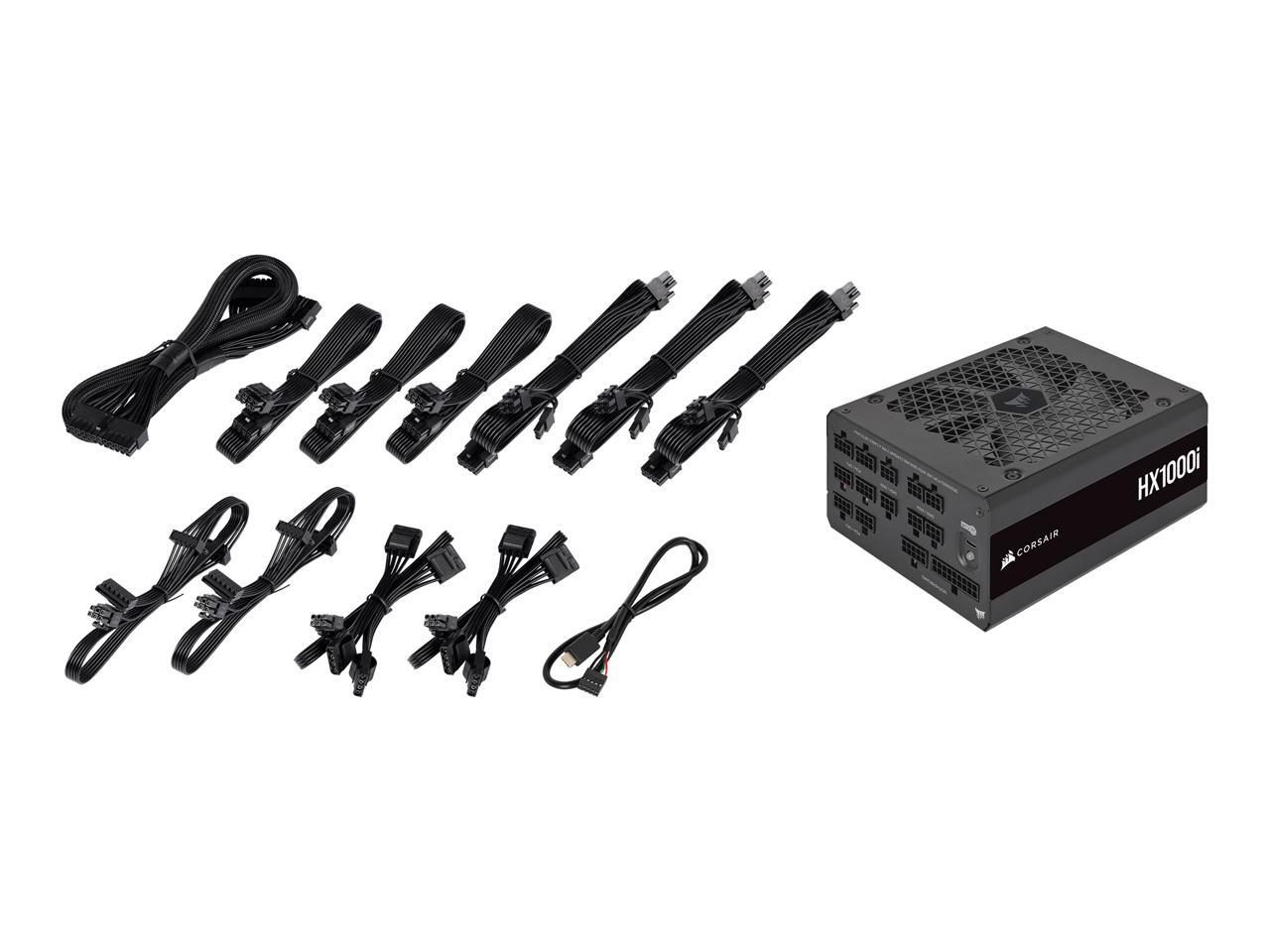

24Pin MB: One cable (610mm) 4+4Pin CPU: Three cables (650mm) 2 x PCI-E 6+2Pin: Three cables (675+100mm) 4 x SATA: Two cables (455+115+115+115mm) 4 x PATA: Two cables (450+100+100+100mm) USB (TYPE C) to 10-1PIN: One cable (525mm)
Features
Features

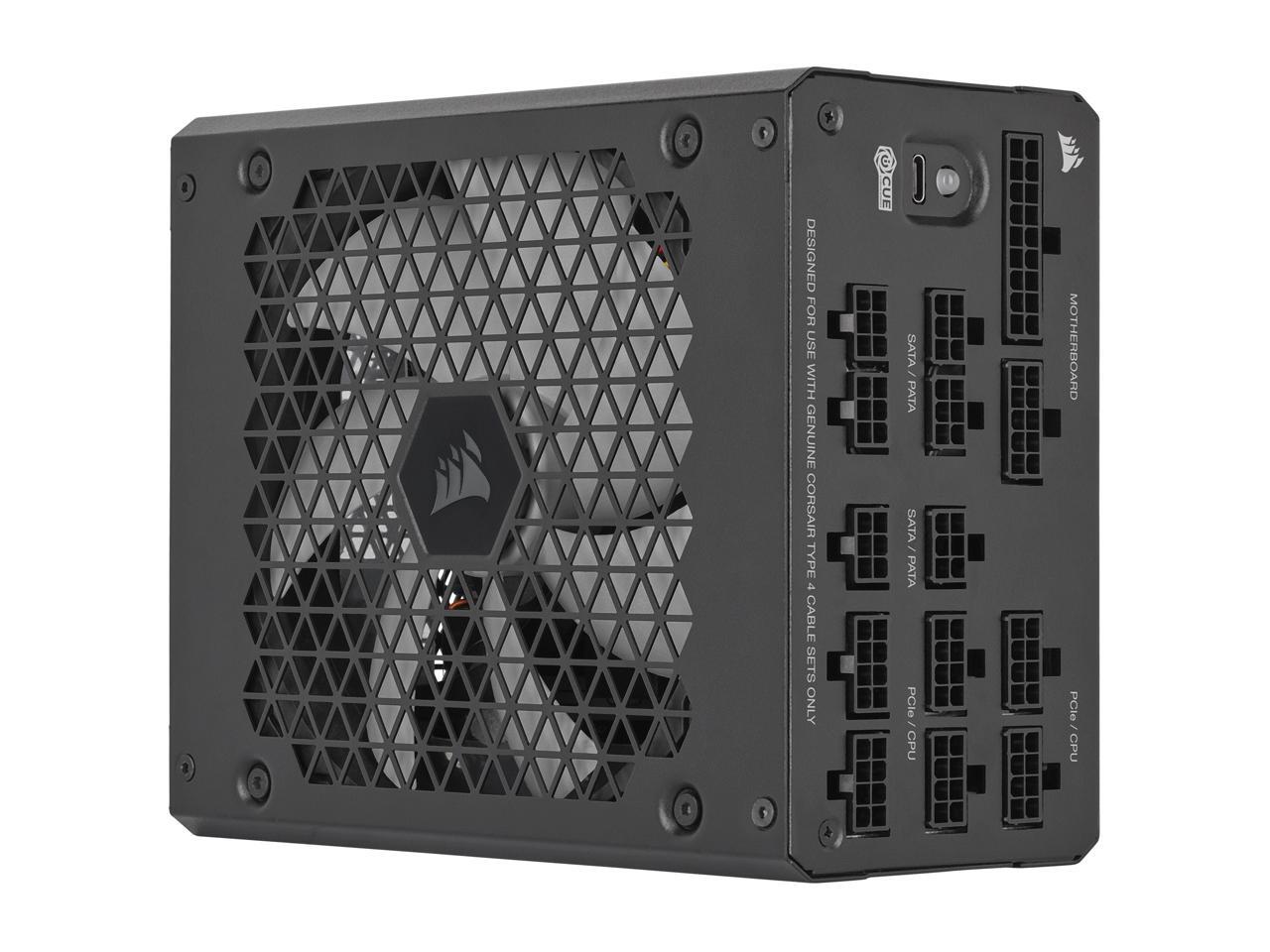

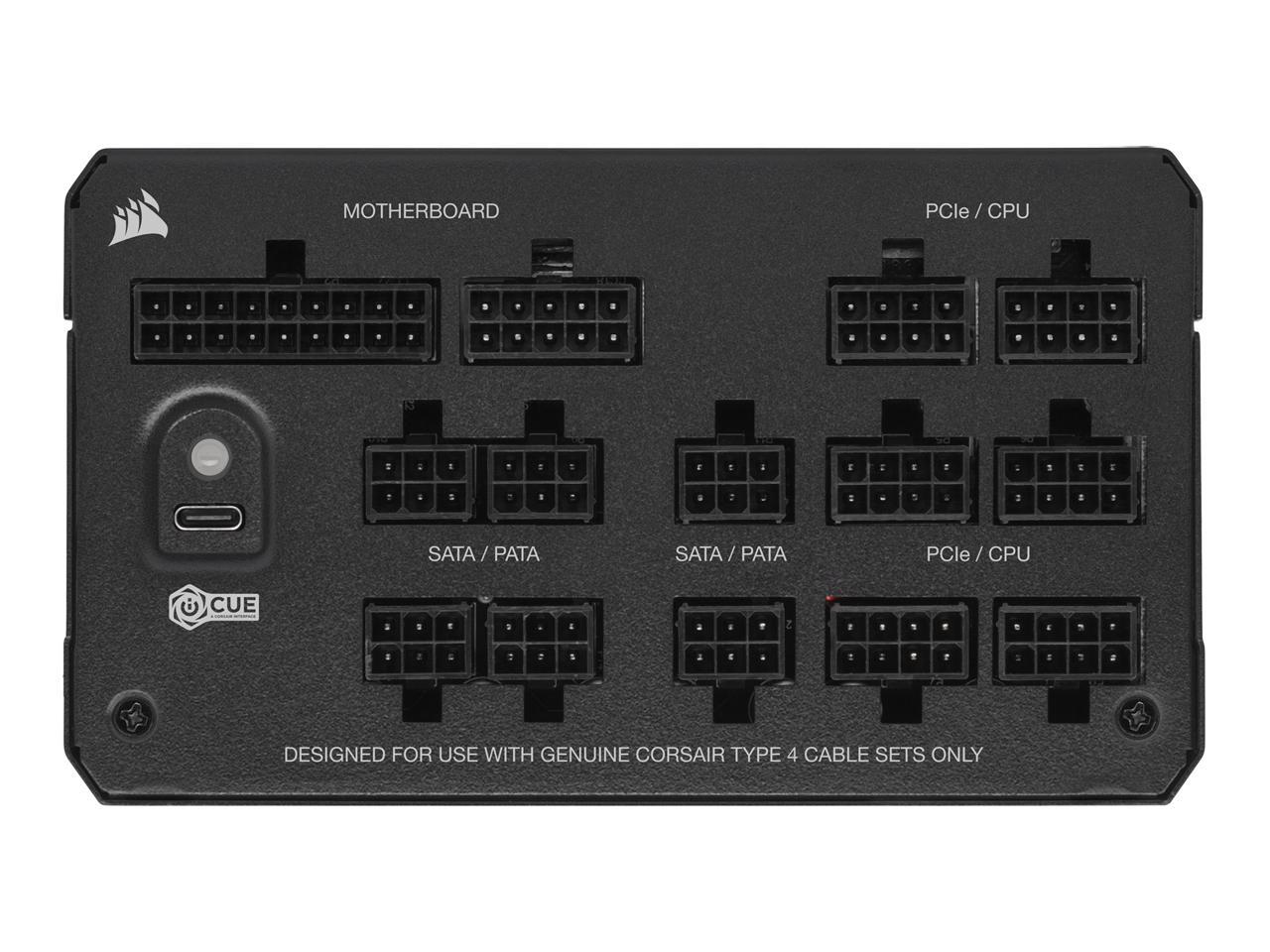

Fully Modular Cabling: Connect only the cables your system needs, making clean and tidy builds easy.
Triple EPS12V Connectors: For full compatibility with modern motherboards.

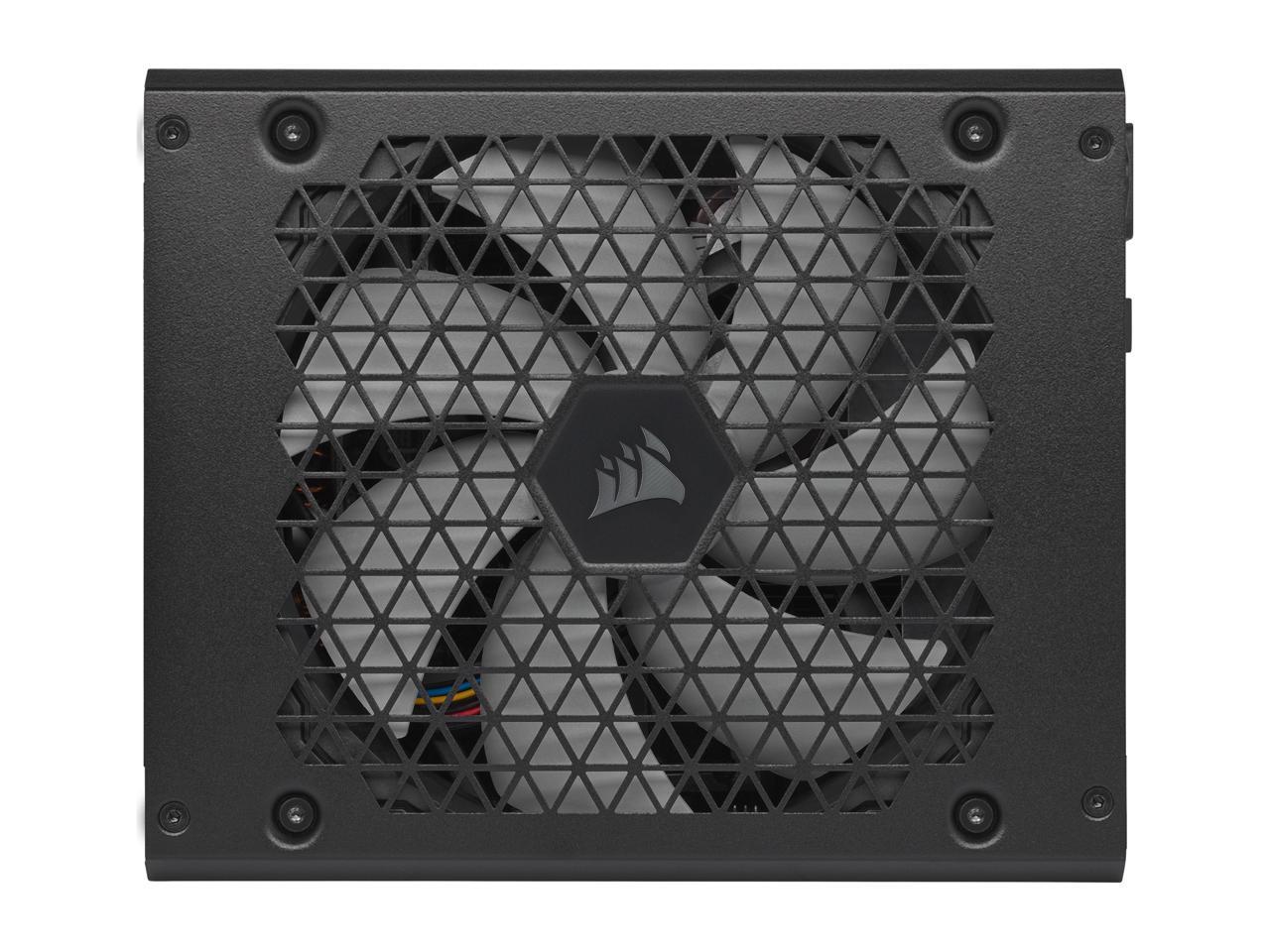

140mm Fluid Dynamic Bearing (FDB) Fan: Delivers extremely quiet and long-lasting fan performance.
Powerful CORSAIR iCUE Software: Create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-thefly.
Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
80 PLUS Platinum Certified: Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.
100% Japanese 105°C Electrolytic Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
Fully Digital Platform: Resonant LLC topology and DC-to-DC conversion provides clean, consistent power and minimizes coil whine and noise for quiet operation.
Dimension & Weight
Dimensions
3.39" x 5.91" x 7.09"
Weight
4.40 lbs.
Package
Package Content
HXi Series ATX Power Supply Power cord DC Cables Mounting screws Cable ties
