Corsair Certified CMPSU-850AX Professional Series CMPSU-850AX 850W ATX12V v2.31 / EPS12V v2.92 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
REFURBISHED Product Type
- ATX12V v2.31 / EPS12V v2.92
- Full Modular
- 80 PLUS GOLD Certified
- 90 - 264 V
- +3.3V@25A, +5V@25A, +12V1@70A, -12V@0.5A, +5VSB@3A
Learn more about the Corsair CMPSU-850AX/RF
| Brand | CORSAIR |
|---|---|
| Series | Professional Series |
| Model | CMPSU-850AX/RF |
| Type | ATX12V v2.31 / EPS12V v2.92 |
|---|---|
| Maximum Power | 850 W |

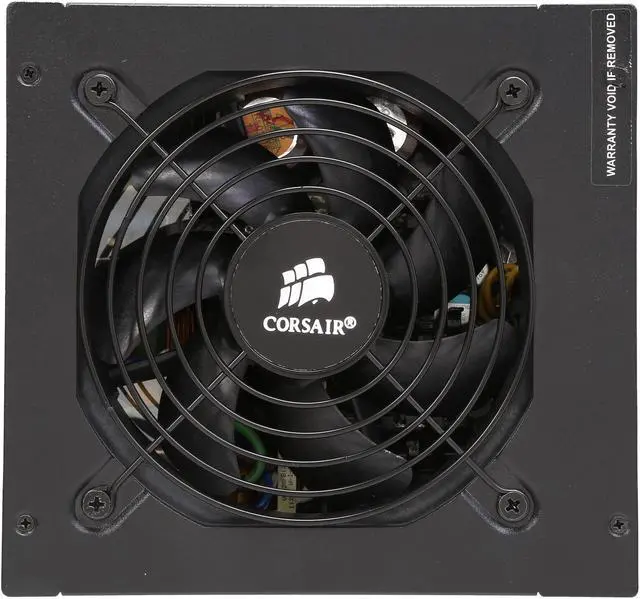

| Fans | 1 x 120mm double ball-bearing fan |
| PFC | Active |

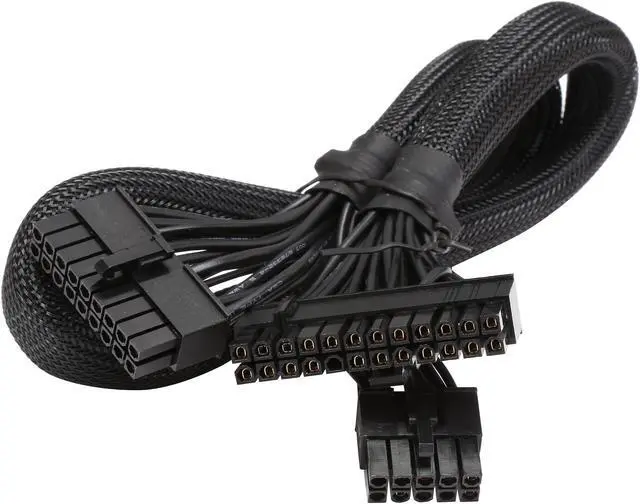

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 12 |

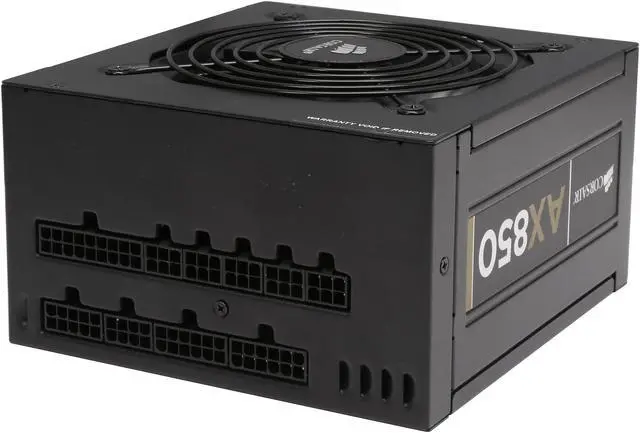

| Modular | Full Modular |
| Efficiency | >90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 90 - 264 V |
| Output | +3.3V@25A, +5V@25A, +12V1@70A, -12V@0.5A, +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | UL, CUL, CE, CB, FCC Class B, TUV, CCC, -tick. |

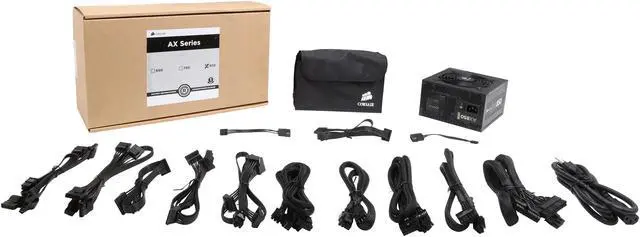

| Connectors | 1 x Main connector (20+4Pin) 2 x 4+4-Pin ATX/EPS 12V 8 x Peripheral 12 x SATA 2 x Floppy 4 x PCI-E |
| Features | Supports the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems An ultra-quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature 80 Plus Gold certified to deliver at least 90% efficiency at 50% load Active Power Factor Correction (PFC) with PF value of 0.99 Universal AC input from 90~264V: No more hassle of flipping that tiny red switch to select the voltage input! A dedicated single +12V rail offers maximum compatibility with the latest components Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components High-quality Japanese capacitors provide uncompromised performance and reliability Completely modular cable system allows you to use only the cables you need: Power supply upgrade and replacement is easy, as the cables only need to be disconnected at the power supply Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis A seven year warranty and lifetime access to Corsair's legendary technical support and customer service |
|---|
| Dimensions | 5.9" x 3.4" x 6.3" |
|---|
| First Listed on Newegg | December 22, 2014 |
|---|
