CORSAIR RM Series RM750 CP-9020195-NA 750 W ATX12V v2.52 / EPS12V v2.92 SLI Ready CrossFire Ready 80 PLUS GOLD Certified Full Modular Power Supply
REFURBISHED Product Type
- ATX12V v2.52 / EPS12V v2.92
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@20A, +5V@20A, +12V@62.5A, -12V@0.3A, +5VSB@3A
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Corsair CP-9020195-NA
| Brand | CORSAIR |
|---|---|
| Series | RM Series RM750 |
| Model | CP-9020195-NA |
| Type | ATX12V v2.52 / EPS12V v2.92 |
|---|---|
| Maximum Power | 750 W |

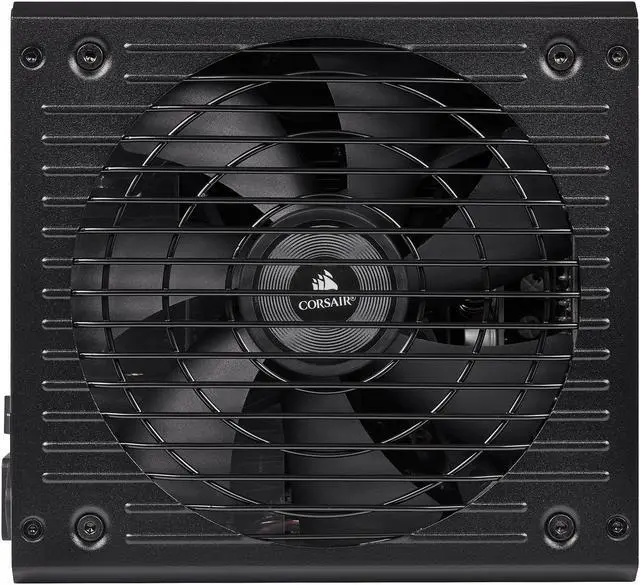

| Fans | 1 x 135mm Rifle Bearing Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10 - 5 A |
| Output | +3.3V@20A, +5V@20A, +12V@62.5A, -12V@0.3A, +5VSB@3A |
| MTBF | 100,000 hours |

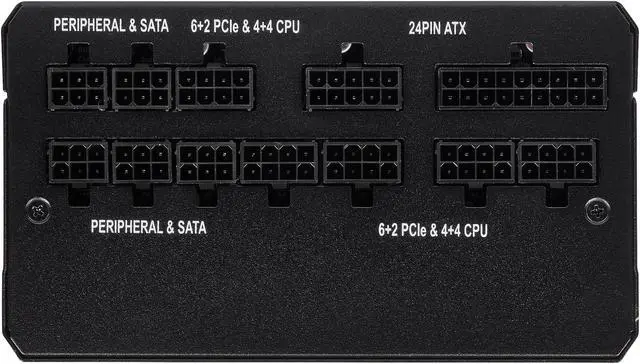

| Connectors | 1 x ATX 24-PIN (24) 2 x EPS/ATX12V 8-PIN (4+4) 6 x PCIe 8-PIN (6+2) 10 x SATA 4 x PERIPHERAL (4-PIN) |
| Features | 80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise and cooler temperatures. Tuned for Low Noise Operation: A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load. 105°C-Rated Capacitors: Industrial-grade capacitors deliver solid electrical performance and reliability. Microsoft Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency. Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation. Fully Modular Cables: Only connect the cables your system needs, making clean and tidy builds easier. SLI Ready: Power multiple GPUs for maximum gaming performance. Compact Size: A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds. |
|---|

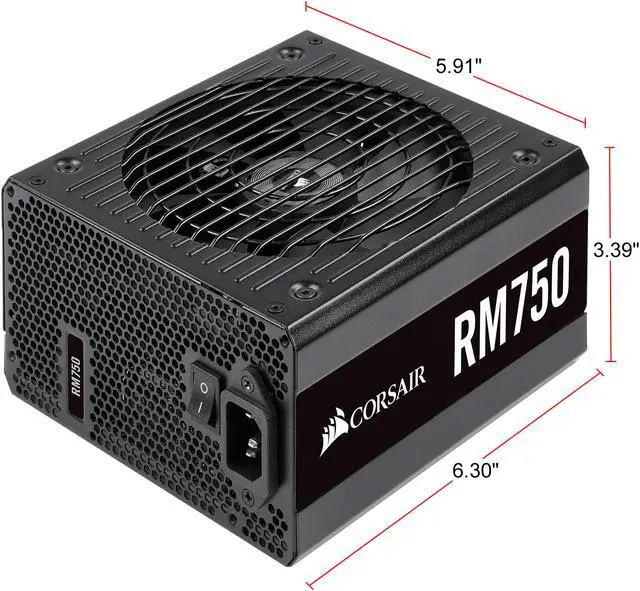

| Dimensions | 3.39" x 5.91" x 6.30" |
|---|---|
| Weight | 3.75 lbs. |

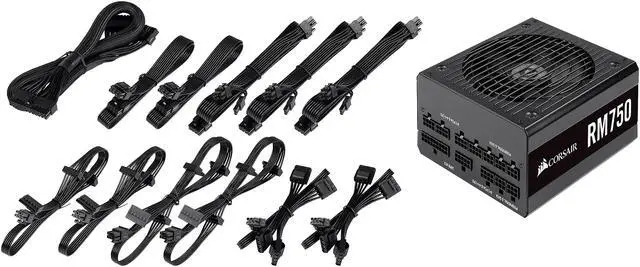

| Package Content | RM Series Performance ATX Power Supply AC Power cord DC Modular Cable Set Cable Ties |
|---|
| Date First Available | June 01, 2020 |
|---|
