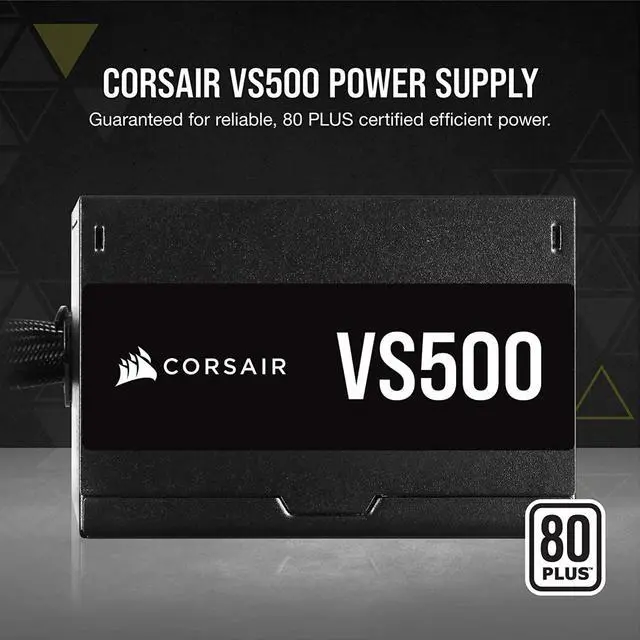

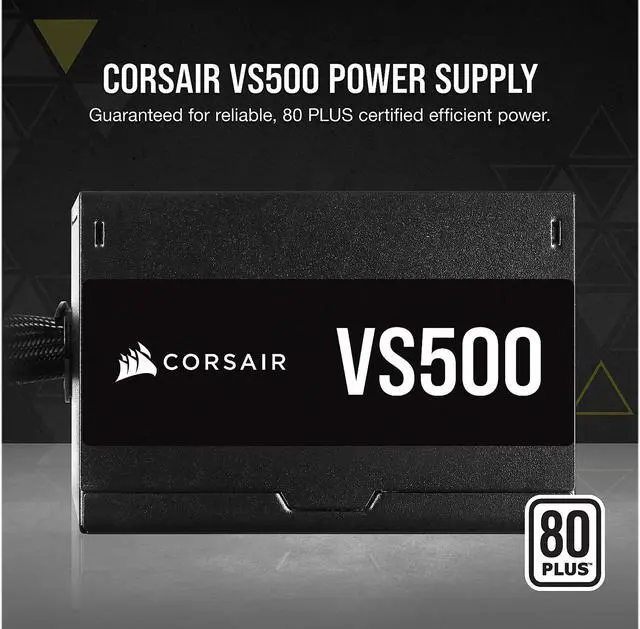

Reliable Power: CORSAIR VS power supplies are guaranteed to deliver their full rated wattage of continuous power.

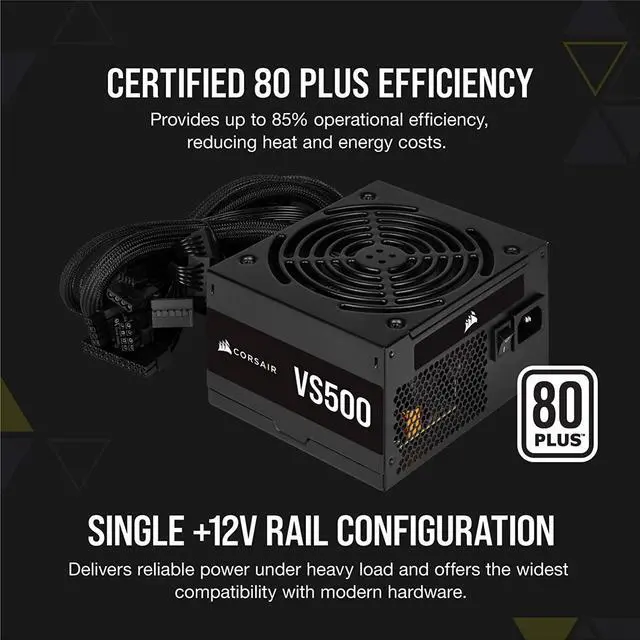

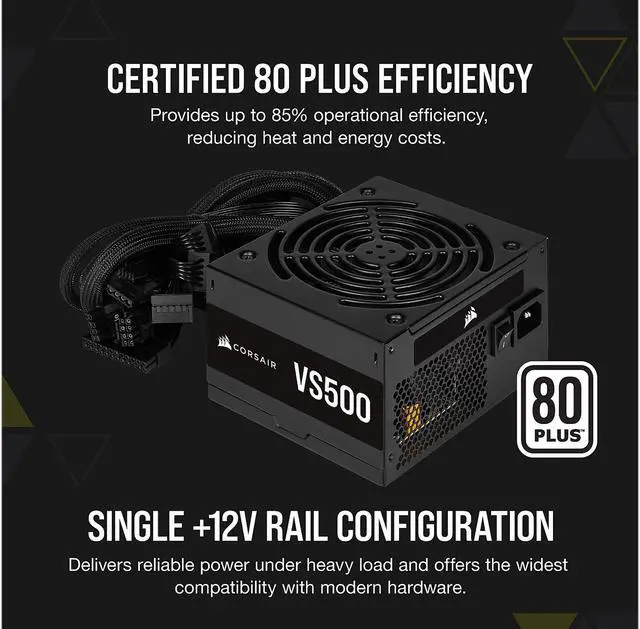

Certified 80 PLUS Efficiency: Provides up to 85% operational efficiency, reducing heat and energy costs.

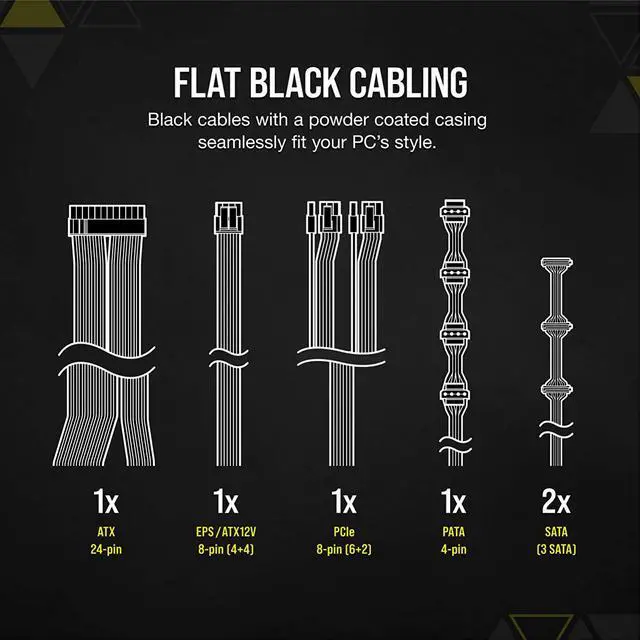

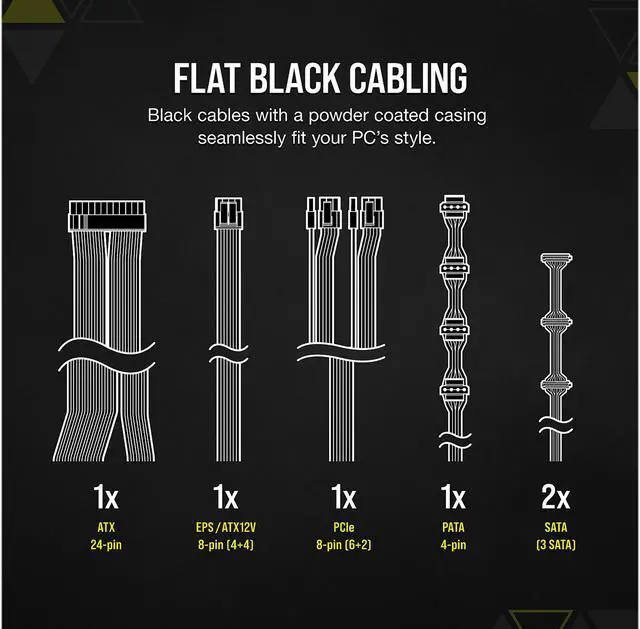

Flat, Black Cabling: A black powder-coated housing and black cables seamlessly fit your PC’s style.

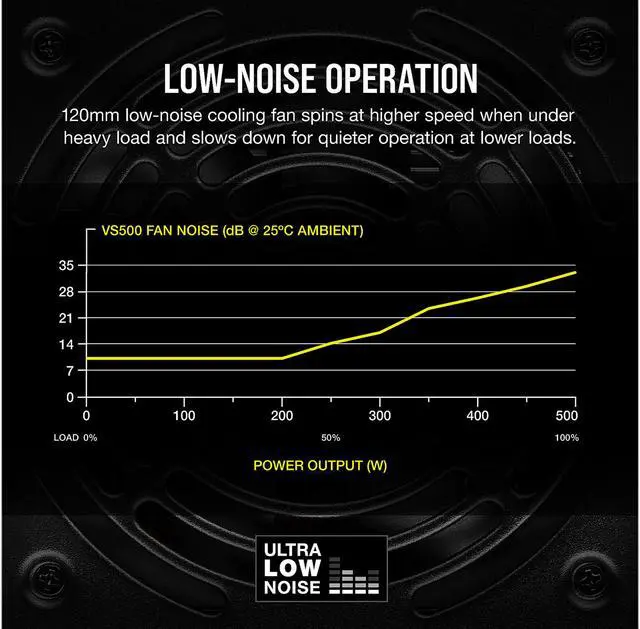

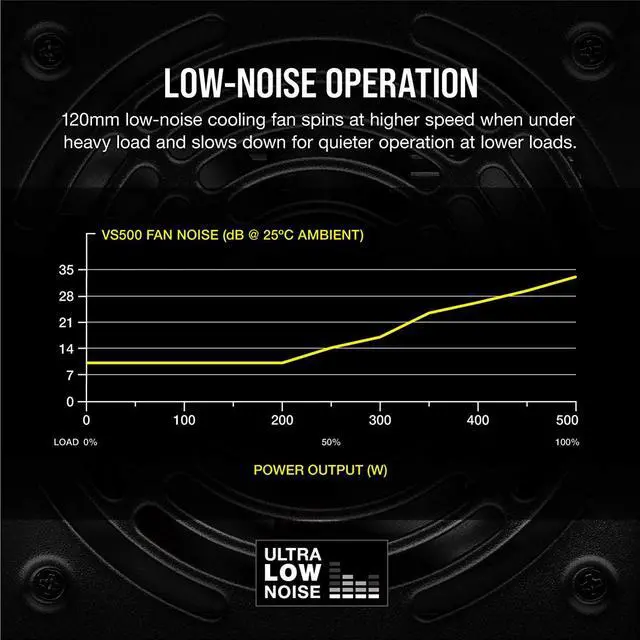

120mm Low-Noise Cooling Fan: A specially designed fan curve means the fan spins at higher speed when your power supply is under heavy load and slows down for quieter operation at lower loads.

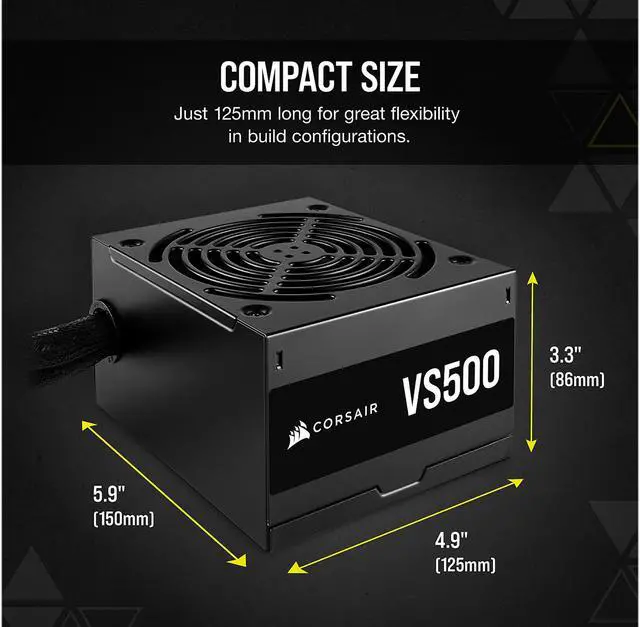

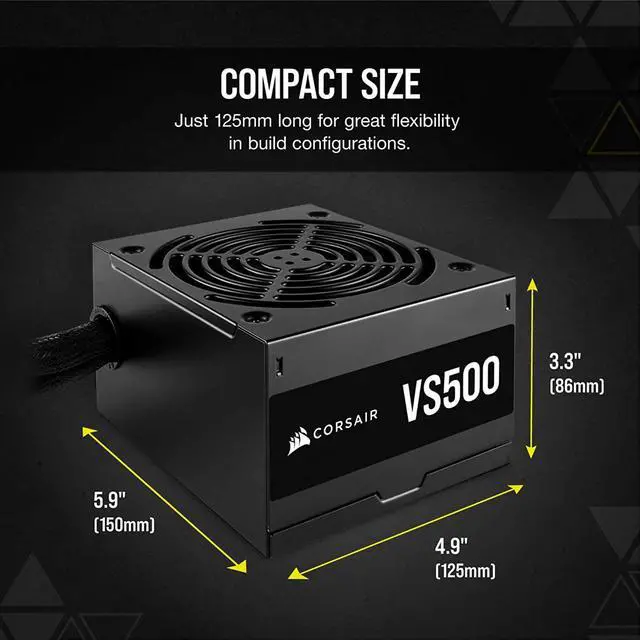

Compact Casing: A 125mm length ensures an easy fit in almost all modern PC cases.
Single +12V Rail Configuration: Delivers reliable power under heavy load and offers the widest compatibility with modern hardware.
Comprehensive Three-Year Warranty: Your guarantee of reliable operation that will last across several system builds, backed by the CORSAIR global technical support team.
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Corsair CP-9020223-NA
General
Brand
CORSAIR
Series
VS Series VS500
Model
CP-9020223-NA
Details
Color
80+ White
Type
ATX12V / EPS12V
Maximum Power
500 W
Fans
1 x 120mm Low-Noise Cooling Fan
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
6
Max PSU Length
125 mm
Modular
Non-Modular
Energy-Efficient
80 PLUS Certified
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
10 - 5 A
Connectors
1 x 24-pin ATX (24-pin) Connector 1 x ATX 12V/EPS12V (4+4-pin) Connector 2 x PCIe (6+2) Connectors 6 x SATA Connectors 3 x PATA Connectors
Features
Features
Reliable Power: CORSAIR VS power supplies are guaranteed to deliver their full rated wattage of continuous power.
Certified 80 PLUS Efficiency: Provides up to 85% operational efficiency, reducing heat and energy costs.
Flat, Black Cabling: A black powder-coated housing and black cables seamlessly fit your PC’s style.
120mm Low-Noise Cooling Fan: A specially designed fan curve means the fan spins at higher speed when your power supply is under heavy load and slows down for quieter operation at lower loads.
Compact Casing: A 125mm length ensures an easy fit in almost all modern PC cases.
Single +12V Rail Configuration: Delivers reliable power under heavy load and offers the widest compatibility with modern hardware.
Comprehensive Three-Year Warranty: Your guarantee of reliable operation that will last across several system builds, backed by the CORSAIR global technical support team.
Dimension & Weight
Dimensions
3.39" x 5.91" x 4.92"
Weight
3.79 lbs.
Additional Information
First Listed on Newegg
November 16, 2025
