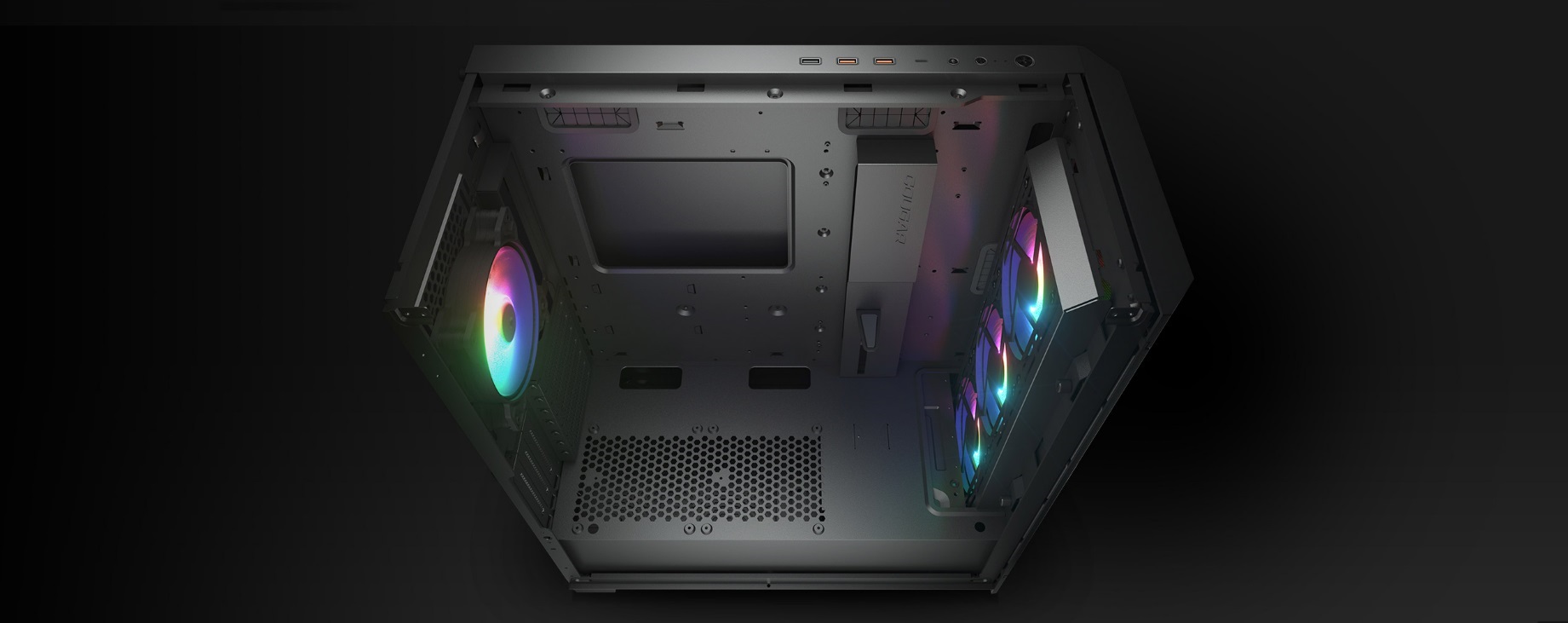

Ingenious Open Layout Design

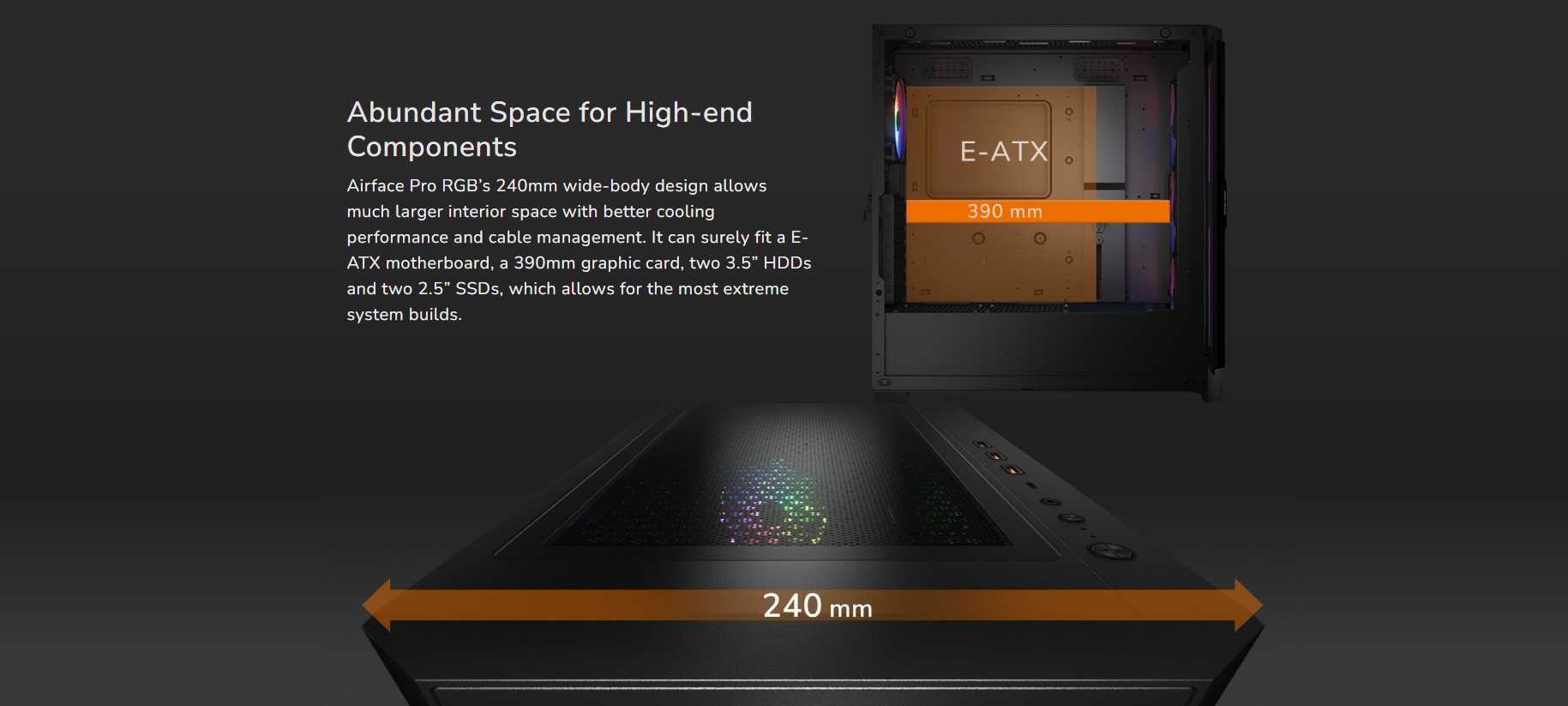

Airface Pro RGB is a combination of flexible design, convenient assembly, and superior cooling performance. The airflow front panel brings superior airflow and optimized cooling performance. It is the latest creation of the Airface series, providing a new upgrade for flexibility and ingenious open layout design. Airface Pro RGB is a 240mm wide-body design that offers abundant space for new flagship monster graphics cards and impressive cooling capacity for 9 fans and a 190mm CPU cooler.

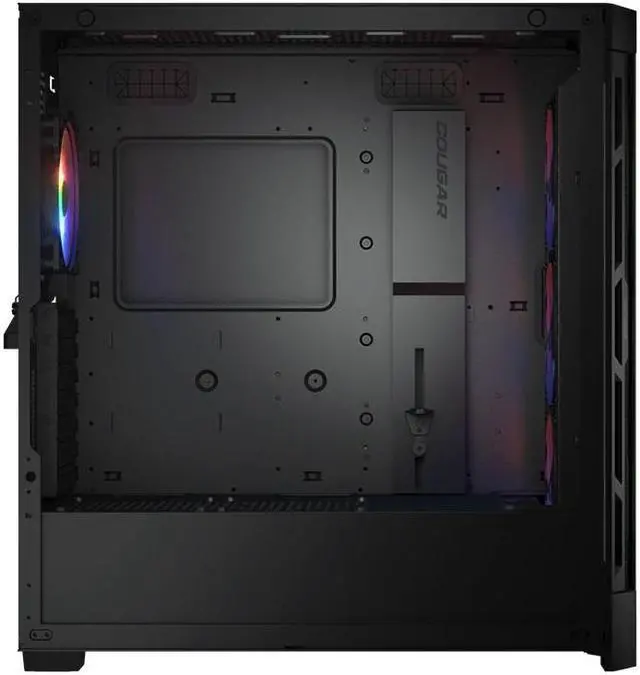

Advanced Cable Management Bar with Adjustable Graphic Card Holder
The cable management bar combines the graphic card holder to bring you an excellent building experience. This design provides you with a clear view and helps your high-performance components with better stability.
| Product Name | Airface Pro RGB |
|---|---|
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimensions (WxHxD) | 9.4 x 19.5 x 18.3 (in) |

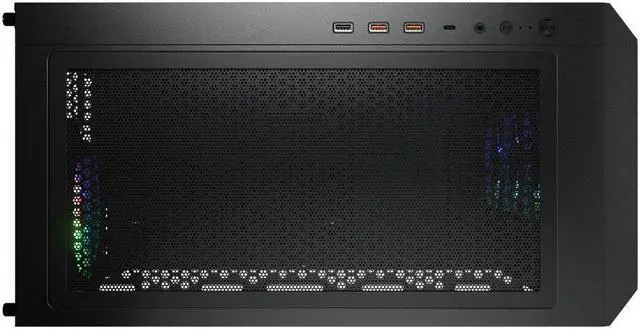

| I/O Panel | Type C Gen 2 (Key A 20-pin connector) x 1 , USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x 1, |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2 (2 SSD trays included) |
| Expansion Slots | 7+3 |
| Vertical GPU Support | Yes |

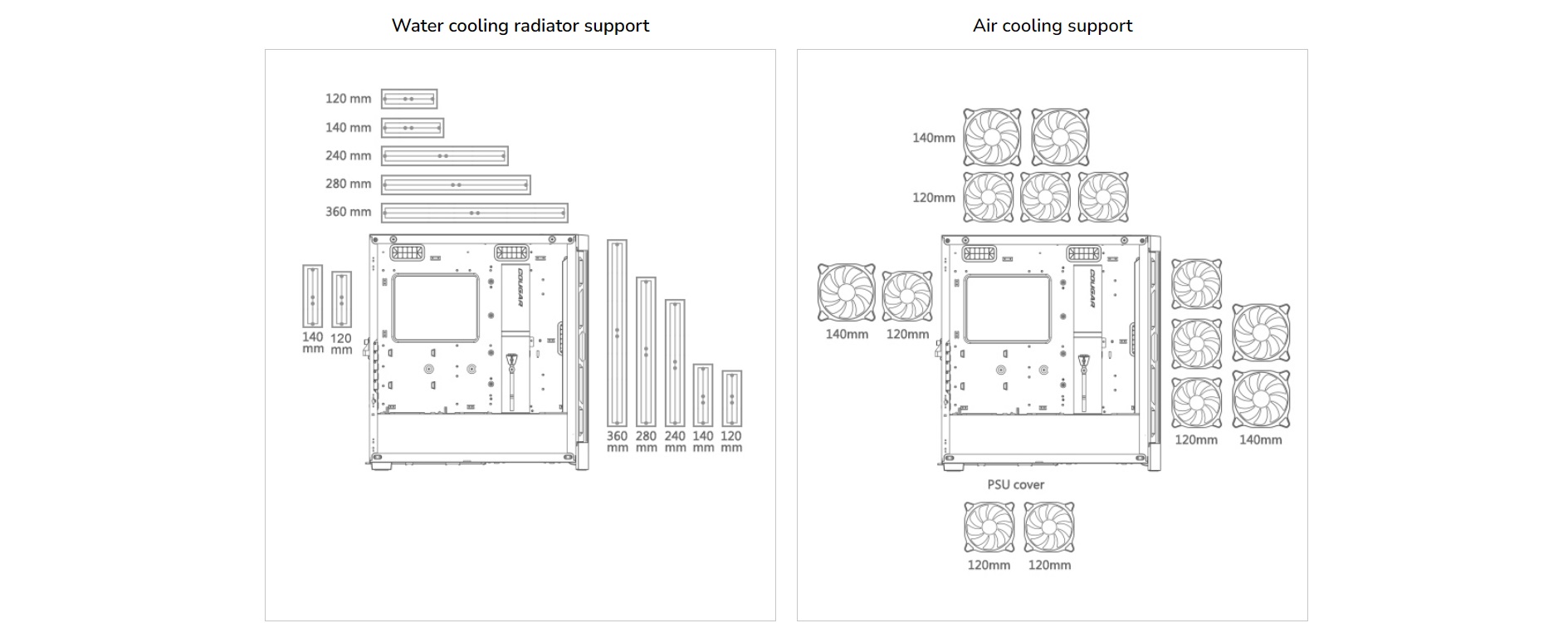

| Cooling Fan Support - Front | 120mm x 3 / 140mm x 2 |

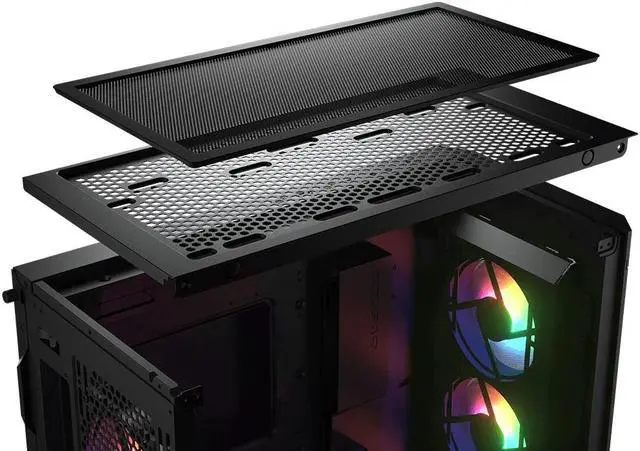

| Cooling Fan Support - Top | 120mm x 3 / 140mm x 2 |
| Cooling Fan Support - PSU Cover | 120mm x 2 |
| Cooling Fan Support - Rear | 120mm x 1 / 140mm x 1 |

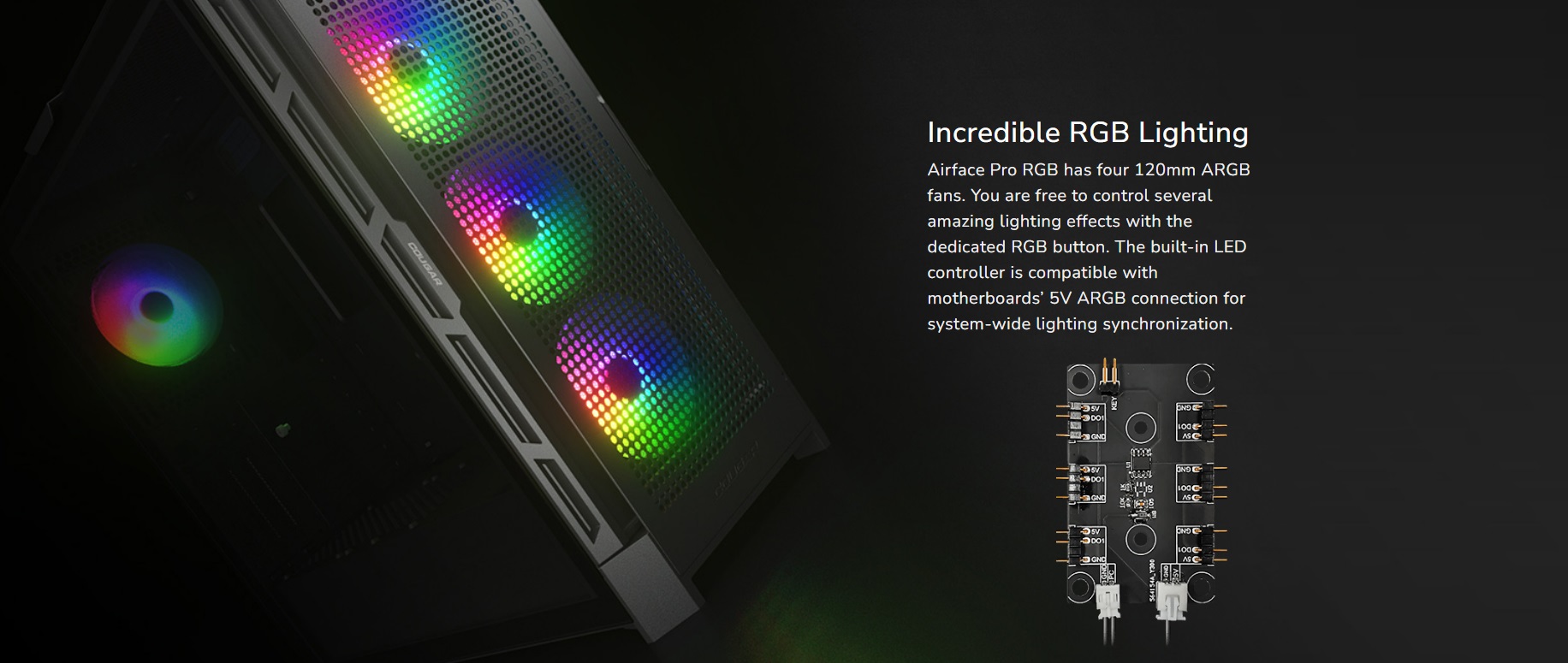

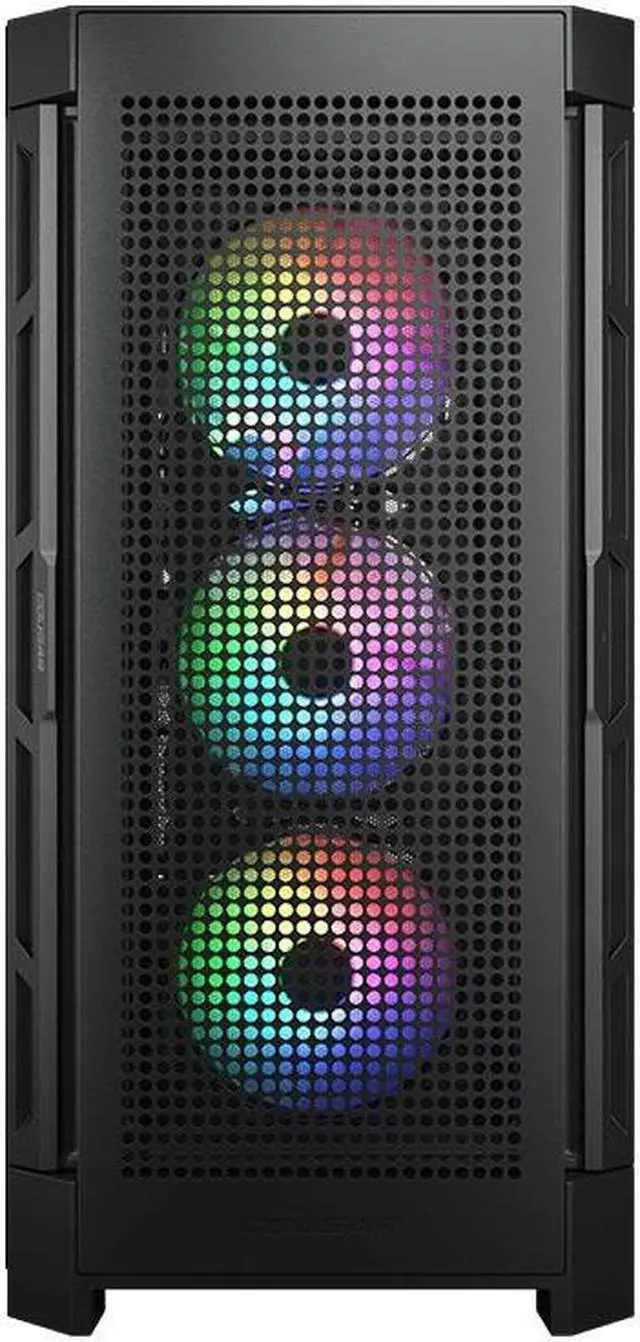

| Pre-installed Fans - Front | 120mm ARGB fan x 3 |
|---|---|
| Pre-installed Fans - Rear | 120mm ARGB fan x 1 |
| Pre-installed Fans - Speed | 1000 RPM |
| Pre-installed Fans - Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) |
| Maximun Number of Fans | 9 |
| Water Cooling Support - Front | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Water Cooling Support - Top | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Water Cooling Support - Rear | 140 mm / 120mm |
| Transparent Left Panel | Tempered Glass |
| Onboard Lighting System | Yes |
| RGB Sync with M/B | Yes |
| Max. Graphics Card Length | 390 (mm) / 15.4 (in) |
|---|---|
| Max. CPU Cooler Height | 190 (mm) / 7.5 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
| Note: | Please choose either of front or top to install a 360mm radiator. |
