COUGAR VTE X2 600 600 W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the COUGAR VTE X2 600

General
Brand	COUGAR
Model	VTE X2 600

Details
Type	ATX12V / EPS12V
Maximum Power	600 W
Fans	1 x 120 mm
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
Max PSU Length	140 mm
Modular	Non-Modular
Energy-Efficient	80 PLUS BRONZE Certified
Protection	UVP (Under Voltage Protection) OVP (Over Voltage Protection) SCP (Short-Circuit Protection) OPP (Over Power Protection) OCP (Overcurrent Protection)
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12A
Output	+3.3V@20A, +5V@20A, +12V@50A, [email protected], +5VSB@3A
Connectors	1 x 24 pin (20+4) ATX 1 x 8 pin (4+4) EPS (CPU) 2 x 8 pin (6+2) PCIe 6 x SATA 2 x 4 pin Peripheral
Cable Spec	20+4Pin MB: One cable (450mm) 4+4Pin CPU: One cable (600mm) 2 x PCI-E 6+2Pin: One cable (450mm) 3 x SATA + 1 x Peripheral: Two cables (450mm)

Features
Features	Single 12V DC Source Extreme Performance for Powerful Graphics Systems PF value up to 99% Provides clean and reliable power Compatible with the latest PC TECHNOLOGY created for user with current and next-generation multi-core CPU platforms Support PCI express 4.0 next-generation graphics cards with 8(6+2) pin PCI-E connector FULL PROTECTIONS WITH SCP, OCP, OVP, UVP, OPP

Dimension & Weight

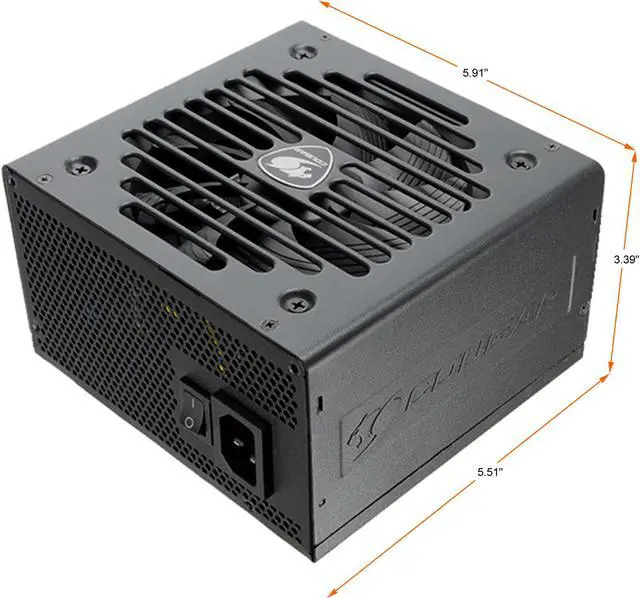

Dimensions	3.39" x 5.91" x 5.51"
Weight	2.98 lbs.

Additional Information
Date First Available	March 22, 2022
