How efficient is the COUGAR VTE600 power supply under typical load conditions, and what does the 80 PLUS Bronze certification mean for performance?

The COUGAR VTE600 power supply has an efficiency of up to 87%, which is further validated by its 80 PLUS Bronze certification. This certification indicates that the power supply operates efficiently under typical load conditions, ensuring less energy waste and lower electricity bills.

What are the dimensions of the COUGAR VTE600 power supply, and will it fit in a standard mid-tower case?

The dimensions of the COUGAR VTE600 power supply are 3.39" x 5.91" x 5.51".

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 29 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

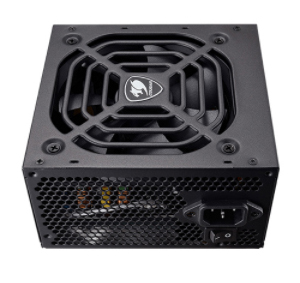

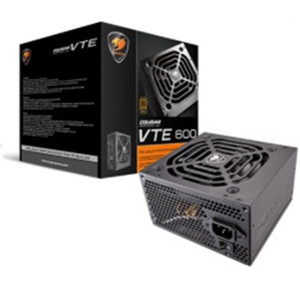

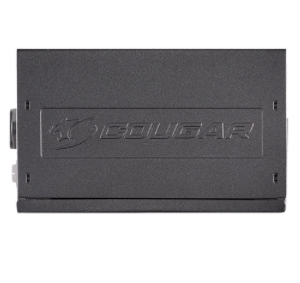

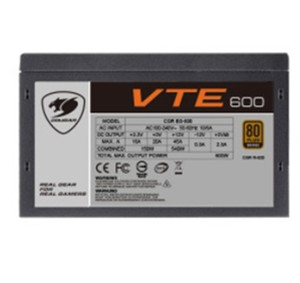

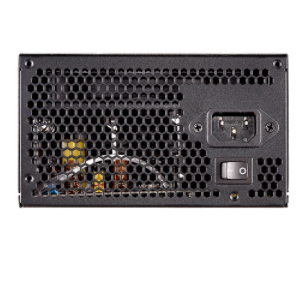

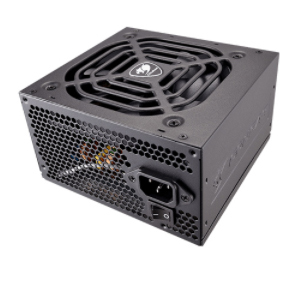

Main image of COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

100%

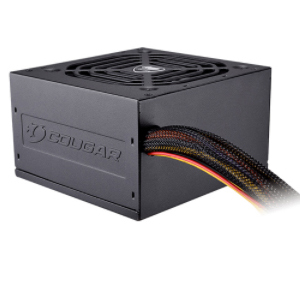

Alt view image 2 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 3 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 4 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 5 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 6 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 7 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

Alt view image 8 of 8 - COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

360^°

Shop All COUGAR Products

COUGAR VTE600 600 W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

(33) Write a Review

ATX12V
Non-Modular
80 PLUS BRONZE Certified
100 - 240 V 50 - 60 Hz
+3.3V@16A, +5V@20A, +12V@45A, -12V@0.3A, +5Vsb@2.5A
NOTE: Items order in bulk quantity does not come with a retail box

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (33)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

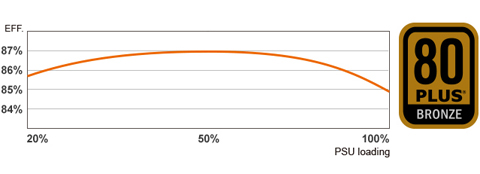

Extremely High Efficiency
Up to 87% of efficiency.

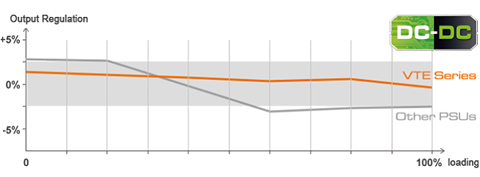

Ultra Stable Voltage Outputs
DC to DC technology in VTE series, in which the 3.3V are built out of the 12V Rail, provides highest efficiency, most stable performance, and perfect regulation within ±3% at regular DC outputs.

According to Design Guide for Power Supply from Intel the DC output voltages are required to remain within the ±5% regulation ranges in 3.3V, 5V and 12V rails.

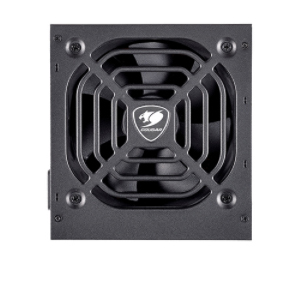

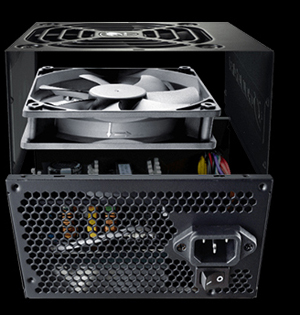

120mm Ultra-Silent Fan
Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature.

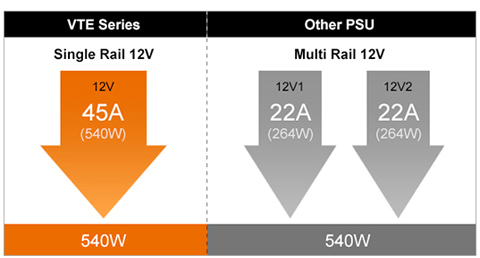

Massive Single +12V DC Output
Extreme performance for powerful graphic systems

Comparison based on VTEGOO's performance data.

Features

Extremely High Efficiency
Up to 87% of efficiency

Ultra-Stable Voltage Output
3.3V DC-DC technology for enhanced voltage ability

105°C Japanese Standby Capacitor
Increase the PSU life-span

Massive Single 12V DC Output
Extreme stability for powerful graphic systems

Ultra-Quiet & Temperature-Controlled 120mm Fan
Extremely low noise level, equipped with a large and ultra-quiet 120mm fan

Compatible With the Latest PC-Technology
Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms

Support Multi-GPU Technology
Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector

Integrated Air Inlet Design
Optimal air-dynamical design, lead to more silent operation

Active Power Factor Correction {Active PFC)
PF value up to 99%. provides clean and reliable power

Full Protections With OCP, SCP, OVP, UVP, OPP

Specifications

Protection

OCP (Overcurrent protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.

UVP (Under voltage protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over voltage protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-circuit protection)
In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.

OPP (Over power protection)
If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.

Safety Requirement

Gallery

General
Brand	COUGAR
Model	VTE600

Details
Type	ATX12V
Maximum Power	600 W
Fans	1 x 120 mm Ultra-Silent Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
Max PSU Length	140 mm
Modular	Non-Modular
Efficiency	up to 87%
Energy-Efficient	80 PLUS BRONZE Certified
PSU Noise Level	Cybenetics Standard
Over Voltage Protection	Yes
Protection	OCP, SCP, OVP, UVP and OPP
Input Voltage	100 - 240 V
Input Frequency Range	50 - 60 Hz
Input Current	10 - 6A
Output	+3.3V@16A, +5V@20A, +12V@45A, -12V@0.3A, +5Vsb@2.5A
Connectors	1 x 20+4-Pins Main 1 x 4+4-Pins / 8-Pins CPU 2 x 4-Pins Peripherals 6 x 5-Pins S-ATA 2 x 6+2-Pins PCI-E

Features
Features	Extremely High Efficiency Up to 87% of efficiency Ultra-Stable Voltage Output 3.3V DC-DC technology for enhanced voltage ability 105 Degree C Japanese Standby Capacitor Increase the PSU life-span Compatible With the Latest PC-Technology Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms Ultra-Quiet & Temperature-Controlled 120mm Fan Extremely low noise level, equipped with a large and ultra-quiet 120mm fan Integrated Air Inlet Design Optimal air-dynamical design, lead to more silent operation Massive Single +12V DC Output Extreme stability for powerful graphic systems Support Multi-GPU Technology Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector. Active Power Factor Correction (Active PFC) PF value up to 99%, provides clean and reliable power Full Protections With OCP, SCP, OVP, UVP, OPP

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.51"

Additional Information
First Listed on Newegg	May 24, 2017
