Yes, the cables are all black. What I like most about this power supply is it has cables that you can attach to the power supply. This frees up SpaceX that in the case. The cougar power supply is a very good power supply.

Is this compatible with AMD?

Hello, Yes this is compatible with AMD but it should be noted that power supplies are universal and will work with both Intel and AMD systems. What you need to figure out is if the PSU has enough power to run your entire system without running into issues. I would do more research to make sure that this power supply is sufficient to power your system. Hope this helps! Newegg Support

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

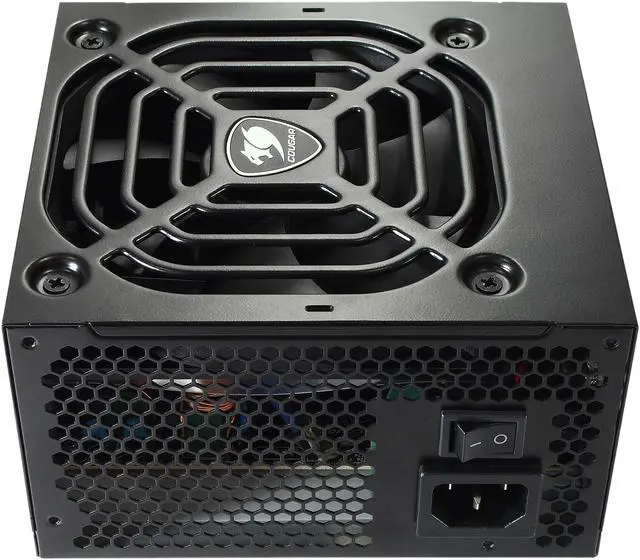

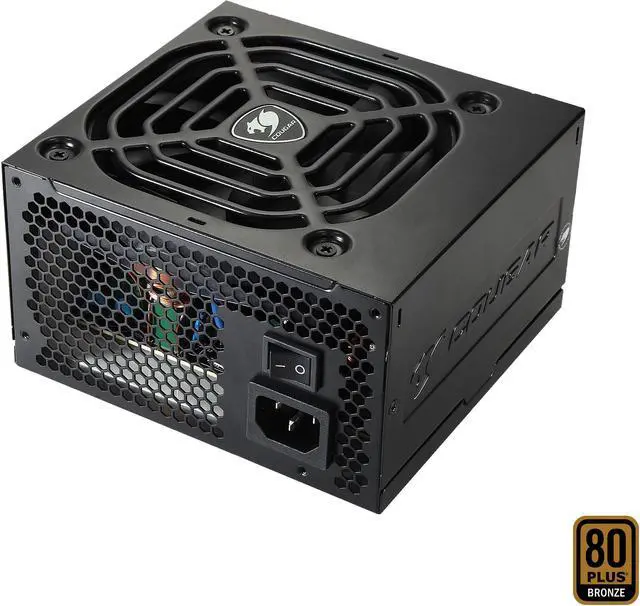

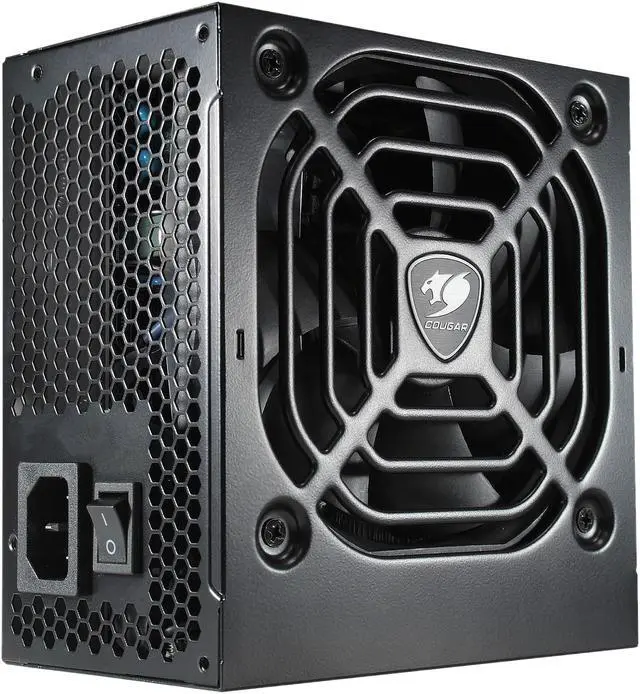

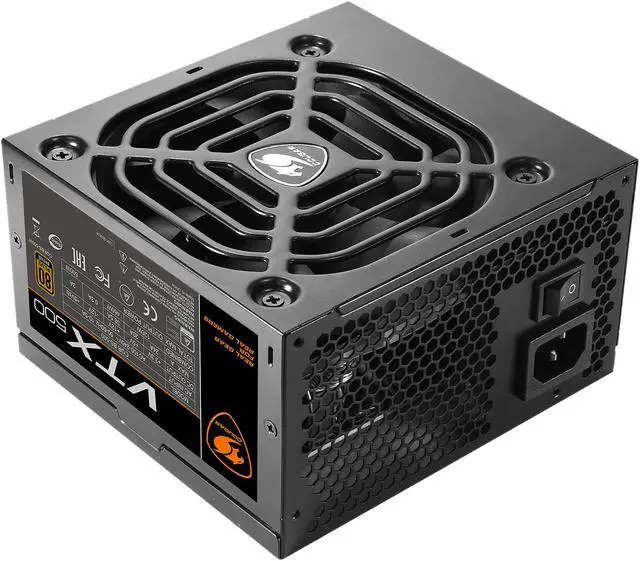

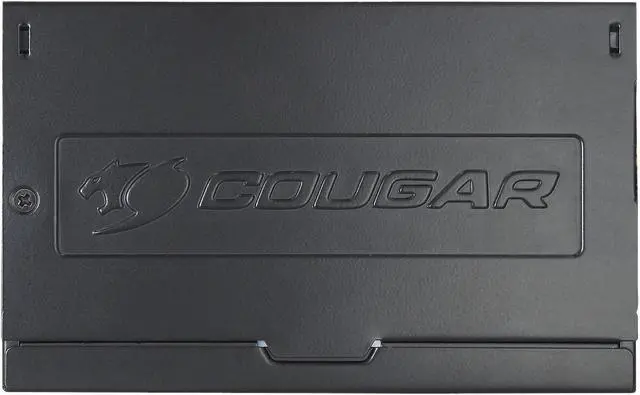

Main image of COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 2 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 3 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 4 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 5 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 6 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Alt view image 7 of 7 - COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

Shop All COUGAR Products

COUGAR VTX500 500 W ATX12V 80 PLUS BRONZE Certified Power Supply

(5) Write a Review

ATX12V
80 PLUS BRONZE Certified
100 - 240 V 50/60 Hz
+3.3V at 24A, +5V at 20A, +12V at 38.5A, -12V at 0.3A, +5Vsb at 3A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (5)

Any questions? Our AI beta will help you find out quickly.

Try me now

80-PLUS® Bronze Certified
Extremely High Efficiency - up to 88% of efficiency. Reduce your electricity bill.

Extremely Reliable at 40°C/104°F
The high quality MOSFETs and capacitors and the advanced engineering used in VTX allow it to achieve high levels of performance in realistic environments.

120mm Ultra-Silent Fan
Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature.

Massive Single +12V DC Output
Extreme stability for powerful graphic systems.

Comparison based on VTX700’s performance data.

Full Black Sleeved Cables
Aesthetics and quality meet in VTX’s completely black cables, which will allow you to fuel your computer without affecting its looks.

Awards & Reviews

hardwareLUXX
"Positive points in the Cougar VTX450..."

Game Zoom
"Angesichts des fairen Preises können wir sogar eine Empfehlung für preisbewusste Anwender aussprechen...."

Tweak PC
"Tatsächlich gibt es auf dem Preisniveau nur wenige Modelle, die insgesamt mit dem Cougar mithalten können...."

Features

Extremely High Efficiency
80-PLUS Bronze certified, up to 88% of efficiency
Support Multi-GPU Technology
Support PCI Express 3.0 next-generation graphic card with 8(6+2)pin PCI-E connector
Integrated Air Inlet Design
Optimal air-dynamical design, lead to more silent operation
Compliant With Latest ErP Lot 6 2013
Energy consumption in Standby is <0.5W, compliant with economy-friendly electrical equipment
Compatible With the Latest PC-Technology
Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms
Ultra-Quiet & Temperature-Controlled 120mm Fan
Extremely low noise level, equipped with a large and ultra-quiet 120mm fan
High Performance at 40°C/104°F
Non-stop high performance and full rated wattage at 40°C/104°F ambient temperature
Supports The Energy Star 5.0
Compatible with Energy Star 5.0 computer system
Full Protections With OCP, SCP, OVP, UVP, OPP

Safety Requirement

Gallery

General
Brand	COUGAR
Model	VTX500

Details
Type	ATX12V
Maximum Power	500 W
Fans	1 x Ultra-Quiet & Temperature-Controlled 120mm Fan
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	5
Efficiency	up to 88%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 - 5 A

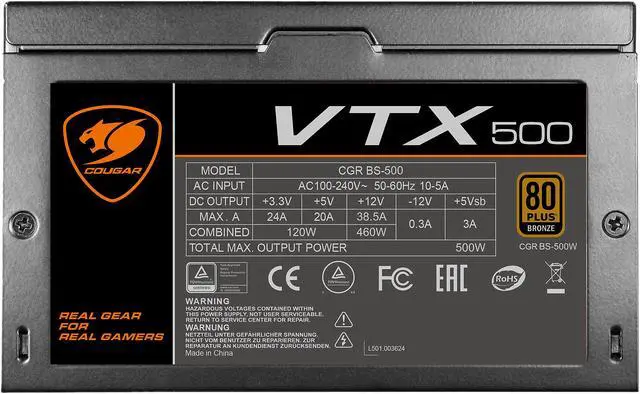

Output	+3.3V at 24A, +5V at 20A, +12V at 38.5A, -12V at 0.3A, +5Vsb at 3A
Approvals	Energy Star 5.0, ErP Lot 6 2013
Connectors	1 x 24(20+4) Pins Main 1 x 8(4+4) Pins CPU 3 x 4 Pins Peripherals 5 x 5 Pins SATA 2 x 8(6+2) Pins PCI-E

Features
Features	Extremely High Efficiency 80-PLUS Bronze certified, up to 88% of efficiency Compatible With the Latest PC-Technology Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms Support Multi-GPU Technology Support PCI Express 2.0 next-generation graphic card with 8(6+2)pin PCI-E connector Ultra-Quiet & Temperature-Controlled 120mm Fan Extremely low noise level, equipped with a large and ultra-quiet 120mm fan Integrated Air Inlet Design Optimal air-dynamical design, lead to more silent operation High Performance at 40 degree C/104 degree F Non-stop high performance and full rated wattage at 40 degree C/104 degree F ambient temperature Compliant With Latest ErP Lot 6 2013 Energy consumption in Standby is < 0.5W, compliant with economy-friendly electrical equipment Supports The Energy Star 5.0 Compatible with Energy Star 5.0 computer system Full Protections With OCP, SCP, OVP, UVP, OPP

Additional Information
Date First Available	March 02, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
