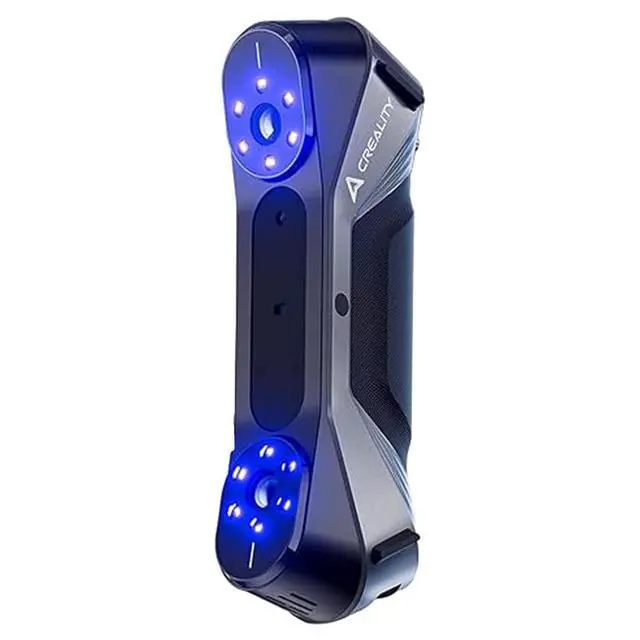

Creality CR-Scan Raptor 3D Scanner - Hybrid Blue Laser & NIR Technology, 0.02mm Accuracy, 60fps Speed, Handheld for Windows & macOS, Industrial-Grade Precision

The Creality CR-Scan Raptor 3D Scanner redefines 3D scanning with its cutting-edge hybrid technology, combining blue laser (7-line) and NIR (near-infrared) structured light for unparalleled accuracy and versatility. Designed for both small and large-scale applications, the scanner achieves metrology-grade accuracy of up to 0.02 mm in blue light mode and 0.1 mm in NIR mode, ensuring precise and reliable results for a wide range of industries, including engineering, manufacturing, and design.

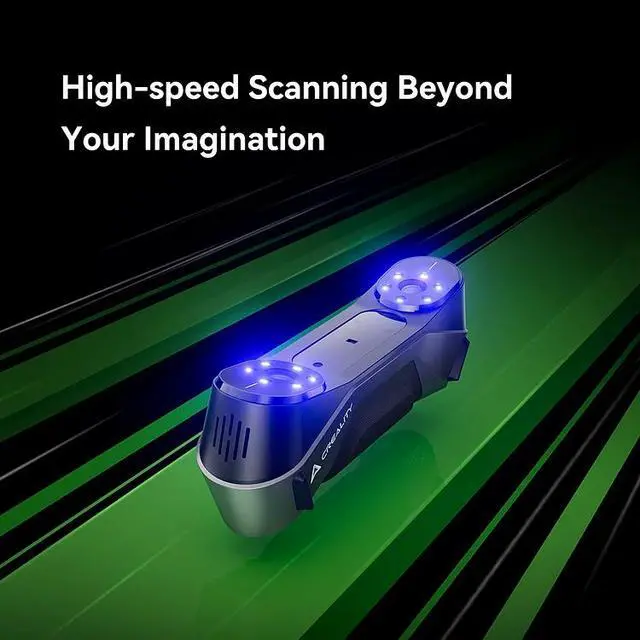

With a scanning speed of up to 60fps, the CR-Scan Raptor ensures fast and efficient data capture, whether you're scanning intricate small objects like figurines or large components like automobile parts. Its thin single laser line enhances precision, capturing sharp, detailed edges and features. The scanner is equipped with 12 infrared LEDs for marker recognition and 12 white LEDs for color supplementation, ensuring exceptional performance even in challenging lighting conditions.
The CR-Scan Raptor supports multiple alignment modes (Marker, Geometry, Texture) and outputs in OBJ, STL, and PLY formats, ensuring compatibility with popular CAD and 3D modeling software. Its lightweight (372g) and compact design make it portable and easy to use, while its wireless scanning capability (with future accessories) adds flexibility. Compatible with Windows and macOS, the scanner is ideal for professionals seeking precision, speed, and versatility in their 3D scanning workflows.

Specifications

Table:



Specification

Details

Scanning Modes
Blue Light (7-line laser), NIR (infrared structured light)


Blue Light Mode Accuracy
Up to 0.02 mm @ 100mm


Blue Light 3D Resolution
0.02 -2mm


Blue Light Scanning Speed
Up to 60fps


Blue Light Single Capture Range
270mm x 170mm @ 300mm


Blue Light Working Distance
150mm-400mm


NIR Mode Accuracy
Up to 0.1 mm


NIR 3D Resolution
0.1 -2mm


NIR Scanning Speed
Up to 20fps


NIR Single Capture Range
930mm x 580mm @ 1000mm


NIR Working Distance
170mm-1000mm


3D Imaging Camera Resolution
1920x1200


Color Mapping
Yes


Alignment Modes
Marker, Geometry, Texture


Output Formats
OBJ, STL, PLY


Color Supplemental Light
12 white LEDs


Marker Recognition Enhancement
12 infrared LEDs


Laser Safety
Class I (eye safe)


IMU
Yes


Wireless Scanning
Supported with future accessories


System Support
Windows/macOS


Device Dimensions
215mm x 50mm x 74mm


Device Weight
372g


Calibration Board
High-precision glass calibration board


Operating Temperature
-10°C to 40°C


Operating Humidity
0-90% RH


Input Power
12V 2A


Data Interface
Type-C/USB 3.0
