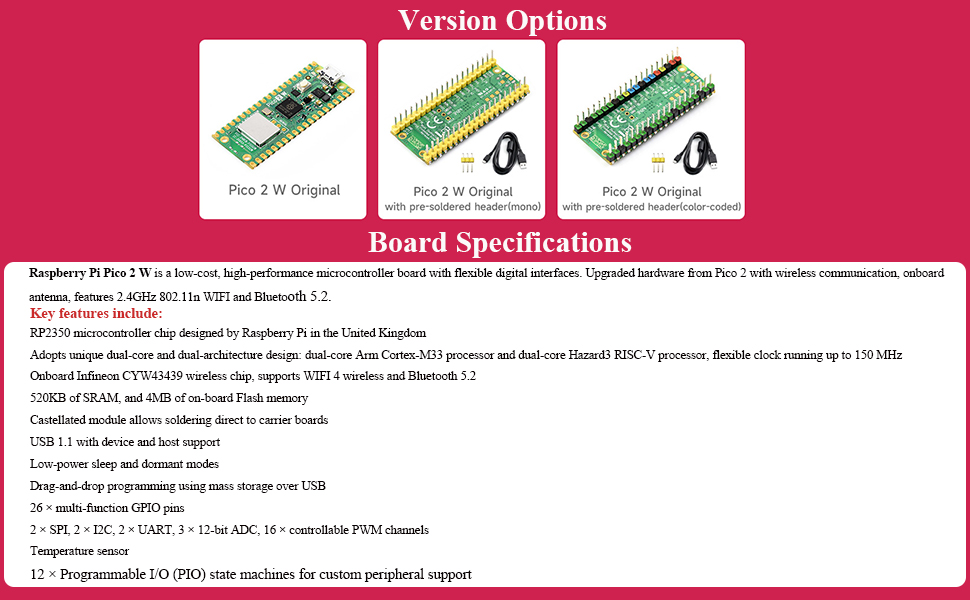

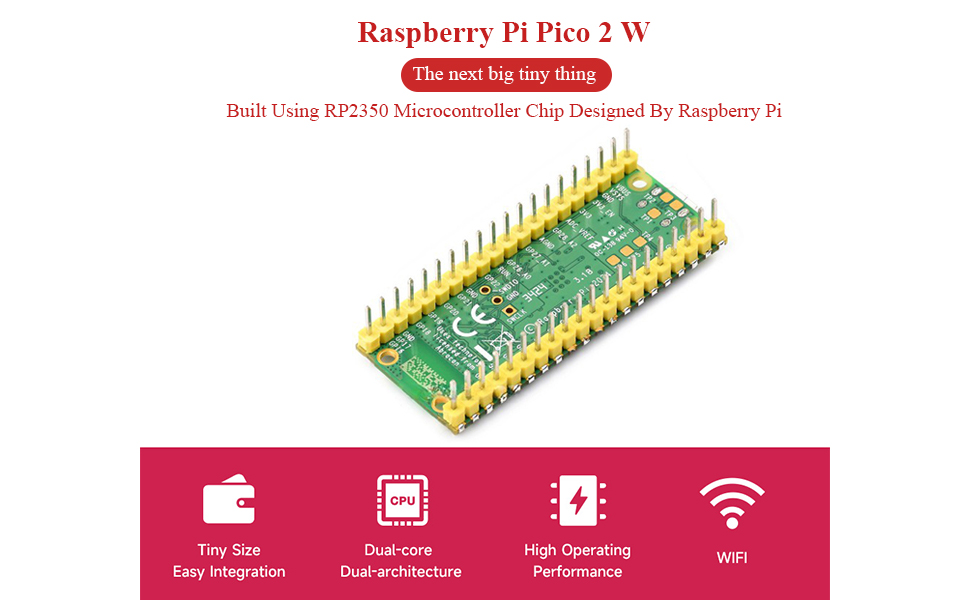

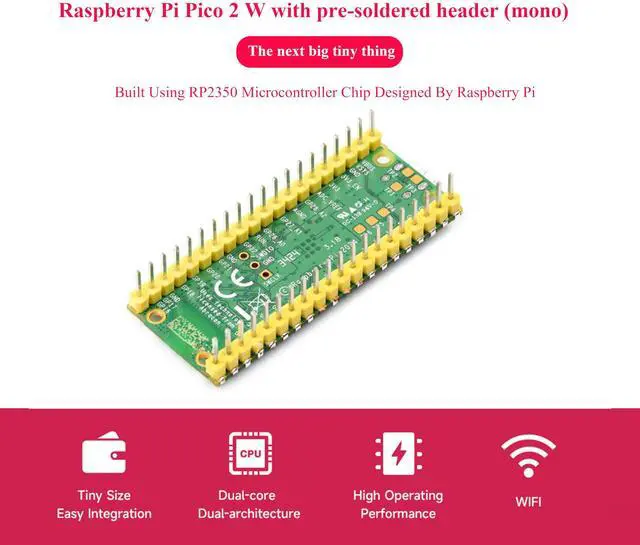

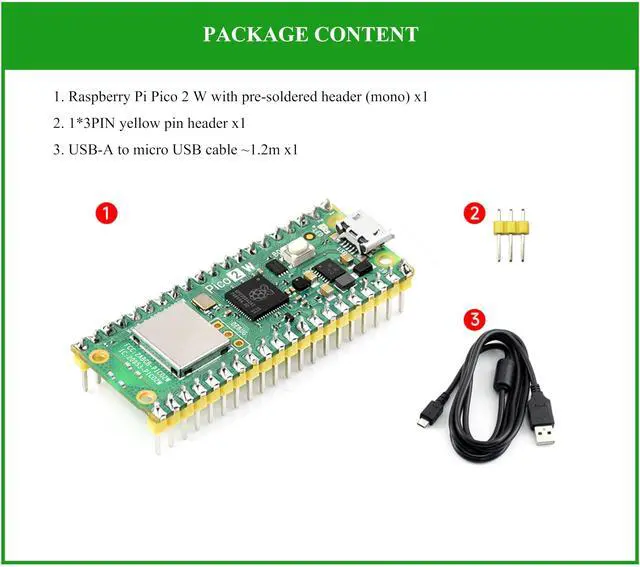

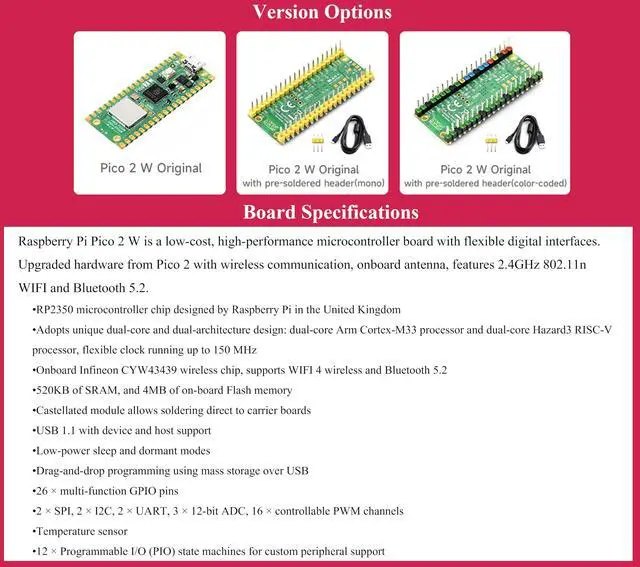

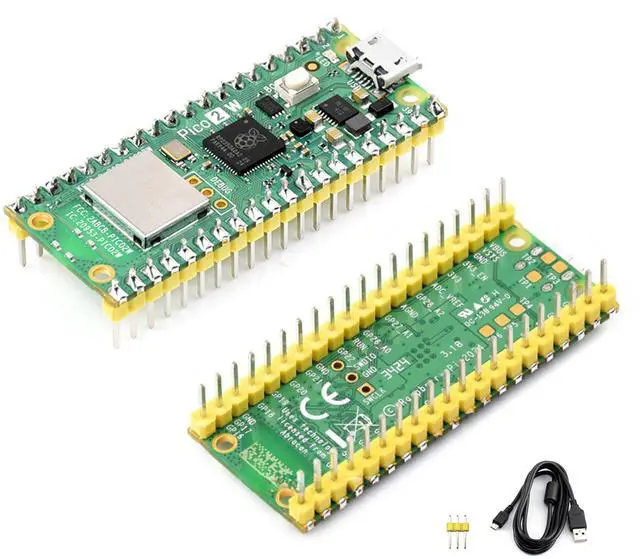

Pico 2 W With Pre-Soldered Header Compatible With Raspberry Pi Board, Kit +USB Cable, 2.4GHz 802.11n WiFi and Bluetooth 5.2, RP2350 Chip, Dual-Core & Dual-Architecture Design

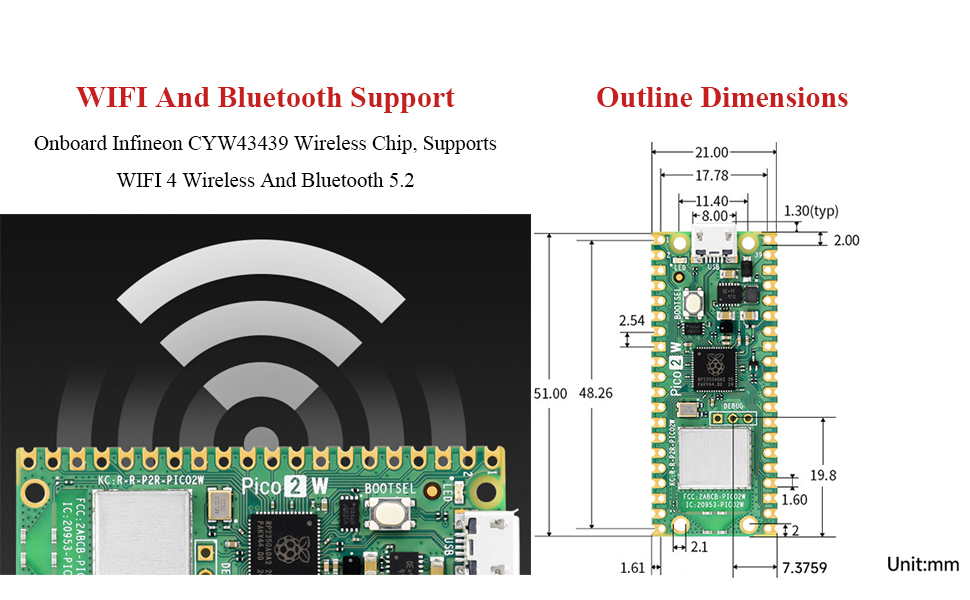

- This is the latest Pi Pico 2 W Microcontroller Board (with yellow pre-soldered header), which is upgraded hardware from Pico 2 with wireless communication, onboard antenna, onboard Infineon CYW43439 wireless chip,features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

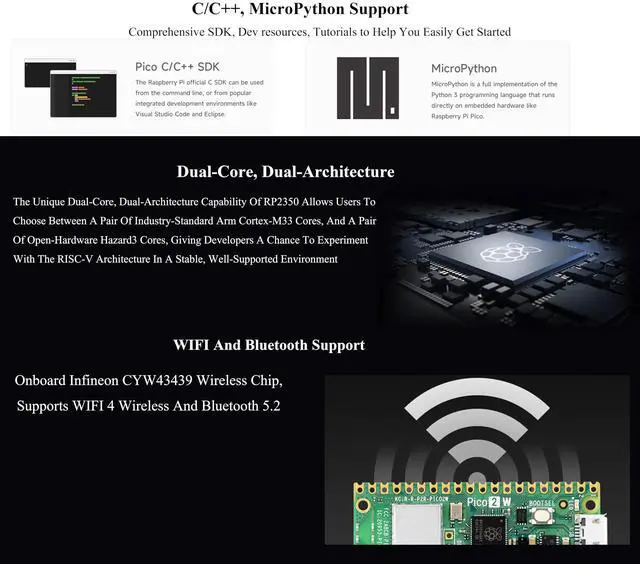

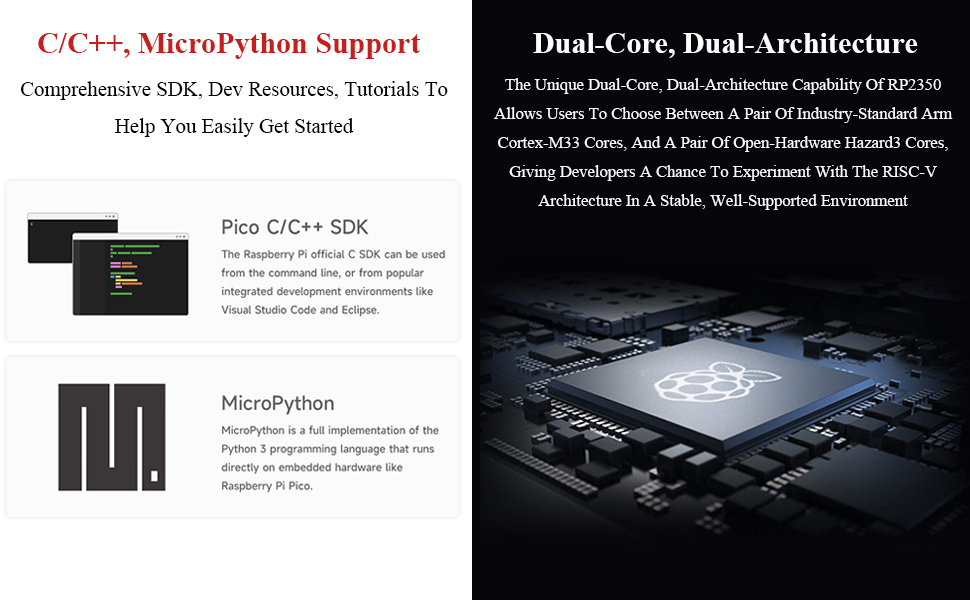

- Using Official RP2350 Chip. Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz.
- 520KB of SRAM, and 4MB of on-board Flash memory.
- Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.

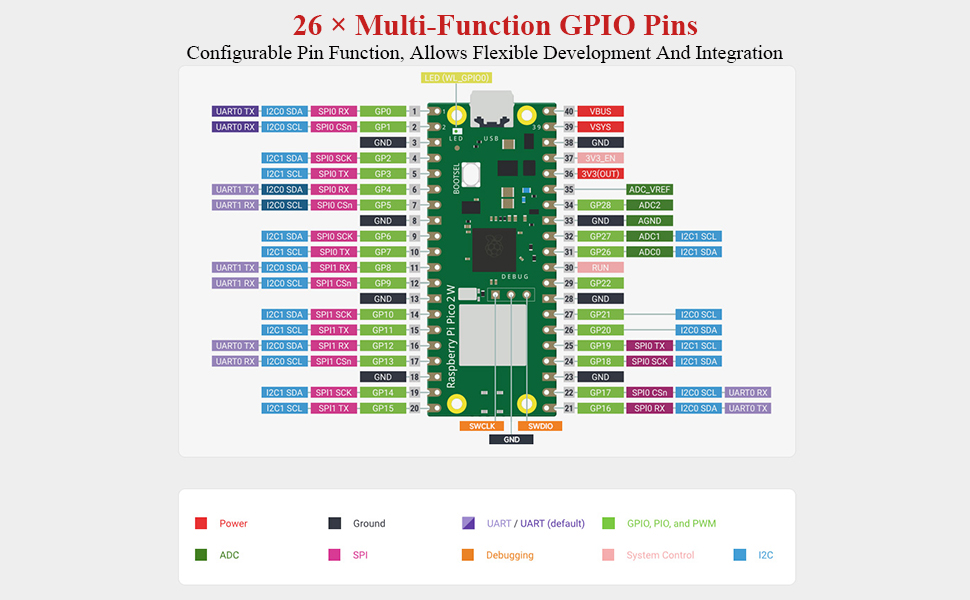

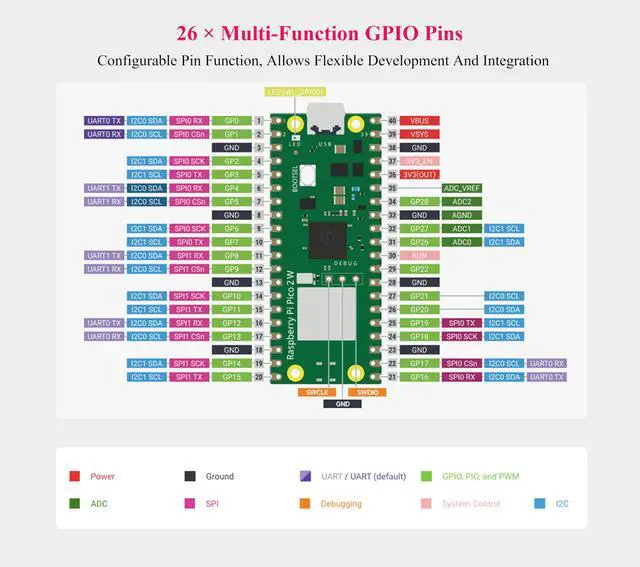

- 26 x multi-function GPIO pins. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels. Temperature sensor.
- 12 x Programmable I/O (PIO) state machines for custom peripheral support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Pico 2 W With Pre-Soldered Header Compatible With Raspberry Pi Board, Kit +USB Cable, 2.4GH z 802.11 n WiFi and Bluetooth 5.2, RP2350 Chip, Dual-Core & Dual-Architecture Design
