Question 1

Is this access point REV A or REV B?

Accepted Answer

The D-Link DAP-1522 I bought in July is a Rev B1.

Question 2

Will this unit work with windows 7 or higher?

Accepted Answer

Yes. I've used it with XP to 10 and several different tablets and phones. And it doesn't require a power-reset after running for a long time (like other units I've used in the past).

Question 3

Hi recently just ordered this and I was wondering if I will still need to buy a modem for this?? Or can this be used as one??

Accepted Answer

This is a wireless access point only that you would plug into a router or a combination cable modem/router.   If you have cable internet you need a cable modem and a router or a combination cable-modem / router.  Usually your cable internet company provides a cable modem (that you rent) which has one or more network ports.  If it has only one network port, you will need to get a router if you plan to connect more than one network device.

Question 4

how much range or radius in feet can this router extend?

Accepted Answer

I use this router in an old 8,000 sq.ft. retail store with poured concrete floors. I have not noticed an issue, or drops .

Question 5

Can you use 2 of these to connect to a single wireless network?  I have 2 groups of equipment in 2 different areas, and the wireless router is upstairs.

Accepted Answer

Yes, you should be able to. The wireless router shouldn't care that there are multiple wireless bridges attached to it - they're just another wireless client as far as it's concerned (well, technically there is some difference between a bridge and, say, a PC - but having more than one still isn't an issue).

The only scenario where you'd be limited to a 1-1 bridge is if you bought a set of point-to-point radios specifically configured to pair to one another. Which would be a very different product from this, and probably wouldn't use normal 802.11 wifi.

Question 6

I'm looking to install a wireless network in a large office. Can I chain some of these together to make a line of APs? or will i need run lines to each?

Accepted Answer

They can all be in the same IP address pool but you can have more than one network running on them.  They're not daisy chained per se, but each one is connected to a central switch.  How you space them out is a matter of your Cat5 power over ethernet length.  I have one central unidirectional antenna that all of my Ubiquiti Bullet M5's are aimed at and serve as bridges.  The bullet feeds any size switch you want; 4, 6, 8, etc. and this switch feeds your AP's.  They all show up in the controller software, no matter how many you have.  On the same AP's I have several WiFi networks so that I can have different passwords and turn one off while the other is on.  Great for students vs teacher access.

Standards	IEEE 802.11n, Selectable 2.4/5GHz, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Device Management	Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later; or other Java-enabled Browsers.
Wireless Data Rates	Up to 300Mbps
Security	WPA & WPA2 (Wi-Fi Protected Access), WPS
Frequency Band	2.4 GHz / 5 GHz
Antenna	Internal Antenna
System Requirements	Minimum System Requirements: Computer with: Windows Vista, Windows XP SP2, Windows 2000, or Mac OS X (v10.4) Internet Explorer v6 or Mozilla Firefox v1.5 CD-ROM Drive Network Interface Card. For Internet Access: Cable or DSL Modem Router Subscription with an Internet Service Provider (ISP)
Interface	Ethernet Port

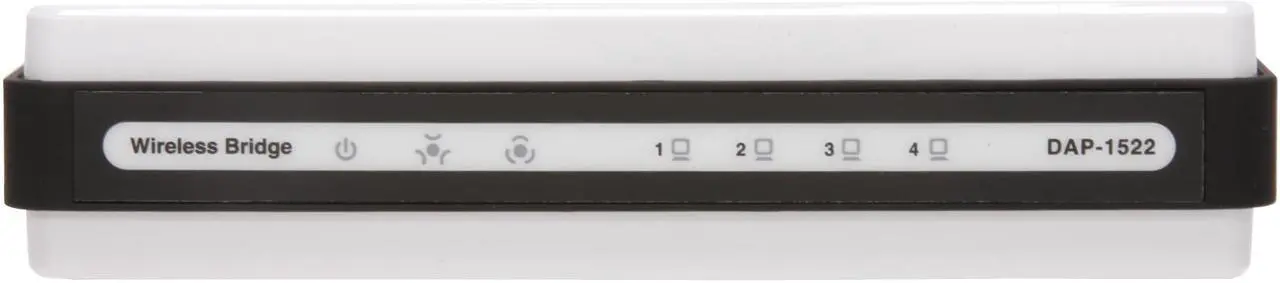

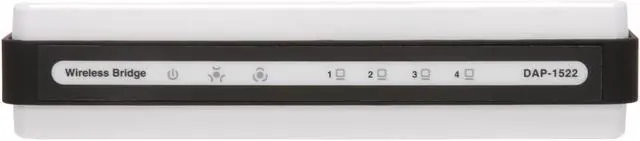

LEDs	Power, Bridge, AP, 4 LAN (Wired Connection), WPS (Wi-Fi Protected Setup)

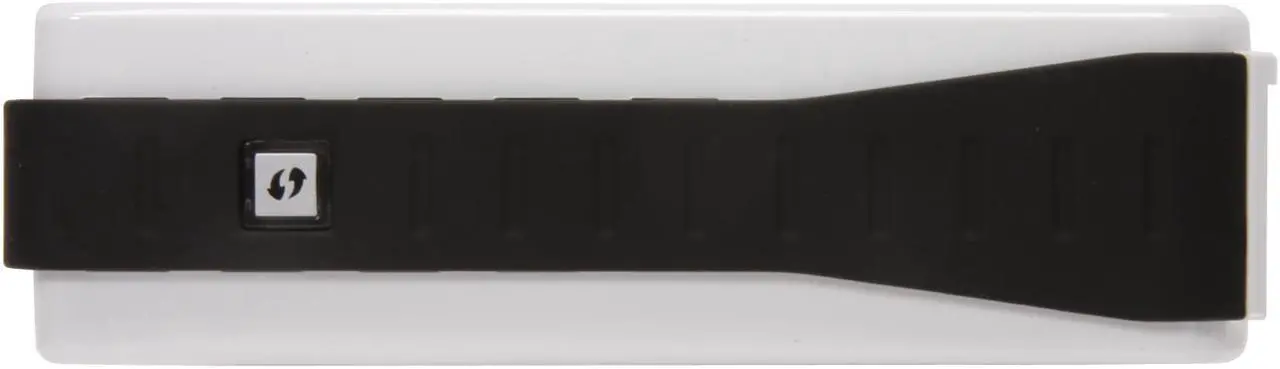

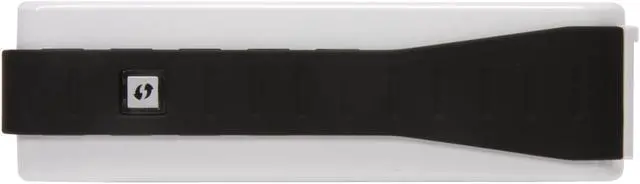

Buttons	1 Push-Button (for Wi-Fi Protected Setup)
WAN Ports	4 x 10/100/1000M

Dimensions	4.4" x 5.7" x 1.3"
Weight	0.5 lbs.

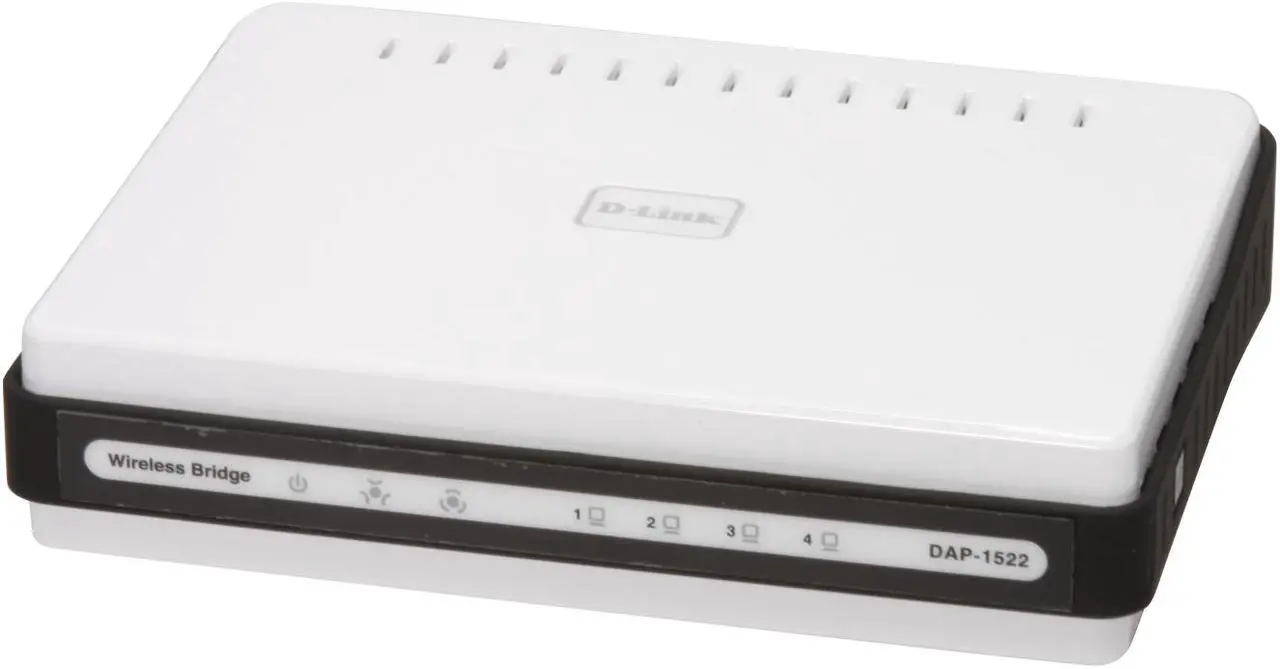

D-Link Xtreme-N Duo Wireless Bridge/Access Point (DAP-1522) Wireless N300, Dual-Band, Fast Ethernet

Learn more about the D-Link DAP-1522

Customer Reviews of the D-Link DAP-1522

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	D-Link
Model	DAP-1522
