Is this fan-less (quiet) or does this switch make noise like their POE switches?

There's no fan. Absolutely silent. Just a really nice switch for home use with lots of ports.

Can CAT-6 cables be used with this?

Yes, cat-6 cables are superior to cat5 and cat5e, and can be used everywhere you would use the lesser cables. Cat6 is over-kill for gigabit ethernet, unless you are running long distances.

What is the operating temperature range?

D-Link's website says: Operating Temperature 32 to 104 °F (0 to 40 °C) I have it sitting on my desktop with plenty of ventilation, my room temp is normally around 65-75 degrees depending of the time of the year. I've operated this unit for almost 2 years and I've never had to reset it.

Does this support link aggregation, or port sharing. I am looking to add a quad gigabit adapter to my file server?

Thanks for reply. Ok so i need managed switch. Does that mean it will take place of my router or no ? Sorry im new to link aggregation

Home
Networking
Wired Networking
Switches
D-Link
Item#: N82E16833127464

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 1 wish list)

Get Educated

Make informed decisions with expert advice. Learn More

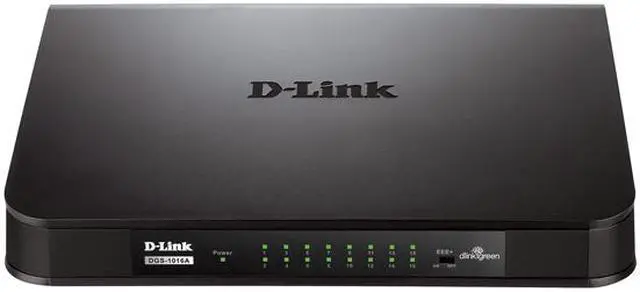

Main image of D-LINK 16-Port Gigabit Unmanaged Desktop Switch (DGS-1016A)

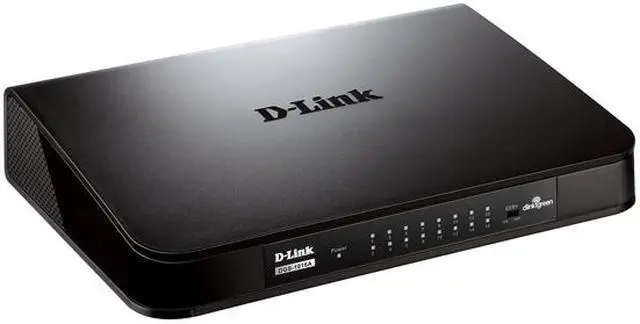

Alt view image 2 of 3 - D-LINK 16-Port Gigabit Unmanaged Desktop Switch (DGS-1016A)

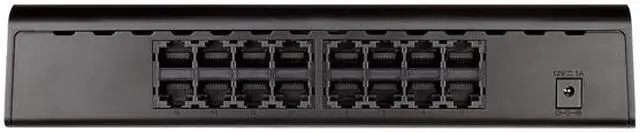

Alt view image 3 of 3 - D-LINK 16-Port Gigabit Unmanaged Desktop Switch (DGS-1016A)

Shop All D-Link Products

D-LINK 16-Port Gigabit Unmanaged Desktop Switch (DGS-1016A)

(11) Write a Review

Sixteen (16) 10/100/1000 Mbps ports
Aggregated bandwidth of 32Gbps
9K of jumbo frame support to help expedite transmission
All ports feature auto-MDI / MDI-X for automatic cable detection
Idea for an ultimate gaming experience

Overview

Specs

Reviews (11)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

16-Port Gigabit Unmanaged Desktop Switch

Model
Brand	D-Link
Model	DGS-1016A

Format & Standards
Format	Desktop
Standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE)
Network Management Type	Unmanaged

Ports & Interface
Uplink Ports	None
Primary Ports	16 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
Jumbo Frames	9216 bytes

Details
Buffer Memory	2MB
Protocols	TCP/IP
PoE	No
Layer	Layer 2 Only
LEDs	Per port: Link/Activity/Speed Per device: Power
Power	Power Inputs: Switching 12V/1A level V power adapter Power Consumption Power On (Standby): AC input: 3.12 Watts Power Max.: AC input: 7.89 Watts

Features
Features	Switching Capacity: 32Gbps Network Cables 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max) EIA/TIA-586 100-ohm STP (100 m max) 100BASE-TX, 1000BASE-T UTP CAT 5/5e (100m max) EIA/TIA-568 100-ohm STP (100 m max) Data Transfer Rates Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)

Dimensions & Weight
Dimensions	9.10" x 6.20" x 1.80"
Weight	1.28 lbs.

Group
Model	DGS-1016A

Additional Information
First Listed on Newegg	September 30, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 45 days
Return for replacement within: 1 year
This item is covered by Newegg.com's 45/1 Return Policy.
Read full return policy for details.
