Question 1

what is the diff between managed and unmanaged. I have a dsl modem into a wireless/4 port wired router. what do i need?

Accepted Answer

An unmanaged switch is a plug and play device that moves packets between ip address. A managed switch provides substantially more function at the expense of higher cost and increased complexity. For example, a managed switch will support  the SNMP for management. One can communicate with the switch CLI over secure sockets or other protocols. One can implement features like VLAN or mirroring to scan incoming packets. There are quite a few articles on the web that discuss this topic in greater detail. Managed switches are typically used in commercial environments due to their cost and management complexity. There is nothing that would prevent one from using a managed switch at home, but it does require more knowledge and effort to take advantage of it's features. For most home environments an unmanaged switch is adequate.

Question 2

I have an older "C1" revision of this particular switch, its got a fan that is getting rather loud and obnoxious now, looking to replace it.   Is it true this latest version of the switch no longer has the fan?   Thanks!

Accepted Answer

No fan. I would recommend putting it in a location with good ventilation.  I've been using the switches for almost 2 years and there's been no heat issues.  Good cheap switch.  Would be nice if the LED lights were below the respective port rather than to the side.

Question 3

this switch support ipv6 or not??

Accepted Answer

Switches doesn't know about IP, they only know about MAC Address as they operates at Layer 2. So the answer is yes, it does support ipv6 as long as your edge router supports IPv6 and your DHCP server is set to leave IPv6 addresses.

Question 4

What does it mean "on ship: 500KB Buffer Memory per device"? Can you open it and upgrade it?

Accepted Answer

The 500KB Buffer Memory is used for the MAC Address table. I am not sure this can be upgraded. I don't think it is worth to try to upgrade it as it could be integrated on the system board.

if you need larger CAM table, you might need an enterprise class switches and managed ones.

this unit is not manage, which means you can't create VLANs and it is only a layer 2 device. No routing processing on this unit.

Hope this helps.

Question 5

What is the maximum power consumption of the D-Link DGS-1024D switch?

Accepted Answer

The maximum power consumption of the D-Link DGS-1024D switch is 12.5 watts.

Question 6

What types of installations can the D-Link DGS-1024D switch support?

Accepted Answer

The D-Link DGS-1024D switch supports both desktop and rack mount installations.

Question 7

CAN I INTERCONNECT 7 OF THESE (DGS-1024D)?

Accepted Answer

Yes, we have 4 that we connect to a fifth that then connects to our firewall

Question 8

How noisy is this switch, how hot does it get and what is power consumption for 0 ports used and for max ports?  Had a Cisco router that was a big power hog and too noisy for home use.

Accepted Answer

Really quiet (i.e. silent) ... I do not have any way to track power usage for it, though...

Format	Rackmount
Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management Type	Unmanaged

Uplink Ports	None
Primary Ports	24 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	8K
Switching Method	Store and Forward
VLAN Support	No
Jumbo Frames	10,000 Bytes

Buffer Memory	512KB
Protocols	TCP/IP
PoE	No
LEDs	Power LED 24 Link / Activity / Speed LEDs (one per port)

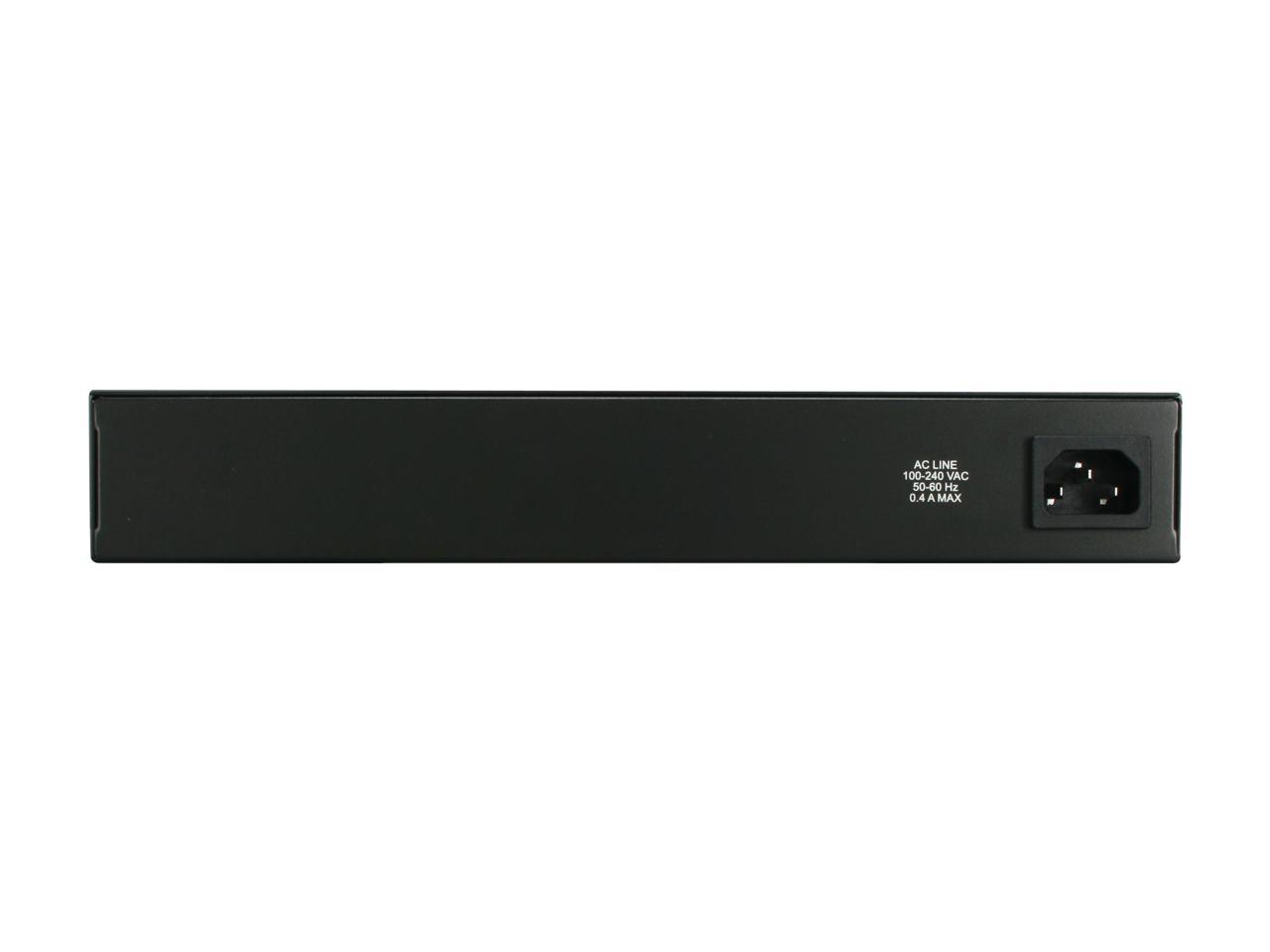

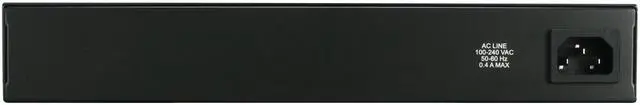

Power	Power Inputs: 100 to 240V AC Input Power Consumption: Standby: 5.0 watts Maximum: 12.5 watts

Dimensions	1.73" x 11.02" x 7.09"
Weight	2.98 lbs

Best Sellers

Meet Your Seller

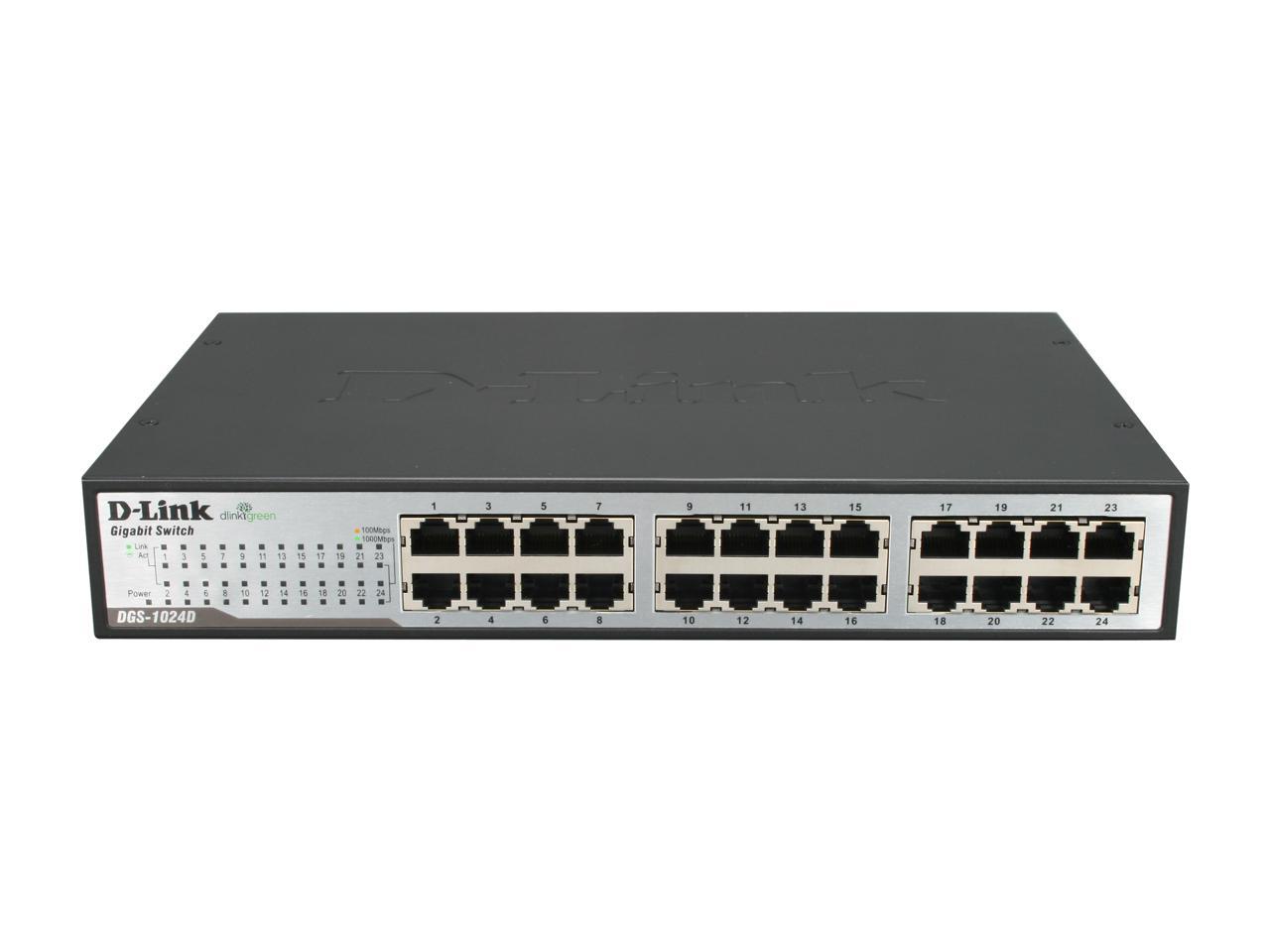

D-Link DGS-1024D Unmanaged 24-Port Gigabit Unmanaged Desktop or Rackmount Switch

Learn more about the D-Link DGS-1024D

Customer Reviews of the D-Link DGS-1024D

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Temperature	Operating: 32 to 104 degree F (0 to 40 degree C) Storage: 14 to 158 degree F (-10 to 70 degree C)
Humidity	Operating: 5% to 90% RH, non-condensing Storage: 5% to 95% RH

Model
Brand	D-Link
Model	DGS-1024D
