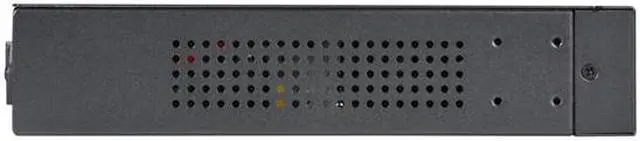

Main image of D-Link DGS-1210-16 Web-based GUI : Supports IPv4 Compact CLI through Telnet : Yes Telnet Server : Maximum connection is 4, Supports IPv4 TFTP Client : Supports IPv4 SNMP Trap : Yes Trap for SmartConsole Utility : Yes System Log : Max.

Alt view image 2 of 3 - D-Link DGS-1210-16 Web-based GUI : Supports IPv4 Compact CLI through Telnet : Yes Telnet Server : Maximum connection is 4, Supports IPv4 TFTP Client : Supports IPv4 SNMP Trap : Yes Trap for SmartConsole Utility : Yes System Log : Max.

Alt view image 3 of 3 - D-Link DGS-1210-16 Web-based GUI : Supports IPv4 Compact CLI through Telnet : Yes Telnet Server : Maximum connection is 4, Supports IPv4 TFTP Client : Supports IPv4 SNMP Trap : Yes Trap for SmartConsole Utility : Yes System Log : Max.

Shop All D-Link Products

D-Link DGS-1210-16 Web-based GUI : Supports IPv4 Compact CLI through Telnet : Yes Telnet Server : Maximum connection is 4, Supports IPv4 TFTP Client : Supports IPv4 SNMP Trap : Yes Trap for SmartConsole Utility : Yes System Log : Max.

Be the first to review this product...

8K MAC Address Table
512KB Buffer Memory
Web-based GUI : Supports IPv4
Compact CLI through Telnet : Yes
Telnet Server : Maximum connection is 4, Supports IPv4
TFTP Client : Supports IPv4
SNMP

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	D-Link
Model	DGS-1210-16

Format & Standards
Format	Rackmount
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 Auto-negotiation IEEE 802.3x Flow Control
Network Management Type	Web-based GUI : Supports IPv4 Compact CLI through Telnet : Yes Telnet Server : Maximum connection is 4, Supports IPv4 TFTP Client : Supports IPv4 SNMP Trap : Yes Trap for SmartConsole Utility : Yes System Log : Max. 500 log entries, supports IPv4 log server BootP/DHCP Client : Yes Time Setting : SNTP

Ports & Interface
Primary Ports	12 x RJ45 + 4 x RJ45/SFP Combo
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Yes

Details
Buffer Memory	512KB
Security	802.1X Port-based Access Control : Default 802.1X forwarding Port Security : Supports up to 64 MAC addresses per port Traffic Control : Broadcast/Multicast/Unicast Storm Control Static MAC : Supports 256 Static MAC entries D-Link Safeguard Engine : Yes
QoS	802.1p Quality of Service : 4 Queues per port Queue Handling : Strict, Weighted Round Robin (WRR) CoS based on : 802.1p Priority Queues, DSCP Bandwidth Control : Port-based (Ingress/Egress, min. granularity 64 Kb/s)
Layer	MAC Address Table : 8K Flow Control : 802.3x Flow Control HOL Blocking Prevention Spanning Tree Protocol : 802.1D STP 802.1w RSTP IGMP Snooping : IGMP v1/v2 Snooping Supports at least 64 static multicast addresses Supports IGMP Snooping Querier Supports 256 IGMP groups IGMP per VLAN Loopback Detection : Auto disable port when loop is detected 802.3ad Link Aggregetion : 8 groups per device/8 ports per group Port Mirroring : One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both Cable Diagnostics : Yes Configurable Auto MDI/MDI-X : Yes
Port Mirroring	One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
LEDs	Power (per device) Fan Error (per device, optional) Link/Activity/Speed (per 10/100/1000Mbps port, per SFP port)
Power	100 to 240 VAC 50/60 internal universal power supply

Features
Features	Web Smart Switch with 16 10/100/1000Mbps Ports, and 4 combo SFP slots Fanless Design: Provides Continuous, Reliable, Silent and Eco-Friendly Operation Green Technology: Power saving by cable length detection or link status Security Features: Access Control List, D-Link Safeguard Engine and Port Security Intuitive Management: SmartConsole or Web-Based GUI, Built-in MIB Browser for SNMP, D-View 6.0 Module Support and Compact CLI through Telnet Supports Auto Voice VLAN and DSCP QoS for VoIP Application.

Dimensions & Weight
Dimensions	17.3in x 8.3in x 1.7in
Weight	6.3 lbs

Group
Model	DGS-1210-16

Additional Information
First Listed on Newegg	October 21, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
