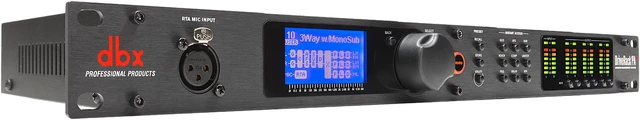

DBX DRIVERACK PA2 (DBXPA2-V) Complete Loudspeaker Management System
+
+
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the HARMAN KARDON DRIVERACK PA2 (DBXPA2-V)
| Brand | DBX |
|---|---|
| Model | DRIVERACK PA2 (DBXPA2-V) |
| Type | Signal Processor |
|---|---|
| Finish | Black |
| Specification | General Specifications A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW Input Delay Length: 100ms Alignment Delay: 10ms per channel (60ms total) Sample Rate: 48kHz Dynamic Range: >110 dB A-weighted, >107dB unweighted THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB input gain Frequency Response: 20Hz – 20kHz, +/- 0.5dB Interchannel Crosstalk: < -110 dB, -120dB typical (input-to-output < -100 dB) Operating Voltage: 100-120VAC 50/60 Hz ; EU - 220-240 VAC 50/60 Hz Power Consumption: 22 W Audio Specifications Input: (2) line inputs. (1) RTA Mic input Input Connectors: (2) Female XLR line inputs. (1) Female XLR RTA Mic input Input Type: Electronically balanced/RF filtered Input Impedance: >50 kohm A/D Converter: dbx Type IV Conversion System CMRR: > 45dB Mic Preamp Phantom Power: +15VDC (RTA) Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA) Output: (6) Line Outputs Output Connectors: Male XLR Output Type: Electronically balanced, RF filtered Output Impedance: 120 ohm Max Output: +20dBu |
| Feature | The DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx's proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation. |
|---|
| Dimension | 1.75" x 19.00" x 5.75" |
|---|---|
| Weight | 5.25 lbs. |
| First Listed on Newegg | September 30, 2026 |
|---|
