Product Option:Color:512GB SSD 1TB HDD,Bundle:J1900 4GB DDR3L.Contact with us if you need other option.
Buy with confidence ! Best feedback from our customers over the world ! Supplying OEM service for over 50pieces order quantities (do your logo on the mini pc case) ! 3 Years long warranty from Tech. !
Welcome to make an order in time to get a Chinese Knot gift to sent !

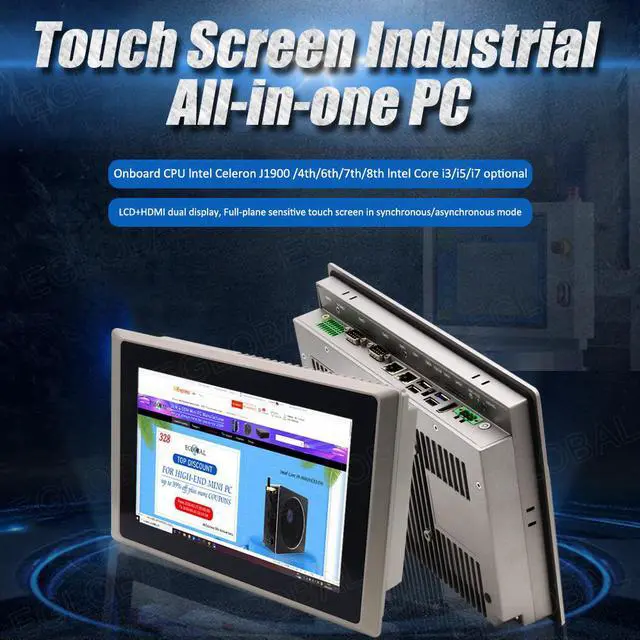

Product Highlight:
Onboard DDR3L 4GB Memory and optional SODIMM slot.
LCD+HDMI dual display, Full-plane sensitive touch screen in synchronous/asynchronous mode.
Front Panel IP65 Waterproof.
Low consumption 9~36V wide voltage input.
Aluminum Alloy case and fanless system without cooling fan, no any noisy.
Rich interfaces fit for many applications and multiple processors for your option.
Specifications:
Basic Information:
CPU
Celeron J1900/ Core i5-4200U/ Core i7-4500U
TDP
15W
Chipset
Refer to CPU
Memory
Onboard DDR3L 4GB RAM
OS
Windows 7/Windows 8/Windows 10/Linux/ WES7
Watchdog timer
1 ~ 255 seconds programmable
Video
Refer to CPU

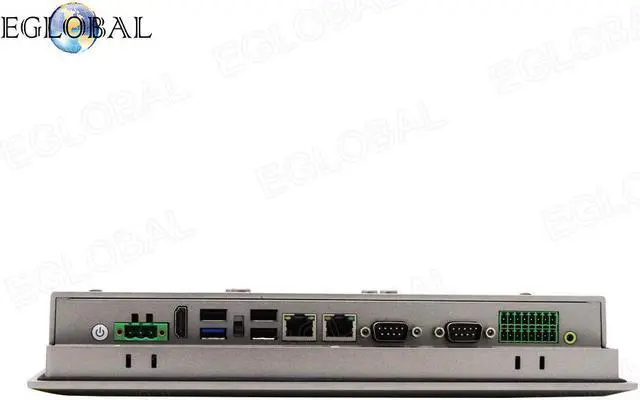

Input/output port
Switch
1 x Power On/Off Switch
Power
1 x DC 9 ~ 36V 3-pin Phoenix Terminal
Amplifier
2 x 8 1W Amplifier output (Optional)
USB
3 x USB2.01, 1 x USB3.01, Built-in 1xUSB2.0 Dongles Port
Display
1 x HDMI
LAN
2x Gigabit Ethernet RJ45 i211-AT
Audio
1 x Audio Line-out
COM
2 x DB-9 COM1&COM2,RS-232/422/485
GPIO
1 x 14bit GPIO (Optional)
Others
2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal
2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal
1x Phoenix terminal remote switch interface
Storage
