2021 Industrial Windows All In One PC Mini PC Desktop Computer Tablet 10.1" J3355 4GB RAM RS232 DB9 Business Pos Terminal

Product Option:Color:Windows 10 Home,Bundle:J3355 4GB RAM 64GB.Contact with us if you need other option.

System Physical Standard Configuration:

Type

Details

Descriptions

Product Form

Form Factor

10.1" mini Aio PC

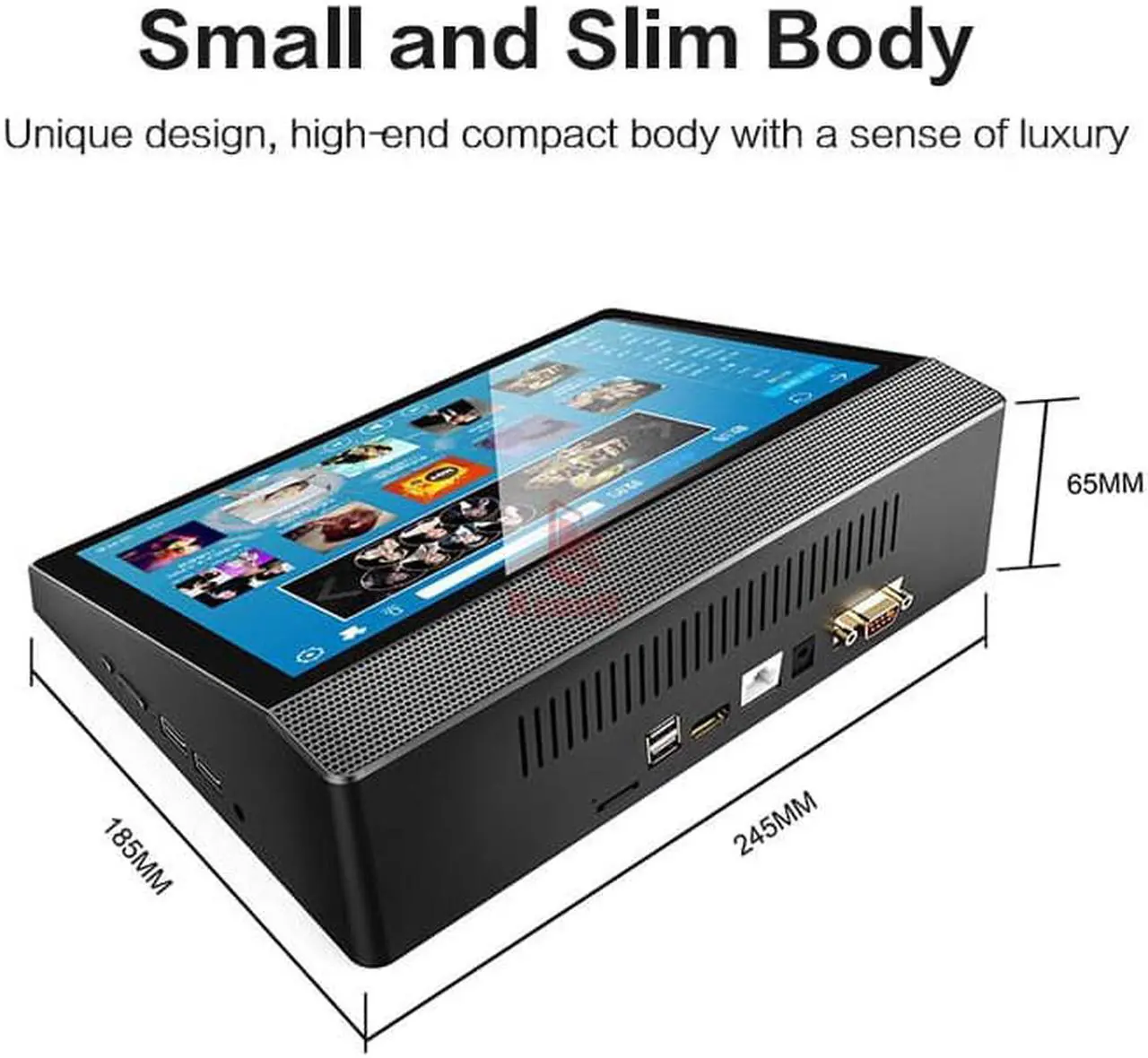

Dimensions

244 x 184.2 x 65mm

Weight

0.9KG

LCD

Screen Size

10.1"

Screen Resolution

1280×800 (IPS + 250ANSI)

TP

Touch Module

G+G Multi-Touch

Battery

Recharge Li-ion battery

Optional

System Hardware Configuration:

Type

Details

Descriptions

CPU

Type

Apollo Lake J3355 Dual-Core

Speed

2GHz ~ 2.50GHz

GPU

Type

HD Graphics 500

Memory

Capacity

4GB (LPDDR4)

Storage

eMMC

64GB

SSD (M.2; 22×42mm)

Optional

SATA 2.5" HDD

Optional

Speaker

Built-in

8/1W

Micphone

Built-in

Optional

G-sensor

Built-in

Yes

Network Connections:

Type

Details

Descriptions

WIFI

WIFI Module: AC3165

WIFI 802.11ac/b/g/n 5G&2.4G Dual-band

Bluetooth

BT Module: AC3165

Bluetooth4.2

Ethernet Network

RJ-45

100/1000Mbps Gigabit Lan

4G LTE

M.2 4G module

Optional

Interface Configuration:

Type

Details

Descriptions

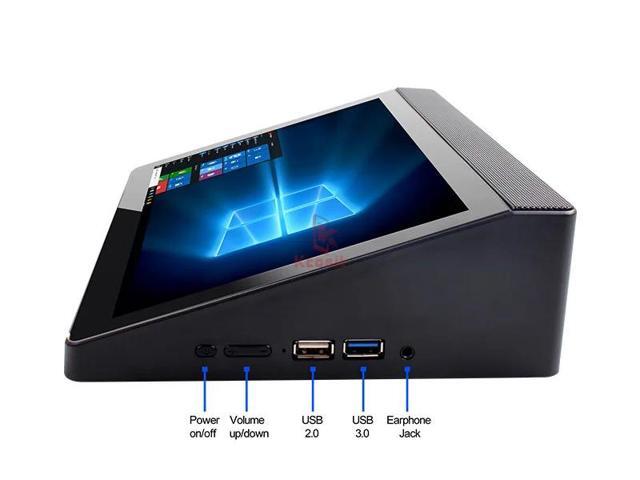

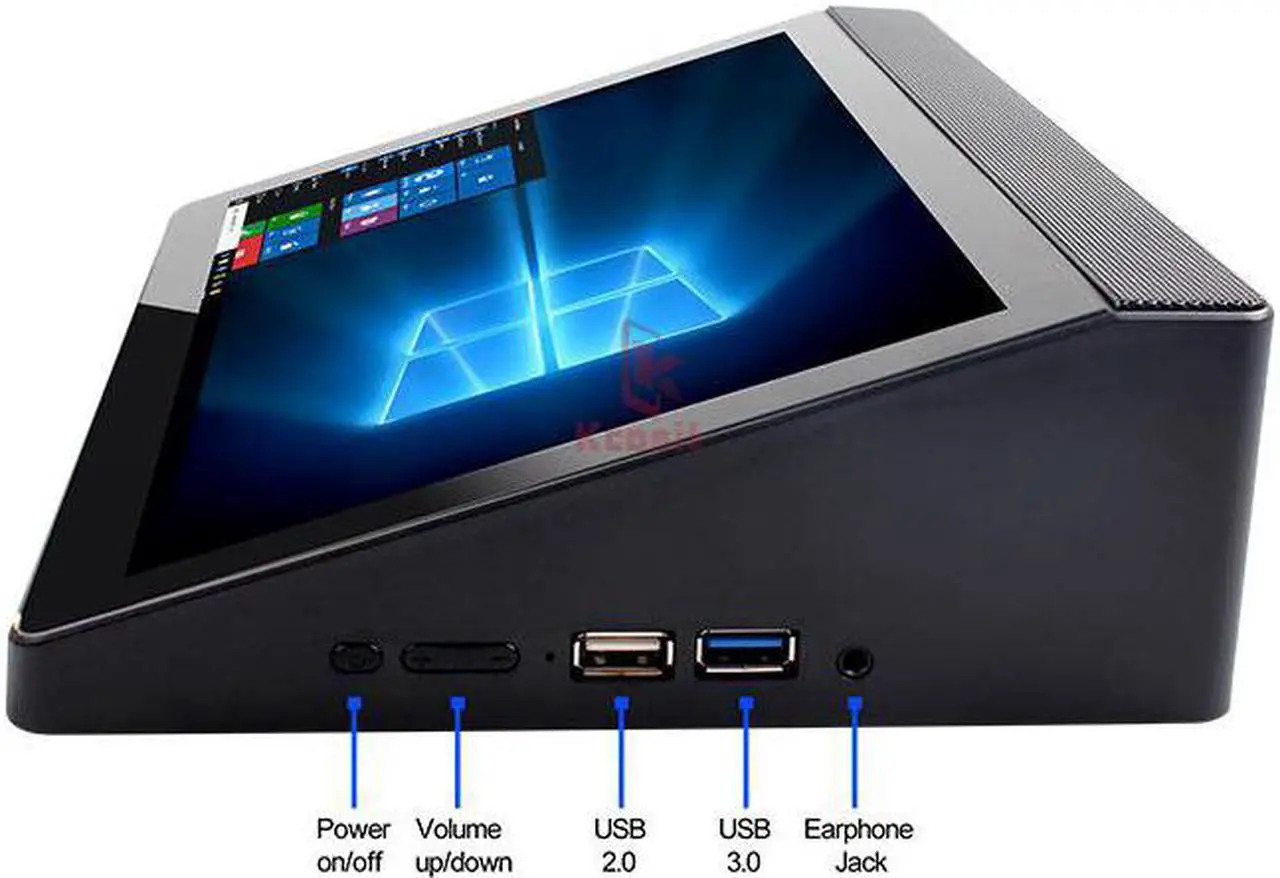

USB Interface

USB3.0 Host

2pcs

USB2.0 Host

2pcs

/ TF Card reader

TF Card reader

1pc

Audio Jack

3.5mm headphone

1pc

HDMI

HDMI 1.4

1pc

Video output through HDMI

Up to 4K

COM Port

DB9 (RS232)

1pc

Button Switch:

Type

Details
