LJCELL BATTERY
Since 2005, LJCELL has been a professional battery solution provider, a brand that values ??quality and customer experience. You are welcome to send us questions and seek product support, our team is always here for you. We hope to provide you with a perfect shopping experience with affordable products and fast logistics services.

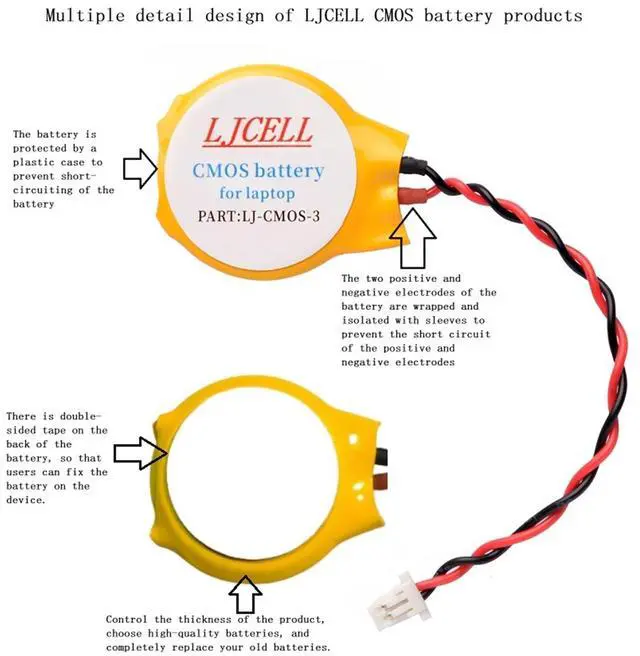

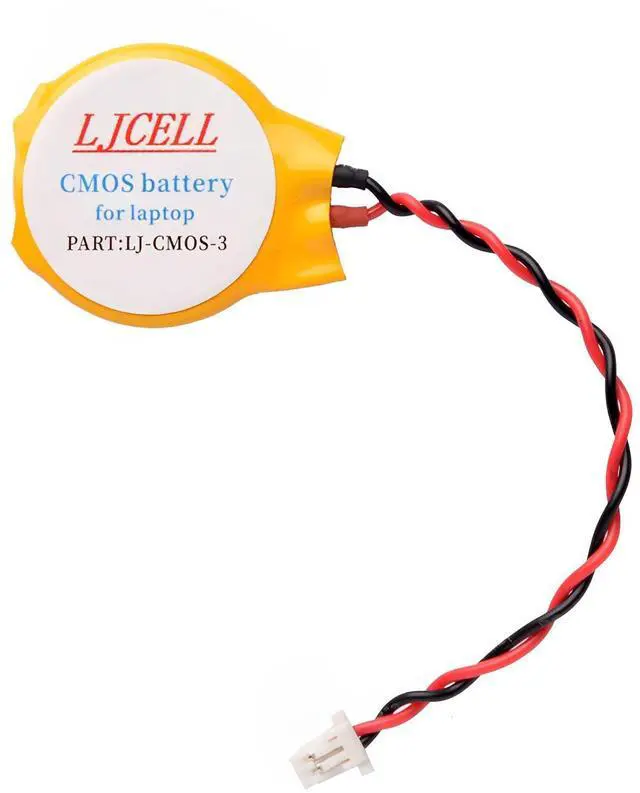

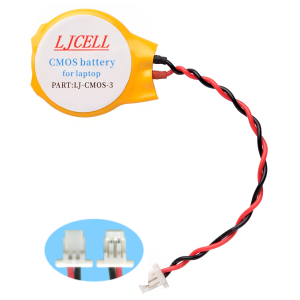

LJCELL CMOS battery solution
The main function of the CMOS battery is to save the hardware configuration of the current system and the settings of certain parameters by the operator, so as to ensure that the BIOS information will not be lost whether the computer is turned off or the system is powered off.
Another function of the CMOS battery is to enable the real-time clock (RTC) of the BIOS to operate normally and ensure that the computer clock function remains accurate.

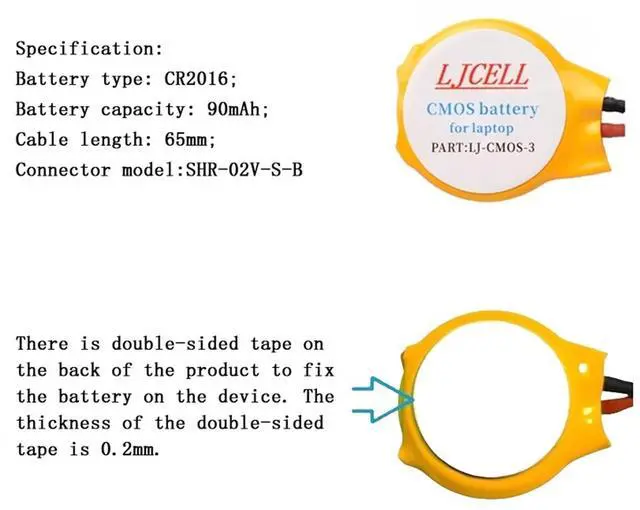

Product parameters:
1?Battery Type:CR2016
2?Voltage:3V
3?Capacity:90mAh
4?Wires Qty:2
5?Size:20mm (0.79in) diameter, 1.8mm (0.071in) height, 65mm (2.56in) wire length

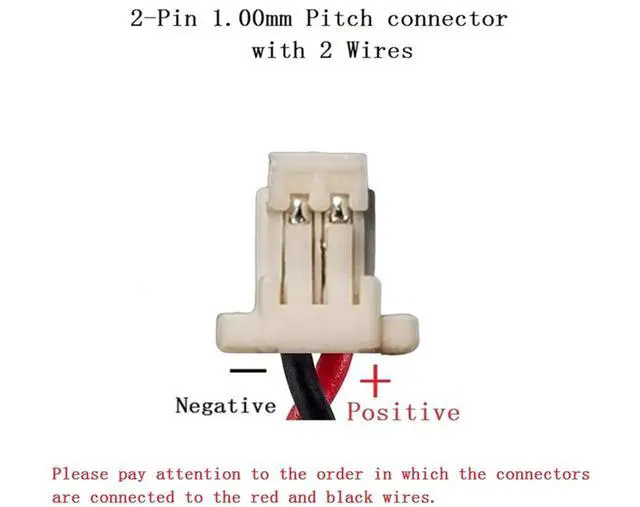

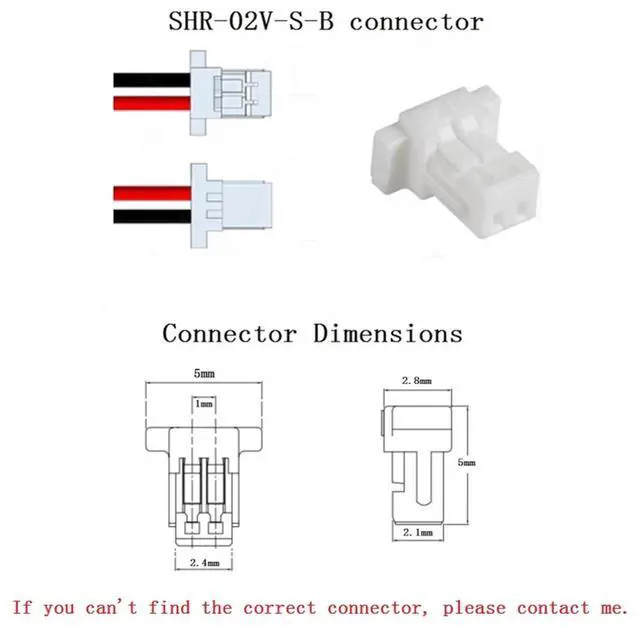

6?Connector model:Compatible with SHR-02V-S-B (can refer to pictures 2,3)

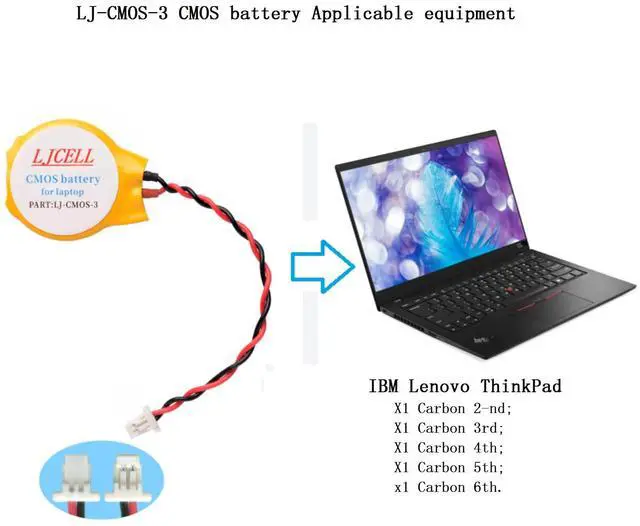

7?Applicable equipment:IBM Lenovo ThinkPad X1 Carbon 2-nd; X1 Carbon 3rd; X1 Carbon 4th; X1 Carbon 5th; X1 Carbon 6th;X1 Carbon 8th Gen (Type 20U9, 20UA);Lenovo P40 Yoga,Thinkpad S3 Yoga 14.Acer Predator Helios 300 PH317-53,Acer Aspire Z24-890 Series D18W8.
 LJ-CMOS-1 |  LJ-CMOS-2 |  LJ-CMOS-3 |  LJ-CMOS-4 |  LJ-CMOS-5 |  LJ-CMOS-7 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Battery Type | CR2032 | CR2032 | CR2016 | CR2032 | ML1220 | CR2032 |
| Wires Qty | 2 | 2 | 2 | 2 | 2 | 3 |
| Wire length | 65mm | 45mm | 65mm | 65mm | 65mm | 45mm |
| Connector model | Molex 51146 | MX51021-0200-B | SHR-02V-S-B | MX51021-0200-B | Molex 51146 | MX51021-0300-B |
| Dell Alienware Alpha Steam Machine i5 i7 ASM100, ASM100-980, ASM100-1580, ASM100-2980BLK, ASM100-4980BLK, ASM100-6980BLK, ASM- i7 | Intel NUC 5PPYH and ASUS ROG Strix G702 G702V/AsRock AM1H-ITX H110M-ITX H270M-ITX/ac B550M ITX Motherboard, Sony Playstation 2 and Playstation 3. | IBM Lenovo ThinkPad X1 Carbon 2-nd; X1 Carbon 3rd; X1 Carbon 4th; X1 Carbon 5th; X1 Carbon 6th;Acer Predator Helios 300 PH317-53,Acer Aspire Z24-890 Series D18W8. | Alienware M11x R1 R2 Area-51 13 15 17 18 R2 R3 R4 M14x R1 R2 M17x M18x R2 Area-51 M9700 M9750.Dell Latitude E6520, E6420, E6320, XFR E6420, ATG E6420, E5530, E6230, E5430, E6530, E6430;IBM Lenovo Thinkpad T40 T400 T41 T410 T410I T42 T420 T420I T420S | DELL XPS 13, XPS 15, 9343, 9350, 9360, 9365, 9550, 9560, 9570; Precision 5510, 7350, 5520 | DELL Latitude E4310 E6510 E6410 E6500 E6400 E5510 E5500 E5410 E5400 E6400 ATG. |
