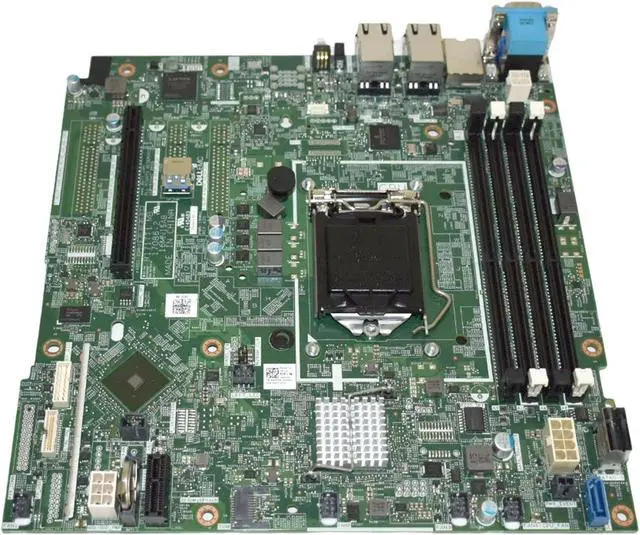

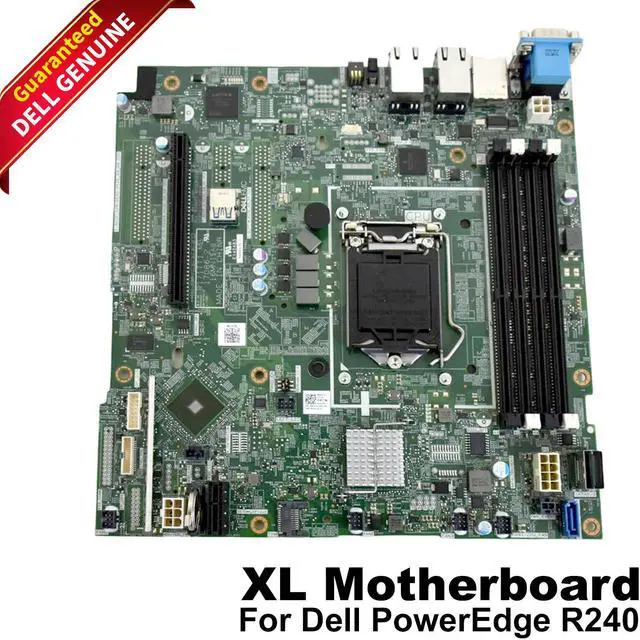

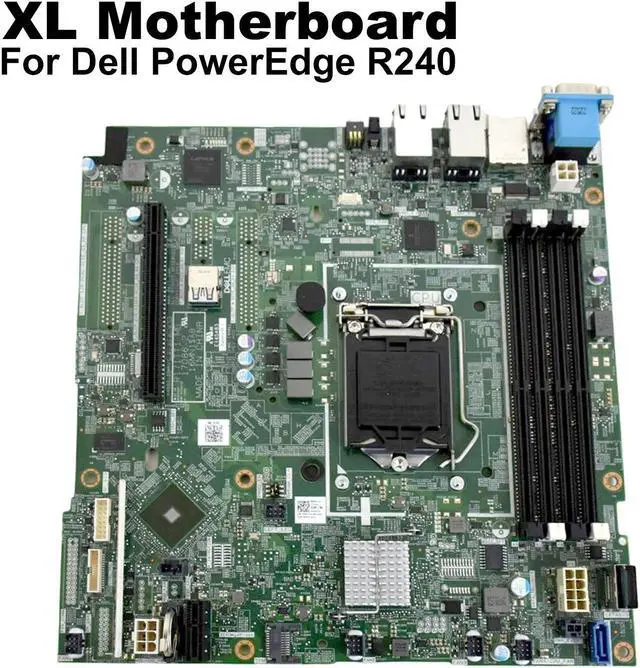

Dell PowerEdge R240 XL Server Motherboard Intel Xeon C242 Chipset 0KFFK

Dell PowerEdge R240 XL Server Motherboard Intel Xeon C242 Chipset 0KFFK" is a server-grade motherboard designed for the Dell PowerEdge R240 XL server. It features the Intel Xeon C242 chipset, supporting Intel Xeon processors, providing reliable performance for small to medium business applications. This motherboard supports advanced server features, including multiple memory channels and expansion slots, making it ideal for handling virtualization, data management, and other enterprise workloads.

Processor Support:
Compatible with Intel Xeon E-2100 and E-2200 series processors
Supports Intel Pentium, Intel Core i3, and Intel Celeron processors
Chipset: Intel C242 Chipset

Memory Support:
Supports up to 64GB DDR4 ECC UDIMM Memory
Memory speed: up to 2666 MT/s
DIMM Slots: 4 x DDR4 DIMM slots

Expansion Slots:
1 x PCIe 3.0 x16 slot

Storage Controller:
Integrated SATA controller with support for up to 4 x 3.5" or 2.5" drives (depending on chassis configuration)
RAID Options: H330, H730P, and software RAID (S140)

Network Controller:
Integrated dual 1GbE NIC (Broadcom BCM5720)

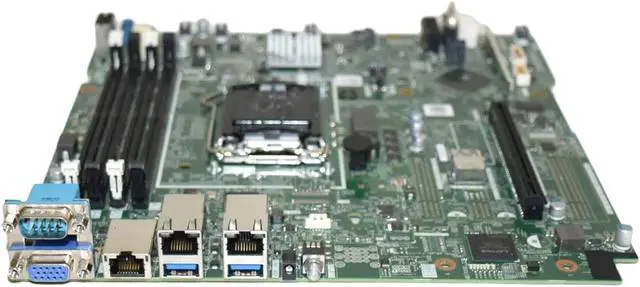

Rear Ports:
2 x USB 3.0
2 x RJ-45 (1GbE LAN ports)
1 x VGA
1 x Serial Port (9-pin)
1 x iDRAC Direct (Micro-USB)

Internal Headers:
USB 2.0 headers
Front panel header for system management and indicators
