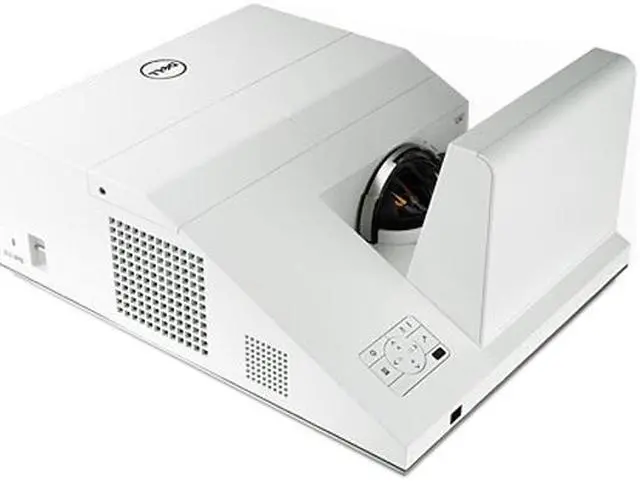

Main image of Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

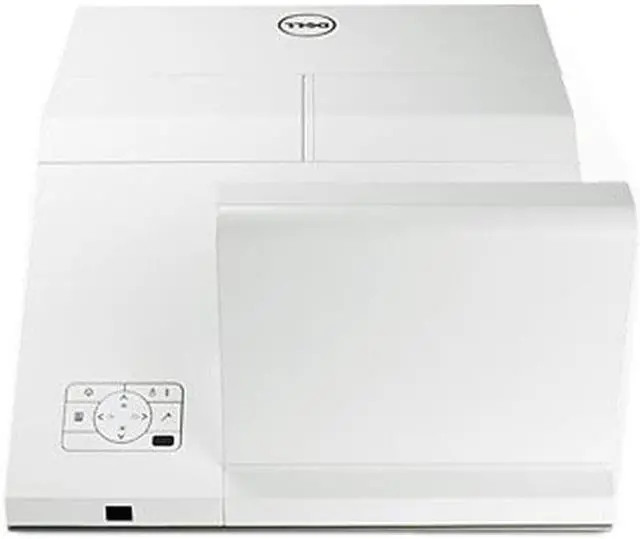

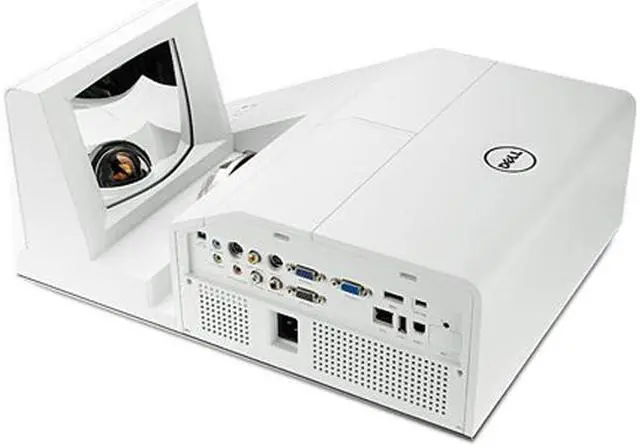

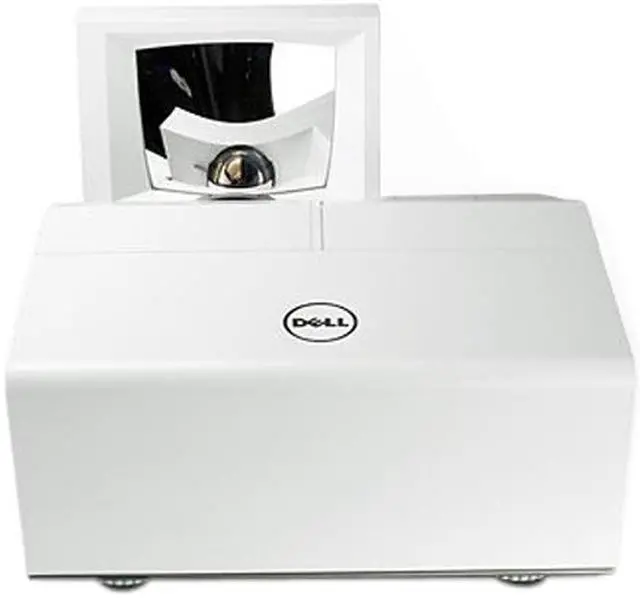

Alt view image 2 of 5 - Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

Alt view image 3 of 5 - Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

Alt view image 4 of 5 - Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

Alt view image 5 of 5 - Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

Shop All DELL Products

Dell S500wi 1280 x 800 3200 ANSI Lumens (Max.) DLP Interactive Ultra Short Throw Projector 2300:1 Typical (Full On / Full Off)

Be the first to review this product...

1280 x 800
3200 ANSI Lumens (Max.)
2300:1 Typical (Full On / Full Off)
77" (1.95m) - 100" (2.54m)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Dell
Model	S500wi

Details
Cabinet Color	White
Type	DLP
Combo Player	S500wi

Display
Brightness	3200 ANSI Lumens (Max.)
Native Resolution	1280 x 800
Aspect Ratio	16:10
Contrast Ratio	2300:1 Typical (Full On / Full Off)
Display Size	77" (1.95m) - 100" (2.54m)

Lens
Lens	F-Stop: F/2.71 Keystone correction: Vertical +40° / -35° Throw Ratio: 0.3 wide and tele
Throw Distance	1.6 ft (0.49m) - 2.15 ft (0.66m)

Lamps & Accessories
Lamp	Lamp Type: Philips 280W user-replaceable Lamp Life Cycle: Up to 2500-hour Normal-Mode, Up to 3,000 hours Eco-Mode

Connectivity
Input Video Compatibility	Analog RGB, Digital, S-Video, Composite
Input Audio Signals	Analog Audio
Input Video Connectors	D-Sub, HDMI, Composite, S-Video
Input Audio Connectors	One 3.5 mm stereo mini phone jack (Blue) & one pair of RCA connector (Red/White)

Convenience
Users Controls	Remote Control 1x mini USB slave for remote support, firmware upgrade, & interactive pen / 1x USB Type A for USB Viewer / 1x USB Type B for USB Display USB Wifi connector with embedded USB wireless dongle 1x mini-DIN RS232 for wired remote projector control from PC 1x RJ45 connector for networking DC Jack 12V Output: 1x DC jack 12V @200mA output, relay control for automatic projection screen control
Built-in Speakers	5W x 2
Features	Give every seat in the room a great view, thanks to the amazing picture quality you get from DLP technology and BrilliantColor. Deliver engaging, lights-on presentations with optimal brightness of 3,200 ANSI Lumens (max.) and contrast ratio of 2300:1 typical (full on/full off). Enjoy a complete suite of connectivity options, including dual VGA, HDMI, S-Video, RJ45, USB (USB Display) and microphone. Interactive projection on virtually any surface and enjoy off-surface interactivity from up to 9 m (29.5 feet) away Get a sharp, clear picture from the WXGA1 native resolution (1280x800) and 16:10 aspect ratio, which supports 720p HD resolution Enjoy wireless2 functionality and many advanced features such as Multi-PC session, 4-to-1 split screen, USB plug-and-show, USB viewer, PtG converter and audio projection 3D - Capable Computer Output: 1x 15-pin D-Sub Audio Output: 1x phone jack (dia 3.5mm) Microphone: 1x microphone port
Compatibility	S-Video/Composite Video: NTSC [J, M, 4.43, supports Closed Captioning (CC1~CC4)], PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L) Component Video (via VGA) & HDMI (HDCP Compliant) - 480i/p, 576i/p, 720p, 1080i/p PC (VGA, HDMI): follow "Dell Preferred Video Modes Specification for Displays

Power
Power Supply	Universal AC 100-240 50-60 Hz with PFC input
Power Consumption	Normal mode: 345W ± 10% @ 110Vac (Network On) Eco-Mode: 320W ± 10% @ 110Vac (Network On) Power saving mode: < 10W (wireless & network on) Standby mode: < 0.5W (network,VGA OUT & wireless off)

Environmental
Temperature Range	5°C - 35°C (41°F - 95°F)
Humidity Range	80% (maximum)

Dimensions & Weight
Dimensions	12.9" x 7.5"x 16.6"
Weight	15.73 lbs.

Package Contents
Package Contents	Dell S500wi Projector Power Cable VGA Cable USB cable (USB-A to USB-B) 2m Mini USB cable (USB-A to mini USB-B) 5m Mini USB cable (USB-A to mini USB-B) Interactive pen (embedded with Li-on battery) Nib Wrist strap InterWrite Workspace CD Remote control Cable cover 2xAAA battery CD User’s Guide and Documentation

Additional Information
First Listed on Newegg	May 23, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-WWW-DELL
