Adjustable Adapter
AC/DC Adapter
Parameter
- Input: AC 100V~240V 50/60Hz
- Output Voltage: DC 3V~12V Adjustable
- Output Current: Max 2.5A
- Output Wattage:Max 30W
- Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
- Reverse polarity converter: 5.5mm x 2.1mm

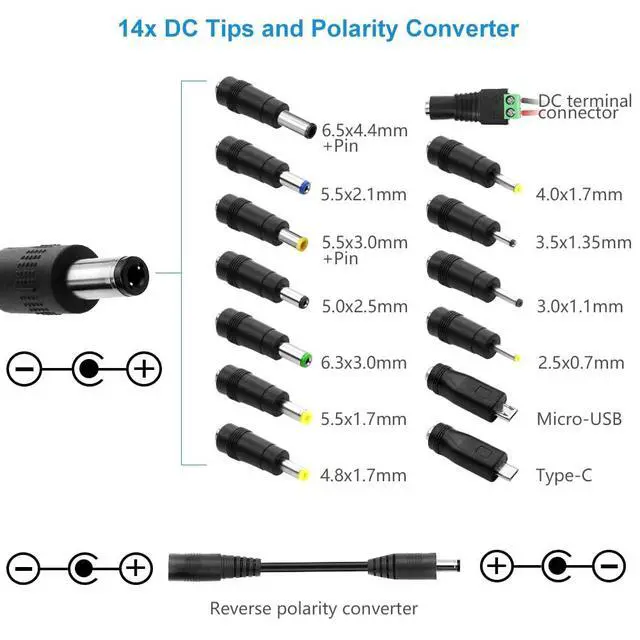

- 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
- Power cable length: 4.9ft / 150cm
- Safety Compliance: FCC / CE/ RoHS
- Working Temperature: 0~40?
- Ambient Humidity: 5~95% Non-Condensation
- Weight: 0.66 lb / 300g
Package included
- 1x 30W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~12.5V. Only in this way can your device really get 3V~12V voltage. This is the reason why we advertise the power supply's voltage range is 3V~12V, not 3.5V~12.5V.
Caution:
- The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.

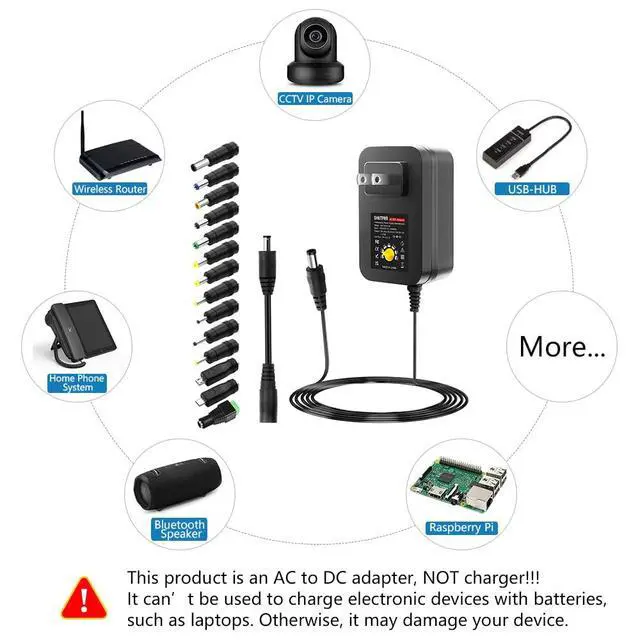

Is this 3~12V 30W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be among 3V~12V DC, not lower than 3V or higher than 12V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 2.5A, such as 1A,1.5A, 2A, 2.5A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.

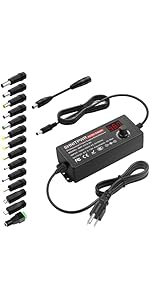

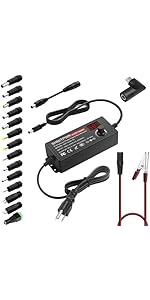

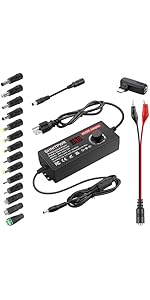

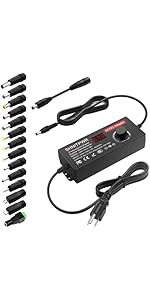

 DC 3V~12V 5A 60W |  DC 4V~12V 10A 120W |  DC 4V~24V 5A 120W |  DC 3V~24V 3A 72W |  DC 3V~24V 3A 72W |  DC 4V~24V 6A 144W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Output Amps | 5A | 10A | 5A | 3A | 3A | 6A |
| Output Volts | DC 3V~12V | DC 4V~12V | DC 4V~24V | DC 3V~24V | DC 3V~24V | DC 3V~24V |
| Max Power | 60W | 120W | 120W | 72W | 72W | 144W |
| Output Tip | 14 Tips | 14 Tips | 14 Tips | 16 Tips | 16 Tips | 16 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
Parameter
- Input: AC 100V~240V 50/60Hz
- Output Voltage: DC 3V~12V Adjustable
- Output Current: Max 2.5A
- Output Wattage:Max 30W
- Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
- Reverse polarity converter: 5.5mm x 2.1mm
- 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
- Power cable length: 4.9ft / 150cm
- Safety Compliance: FCC / CE/ RoHS
- Working Temperature: 0~40?
- Ambient Humidity: 5~95% Non-Condensation
- Weight: 0.66 lb / 300g
Package included
- 1x 30W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~12.5V. Only in this way can your device really get 3V~12V voltage. This is the reason why we advertise the power supply's voltage range is 3V~12V, not 3.5V~12.5V.
Caution:
- The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 3~12V 30W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be among 3V~12V DC, not lower than 3V or higher than 12V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 2.5A, such as 1A,1.5A, 2A, 2.5A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
DC 3V~12V 5A 60W | DC 4V~12V 10A 120W | DC 4V~24V 5A 120W | DC 3V~24V 3A 72W | DC 3V~24V 3A 72W | DC 4V~24V 6A 144W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Output Amps | 5A | 10A | 5A | 3A | 3A | 6A |
| Output Volts | DC 3V~12V | DC 4V~12V | DC 4V~24V | DC 3V~24V | DC 3V~24V | DC 3V~24V |
| Max Power | 60W | 120W | 120W | 72W | 72W | 144W |
| Output Tip | 14 Tips | 14 Tips | 14 Tips | 16 Tips | 16 Tips | 16 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
