Parameter specifications:
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 6.5V~24.5V. Only in this way can your device really get 6V~24V voltage. This is the reason why we advertise the power supply's voltage range is 6V~24V, not 6.5V~24.5V.
Caution:
- The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 6~24V 36W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be between 6V and 24V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 1.5A, such as 300mA,500mA,1A,1.5A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
 5V~20V-60W |  3V~12V-30W |  3V~12V-36W |  6V~24V-36W |  9V~24V-48W |  3V~24V-72W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Output Amps | 3A | 2.5A | 3A | 1.5A | 2A | 3A |
| Output Volts | DC 5V~20V | DC 3V~12V | DC 3V~12V | DC 6V~24V | DC 9V~24V | DC 3V~24V |
| Max Power | 60W | 30W | 36W | 36W | 48W | 72W |
| Output Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
Parameter specifications:
| Input Voltage | AC 100V~240V 50/60Hz |

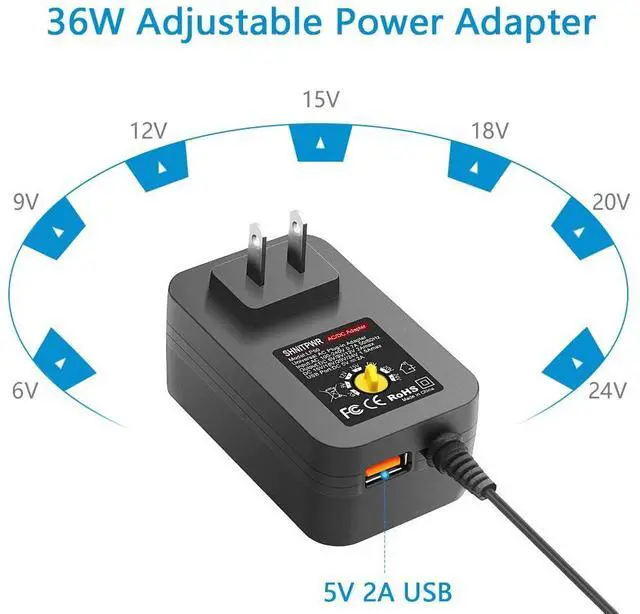

| Output Voltage | DC 6V~24V Adjustable |
| Output Current/Wattage | Max 2A/36W |

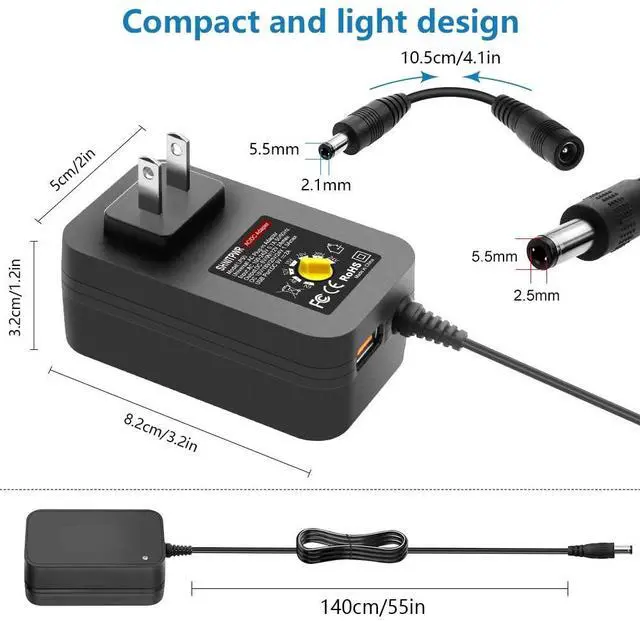

| Output DC Connector | 5.5mm x 2.5mm (inside"+", outside"-") |
| Reverse Polarity Converter | 5.5mm x 2.1mm |
| 14 Tips Size | 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector |
| Power Cable Length | 4.9FT / 150CM |
| Safety Compliance | FCC / CE/ RoHS |
| Working Temperature | 0~40? |
| Ambient Humidity | 5~95% Non-Condensation |
| Weight | 0.66 LB / 300G |

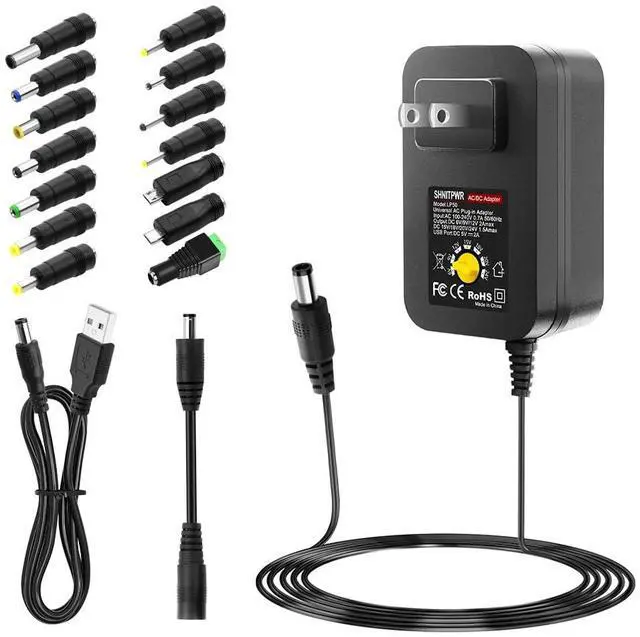

| Package Included | 1x 36W Universal Power Supply Adapter; 14x DC Tips;1×5V USB to DC cable; 1x Reverse Polarity Converter Cable |
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 6.5V~24.5V. Only in this way can your device really get 6V~24V voltage. This is the reason why we advertise the power supply's voltage range is 6V~24V, not 6.5V~24.5V.
Caution:
- The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 6~24V 36W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be between 6V and 24V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 1.5A, such as 300mA,500mA,1A,1.5A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
 5V~20V-60W | 3V~12V-30W | 3V~12V-36W | 6V~24V-36W | 9V~24V-48W | 3V~24V-72W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Output Amps | 3A | 2.5A | 3A | 1.5A | 2A | 3A |
| Output Volts | DC 5V~20V | DC 3V~12V | DC 3V~12V | DC 6V~24V | DC 9V~24V | DC 3V~24V |
| Max Power | 60W | 30W | 36W | 36W | 48W | 72W |
| Output Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
