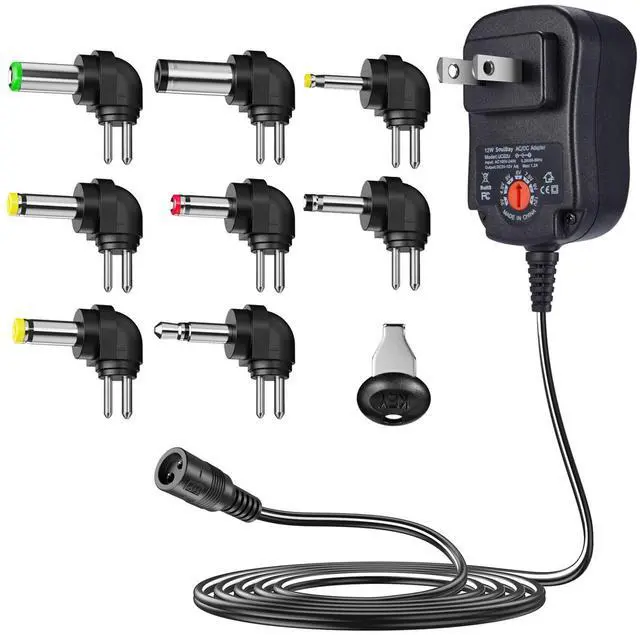

SoulBay 12W Multi-Voltage AC DC Power Supply Adapter for 3v to 12v Small Household Electronics
- Featuresinclude worldwide input 100-240VAC, regulated accurate output in multiple voltages, 8pcs adapter plugs.
- Money Saver: This 8 adapters in1, which can largely save your space and the one can replace a lot chargers!
- With switchable DC outputup to 12 volts and plugs to fit most small electronic devices, it replaces a box full of batteries.
- SAFE PROTECTION: With Full protection of over voltages, over current, short circuits and over temperature, bring much safety!
- Selectable Voltage range: This adapter offers the 3V/4.5V/5V/6V/7.5V/9V/12Volt settings, makes it easy for you to use it on different small electronics.
- This is auniversal power supply for all your pedals, effects, wireless receivers, printers, chess set, LED base, games consoles, paper shredder, DVD players, radios, speaker, audiotape recorders and players, electronic gizmos, blood pressure monitor, and many other 3V to 12V Small Home Electronics devices.
Multifunctional/ Universal AC DC Adapter, Ideal for charger Replacement, upgrade and SPARE power needs.
INSTRUCTIONS:
- Connect the correct adapter tip and make sure that it's firmly attached to the dc input port of your device.
- Set the right DC output voltage. There are 7 options for you, DC 3V/4.5V/5V/6V/7.5V/9V/12V.
- Connect the adapter to the electrical receptacle.
- Now you are ready to power up your device!

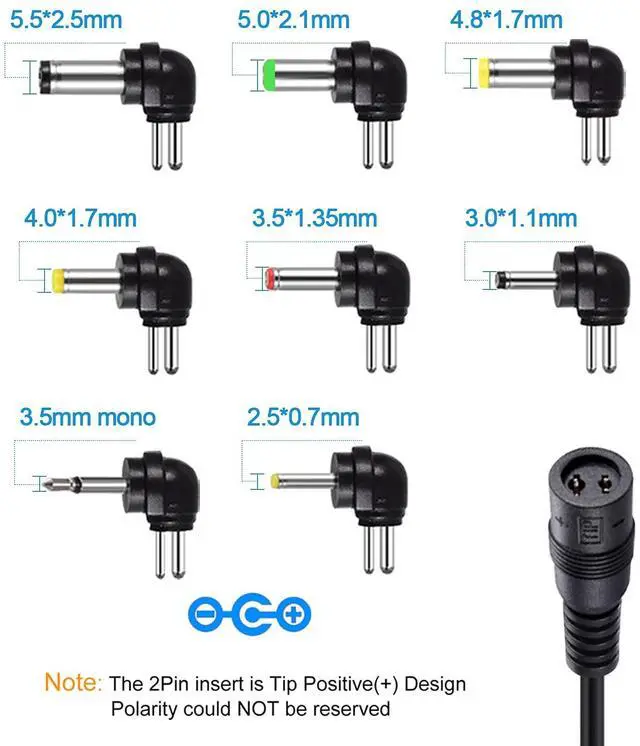

- 5.5*2.5mm
- 5.0*2.1mm
- 4.8*1.7mm
- 4.0*1.7mm
- 3.5*1.35mm
- 3.5mm mono
- 3.0*1.1mm
- 2.5*0.7mm
With 8 connection tips, the various size can satisfy your different need, and the different adapters can bring you much convenience on your daily life.

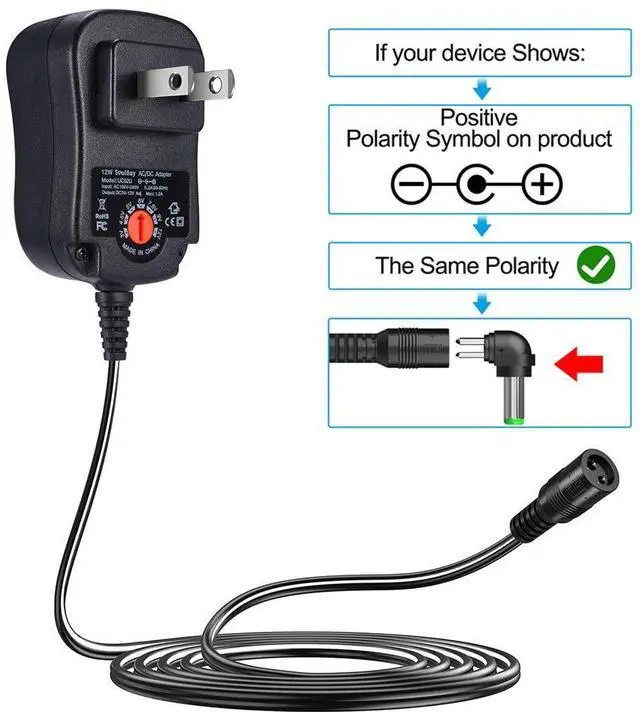

Polarity: Center Positive(+), POLARITY IS IRREVERSIBLE!
Please note that 12 watts is the maximum output of this power adapter!

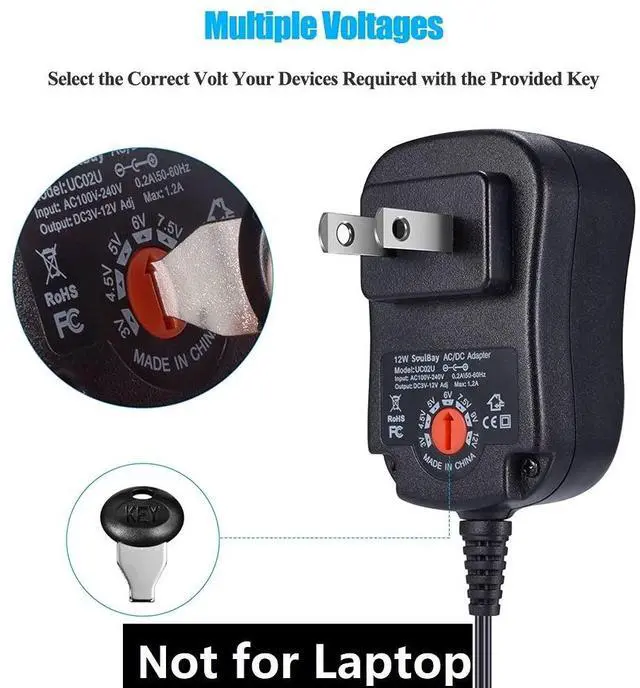

For the voltage selector, you can easily switch it using the provided key!
CONFIRM your device is within the 3V - 12V DC output range!
SPECIFICATIONS:
Compatible Ranges:

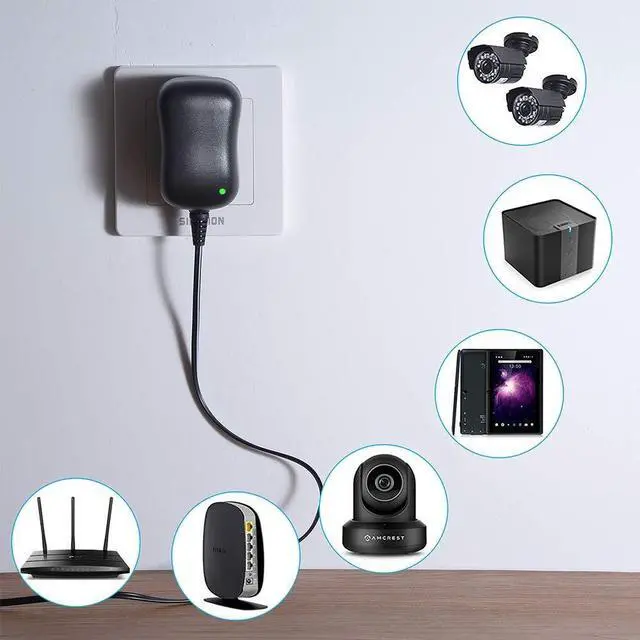

- Applicable to various 3V-12V electronic devices with power less than 12W: Router, audio, radio, electronic scale LED light strip, electronic chess board, DVD player Clock, camera, small printer, game equipment Electric toys, shavers, blood pressure monitors and other small appliances
Not applicable:
- Devices using USB-C or Micro-USB interface/ High-power devices with power exceeding 12W (such as laptops, etc.) / Devices that require a center negative pole (negative pole in the middle) (this product is a center positive)
FAQs:
Q1: How do I determine which voltage should be set?
- A1: Please check the label or manual on the back of your device, find the "Output" outpput voltage spec, and set the adapter voltage according to the label.
Q2: Is this adapter suitable for my device?
- A2: If the device voltage is between 3~12V, the current is less than 1.2A, the plug matches, and it is the center positive, it can be used. USB-C/Micro-USB devices cannot be used.
Q3: My device requires 12V 2A, can this adapter be used?
- A3: No. This adapter only supports a maximum current of 1.2A, which cannot meet the load requirements of 2A devices and may cause overheating or damage.
Q4: How to switch voltage?

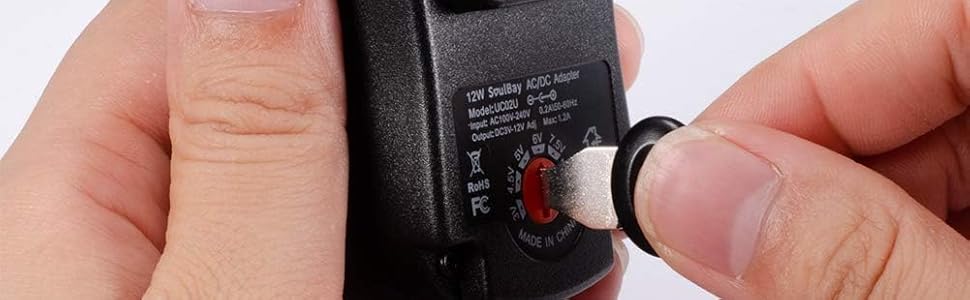

- A4: Use the small key included in the package to rotate the voltage adjustment port on the power supply. The pointer indicates the current output voltage.
Q5: Why do you need to confirm the polarity?
- A5: Because this adapter is designed with **center positive pole (+)**, if your device is center negative, it may cause the device to burn out. Be sure to confirm that the polarity is consistent before use.
Q6: What should I do if the device does not respond after I connect it to the power supply?
- A: Please check the following points: (1). Is the plug tightly inserted? Does the plug match the device interface? (2). Is the voltage level correct? (3). Does the device support positive polarity inside and negative polarity outside? (4). Check whether the maximum load is exceeded (more than 1.2A)
If all the above are confirmed to be correct and it still cannot be used, please contact CS/ Seller.
8 Adapters Size and Examples of common applicable devices
 72W AC/DC Adapter |  24W AC/DC Adapter |  41W AC/DC Adapter | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — no data | — |
| INPUT 100-240V 50/60Hz | ? | ? | ? |
| OUTPUT Range: | DC 3.5V to 24V | DC 3V 4.5V 5V 6V 7.5V 9V 12V | DC 24V 20V 18V 15V 12V 9V 6V |
| CORD LENGTH | 6.9 FT | 5 FT | 5 FT |
| POLARITY | Dual Polarity | Center Positive(+) | Center Positive(+) |
| ADAPTER TIPS: | 14PCS | 8PCS | 11PCS |
| CURRENT LOAD: | 3000mA | 2000mA | 1.5-2A |
SoulBay 12W Multi-Voltage AC DC Power Supply Adapter for 3v to 12v Small Household Electronics
- Featuresinclude worldwide input 100-240VAC, regulated accurate output in multiple voltages, 8pcs adapter plugs.
- Money Saver: This 8 adapters in1, which can largely save your space and the one can replace a lot chargers!
- With switchable DC outputup to 12 volts and plugs to fit most small electronic devices, it replaces a box full of batteries.
- SAFE PROTECTION: With Full protection of over voltages, over current, short circuits and over temperature, bring much safety!
- Selectable Voltage range: This adapter offers the 3V/4.5V/5V/6V/7.5V/9V/12Volt settings, makes it easy for you to use it on different small electronics.
- This is auniversal power supply for all your pedals, effects, wireless receivers, printers, chess set, LED base, games consoles, paper shredder, DVD players, radios, speaker, audiotape recorders and players, electronic gizmos, blood pressure monitor, and many other 3V to 12V Small Home Electronics devices.
Multifunctional/ Universal AC DC Adapter, Ideal for charger Replacement, upgrade and SPARE power needs.
INSTRUCTIONS:
- Connect the correct adapter tip and make sure that it's firmly attached to the dc input port of your device.
- Set the right DC output voltage. There are 7 options for you, DC 3V/4.5V/5V/6V/7.5V/9V/12V.
- Connect the adapter to the electrical receptacle.
- Now you are ready to power up your device!
- 5.5*2.5mm
- 5.0*2.1mm
- 4.8*1.7mm
- 4.0*1.7mm
- 3.5*1.35mm
- 3.5mm mono
- 3.0*1.1mm
- 2.5*0.7mm
With 8 connection tips, the various size can satisfy your different need, and the different adapters can bring you much convenience on your daily life.
Polarity: Center Positive(+), POLARITY IS IRREVERSIBLE!
Please note that 12 watts is the maximum output of this power adapter!

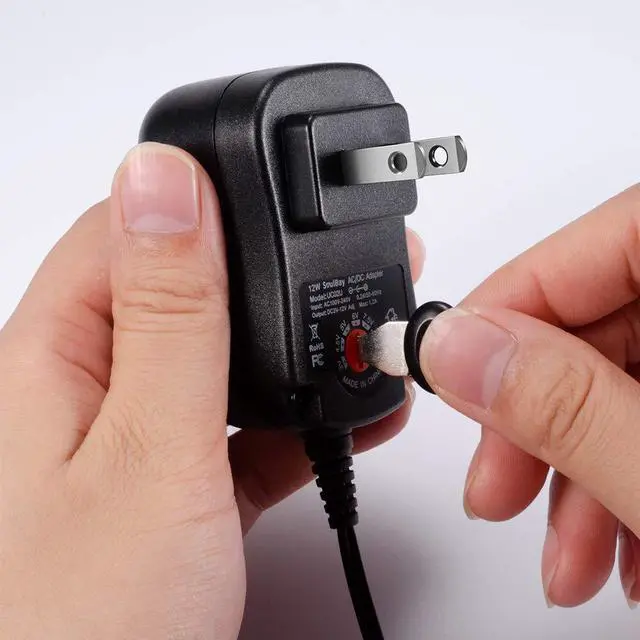

For the voltage selector, you can easily switch it using the provided key!
CONFIRM your device is within the 3V - 12V DC output range!
SPECIFICATIONS:

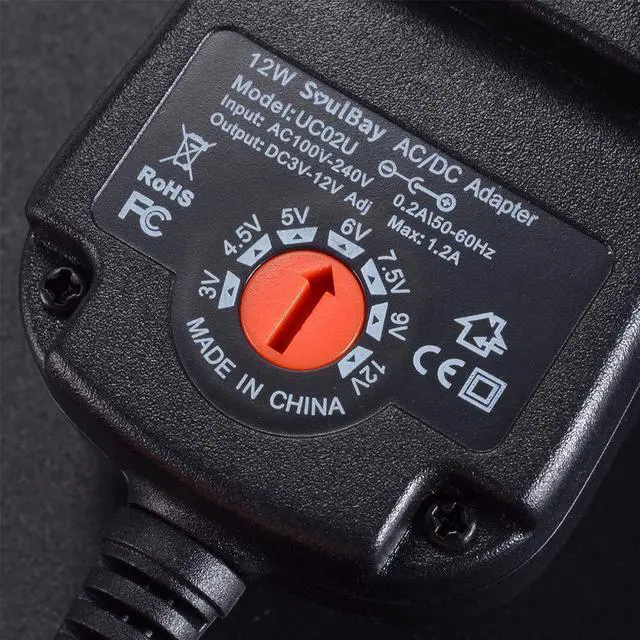

| Adapter Input: | AC 100V~240V 0.25A 50/60Hz |
| Adapter Output: | 3V/4.5V/5V/6V/7.5V/9V/12V |
| Output Current: | 1200mA/1.2A MAX |
| Cord Length: | 43.3 inches(about 110 centimeters) |
| Product Weight: | 3.1 ounces |
| Features: | Made of high quality MosFet and PWM circuitry |
| Package Included: | 1pc Multi-Voltage 12W AC DC Adapter, 8 pcs Adapter Tips, 1 pc User Manual |
| TIP: | If the required voltage is not in the options, please choose the close voltage. For example, if you device needs 5.5V, you can choose 5V or 6V. |
| Reminder: | 1. NOT for laptop or over 12V device . 2. Confirm the adapter tip size carefully! 3. NOT UNIVERSAL FOR ALL DEVICES. |
Compatible Ranges:
- Applicable to various 3V-12V electronic devices with power less than 12W: Router, audio, radio, electronic scale LED light strip, electronic chess board, DVD player Clock, camera, small printer, game equipment Electric toys, shavers, blood pressure monitors and other small appliances
Not applicable:
- Devices using USB-C or Micro-USB interface/ High-power devices with power exceeding 12W (such as laptops, etc.) / Devices that require a center negative pole (negative pole in the middle) (this product is a center positive)
FAQs:
Q1: How do I determine which voltage should be set?
- A1: Please check the label or manual on the back of your device, find the "Output" outpput voltage spec, and set the adapter voltage according to the label.
Q2: Is this adapter suitable for my device?
- A2: If the device voltage is between 3~12V, the current is less than 1.2A, the plug matches, and it is the center positive, it can be used. USB-C/Micro-USB devices cannot be used.
Q3: My device requires 12V 2A, can this adapter be used?
- A3: No. This adapter only supports a maximum current of 1.2A, which cannot meet the load requirements of 2A devices and may cause overheating or damage.
Q4: How to switch voltage?
- A4: Use the small key included in the package to rotate the voltage adjustment port on the power supply. The pointer indicates the current output voltage.
Q5: Why do you need to confirm the polarity?
- A5: Because this adapter is designed with **center positive pole (+)**, if your device is center negative, it may cause the device to burn out. Be sure to confirm that the polarity is consistent before use.
Q6: What should I do if the device does not respond after I connect it to the power supply?
- A: Please check the following points: (1). Is the plug tightly inserted? Does the plug match the device interface? (2). Is the voltage level correct? (3). Does the device support positive polarity inside and negative polarity outside? (4). Check whether the maximum load is exceeded (more than 1.2A)
If all the above are confirmed to be correct and it still cannot be used, please contact CS/ Seller.
8 Adapters Size and Examples of common applicable devices
| 5.5 × 2.5mm | for Router, LED light strip, power box |
| 5.0 × 2.1mm | for Speakers, small display |
| 4.8 × 1.7mm | for Electronic scale, small electric fan, DVD player |
| 4.0 × 1.7mm | for Old charger, small keyboard |
| 3.5 × 1.35mm | for Cameras, handheld devices |
| 3.0 × 1.1mm | for Electronic toys, music players |
| 2.5 × 0.7mm | for Bluetooth speakers, small appliances |
| 3.5mm mono | for Audio Device (mono) |
72W AC/DC Adapter | 24W AC/DC Adapter | 41W AC/DC Adapter | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — no data | — |
| INPUT 100-240V 50/60Hz | ? | ? | ? |
| OUTPUT Range: | DC 3.5V to 24V | DC 3V 4.5V 5V 6V 7.5V 9V 12V | DC 24V 20V 18V 15V 12V 9V 6V |
| CORD LENGTH | 6.9 FT | 5 FT | 5 FT |
| POLARITY | Dual Polarity | Center Positive(+) | Center Positive(+) |
| ADAPTER TIPS: | 14PCS | 8PCS | 11PCS |
| CURRENT LOAD: | 3000mA | 2000mA | 1.5-2A |
SoulBay always strives to providing premium quality power adapters
