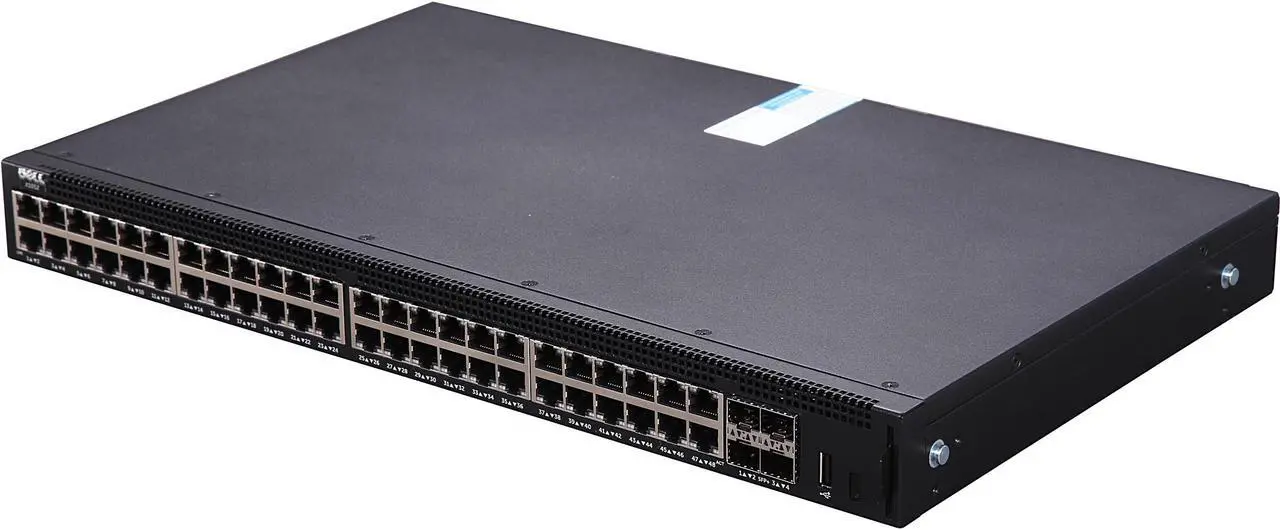

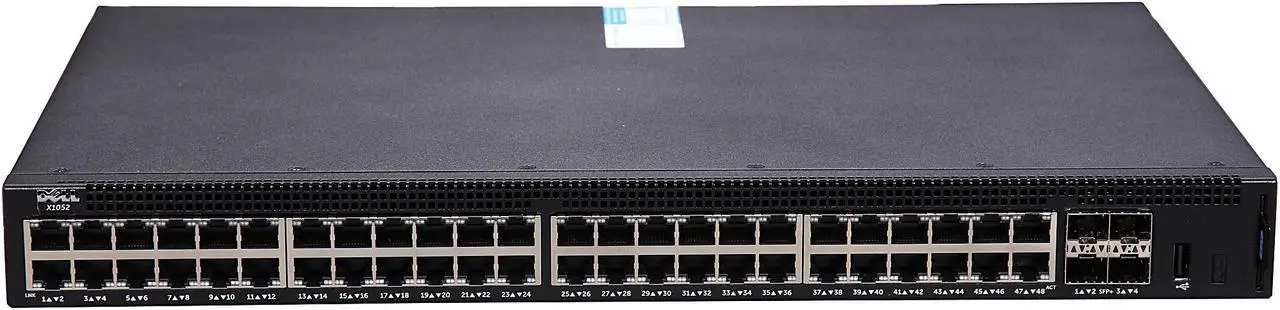

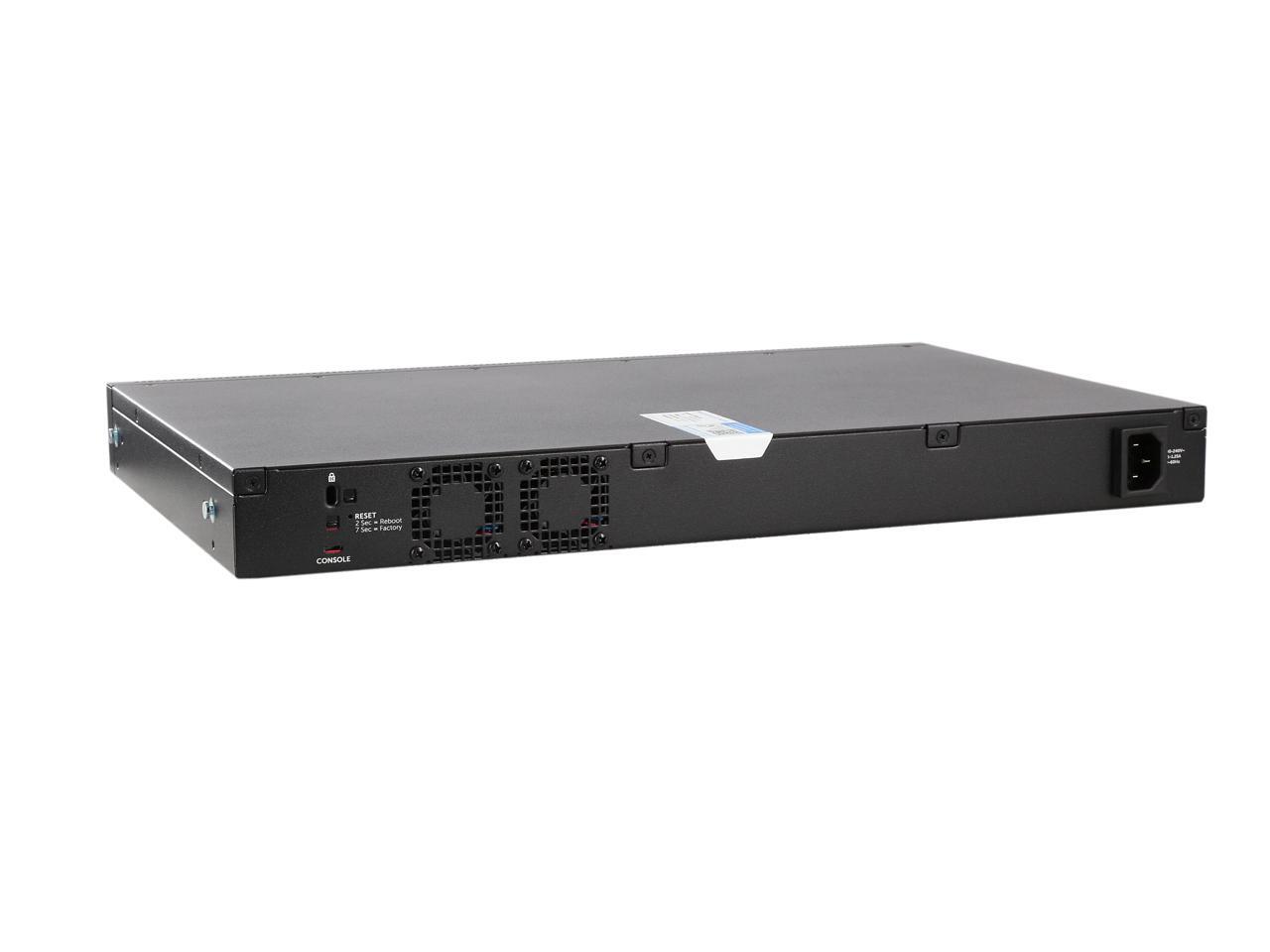

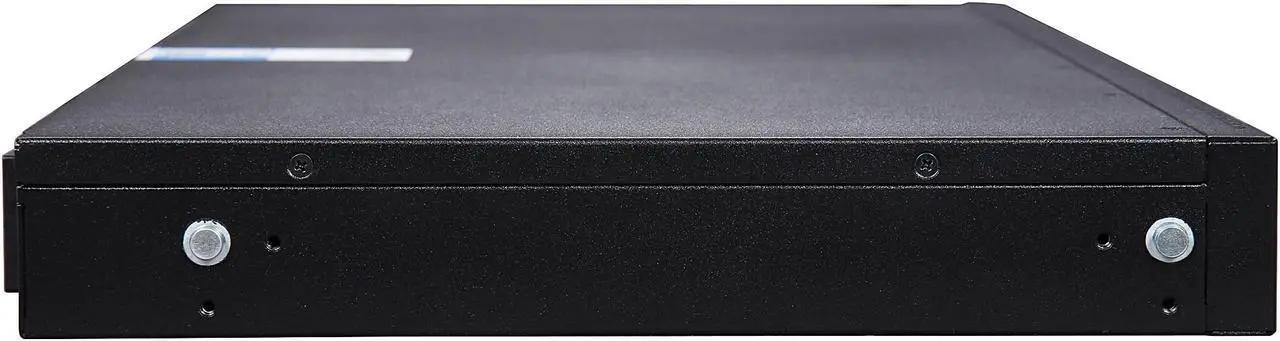

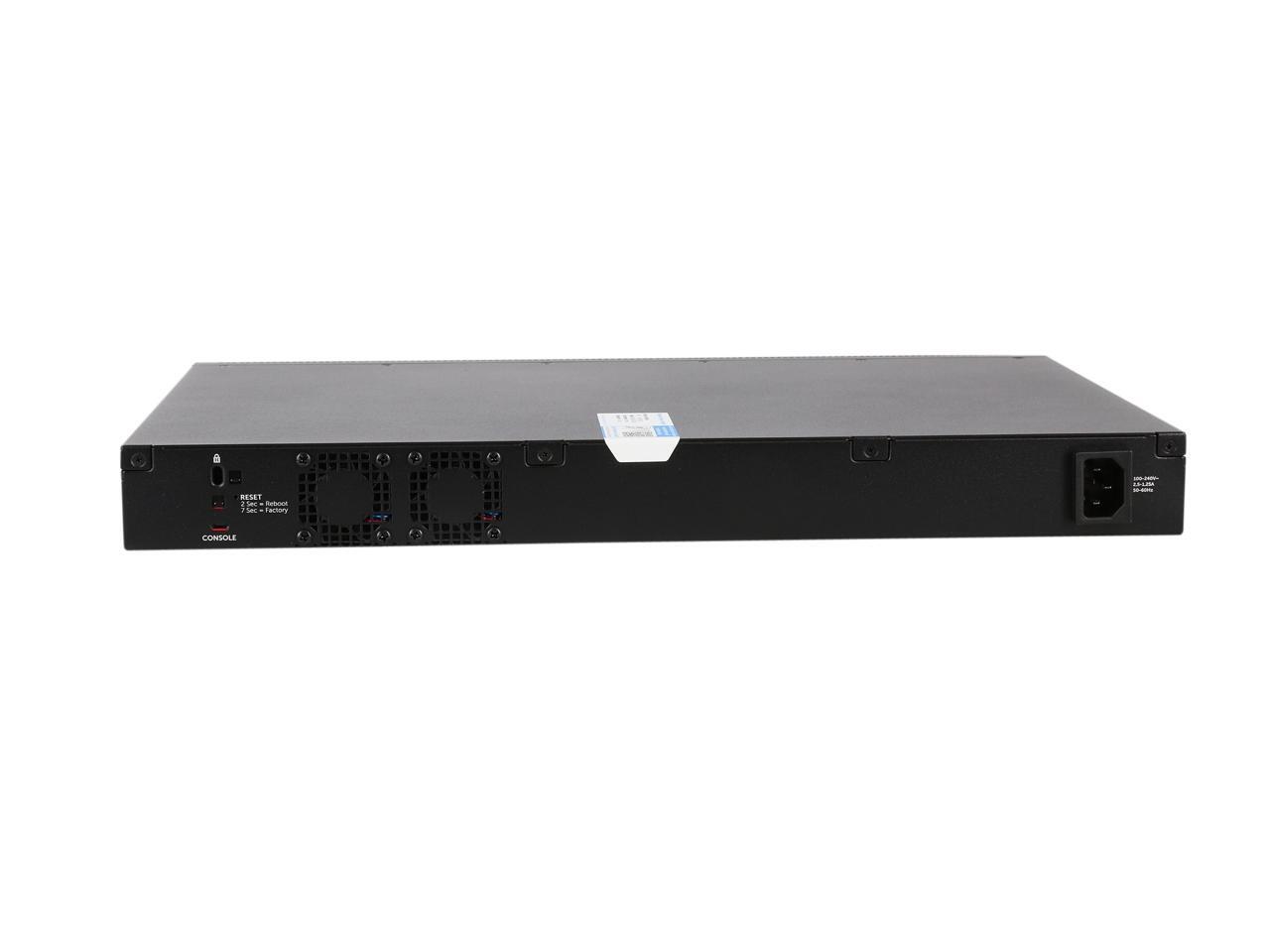

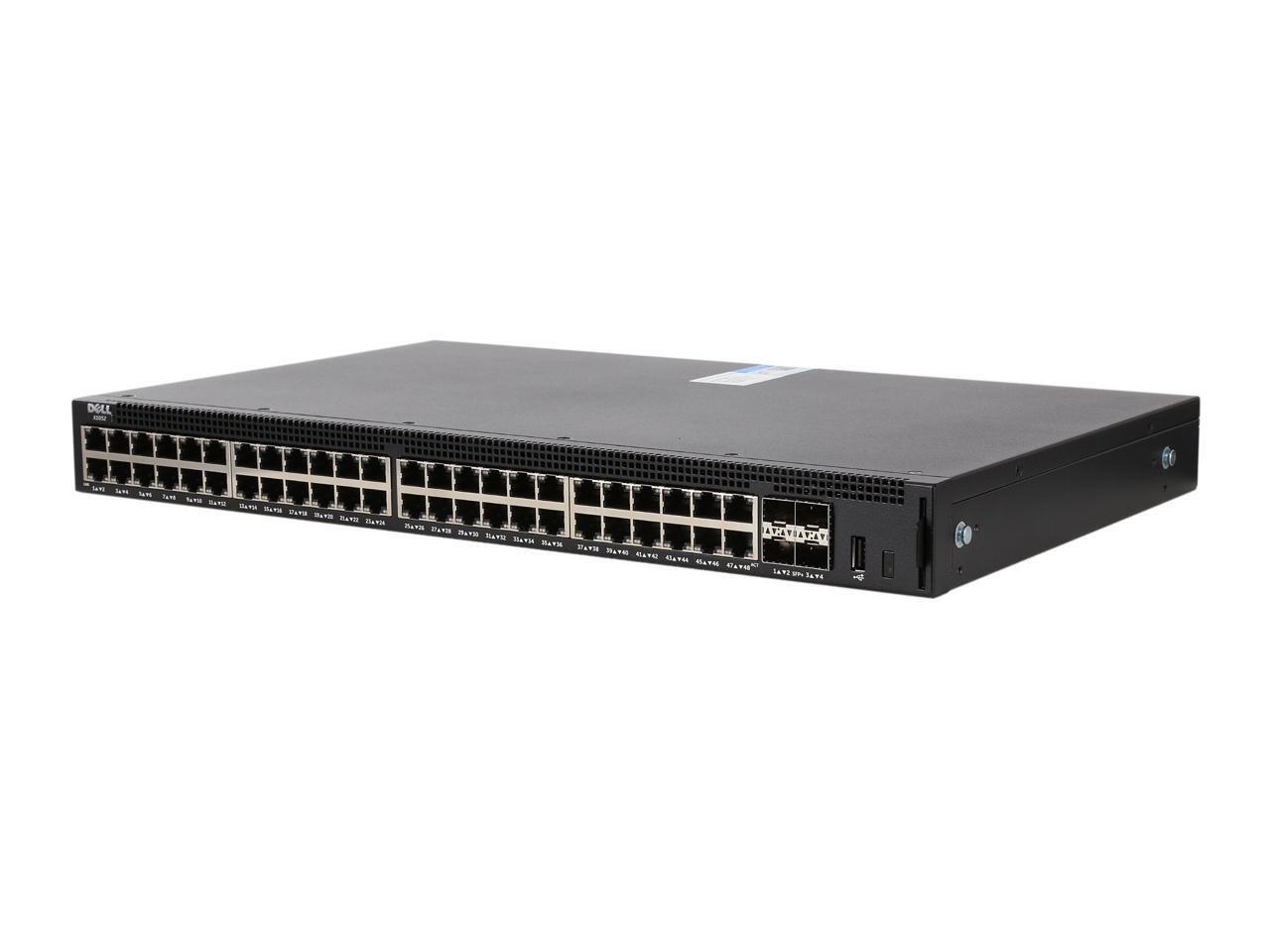

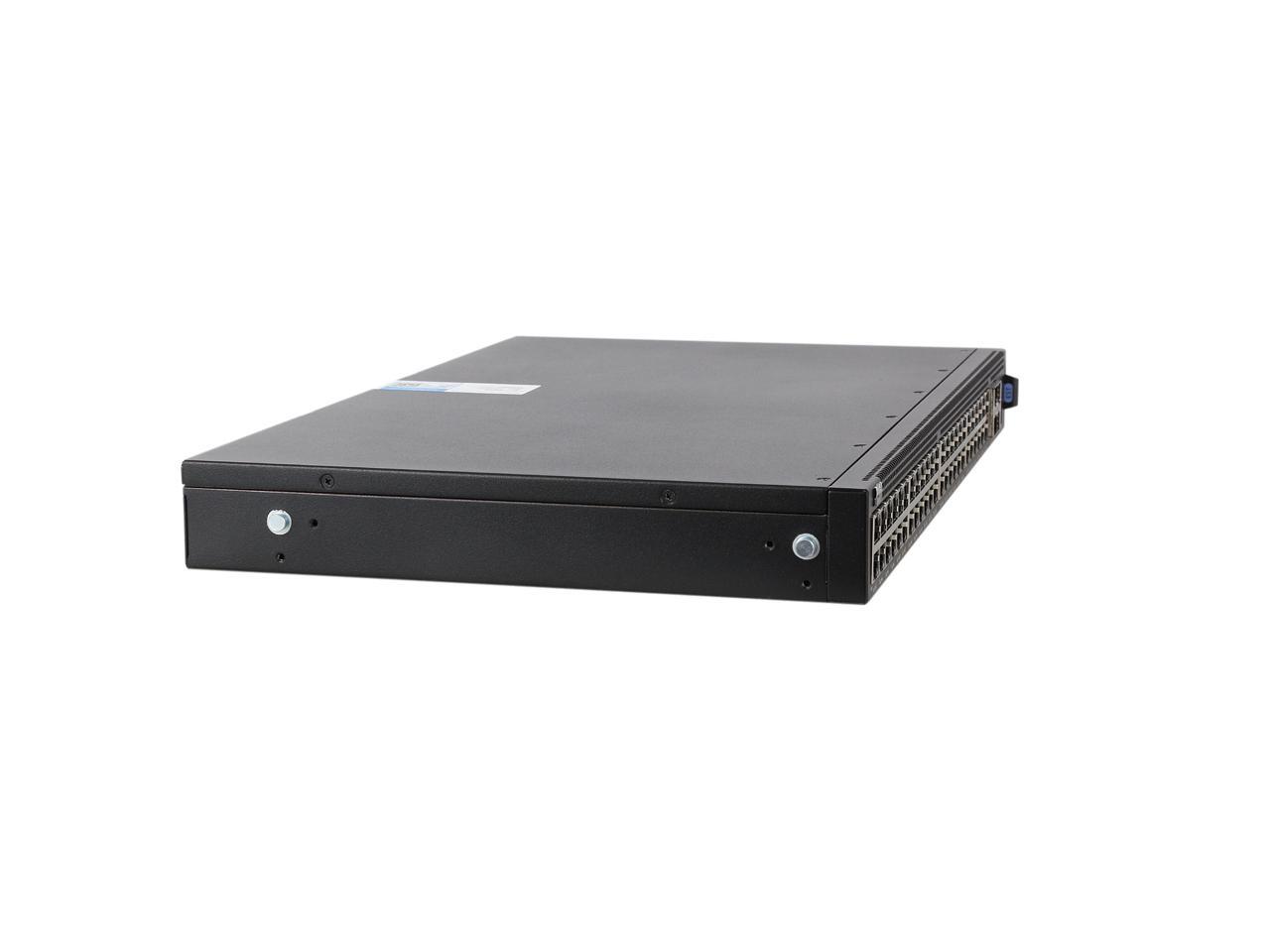

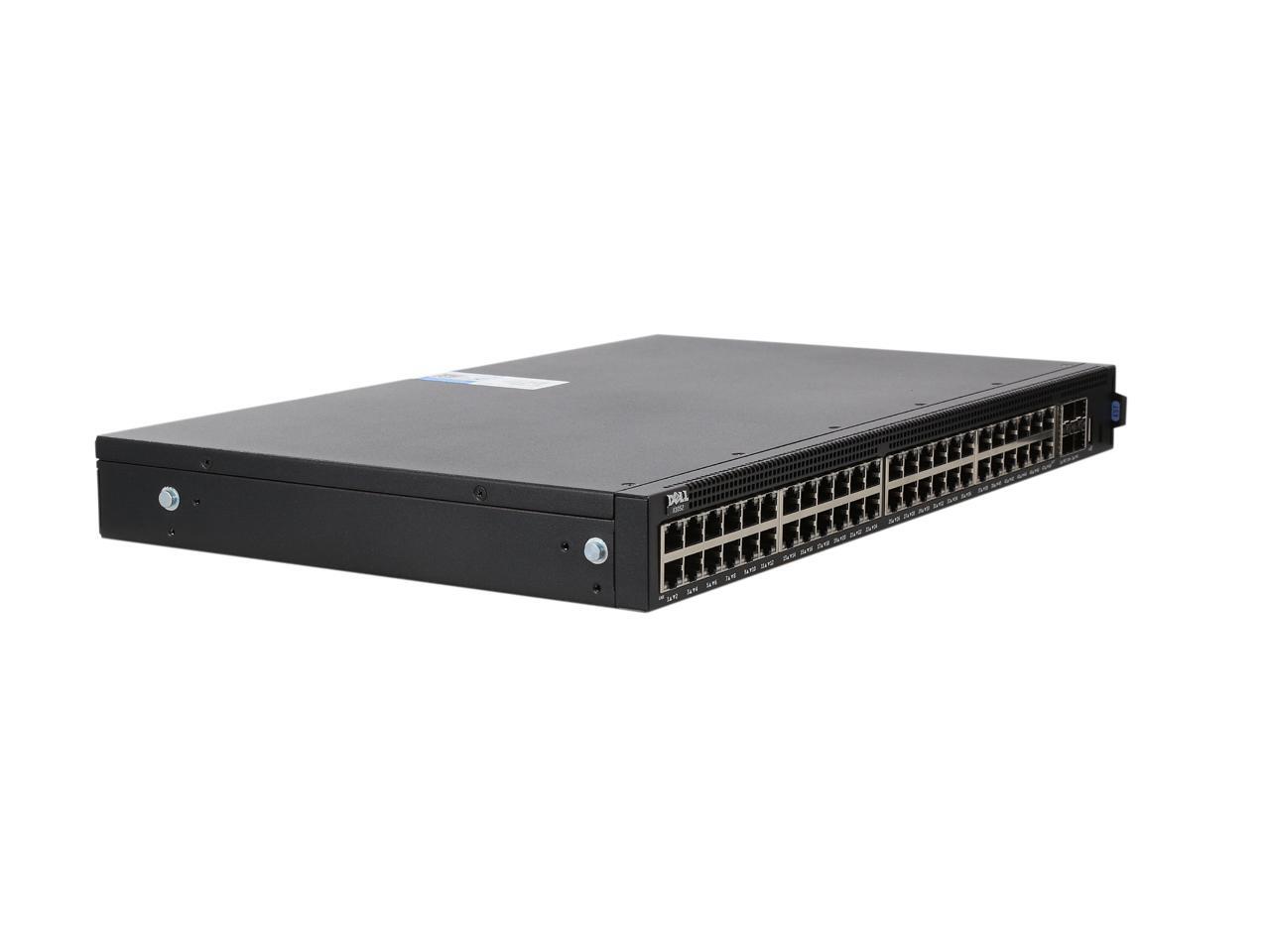

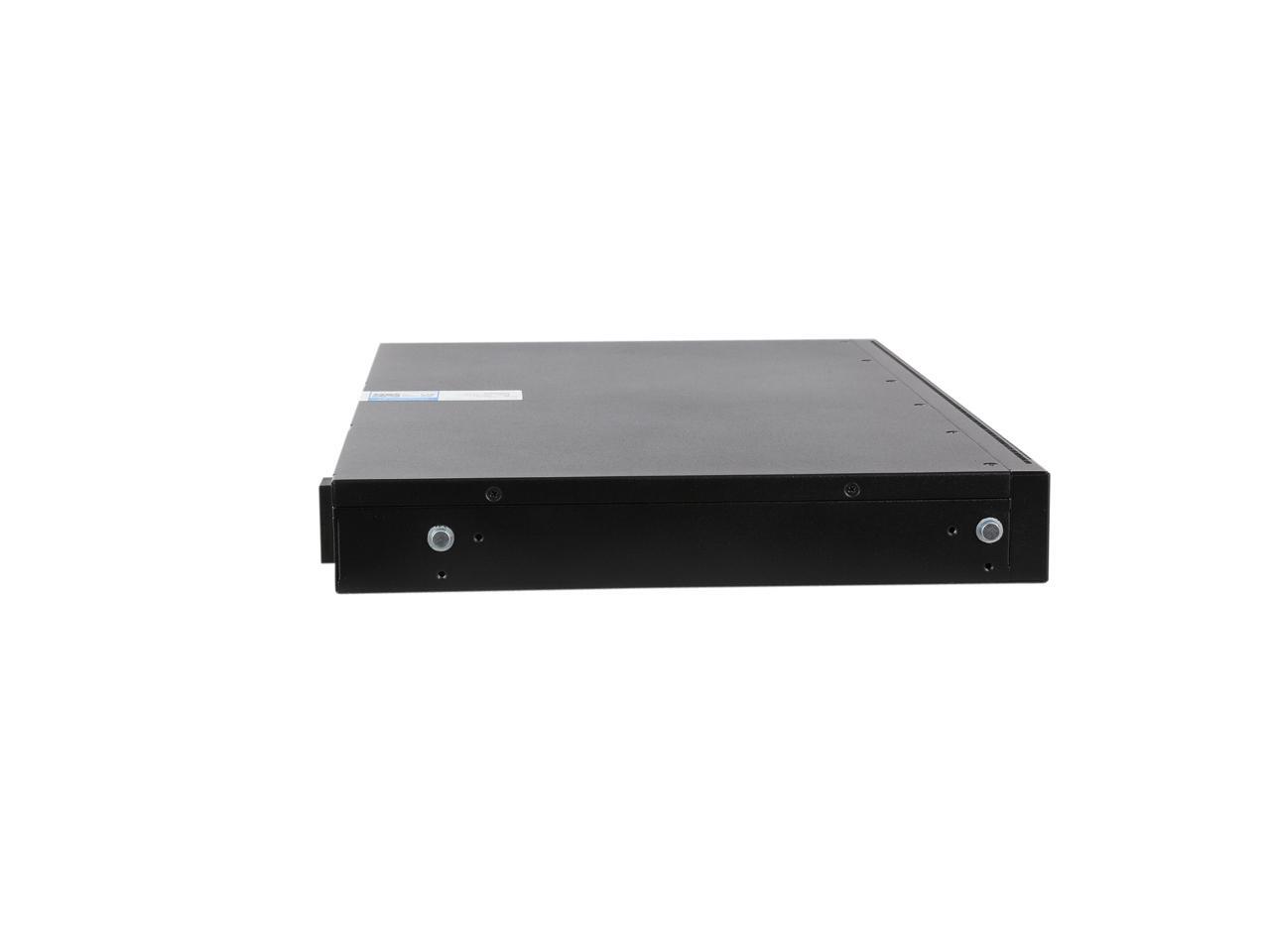

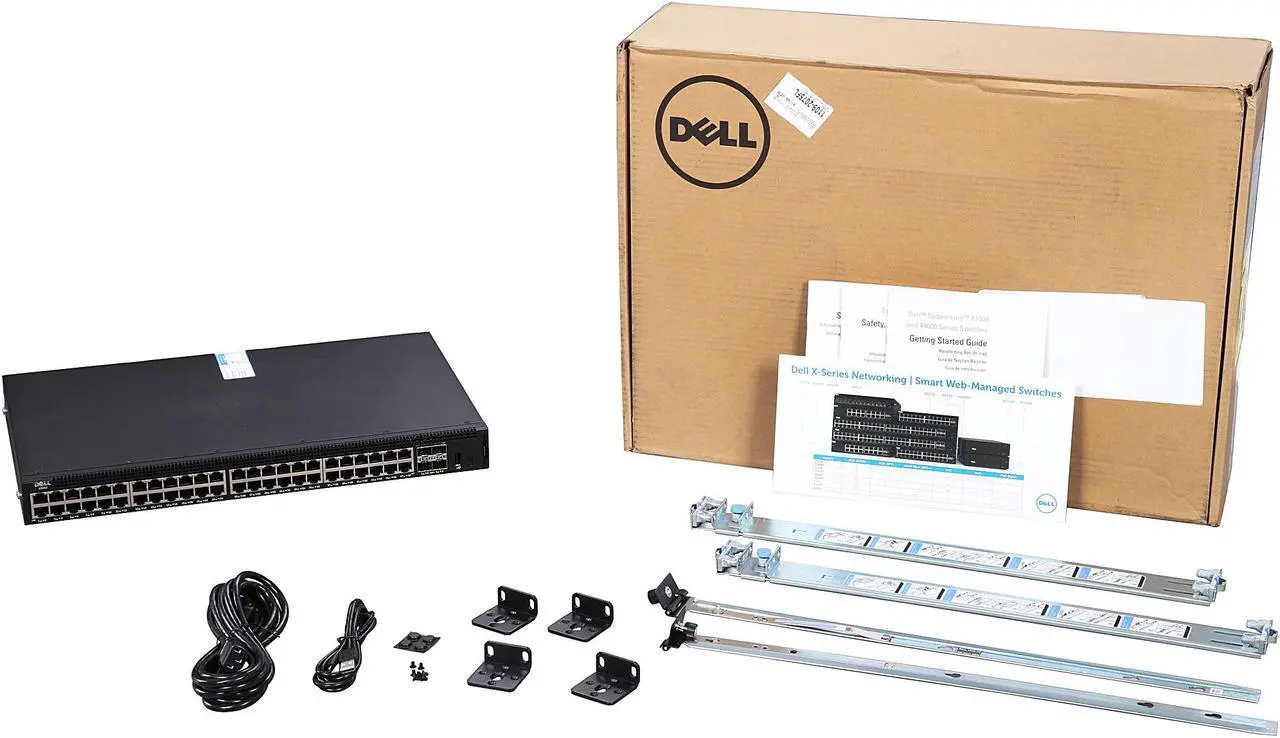

Main image of Dell Networking X1052 (210-AEIO) Managed Switch

100%

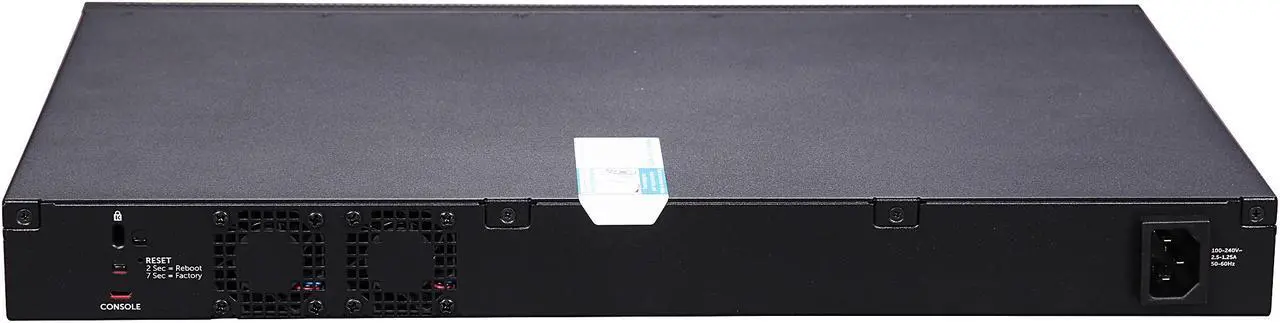

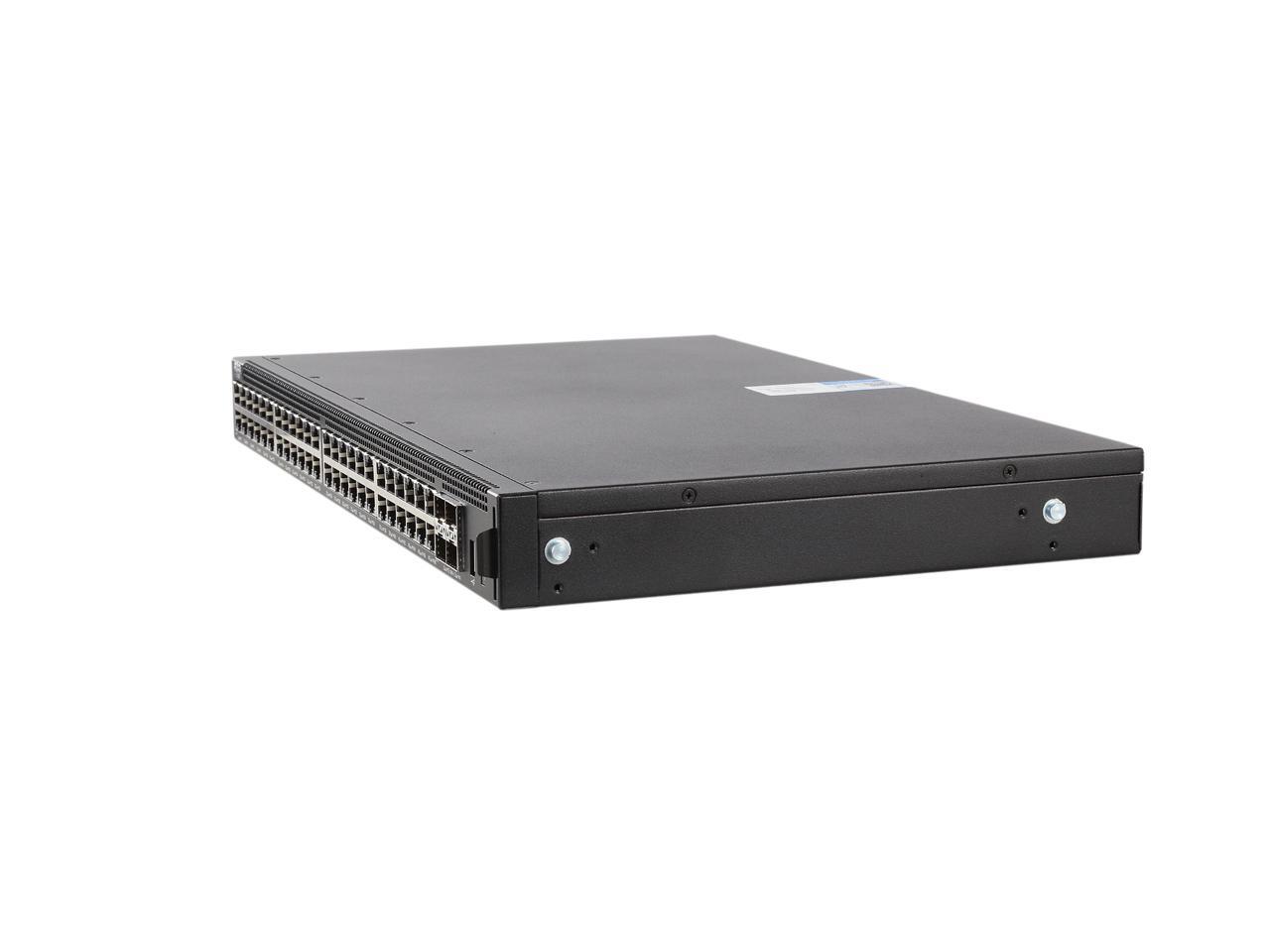

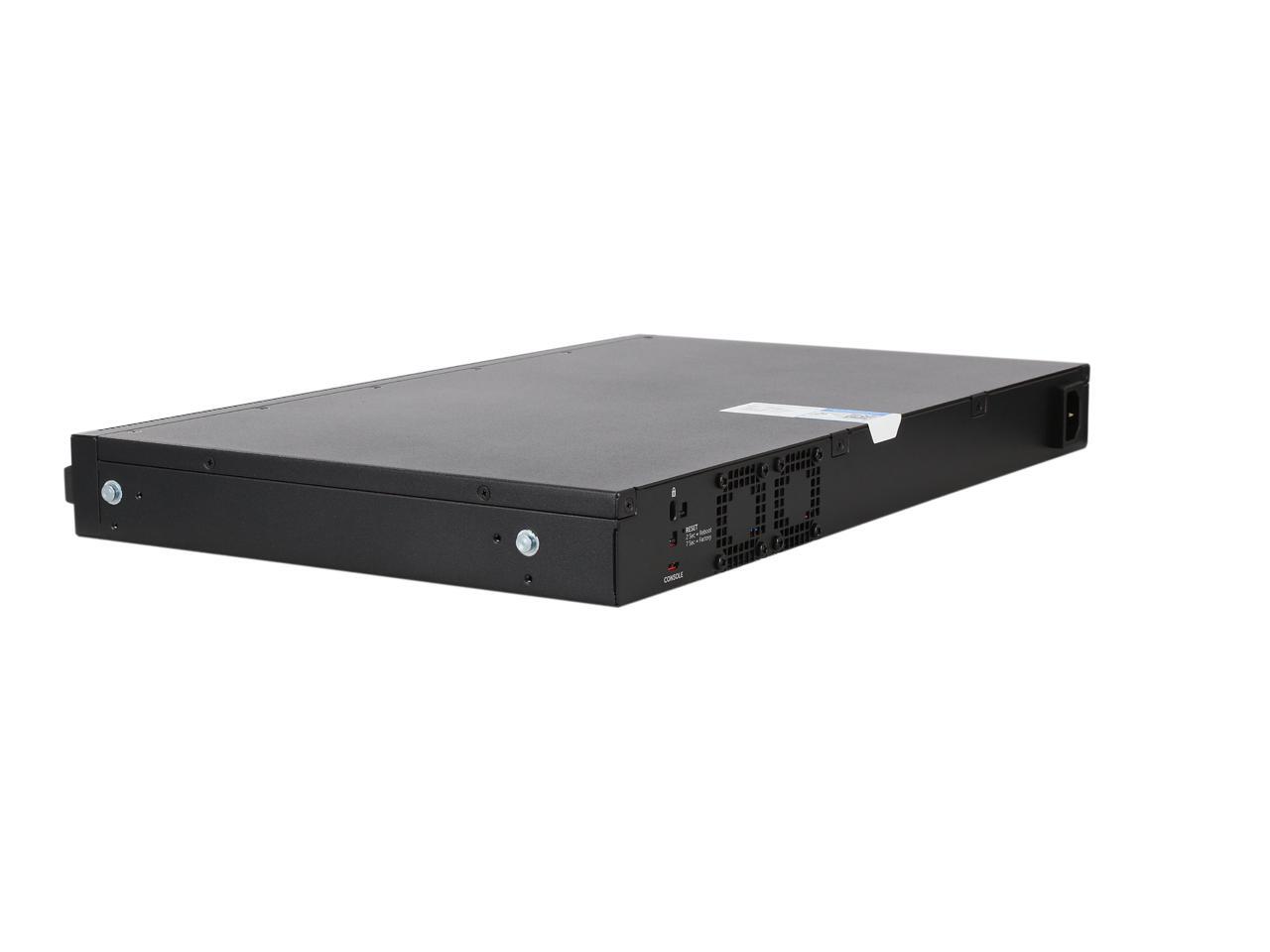

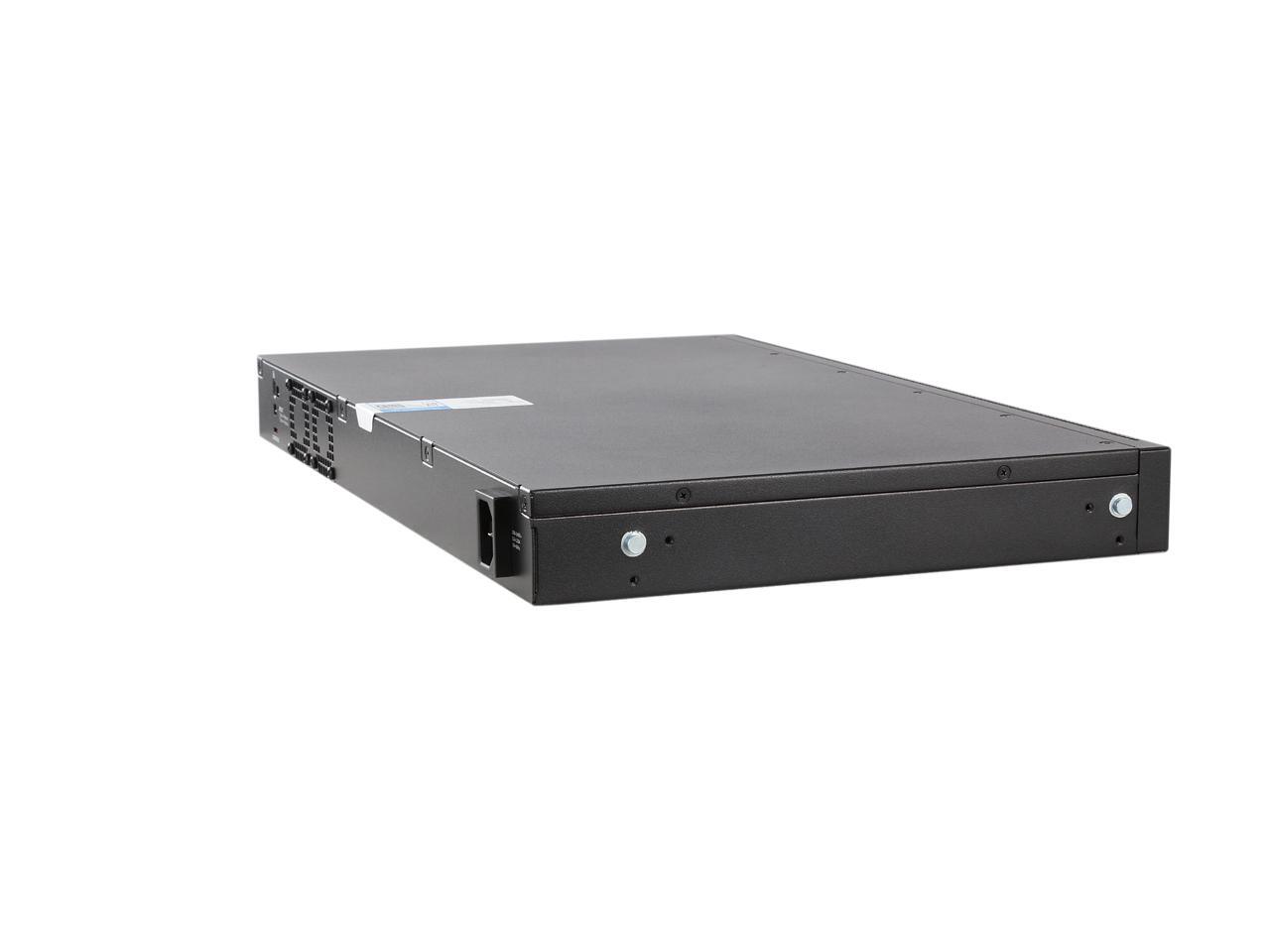

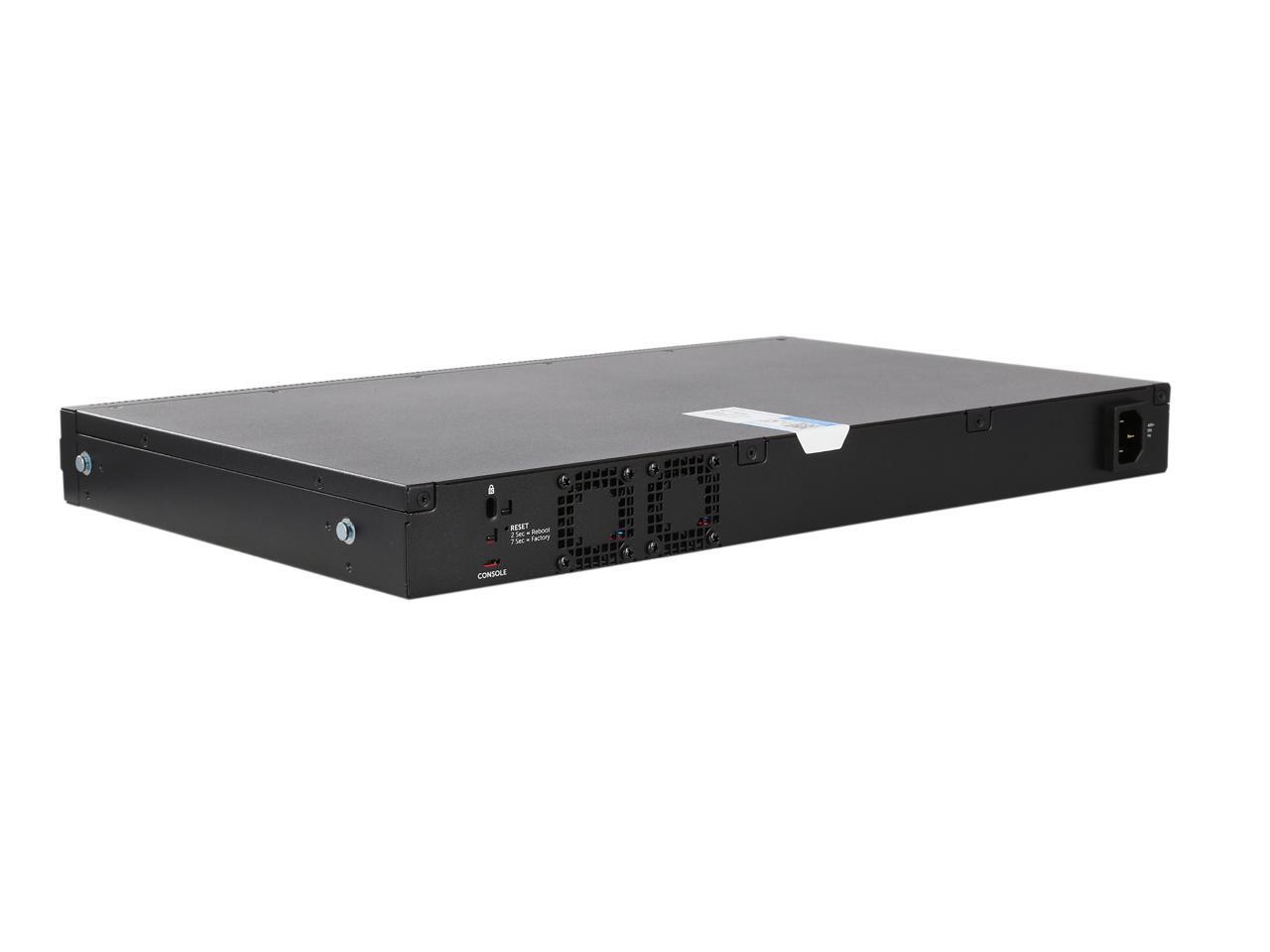

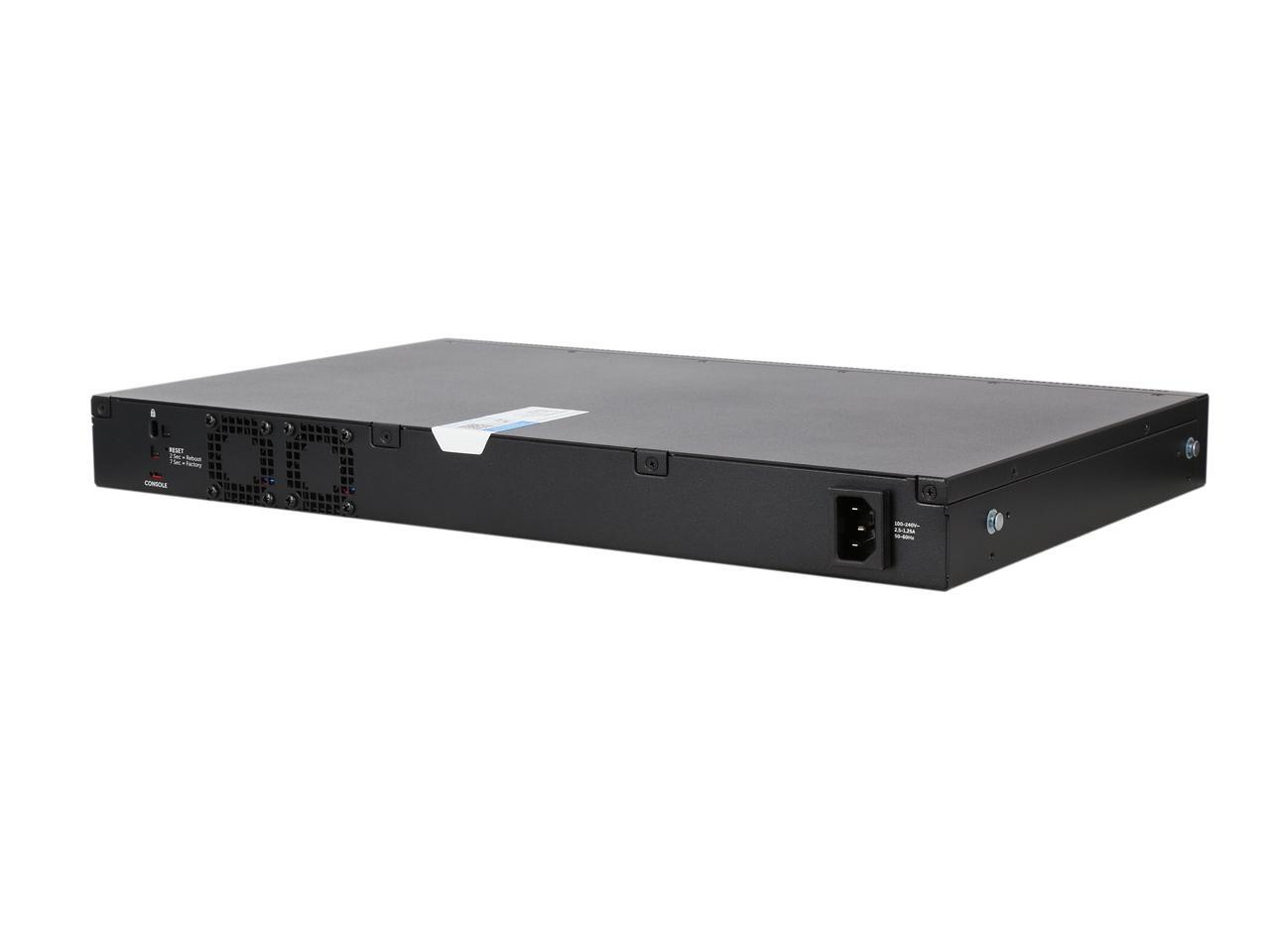

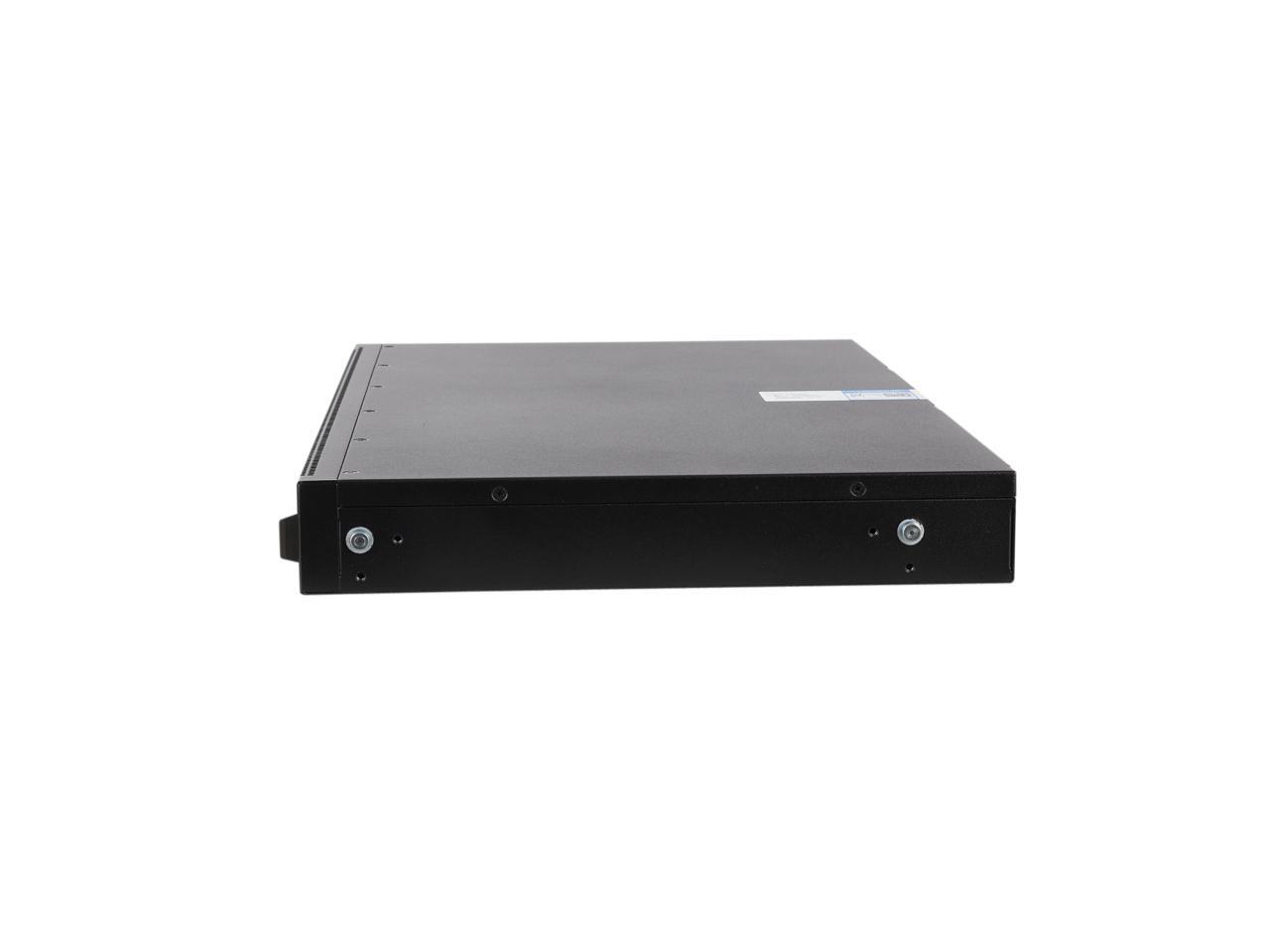

Alt view image 3 of 5 - Dell Networking X1052 (210-AEIO) Managed Switch

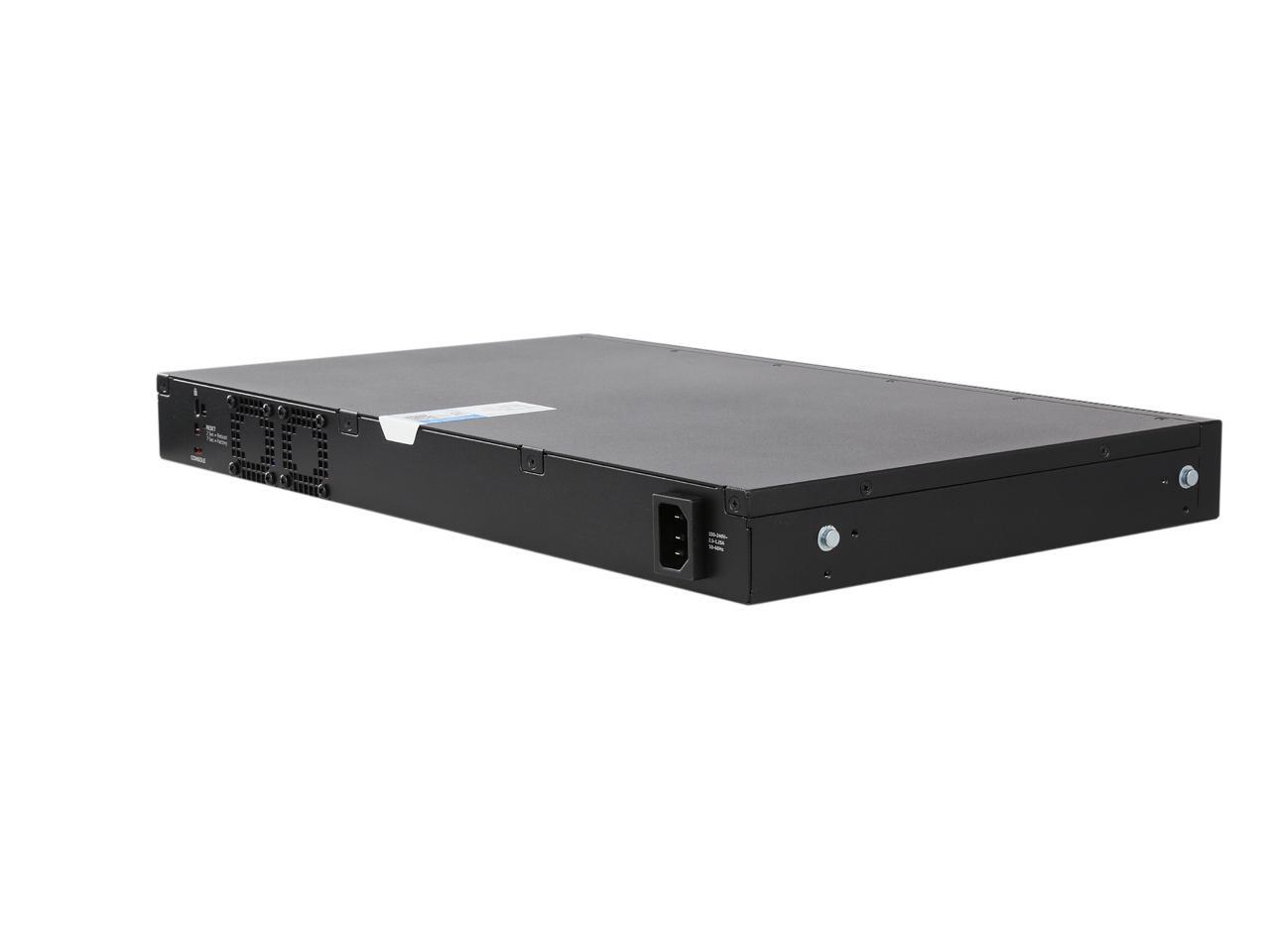

Alt view image 4 of 5 - Dell Networking X1052 (210-AEIO) Managed Switch

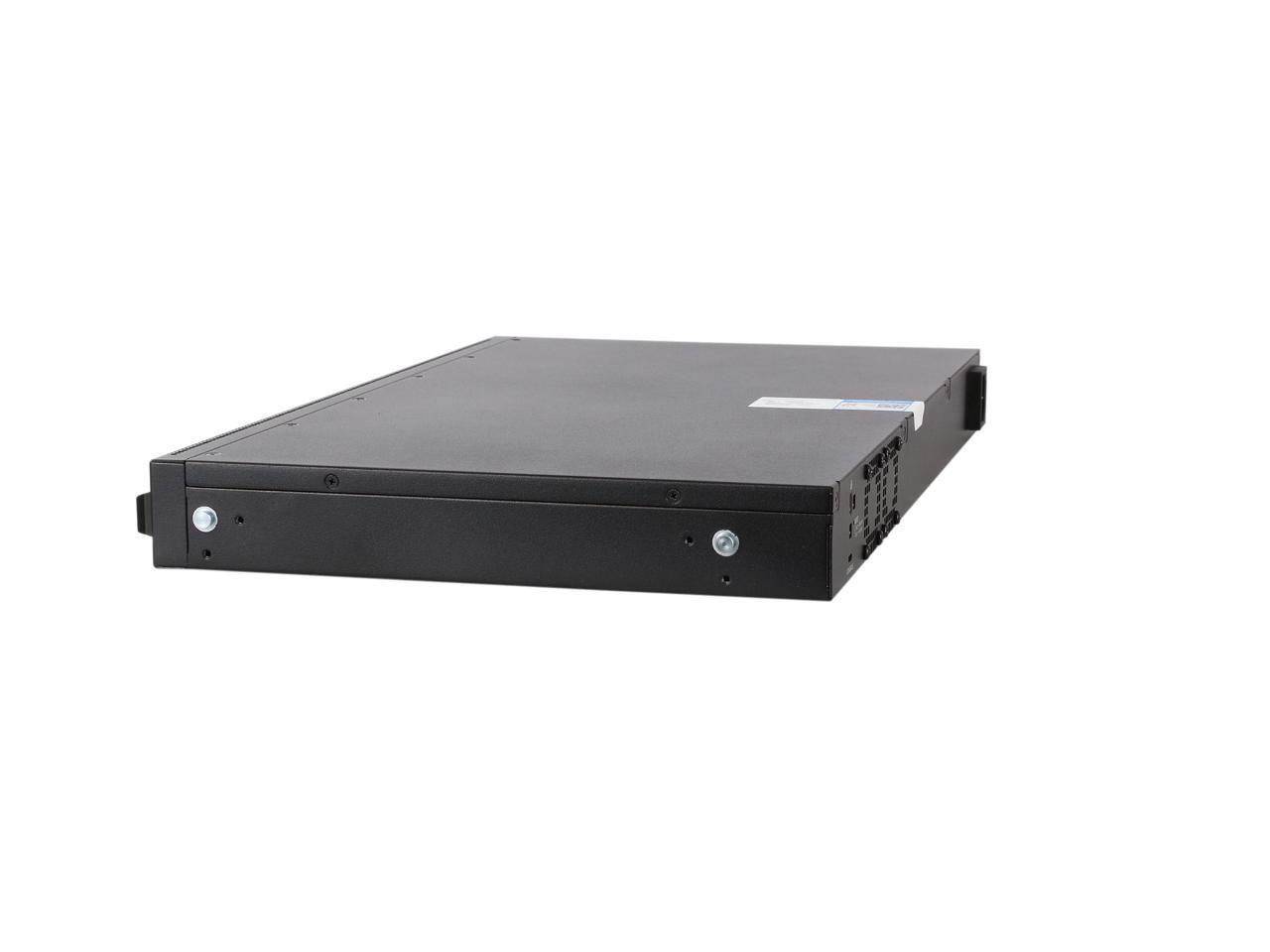

Alt view image 5 of 5 - Dell Networking X1052 (210-AEIO) Managed Switch

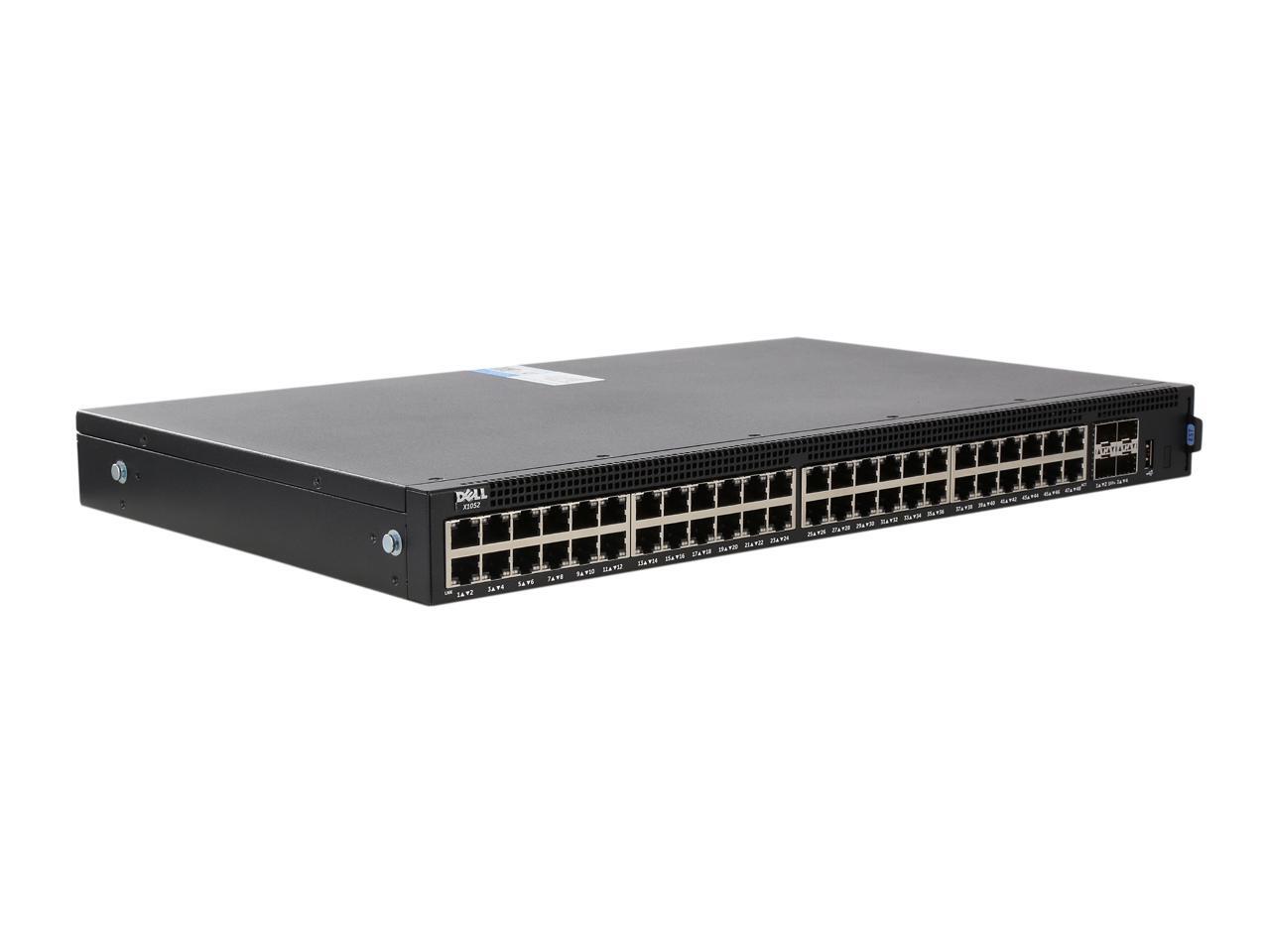

Alt view image 6 of 5 - Dell Networking X1052 (210-AEIO) Managed Switch

360^°

Shop All DELL Products

Dell Networking X1052 (210-AEIO) Managed Switch

Be the first to review this product...

16K MAC Address Table
Managed

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Dell X1052 Ethernet Switch 463-5911.
Brand New
Includes One Year Warranty
. . The Dell X1052 Ethernet Switch makes setup and management simple for network administrators. Based on extensive usability testing, the design of everything from navigation to menu structures and help tips is inspired by the way IT professionals think and work, making the interface a pleasure to use regularly or occasionally.
.
.
X1052 Ethernet Switch

Model
Brand	Dell
Series	Networking
Model	X1052 (210-AEIO)

Format & Standards
Format	Rack-mountable
Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
Network Management Type	Managed

Ports & Interface
Primary Ports	48 x RJ45 + 4 x SFP
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	16K
VLAN Support	Yes

Details
Protocols	Remote Management Protocol: SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI
SNMP	SNMP 1, SNMP 2, SNMP 3
QoS	Yes
LACP	Yes
Port Mirroring	Yes
Power	AC 120/230 V (50/60 Hz)

Features
Features	Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering Interfaces: 1 x USB - Type A - management 1 x micro-USB - management Power Provided: 100 Watt Authentication Method: RADIUS, TACACS+ Capacity: MAC addresses : 16000 LAG groups : 12 Priority queues per port : 8 Virtual interfaces (VLANs) : 4096 Maximum member ports per LAG : 8

Dimensions & Weight
Dimensions	1.71" x 17.09" x 10.63"

Environmental
Temperature	0ºC to 45ºC (32ºF to 113ºF)
Humidity	10% - 90%, Non-condensing

Additional Information
Date First Available	April 05, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
