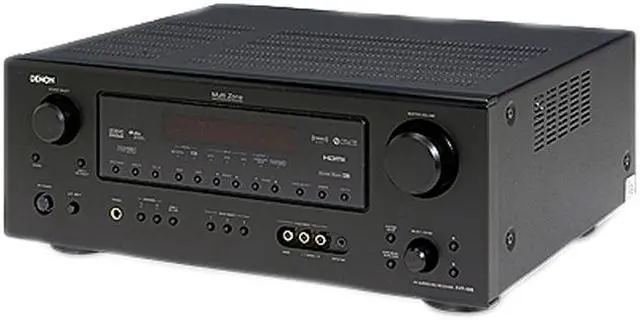

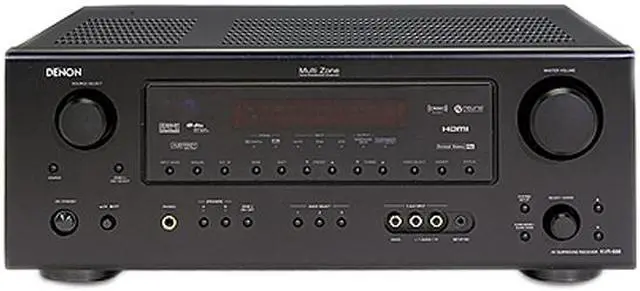

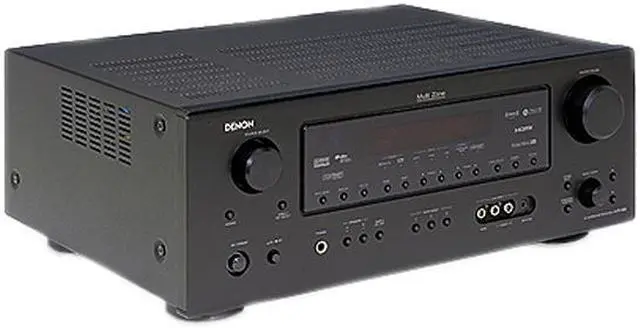

Denon AVR-688 R 7.1-Channel Receiver
REFURBISHED Product Type
- 7.1-Channel 75 Watts per channel
- Dolby Digital Surround EX and DTS decoding
- XM Satellite Radio Ready
- FM/AM Tuner
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Denon AVR-688 R
| Brand | Denon |
|---|---|
| Model | AVR-688 R |
| Type | Receiver |
|---|---|
| Color | Walnut |
| Channels | 7.1-Channel |
| Remote Control | Remote control (infrared) |
| Other Specifications | Input Impedance: 47 kOhm Input Sensitivity: 200 mV |
| Power Output | 75 Watts per channel |
|---|---|
| Decoder | Dolby Digital Surround EX and DTS decoding |
| Multi Zone | Two zone multi-source capability, zone 2 audio output, power amplifier assign for zone 2 |
| Video Upconversion | 1080p |
| Audio | Denon's new audio technology for MP3/WMA/AAC compressed audio formats to reproduce higher frequency range and deeper bass sound. Amplifier Output Details - 75 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 2 channel(s) ( front ) - 75 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 1 channel(s) ( center ) - 75 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 2 channel(s) ( surround ) - 75 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.08% - 2 channel(s) ( surround back ) - 110 Watt - 6 Ohm - at 1 kHz - THD 0.7% - 2 channel(s) ( front ) - 110 Watt - 6 Ohm - at 1 kHz - THD 0.7% - 1 channel(s) ( center ) - 110 Watt - 6 Ohm - at 1 kHz - THD 0.7% - 2 channel(s) ( surround ) - 110 Watt - 6 Ohm - at 1 kHz - THD 0.7% - 2 channel(s) ( surround back ) |
| Video | HDMI 1.3a switiching Deep Color up to 36-bit and xvYCC broader color space support Discrete devices for ultimate HD video performance in each block 10bit video encoder and decoder 1080p video pass through |
| FM/AM Tuner | Included |
|---|---|
| Satellite Radio Ready | XM |

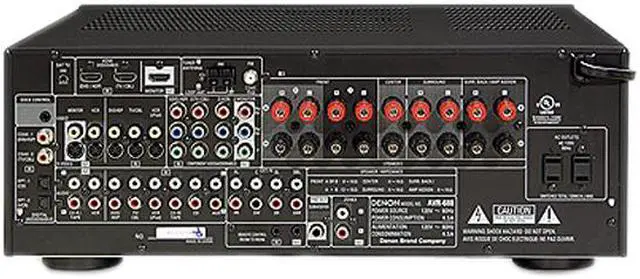

| Input | 1 x composite video/audio input ( RCA phono x 3 ) - front 2 x SPDIF input ( TOSLINK ) - rear 2 x SPDIF input ( RCA phono ) - rear 3 x composite video input ( RCA phono ) - rear 3 x S-Video input ( 4 pin mini-DIN ) - rear 1 x 7.1 channel audio line-in ( RCA phono x 8 ) - rear 6 x audio line-in ( RCA phono x 2 ) - rear |
|---|---|
| Output | 2 x composite video output ( RCA phono ) - rear 2 x S-Video output ( 4 pin mini-DIN ) - rear 2 x audio line-out ( RCA phono x 2 ) - rear 1 x subwoofer output ( RCA phono ) - rear 1 x audio line-out (multi zone) ( RCA phono x 2 ) - rear Remote control - rear |
| Component Video | 3 In / 1 Out |
| Headphone Jack | Yes |
| iPod Compatibility | Yes |
| Features | Indentical quality and power for all 7 channels, 110W x 7ch (6 ohms) Discrete devices for ultimate performance in each block New 32-bit floating point DSP Minimum signal path design Direct Mechanical Ground for stable drive Dual power transformer Denon customised block capacitor Separate unit design |
|---|
| First Listed on Newegg | October 16, 2013 |
|---|
