Specifications
:
PCI Express multi-gigabit Ethernet controller supporting mobile, desktop, workstation, value-server, or embedded space-constrained designs.

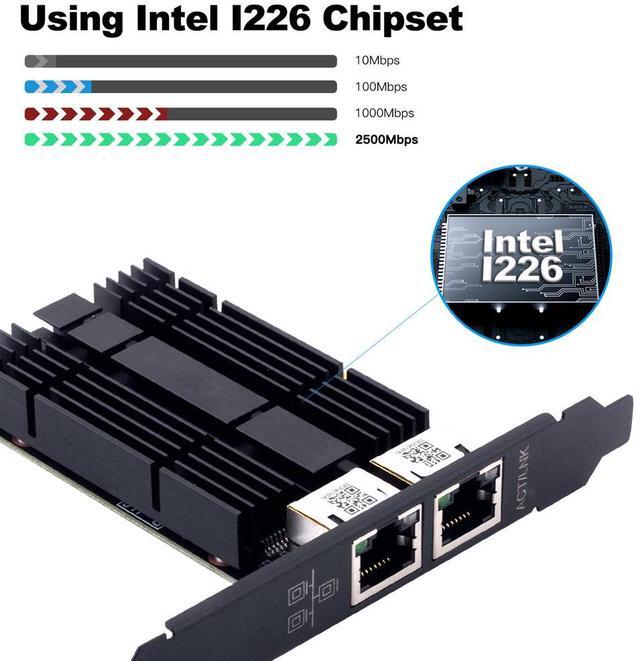

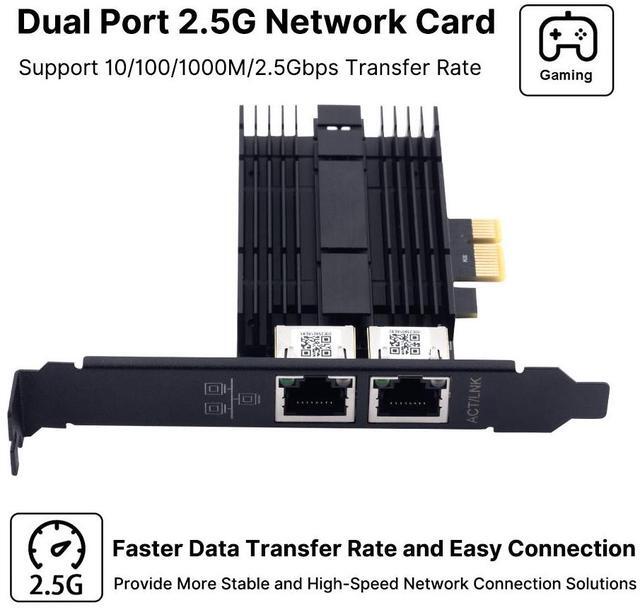

This PCI Express controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to 2.5G ) - MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3, 802.3 u, 802.3 ab).
Supports the IEEE 802.3 az EEE standard so that during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with the switch port to transition to a low power idle (LPI) state.
This capability reduces power dramatically, saving power on both the network and the switch ports. When increased traffic is detected, the controller and the switch quickly come back to full power to handle the increased traffic. EEE is supported for 2500BASE-T, 1000BASE-T and 100BASE-TX. Intel Active Management Technology support when connected to a system with Intel vPro technology, directly as LAN on motherboard, or via a Thunderbolt device.
Supports a total of 32 individually configurable flexible filters. Filters can be used for wake-up or proxying when in D3 state or for queueing when in D0 state. Secure Flexible Firmware Architecture Flexible Firmware Architecture with Secure NVM Update protects the flash from external unauthorized software programming. The Intel® Ethernet Controller I226 also
supports Dynamic Firmware Updating that enables Firmware Updates without the need for a system reboot.
Four Software Definable Pins (SDPs) enable additional design customization for embedded platforms. SDPs can be used for IEEE 1588 auxiliary device connections, to enable/disable the device, and for other miscellaneous hardware or software-control purposes. These pins can be individually configured to act as either standard inputs, General-Purpose Interrupt (GPI) input or output pins, as well as the default value of all pins configured as outputs. One SDP is dedicated, and three are shared with the JTAG interface.
Compatible With:

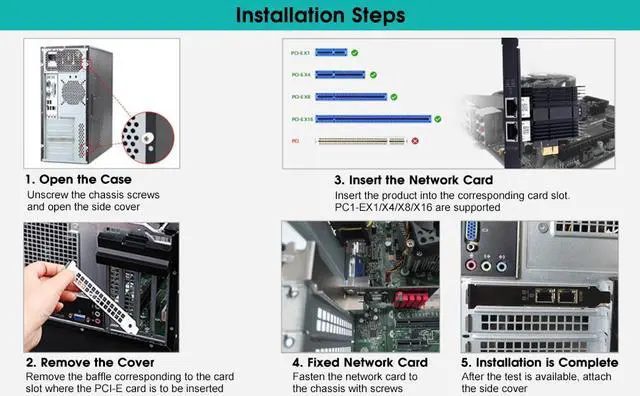

Compatible with almost computer with PCIE (X1 X4 X8 16) card slot
Windows 10 /10RS5+ Ubuntu 19.04
Windows 11
Package include:

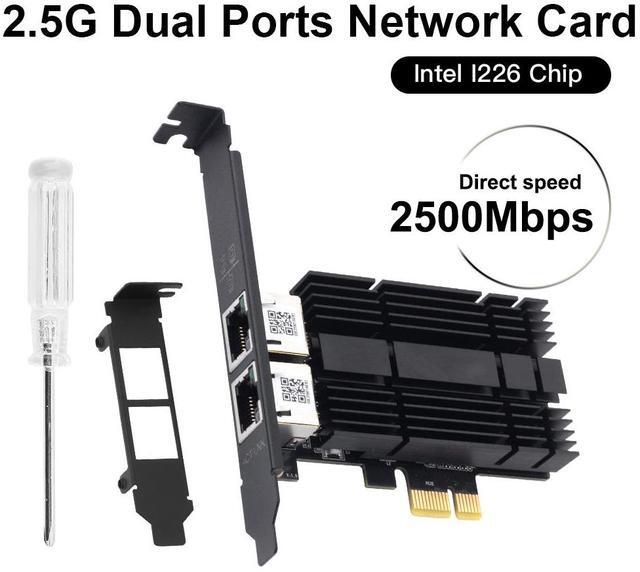

1 x RJ45 to PCI-E Network adapter converter
1 x Low profile bracket
Driver download: You can download the driver from Intel website.
