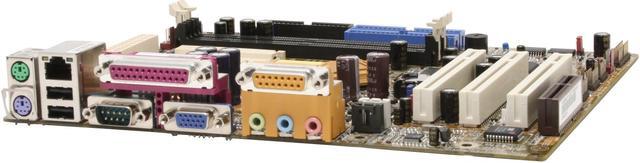

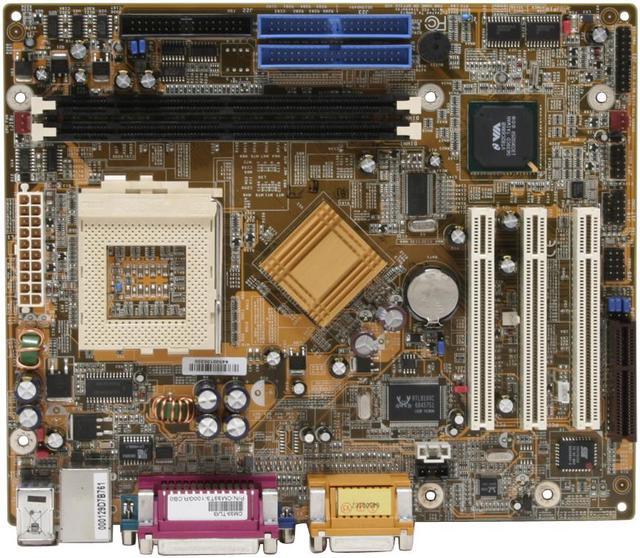

DFI CM33-TL/G Socket 370 VIA 8601T Micro ATX Intel Motherboard
- VIA 8601T
- Pentium 3 Tualatin / Celeron
- SDRAM PC66 / 100 / 133
Specs
Reviews (19)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the DFI CM33-TL/G
| Brand | DFI |
|---|---|
| Model | CM33-TL/G |
| CPU Socket Type | Socket 370 |
|---|---|
| CPU Type | Pentium 3 Tualatin / Celeron |
| FSB | 133/100 MHz |
| Chipset | VIA 8601T |
|---|---|
| South Bridge | VIA 82C686B |
| Onboard Video Chipset | Trident 2D/3D/Video |
|---|
| Number of Memory Slots | 2x168pin |
|---|---|
| Memory Standard | SDRAM PC66 / 100 / 133 |
| Maximum Memory Supported | 1GB |
| PCI Express x16 | None |
|---|---|
| PCI Slots | 3 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | AC97 Codec |
|---|
| Max LAN Speed | 100Mbps |
|---|

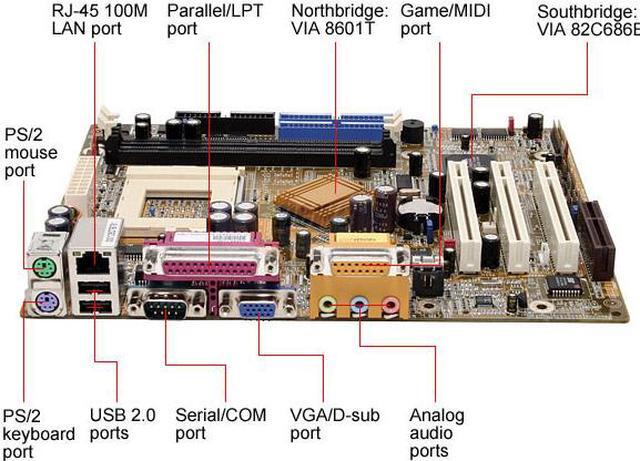

| Back I/O Ports | 2 x PS/2 / 2 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 1.1 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 1.1 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.5" |
| Power Pin | 20 Pin |

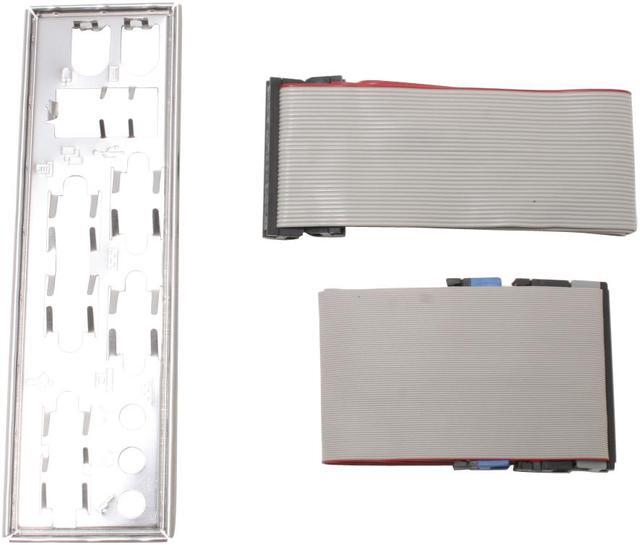

| Package Contents | CM33-TL ROHS Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable |
|---|
| Date First Available | February 13, 2007 |
|---|
