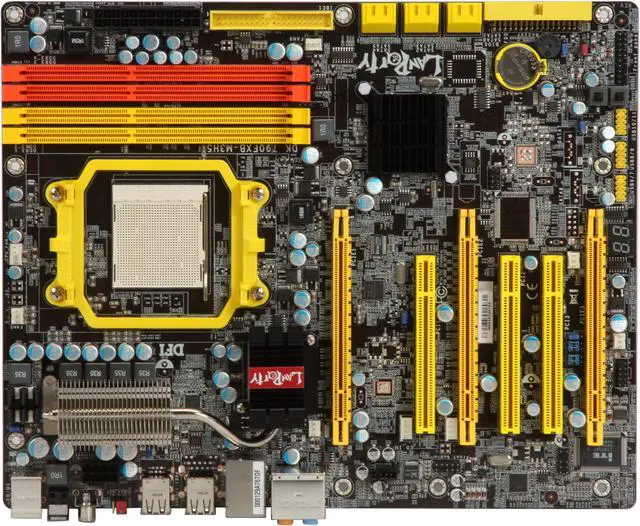

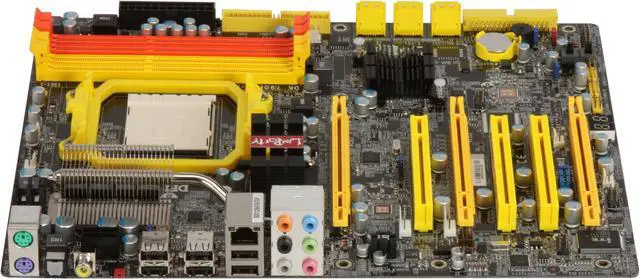

DFI LANParty DK 790FXB-M3H5 AM3 AMD 790FX ATX AMD Motherboard

(66) Write a Review
  • AMD 790FX
  • Phenom II
  • DDR3 1600(O.C.)/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (66)

Learn more about the DFI LANParty DK 790FXB-M3H5

Model
Brand DFI
Model LANParty DK 790FXB-M3H5
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II
FSB 2600 MHz
Chipsets
Chipset AMD 790FX
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600(O.C.)/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 (2-way CrossFire at x16/x16 or x16/x4 bandwidth - 3-way CrossFire at x16/x16/x4 bandwidth)
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8056
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial RCA
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 24.5cm (9.64") x 30.5cm (12")
Power Pin 24 Pin
Additional Information
Date First Available March 30, 2009
