DFI LANPARTY UT X48-T3R LGA 775 Intel X48 ATX Intel Motherboard
- Intel X48
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR3 1333
Overview
Specs
Reviews (33)
Any questions? Our AI beta will help you find out quickly.
Try me now

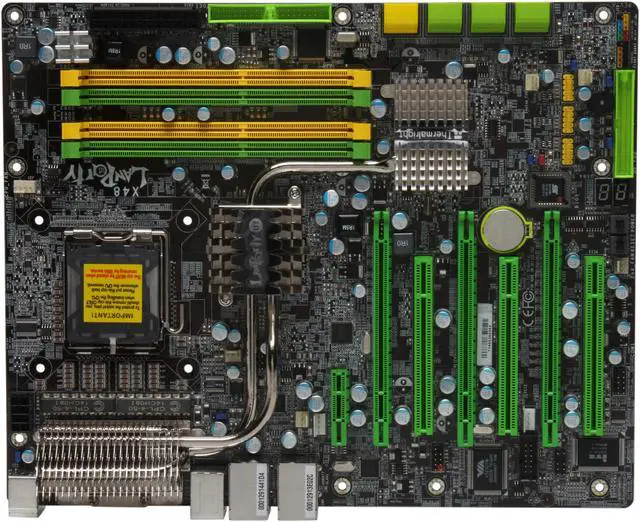

DFI has long had a notable reputation within the overclocking community and their UT X48-T3RS motherboard continues the trend. Based on Intel's X48 Express and ICH9R chipsets, this ATX board is ready to host the latest LGA775 Core2 Quad, Core 2 Extreme and Core 2 Duo CPUs along with Pentium processors.
Up to 8GB of DDR3 1600 can be installed with dual channel support, SpeedStep and Hyper Threading technology providing increased performance. Additional performance – up to 2000Mhz – can be achieved through overclocking with DFI's Auto Boost System. A pair of PCI-Express 2.0 x16 cards can be mounted for cutting-edge graphic power in multiple CrossFireX configurations.
Get eight channels of HD sound from the Realteck ALC885 audio codec with a Bernstein audio module and full-rate lossless technology for pure audio. Connect up to six SATA devices at 3Gb/s for high-speed data transfers as well as the option for multiple RAID configurations. Integrated Gigabit Ethernet LAN allows bottleneck-free connections to other network devices at broadband speeds and a half-dozen USB 2.0 ports along with a FireWire connection allow for nearly unlimited possibilities in connecting peripheral devices.
DFI has long had a notable reputation within the overclocking community and their UT X48-T3RS motherboard continues the trend. Based on Intel's X48 Express and ICH9R chipsets, this ATX board is ready to host the latest LGA775 Core2 Quad, Core 2 Extreme and Core 2 Duo CPUs along with Pentium processors.
Up to 8GB of DDR3 1600 can be installed with dual channel support, SpeedStep and Hyper Threading technology providing increased performance. Additional performance – up to 2000Mhz – can be achieved through overclocking with DFI's Auto Boost System. A pair of PCI-Express 2.0 x16 cards can be mounted for cutting-edge graphic power in multiple CrossFireX configurations.
Get eight channels of HD sound from the Realteck ALC885 audio codec with a Bernstein audio module and full-rate lossless technology for pure audio. Connect up to six SATA devices at 3Gb/s for high-speed data transfers as well as the option for multiple RAID configurations. Integrated Gigabit Ethernet LAN allows bottleneck-free connections to other network devices at broadband speeds and a half-dozen USB 2.0 ports along with a FireWire connection allow for nearly unlimited possibilities in connecting peripheral devices.
Up to 8GB of DDR3 1600 can be installed with dual channel support, SpeedStep and Hyper Threading technology providing increased performance. Additional performance – up to 2000Mhz – can be achieved through overclocking with DFI's Auto Boost System. A pair of PCI-Express 2.0 x16 cards can be mounted for cutting-edge graphic power in multiple CrossFireX configurations.
Get eight channels of HD sound from the Realteck ALC885 audio codec with a Bernstein audio module and full-rate lossless technology for pure audio. Connect up to six SATA devices at 3Gb/s for high-speed data transfers as well as the option for multiple RAID configurations. Integrated Gigabit Ethernet LAN allows bottleneck-free connections to other network devices at broadband speeds and a half-dozen USB 2.0 ports along with a FireWire connection allow for nearly unlimited possibilities in connecting peripheral devices.
Intel X48 Express Chipset for Intel LGA 775 CPUBased on the Intel X48 Express chipset, the DFI LanParty UT X48-T3R supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium series.
ATi CrossFireX Multi-GPU Technology SupportATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
DDR3 Memory SupportThe DFI LanParty UT X48-T3R features four DDR3 DIMM slots to support up to 8GB of DDR3 1333MHz memory for extreme overclocking performance.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports support RAID 0, 1, 0+1 and 5 for better performance, enhanced data security, and flexible capacity upgrades.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
IEEE 1394a SupportIEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. With IEEE 1394a you can easily connect digital devices such as a digital camcorder to the IEEE 1394a port provided on this motherboard for up to 400Mbps data transfer speeds.
Intel X48 Express Chipset for Intel LGA 775 CPUBased on the Intel X48 Express chipset, the DFI LanParty UT X48-T3R supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium series.
ATi CrossFireX Multi-GPU Technology SupportATi CrossFireX is the ultimate multi-GPU performance gaming platform, enabling two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.
DDR3 Memory SupportThe DFI LanParty UT X48-T3R features four DDR3 DIMM slots to support up to 8GB of DDR3 1333MHz memory for extreme overclocking performance.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports support RAID 0, 1, 0+1 and 5 for better performance, enhanced data security, and flexible capacity upgrades.
Dual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
IEEE 1394a SupportIEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. With IEEE 1394a you can easily connect digital devices such as a digital camcorder to the IEEE 1394a port provided on this motherboard for up to 400Mbps data transfer speeds.Warranty & Returns
