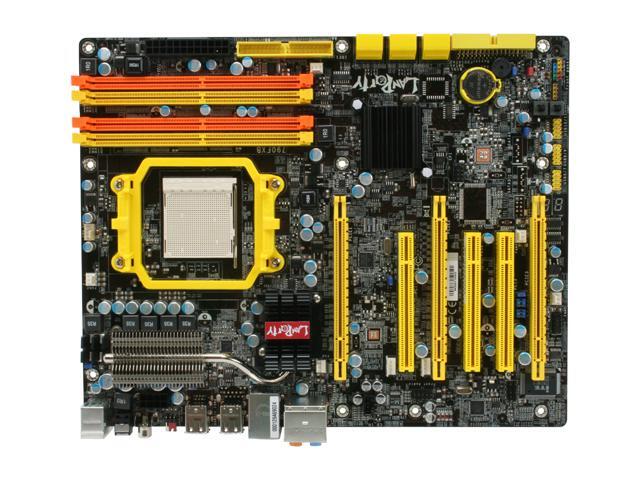

Brand | DFI |
---|---|
Model | LP DK 790FX-M2RS |
CPU Socket Type | AM2+/AM2 |
---|---|
CPU Type | Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
FSB | 2600 MHz |
Chipset | AMD 790FX |
---|---|
South Bridge | AMD SB600 |
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express 2.0 x16 | 3 PCI Express 2.0 x16 slots - 2-way or 4-way CrossFire at x16/x16/NC bandwidth - 3-way CrossFire at x16/x16/x4 bandwidth - 2-way CrossFire + Physics at x16/x16 bandwidth |
---|---|
PCI Slots | 3 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 4 x SATA 3Gb/s |
SATA RAID | 0/1/0+1 |
Onboard Video Chipset | None |
---|
Audio Chipset | Realtek ALC885 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Marvell 88E8053 |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
USB 1.1/2.0 | 6 x USB 2.0 |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 4 x USB 2.0 |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |

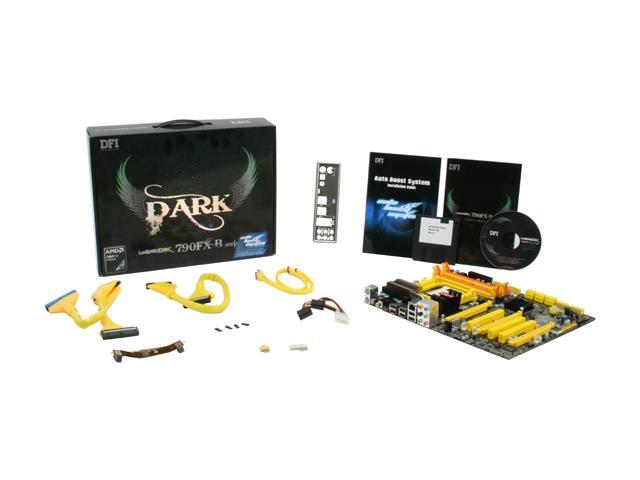

Package Contents | LANPARTY DK 790FX-M2RS Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Floppy Drive Diskette SLI Bridge |
---|
Date First Available | February 12, 2008 |
---|
Pros: Very stable right out of the box. The board layout is very good. I'm running Vista64 with zero problems.
Cons: The only small thing is I had to manually set my memory to 4-4-4-15 and 2.1 volts. By default the BIOS sets the memory wrong with 1.9 volts. I'll gladly manually set the memory for a stable MB.
Overall Review: My system: Antec 850 TruePower Qoutro, Phenom 9500, 2x Sapphire 3870 crossfire mode, Xi-Fi 7.1, Linksys 56g PCI, 8 gigs OCZ DDR800(4 x 2gig) running at 4-4-4-15 2.1 volts 2T, Vista64 Home Prem.
