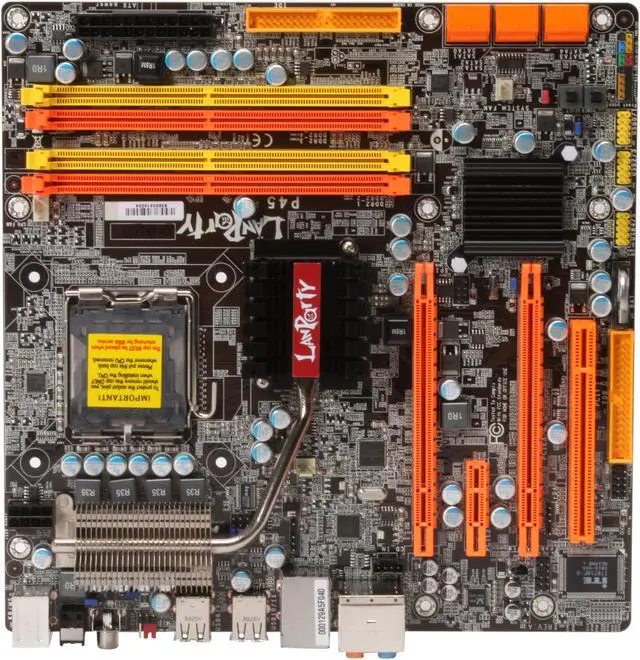

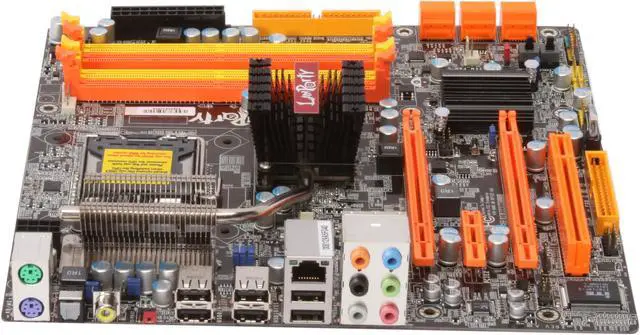

DFI LP JR P45-T2RS LGA 775 Intel P45 Micro ATX Intel Motherboard

(65) Write a Review
  • Intel P45
  • Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual-Core
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (65)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the DFI LP JR P45-T2RS

Model
Brand DFI
Model LP JR P45-T2RS
Supported CPU
CPU Socket Type LGA 775
CPU Type Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual-Core
FSB 1333/1066 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x16 or 2 x16 Graphic Slots in 2 x8 lanes by IC switch
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8053
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Power Pin 24 Pin
Additional Information
First Listed on Newegg August 18, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
