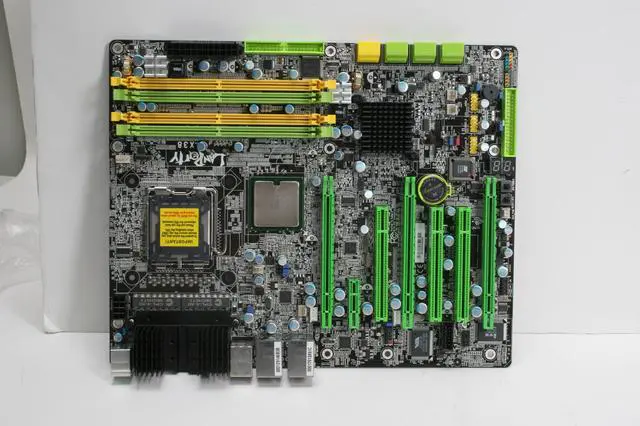

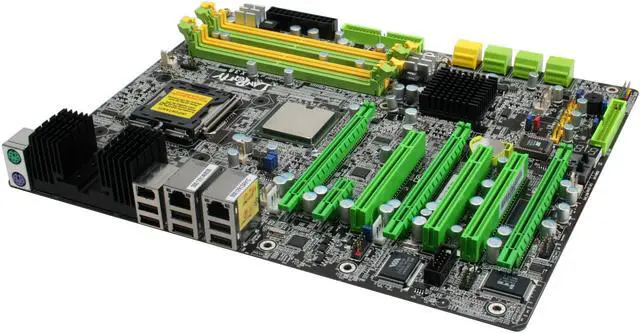

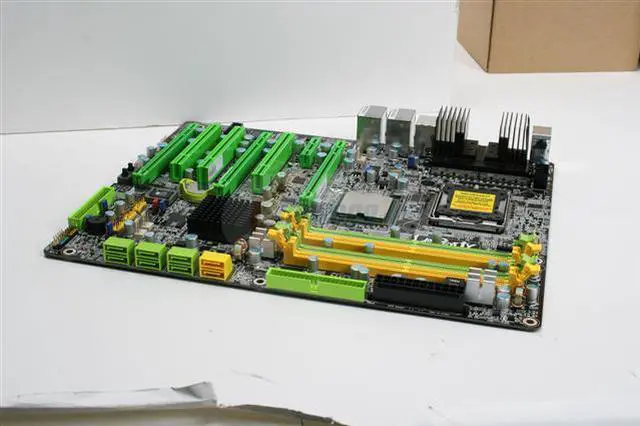

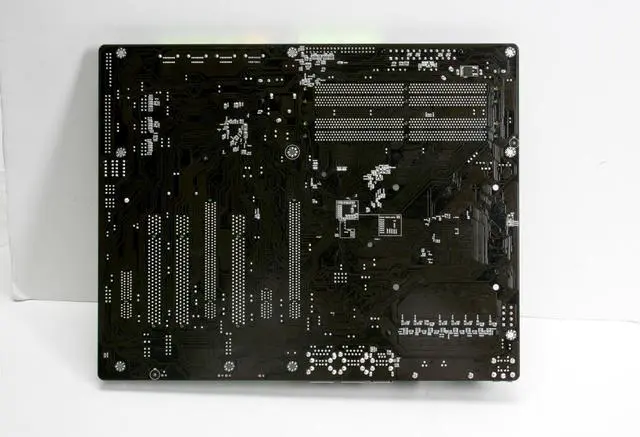

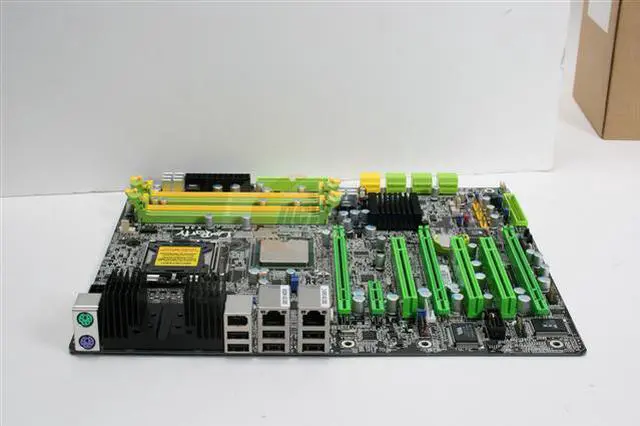

DFI LP LT X38-T2R LGA 775 Intel X38 ATX Intel Motherboard

(22) Write a Review
  • Intel X38
  • Core 2 Quad / Core 2 Duo
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (22)

Learn more about the DFI LP LT X38-T2R

Model
Brand DFI
Model LP LT X38-T2R
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Duo
FSB 1333/1066 MHz
Supported CPU Technologies Supports Intel Enhanced Memory 64 Technology (EMT64T)
Supports Enhanced Intel SpeedStep Technology (EIST)
Supports Intel Hyper-Threading Technology
Chipsets
Chipset Intel X38
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x4 1 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5
Additional RAID Controller JMicron JMB363
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
Second LAN Chipset Marvell 88E8053
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Coaxial
S/PDIF In 1 x Coaxial
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

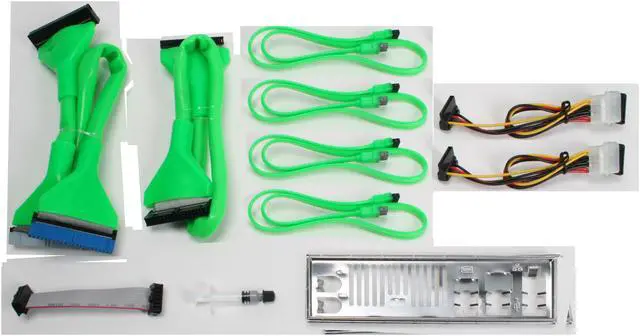

Package Contents LP LT X38-T2R
Driver Disk
User Manual
Floppy Drive Diskette
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
2 x 4-pin to SATA Power Cable
Crossfire Bridge

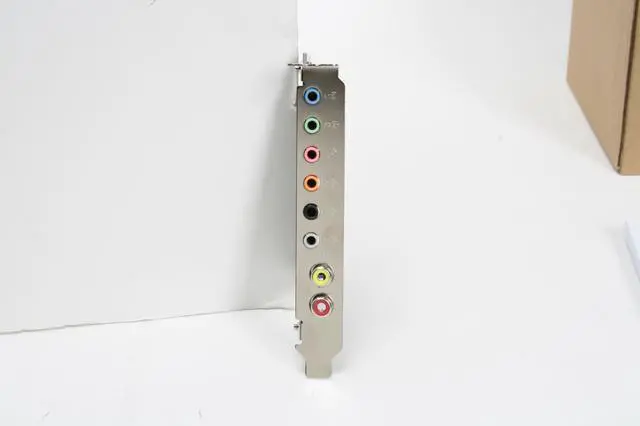

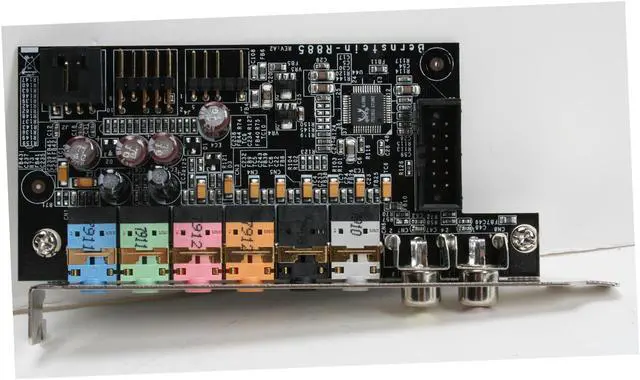

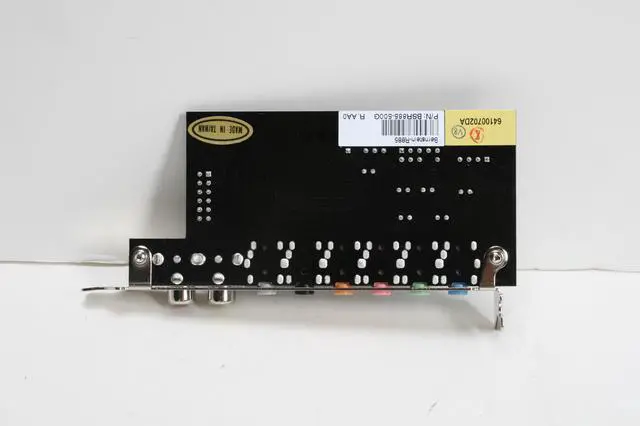

Bernstein Audio Module

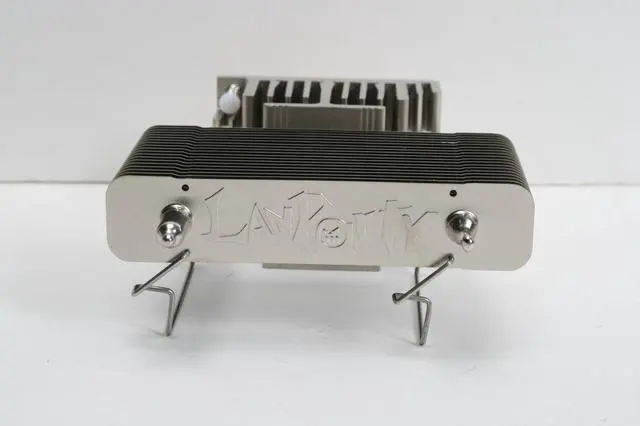

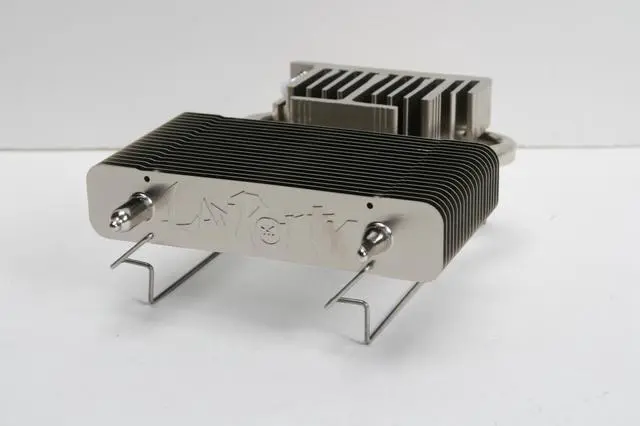

Heatsinks
Additional Information
First Listed on Newegg December 12, 2007
