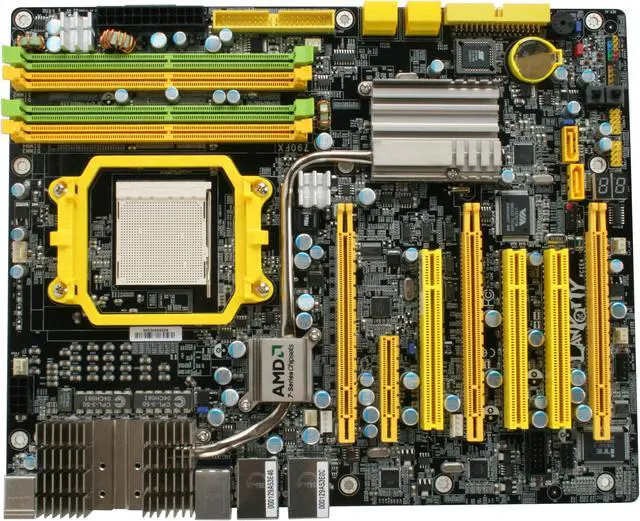

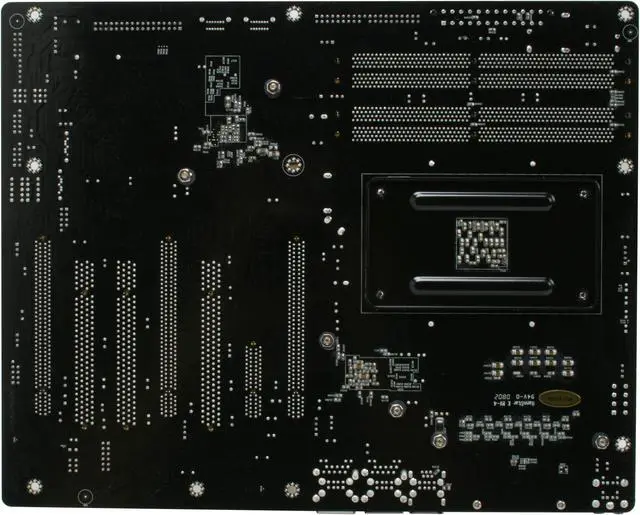

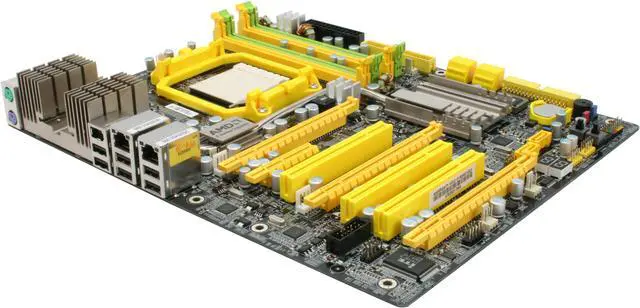

DFI LP UT 790FX-M2R AM2+/AM2 AMD 790FX ATX AMD Motherboard

(50) Write a Review
  • AMD 790FX
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (50)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the DFI LP UT 790FX-M2R

Model
Brand DFI
Model LP UT 790FX-M2R
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset AMD 790FX
South Bridge AMD SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express (Gen 2) x16 slots
- 2-way or 4-way CrossFire at x16/x16/NC bandwidth
- 3-way CrossFire at x16/x8/x8 bandwidth
- 2-way CrossFire + Physics at x16/x8/x8 bandwidth
PCI Express x4 1 x PCI Express x4
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Additional RAID Controller Sil 3132
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
Second LAN Chipset Marvell 88E8053
Max LAN Speed 2 x 1Gbps

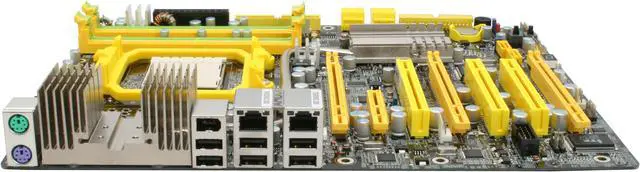

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

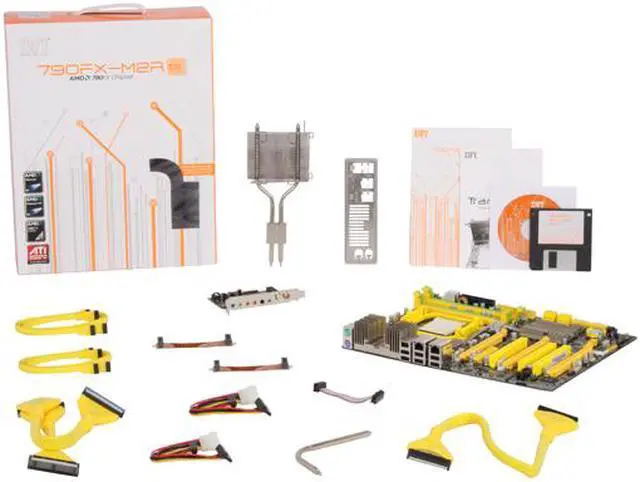

Package Contents LP UT 790FX-M2R
Driver Disk
User Manual
Floppy Drive Diskette
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
4-pin to SATA Power Cable

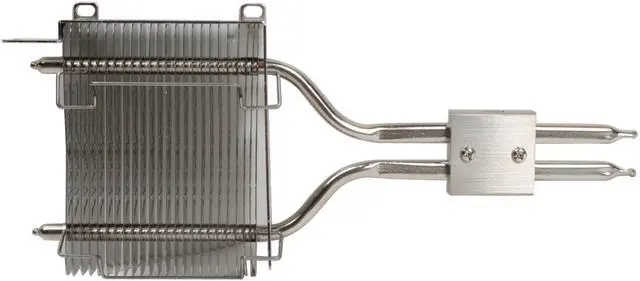

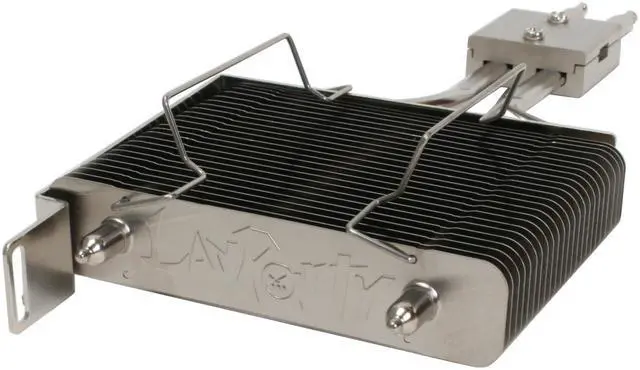

Heatsink
CrossFire Bridge

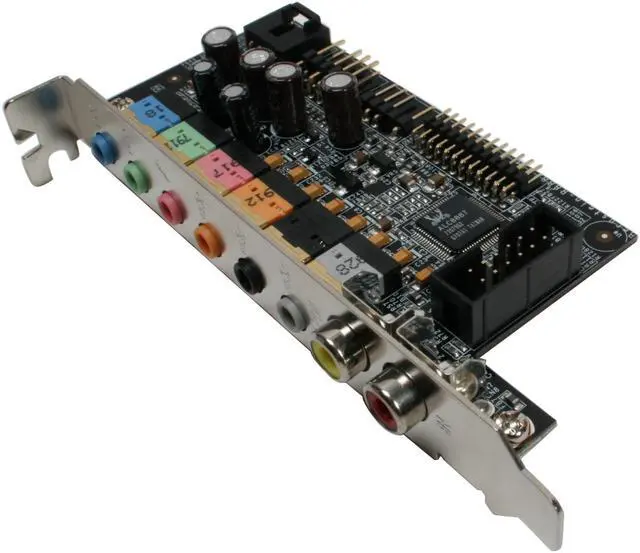

Bernstein Audio Module
Additional Information
Date First Available December 12, 2007
