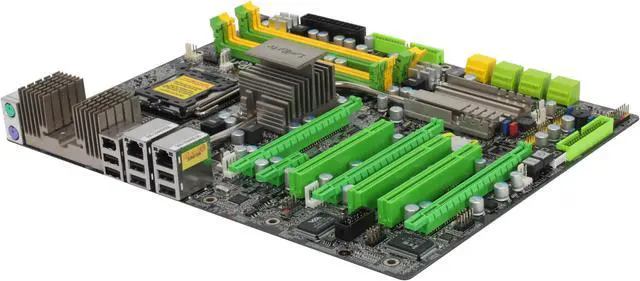

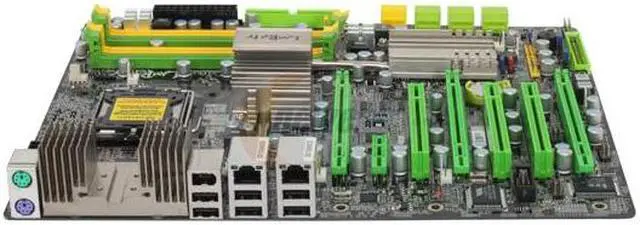

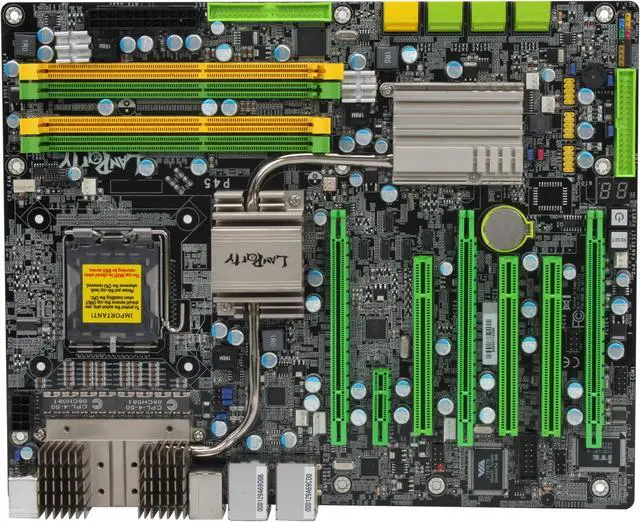

DFI LP UT P45-T3RS LGA 775 Intel P45 ATX Intel Motherboard

(2) Write a Review
  • Intel P45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR3 1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the DFI LP UT P45-T3RS

Model
Brand DFI
Model LP UT P45-T3RS
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1333/1066 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16 (1 x16 or 2 x8 by IC swith)
PCI Express x4 1 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
Second LAN Chipset Marvell 88E8053
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Internal I/O Connectors
Onboard USB 3 x USB header for 6 x USB 2.0 ports
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Additional Information
First Listed on Newegg November 14, 2008
