Question 1

will this replace the dell 375p power supply?

Accepted Answer

This will replace the power supply that you need. Many power suppliers will work. The important parts to match are the internaol connectors for your hard drives. Some hard drives are Sata, and some use the molex connection. Most computers these days use SATA, but check to be sure there are enough 'connectors' for your hard drives and other components.

Power connectors for:
hard drives
CD/DVD ROM drives
graphics cards perhaps
(smaller power connectors) for the internal fans and motherboard

This most likely has the amount of power you need. However, you first must check the tech details to be sure it has the connections you need. Take out the old one, count the connectors, and see if you can find one to match.

Question 2

Will this fit a Micro ATX tower?

Accepted Answer

I think that it depends more on the MicroATX tower than anything else. I recently purchased this for a budget build, but that was on an ATX Mid. The short answer is that it should, but be careful if you are ordering an irregularly shaped case.

Question 3

Will this fit a 2005 IBM a50 8148-12u?
Main board intel D865gkd
power supply 230 watt.
I need a 300w min. to run a new graphics card I purchased.
evga ge force 6200 512mb ddr2 agp8x

Accepted Answer

as long as the plug has the same amount of pins as the motherboard socket  it should work fine

Question 4

IS THIS 350W PEAK OR RMS?

Accepted Answer

As far as pulsation and noise, this one is consistent and powerful, but it does make some noise. I am conscious of the machine being on, and even turn it off to stop noise. Hope this was the topic you were thinking of, and hope this helps.

Question 5

Will this fit a Micro ATX Mini Tower, most specifically Rosewill FBM-02?

Accepted Answer

L 6 1/2" X H 3 3/8" x W 5 7/8" If you want it in mm's you will have to convert it yourself.

Brand	Diablotek
Series	DA Series
Model	PSDA350

Type	ATX12V
Maximum Power	350 W
Fans	2 x 80mm fan
PFC	No
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	No
SATA Power Connector	3
SLI	No
Haswell Support	No
CrossFire	No
Modular	No
Hold-up Time	16ms min.
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	8A @ 115V, 5A @ 230V
Output	+5@15A, +3.3V@15A, +12V@20A, [email protected], [email protected]
Approvals	FC. CE. RoHs Compliant

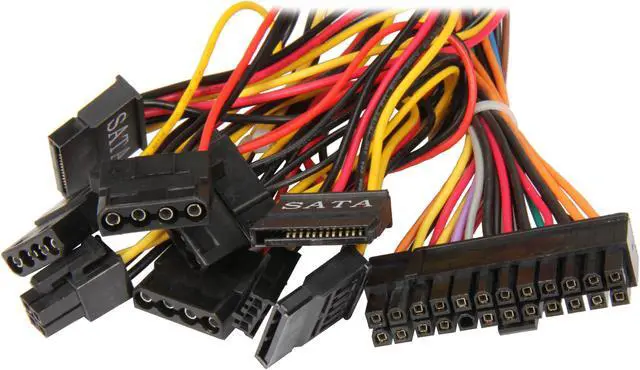

Connectors	1 x Main connector (20+4Pin) 1 x 4-Pin ATX 12V 4 x Peripheral 3 x SATA 1 x Floppy

Dimensions	5.8" x 6" x 3.5"
Weight	3 lbs.
