Question 1

is this a 6 pin cable or 4 pin?

Accepted Answer

It has the adaptability for both. There is a 6 pin and an 8 pin. The 8 pin splits so it can plug into motherboards with the 4 pin. This is the 2nd one I have purchased and they have been great. I do a little work on the side repairing PCs and this is by far the best option due to the amount of connectors for the price. Only down side is the amount of cables that can be left over but nothing that a few zip ties can't fix.

Question 2

Will this power supply work on a 20 pin connector motherboard?

Accepted Answer

Yes, as with most generic Power Supplies, it has a 20 pin with a slide on 4 separate pin connector if needed on a 24 pin motherboard.

You should not have any problem with your 20 pin motherboard. In my opinion, this is the best Power Supply around.

Question 3

will this psu be able to power my system well?

my system
q6600 oc'd to 3.2ghz (planning on going higher)
9800gtx 1gb
ageia PPU (or,if possible,8600gts for physx)
8gb 1066mhz ddr2 ram
4 hard drive's
6 system fans (case,expansion slot exhuast,cpu,gpu x2,psu)

Accepted Answer

Sounds like it should do okay, 4 HD's may be pushing it, as I am running a similar system, with 2 HD's, and 12 USB ports, and 2 DVD.

If one or two HD's disappear from the computer list after boot up then it means you will need more power. This means that the HD's are not being recognized in the BIOS.

I really like these diblotek 500W Power Supplies.

Question 4

it this Power Supply compatable with a MSI 970A-G46 Mother Board?

Accepted Answer

Thomas, although this Power Supply should run this motherboard, it is not only the motherboard that demands the wattage amount of power needed. The video cards you select, determine the amount of power needed to run them. The motherboard you referenced has is designed run dual video cards, so you will have to research and read the demands of the video card or cards (if you intend to use 2) you select for the wattage needed to power the cards. Then if you decide to install RAID with multiple hard drives, that is even more demanding on power. Video Cards today go above 600 and 700 watts currently. This looks like a nice board to use for gaming, it has some very nice features. Good Luck!

My advice would be to buy the video cards you desire, then install the next level of wattage from what the video cards say is their minimum wattage required to support the video.

Question 5

Since this is a, ATX-based Power Supply, does this mean I can switch out a standard PSU from a Dell Optiplex 780 Mini-Tower for this?

Accepted Answer

Probably not. Dell's mini towers usualy have custom shaped power supplys. You should check the dimensions to make sure but if I am thinking of the right tower then no.

Brand	Diablotek
Series	DA Series
Model	PSDA500

Type	ATX
Maximum Power	500 W

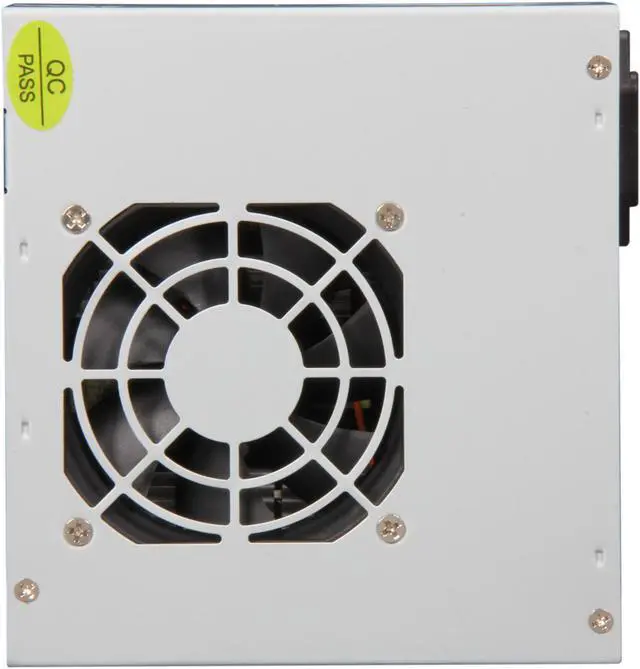

Fans	2 x 80mm fan
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	1 x 6+2-Pin
SATA Power Connector	4
Haswell Support	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	8A @ 115V, 5A @ 230V
Output	+3.3V@15A, +5V@15A, +12V@17A, [email protected], [email protected]

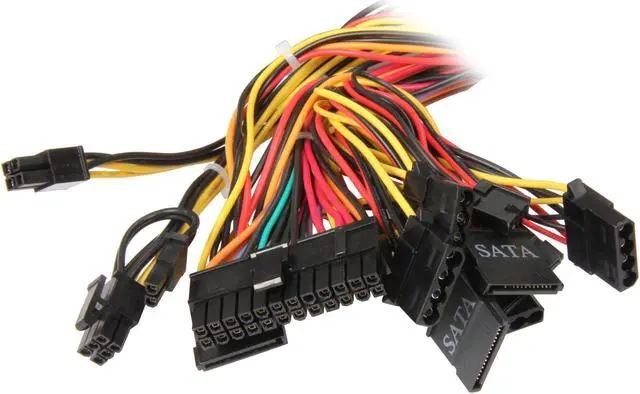

Connectors	1 x Main connector (20+4Pin) 1 x 4-Pin ATX 12V 1 x 6/8-Pin PCI-E 4 x Peripheral 4 x SATA 1 x Floppy

Dimensions	5.8" x 6" x 3.5"
Weight	4 lbs.
