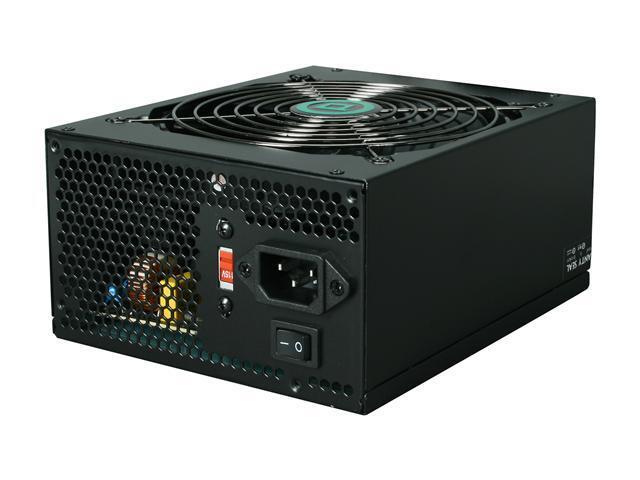

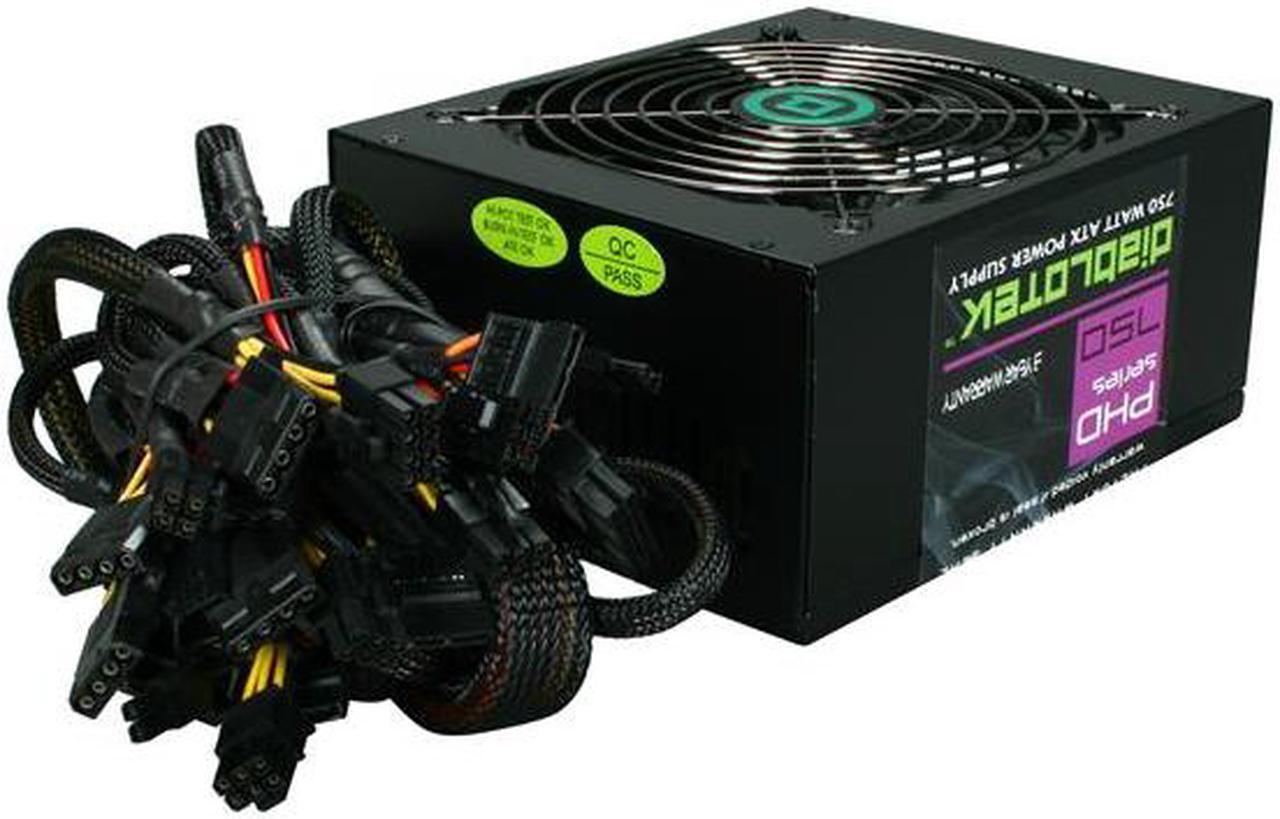

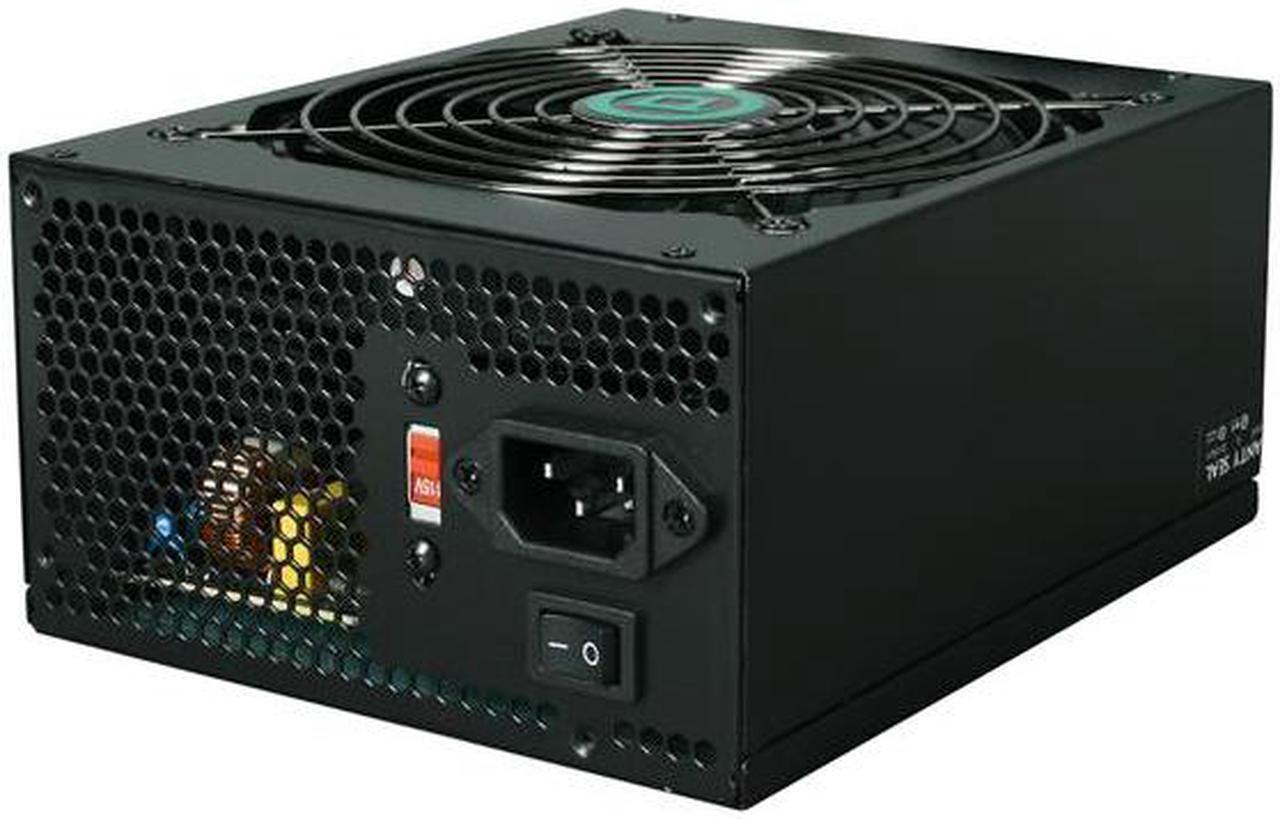

Almost more than you’ll ever need, the Diablotek PHD750 750W power supply combines the best of all worlds. With better cooling, better performance, and the same overall value, might really be the only high-quality power supply that satisfies a value conscious performance user’s appetite. Easy to install and a perfect fit in any standard ATX case, this power supply leaves you with no second thoughts.
750W Power SupplyWith a maximum power of 750W, it delivers all the juice you need and more when it comes to performance graphics cards on mainstream to performance PCs.

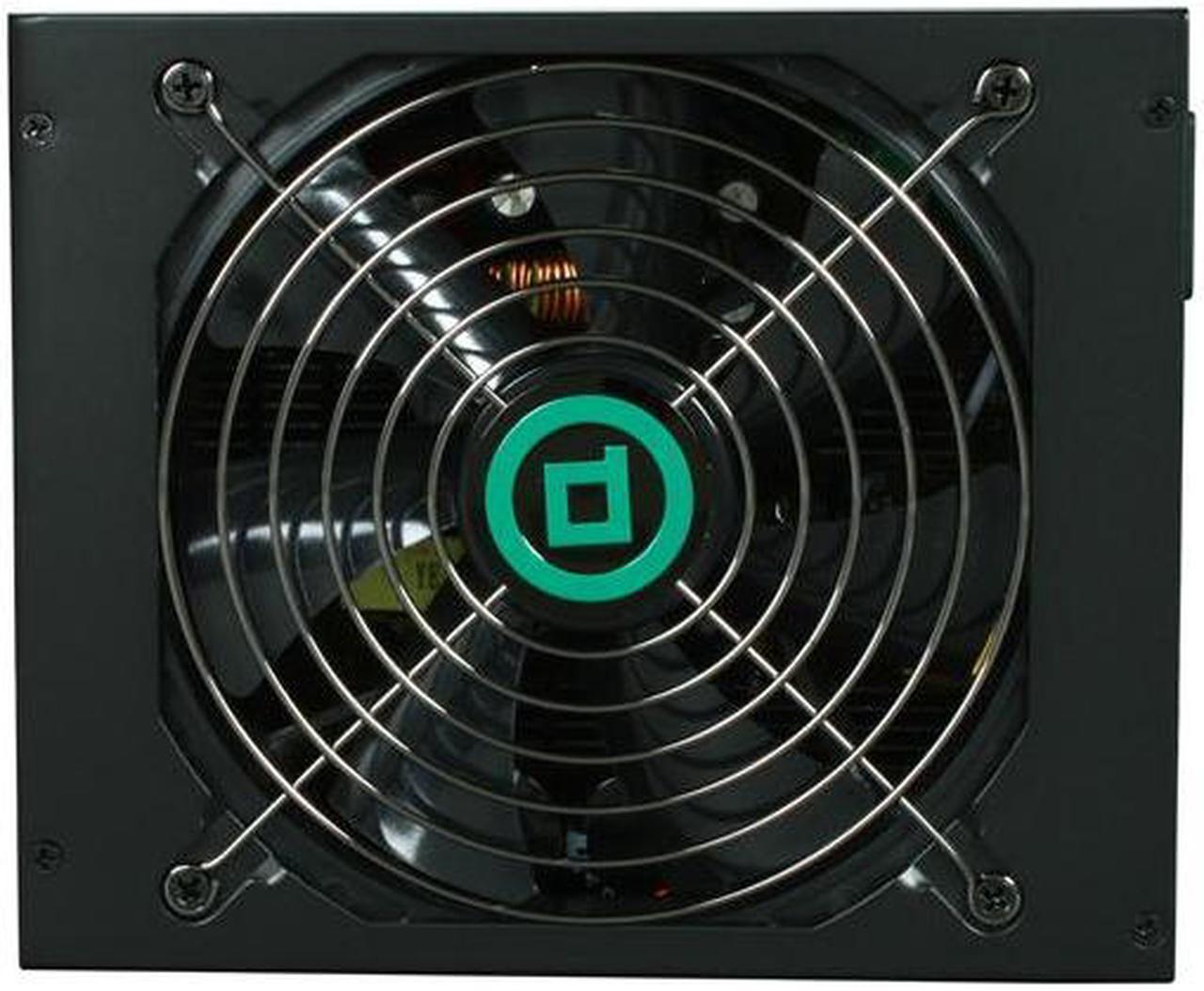

Low in NoiseA single low-noise 140mm fan is all it takes to guarantee cool, efficient performance – thanks to class-leading engineering.
Built BetterThe Diablotek PHD Series is made out of some of the highest-grade and most durable materials in its price point for a power supply that’s more dependable and better looking in every way.
3 Year WarrantyDiablotek provides all their power supply unit series with a full 3 year warranty service.
Learn more about the Diablotek PHD750
General
Brand
Diablotek
Series
PHD Series
Model
PHD750
Details
Type
ATX12V / EPS12V
Maximum Power
750 W
Fans
1 x 140 mm fan
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6-Pin, 2 x 8-Pin
SATA Power Connector
6

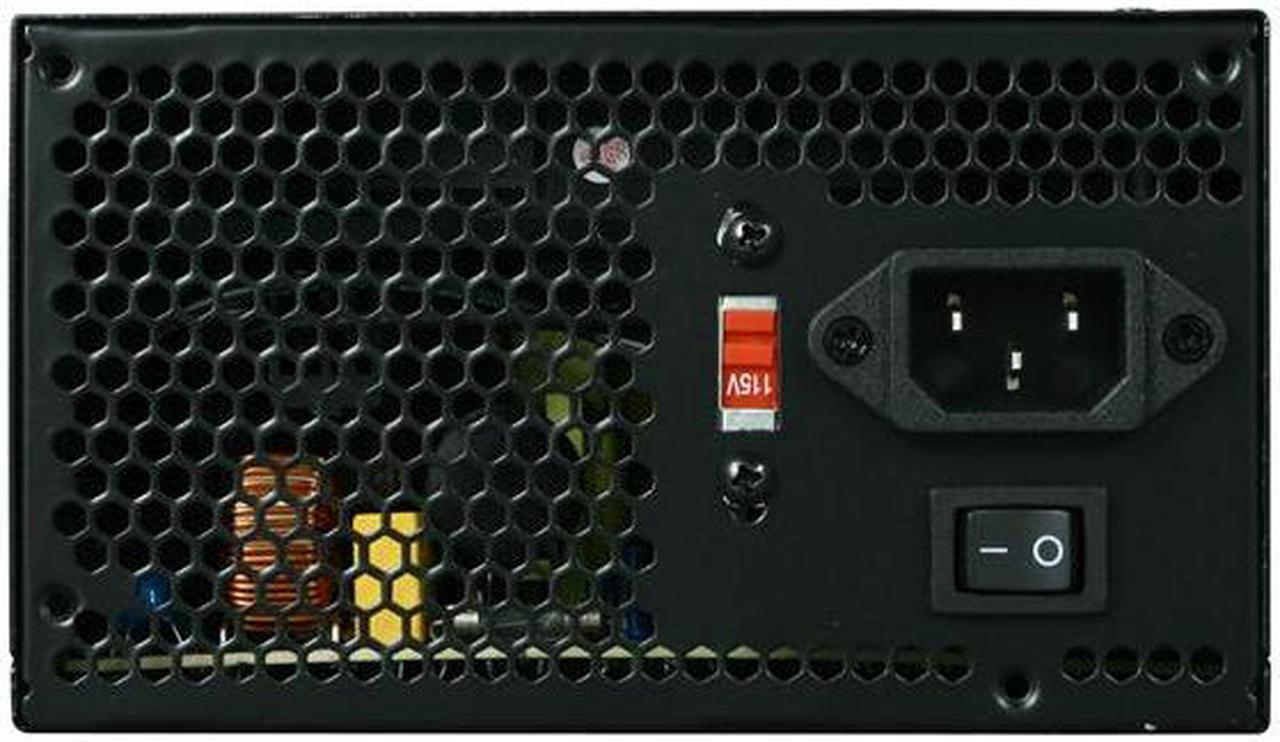

Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
10A @ 115V, 6A @ 230V

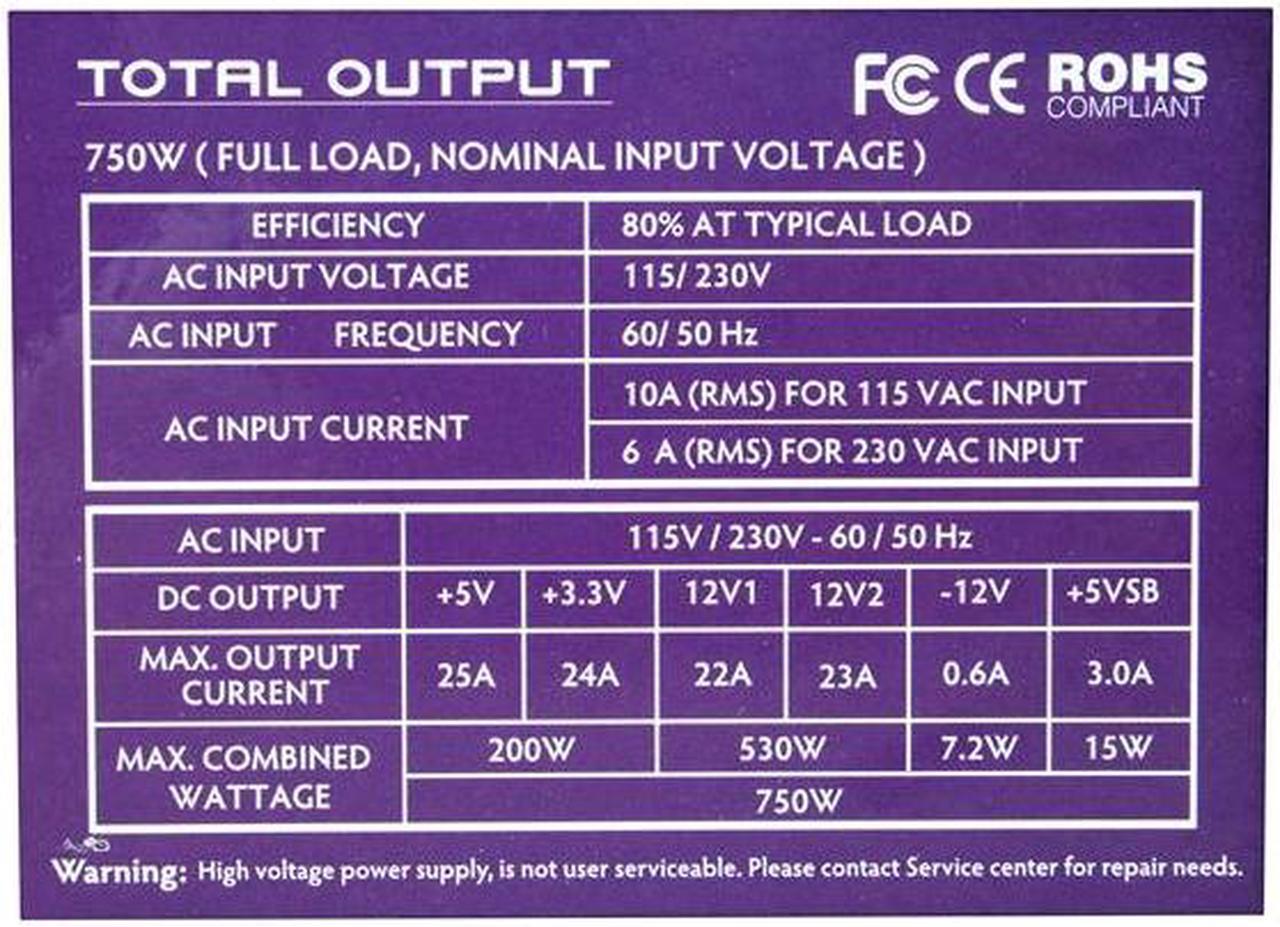

Output
+3.3V@25A, +5@25A, +12V@54A, -12V@0.6A, +5 VSB@2A

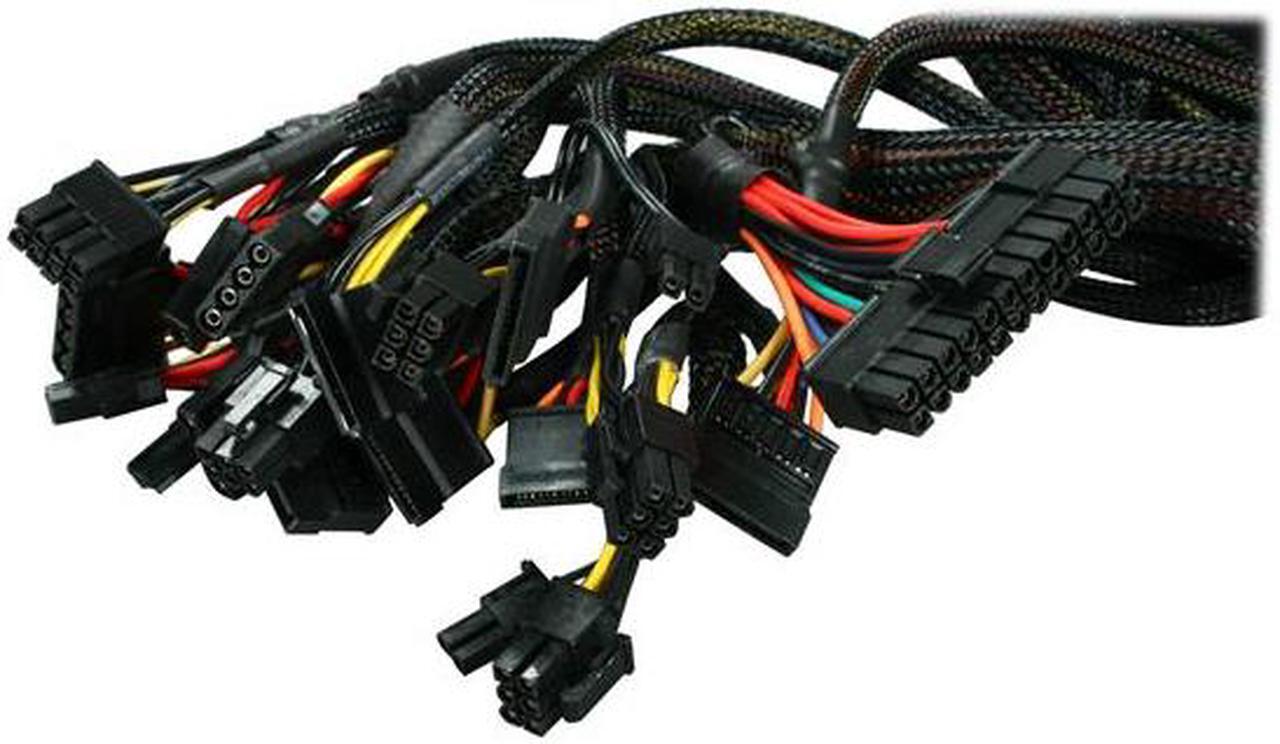

Connectors
1 x Main connector (20+4Pin) 1 x 4-Pin ATX 12V 1 x 8-Pin EPS 12V 6 x Peripheral 6 x SATA 1 x Floppy 4 x PCI-E
