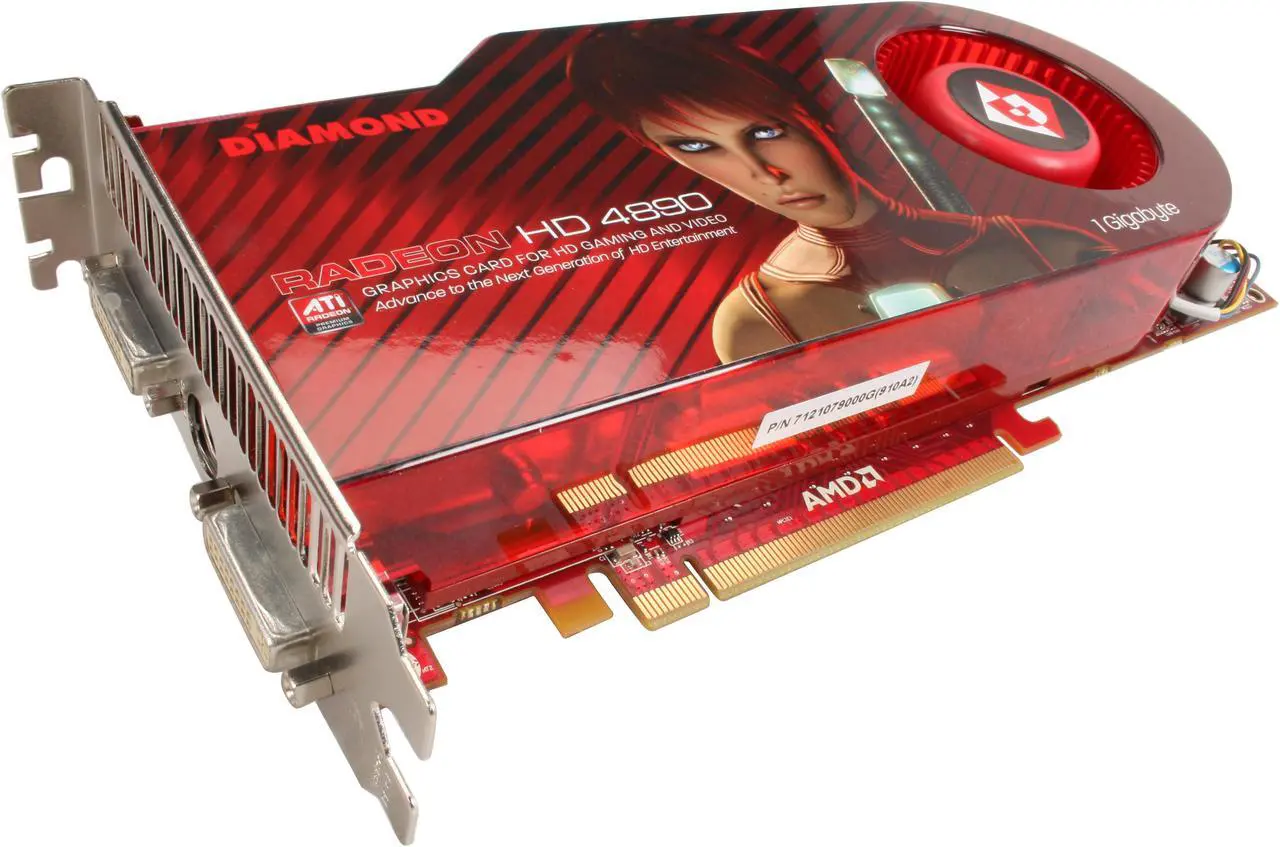

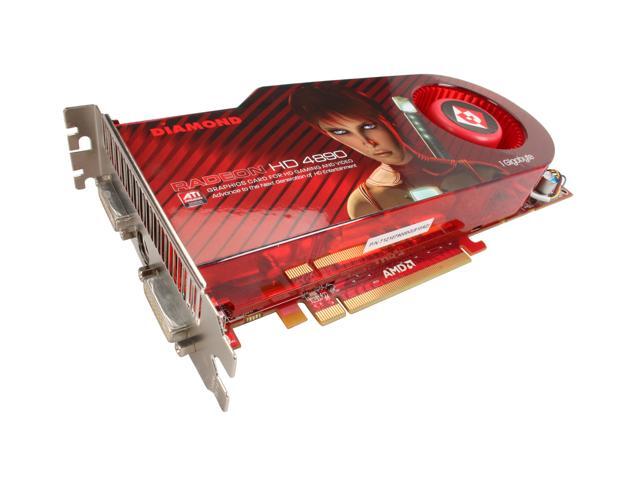

DIAMOND Radeon HD 4890 1GB GDDR5 PCI Express 2.0 x16 CrossFireX Support Graphics Card 4890PE51GSB

(22) Write a Review
  • 1GB 256-Bit GDDR5
  • Core Clock 850 MHz
  • 2 x DVI 1 x HDMI (via Adapter)
  • 800 Stream Processors
  • PCI Express 2.0 x16
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (22)

Learn more about the Diamond Multimedia 4890PE51GSB

Model
Brand DIAMOND
Model 4890PE51GSB
Interface
Interface PCI Express 2.0 x16
Chipset
Chipset Manufacturer AMD
GPU Radeon HD 4890
Core Clock 850 MHz
Stream Processors 800 Stream Processors
Memory
Effective Memory Clock 975MHz (3.9Gbps)
Memory Size 1GB
Memory Interface 256-Bit
Memory Type GDDR5
3D API
DirectX DirectX 10.1
OpenGL OpenGL 2.0
Ports
HDMI 1 x HDMI (via Adapter)
DVI 2 x DVI
TV-Out HDTV Out
Details
RAMDAC Dual 400MHz
Max Resolution 2560 x 1600
RoHS Compliant Yes
CrossFireX Support Yes
Cooler With Fan
System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 500 Watt or greater power supply with two 75W 6-pin PCI Express power connectors recommended (600 Watt and four 6-pin connectors for ATI CrossFireX technology in dual mode) Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list of Certified products
Power Connector 2 x 6-Pin
Dual-Link DVI Supported Yes
HDCP Ready Yes
Additional Information
Date First Available April 01, 2009
