Can I use this VGA card if I do not require 4K resolution?

Yes, you can use this VGA card even if you do not require 4K resolution. It supports both analog VGA with a max resolution of 2048x1536 and digital HDMI with a max resolution of 4096x3112.

Direct X 11 Compatible?

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com. At EggXpert you can chat with someone who may assist you with your question. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Will this run with Windows vista Home Premium?

Yes, I purchased this for and installed it in a PC running Vista Home Premium. Works great, and is running Catalyst version 12.3. You may not be able to get the very latest version of Catalyst for Vista however. Note: I'm not trying to run games with this card, but I can reccomend it for general usage.

what watt power supply does this require?

300 watt or better. Actually no special requirements. I have two running on a 250 watt. But if you have other items, I'd suggest 300 watt or better.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Shop All Diamond Multimedia Products

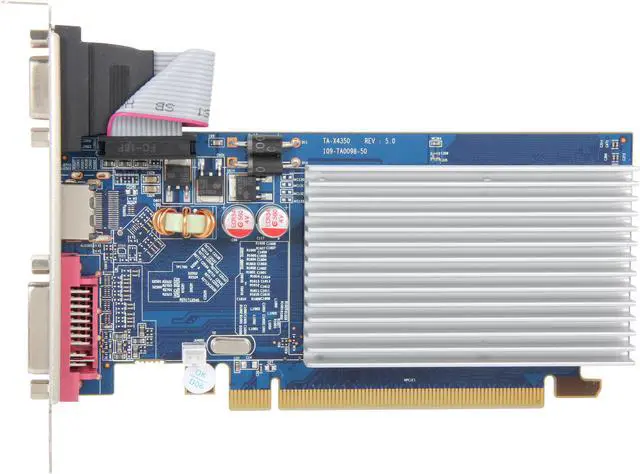

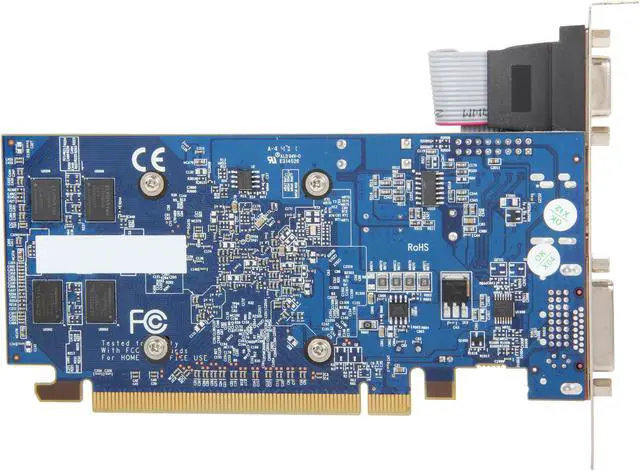

DIAMOND Radeon HD 5450 1GB GDDR3 PCI Express 2.1 x16 CrossFireX Support Low Profile Graphics Card 5450PE31G

(2) Write a Review

1GB GDDR3
Core Clock 650 MHz
1 x Dual-Link DVI 1 x HDMI
80 Stream Processors
PCI Express 2.1 x16
Analog: VGA Max resolution 2048x1536
Digital: HDMI 1.4a Max resolution: 4096x3112

☀️Check Out Game Sale. Over 1000+ Games up to 90% off! ☀️

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: API Supported: DirectX 11.0,OpenGL 3.2,DirectCompute 11,OpenCL 1.0Chipset Manufacturer: ATIChipset Line: RadeonChipset Series: HD 5000Chipset Model: HD 5450GPU Clock: 650 MHzStandard Memory: 1 GBMemory Technology: GDDR3Bus Width: 128 bitHDMI: YesNumber of HDMI Outputs: 1VGA: YesNumber of VGA Outputs: 1DVI: YesTotal Number of DVI Outputs: 1Dual Link DVI Supported: YesSlot Space Required: SingleForm Factor: Plug-in CardCard Height: Low-profileHeight: 0.6"Width: 2.9"Length: 6.3"Weight (Approximate): 9.60 ozPackage Contents: AMD Radeon HD 5450 Graphic Card Install CD Quick Start Guide Platform Supported: PCLimited Warranty: 5 Year

Model
Brand	DIAMOND
Model	5450PE31G

Interface
Interface	PCI Express 2.1 x16

Chipset
Chipset Manufacturer	AMD
GPU Series	AMD Radeon HD 5000 series
GPU	Radeon HD 5450
Core Clock	650 MHz
Stream Processors	80 Stream Processors

Memory
Effective Memory Clock	600 MHz
Memory Size	1GB
Memory Type	GDDR3

3D API
DirectX	DirectX 11
OpenGL	OpenGL 3.2

Ports
HDMI	1 x HDMI
D-SUB	1 x D-SUB
DVI	1 x Dual-Link DVI

Details
Tuner	None
RAMDAC	400MHz
Max Resolution	4096 x 2160
CrossFireX Support	Yes
Cooler	Fanless
Operating Systems Supported	WIN 7 32, WIN 7 64, WIN VISTA 32, WIN VISTA 64, WIN XP, WIN XP 64, MCE, WIN 8
System Requirements	System CPU: Pentium Intel Duo, AMD X64 or higher CPU Speed: 2.4 GHz or higher CPU System Memory: 1024MB Power Supply: 400 Watts or greater power supply recommended Power Supply Instructions: Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray playback requires Blu-ray drive Hard Disk Space: 480MB available hard disk space CD DVD: YES BUS: PCI Express x16 Available Slot: SINGLE Chassis: ATX Monitor: Digital flat-panel (DFP) displays or DVI-I Compatilbe or digital CRT display or High-resolution VGA monitor
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Features
Features	Dual monitor capability Speed up numerous video tasks with ATI Stream technology Make video editing and transferring to media players/handhelds fast and easy Features AMD's robust ATI Catalyst software, and is the first graphics generation with full support for DirectX 11, completing the Windows 7 experience

Form Factor & Dimensions
Form Factor	Low Profile
Max GPU Length	160 mm
Card Dimensions (L x H)	6.30" x 2.88"
Slot Width	Single Slot

Packaging

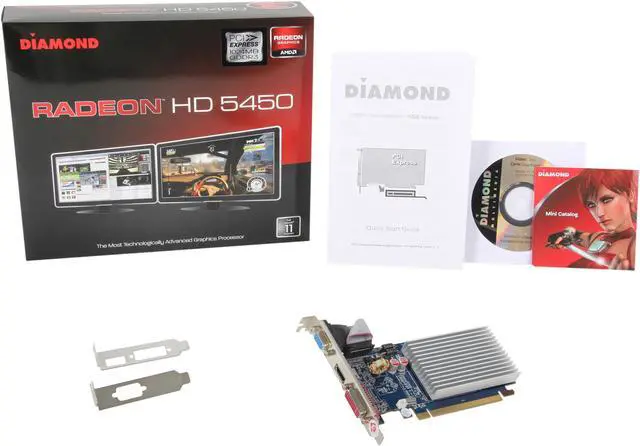

Package Contents	Diamond Radeon HD 5450 GDDR3 1GB PCI Express Video Card INSTALL CD Quick Start Guide

Additional Information
First Listed on Newegg	December 28, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-818-534-1414
Support Website
