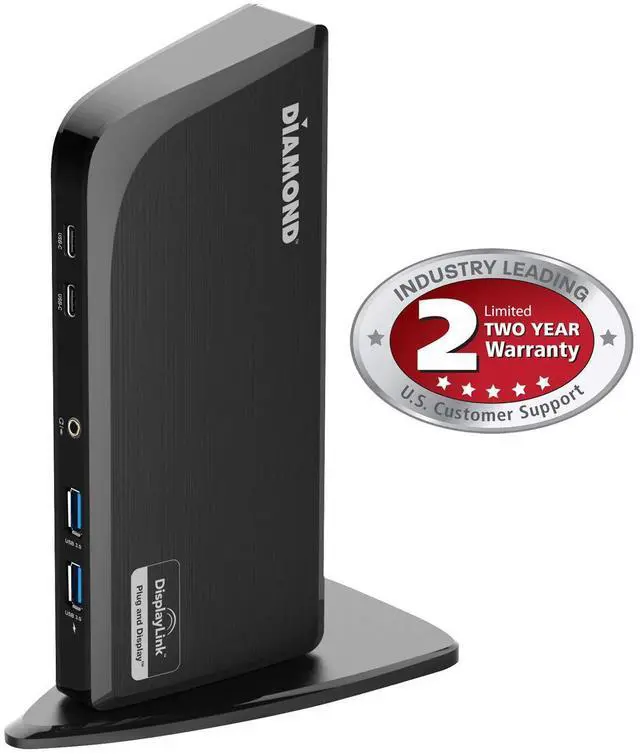

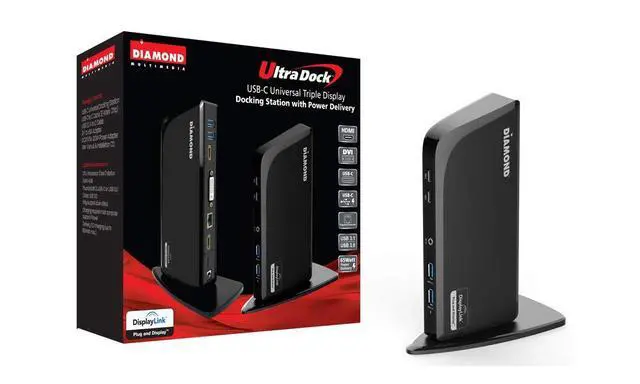

Diamond Triple Display 4K Universal Type-C Docking Station with Power Delivery

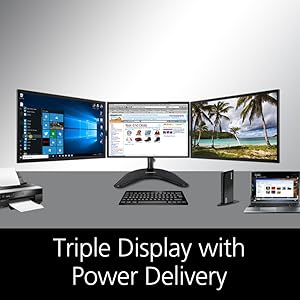

Connect Your Laptop or PC to Three Displays
Using one single USB connection from the dock to your PC, you can easily connect your PC to 3 displays. For USB Type-C 3.1 and Thunderbolt 3 computers. The Diamond DS3900PD provides 65W Power Delivery and charging.
Unbeatable Universal USB-C Connectivity
The Diamond DS3900PD offers unbeatable universal connectivity. A Gigabit Ethernet port, DVI port, two HDMI ports, four USB 3.0 ports and three USB Type-C ports one with power delivery. A Headphones and Mic jack are also included.
Expand Your PC’s Capabilities

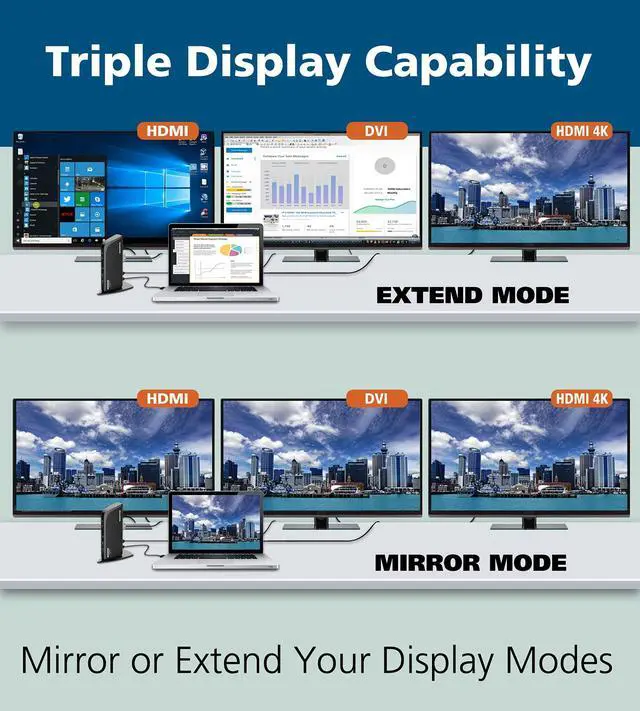

Expand your view by giving yourself more screen real-estate. Extend and Mirror your PC or tablet and create a more efficient workstation. Enjoy online activities such as shopping and social media, as well as surfing the web or watching your favorite YouTube videos - all while you work.

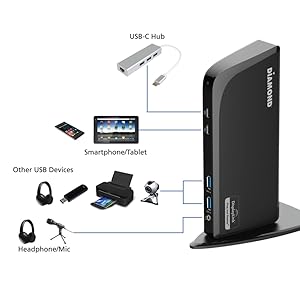

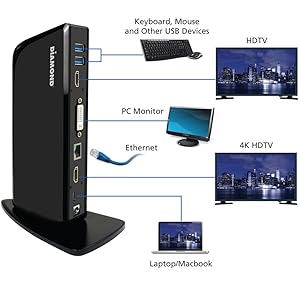

All Universal Connection: Provides All the Connections You Need
Specifications
Chipset: DisplayLink DL-3900
Number of displays supported: 3
Max resolution: 3840 × 2160
HDCP: No

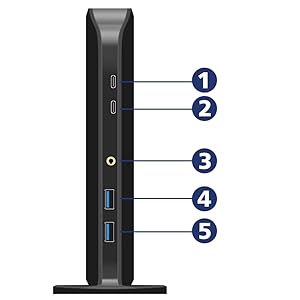

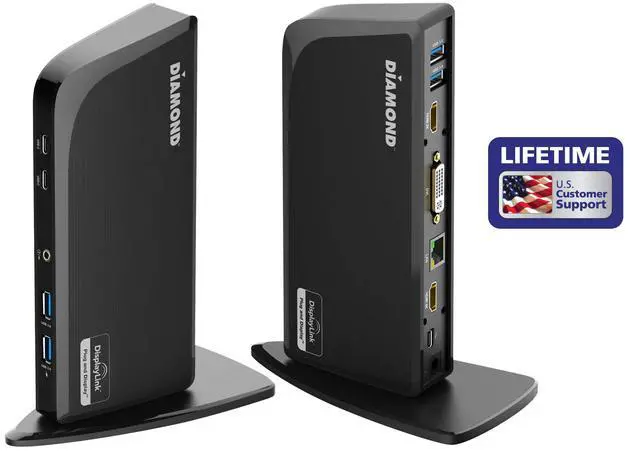

Front Side Connectors
1. USB-C Port
2. USB-C Port
3. 3.5 mm Audio Input
4. USB 3.0 Port
5. USB 3.0 Port

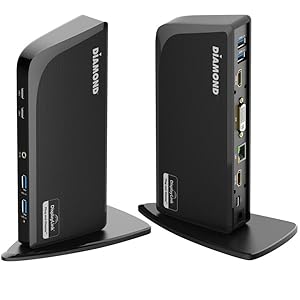

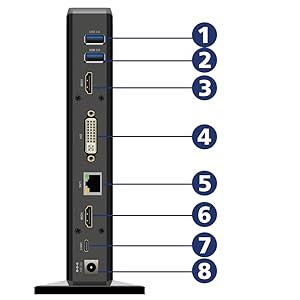

Back Side Connectors
1. USB 3.0 Port
2. USB 3.0 Port
3. HDMI Port.
4. DVI Port
5. Ethernet Port
6. HDMI Port
7. USB-C Upstream Port
8. Power Jack

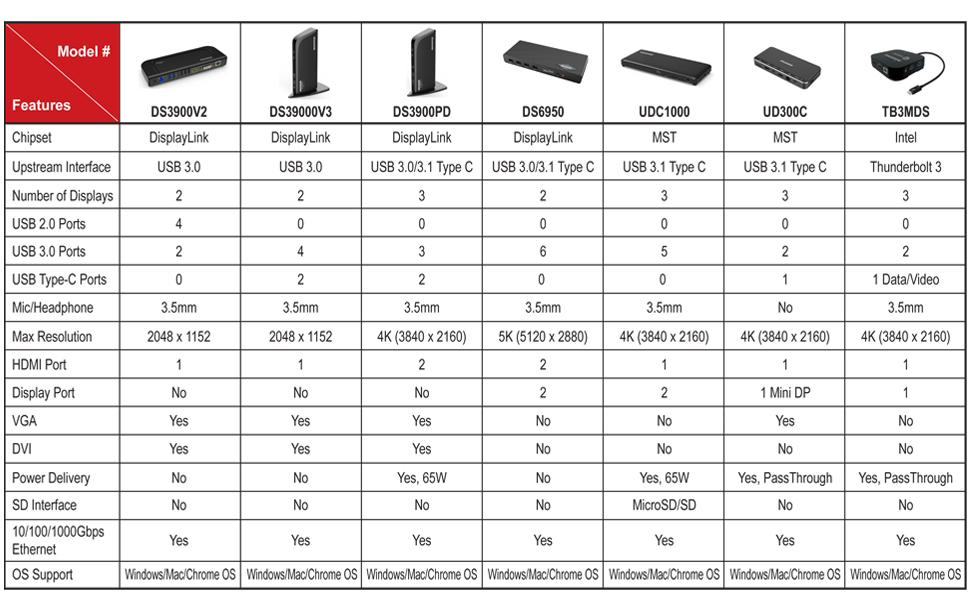

Select the Right Diamond Docking Station For You
Features
1. USB 3.1 Type-C and Standard-A connectors compatible both Type-C Laptop *
2. 100Watt Power Adapter support 65 Watt upstream Laptop Charging,
3. Extra HDMI output via USB-C Alt Mode supporting displays up to 4K@30Hz
4. HDMI and DVI output via DisplayLink
5. Support Extend and Mirror Video Mode. 5.1 Channel surround-sound
6. Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
7. 4-Pole Phone Jack provided combo audio headset, microphone port.
8. 4 x USB 3.0 downstream ports, one port support BC1.2 fast charging at the front
9. 2 x USB-C downstream port
* USB 3.0 connection only supports Dual Video (HDMI 2K/DVI)
Frequently Asked Questions
- Question: What Operating Systems are supported?
- Answer: Windows, Mac OS
- Question: Will it Power my Laptop?
- Answer: Yes, but only on USB Type C 3.1 and Thunderbolt 3 equipped laptops
- Question: My computer does not have a disk drive. Can I download the installation drivers?
- Answer: Yes, the docking station uses the Display Link DL-3900 chip set
- Question: Does it support Extended Desktop?
- Answer: Yes, it supports both Extended and Duplicate Desktop modes in both Windows and Mac OS.
