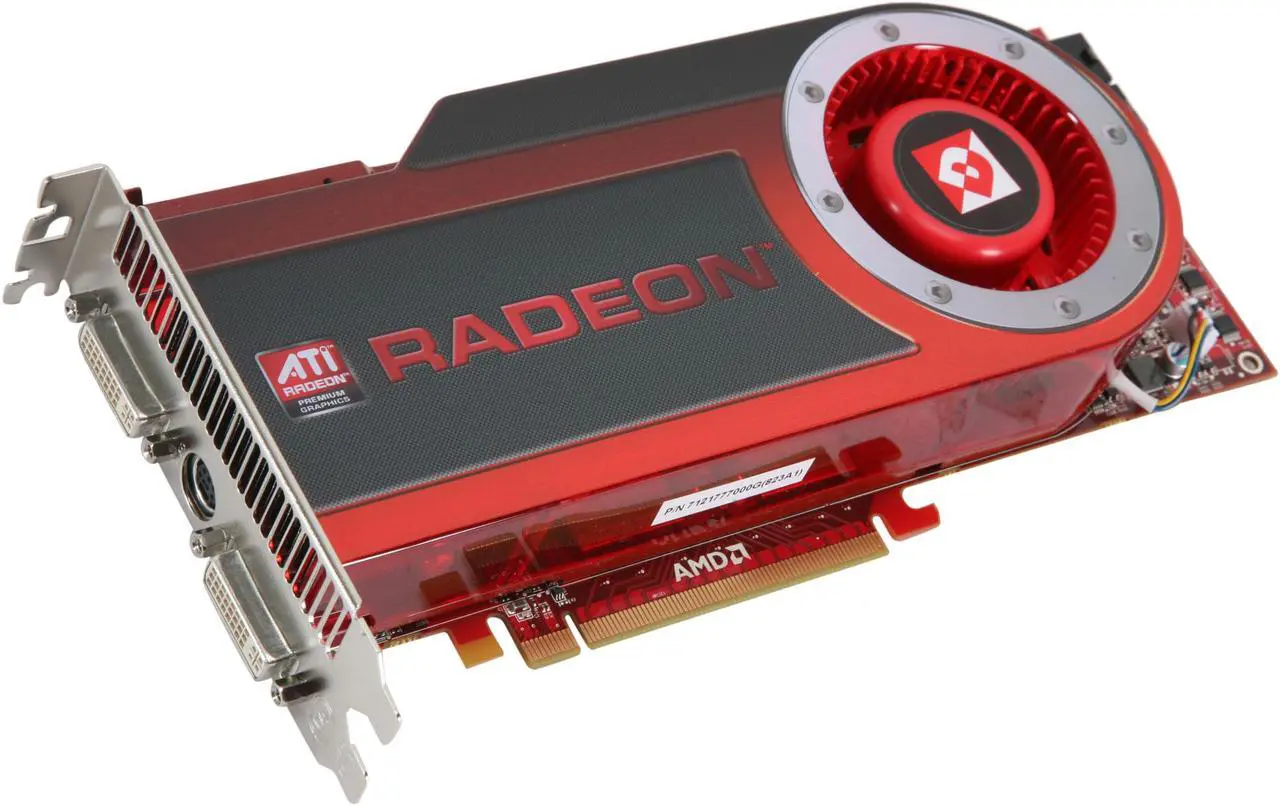

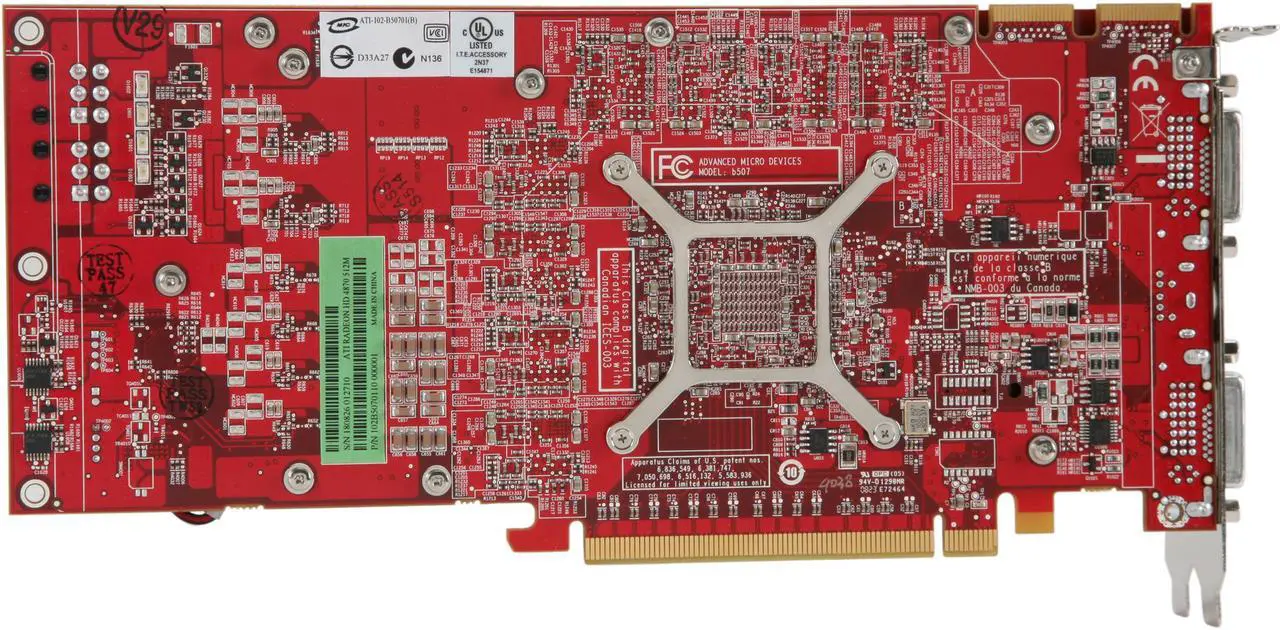

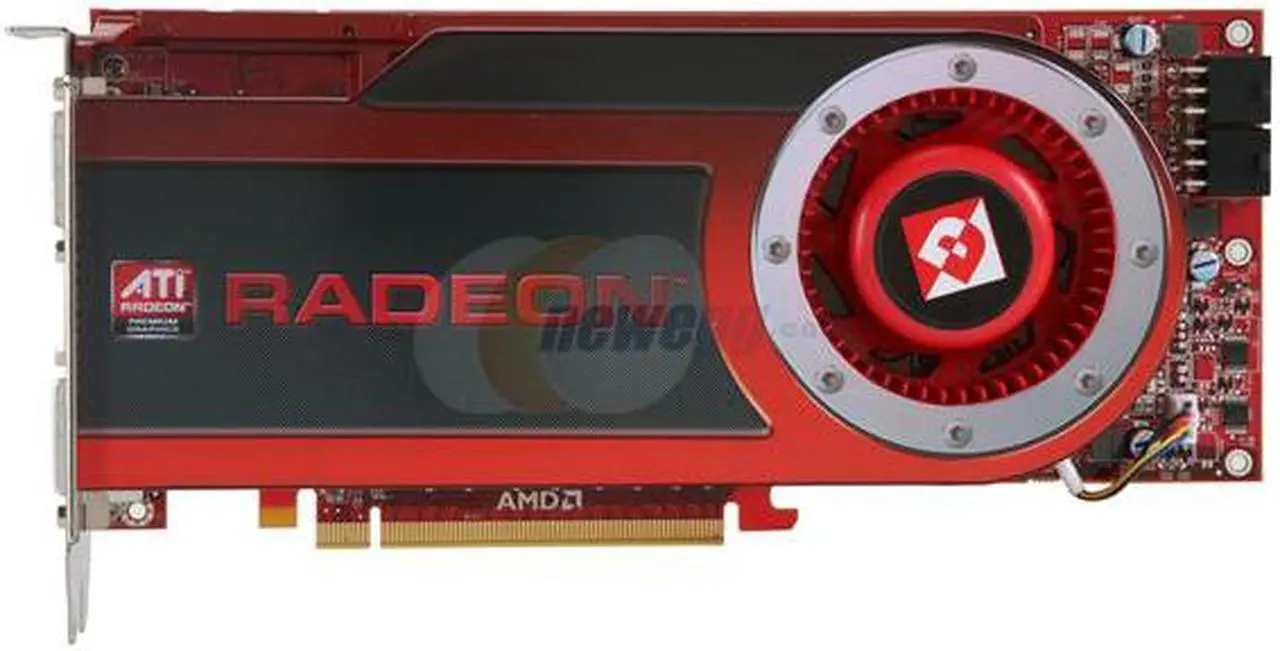

DIAMOND Radeon HD 4870 512MB GDDR5 PCI Express 2.0 x16 CrossFireX Support Graphics Card 4870PE5512

(33) Write a Review
  • 512MB 256-Bit GDDR5
  • Core Clock 750 MHz
  • 2 x DVI 1 x HDMI (via Adapter)
  • 800 Stream Processors
  • PCI Express 2.0 x16
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (33)

Learn more about the Diamond Multimedia 4870PE5512

Model
Brand DIAMOND
Model 4870PE5512
Interface
Interface PCI Express 2.0 x16
Chipset
Chipset Manufacturer AMD
GPU Radeon HD 4870
Core Clock 750 MHz
Stream Processors 800 Stream Processors
Memory
Effective Memory Clock 900MHz (3.6Gbps)
Memory Size 512MB
Memory Interface 256-Bit
Memory Type GDDR5
3D API
DirectX DirectX 10.1
OpenGL OpenGL 2.1

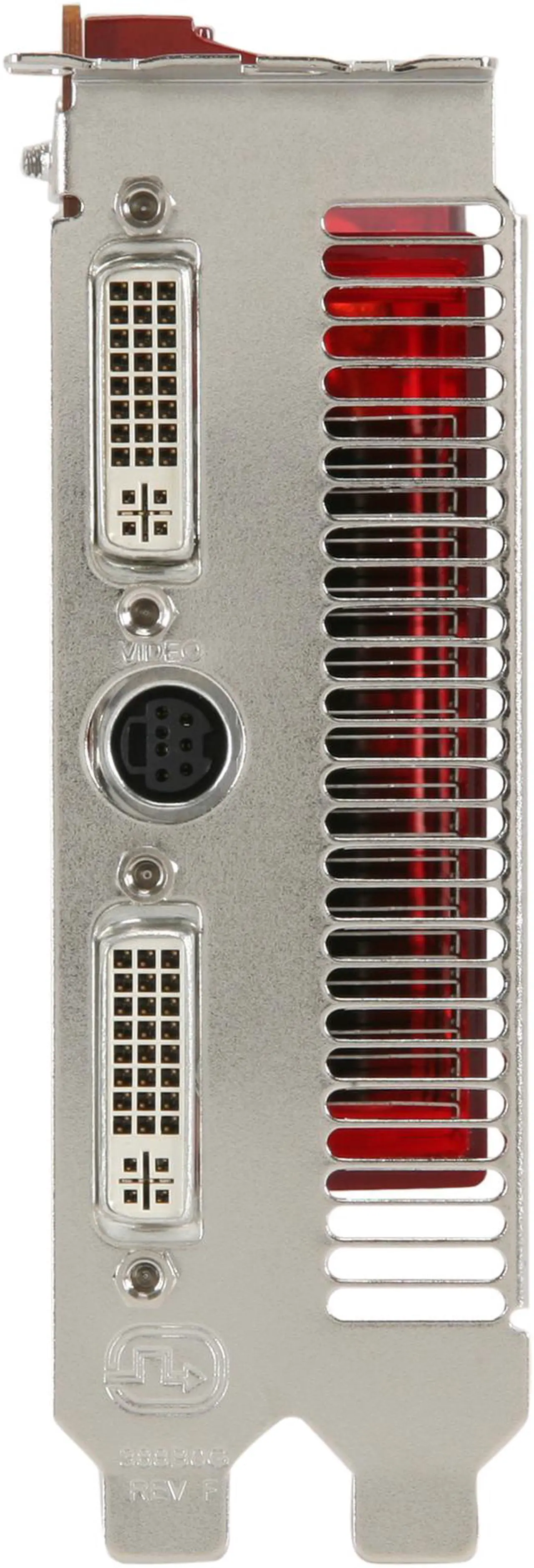

Ports
HDMI 1 x HDMI (via Adapter)
DVI 2 x DVI
TV-Out HDTV / S-Video Out
Details
RAMDAC 400MHz
Max Resolution 2560 x 1600
RoHS Compliant Yes
CrossFireX Support Yes
Cooler With Fan
System Requirements ATI Radeon HD 4870 and ATI Radeon HD 4850 System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 450 Watt or greater power supply with 75 Watt 6-pin PCI Express power connector recommended (550 Watt and two 6-pin connectors for dual ATI CrossFireX) Certified power supplies are recommended 1GB of system memory recommended Installation software requires an optical drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires a Blu-ray / HD DVD drive For a complete ATI CrossFireX system, additional ATI Radeon™ HD 4800 series graphics card(s), an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per board (included) are required.

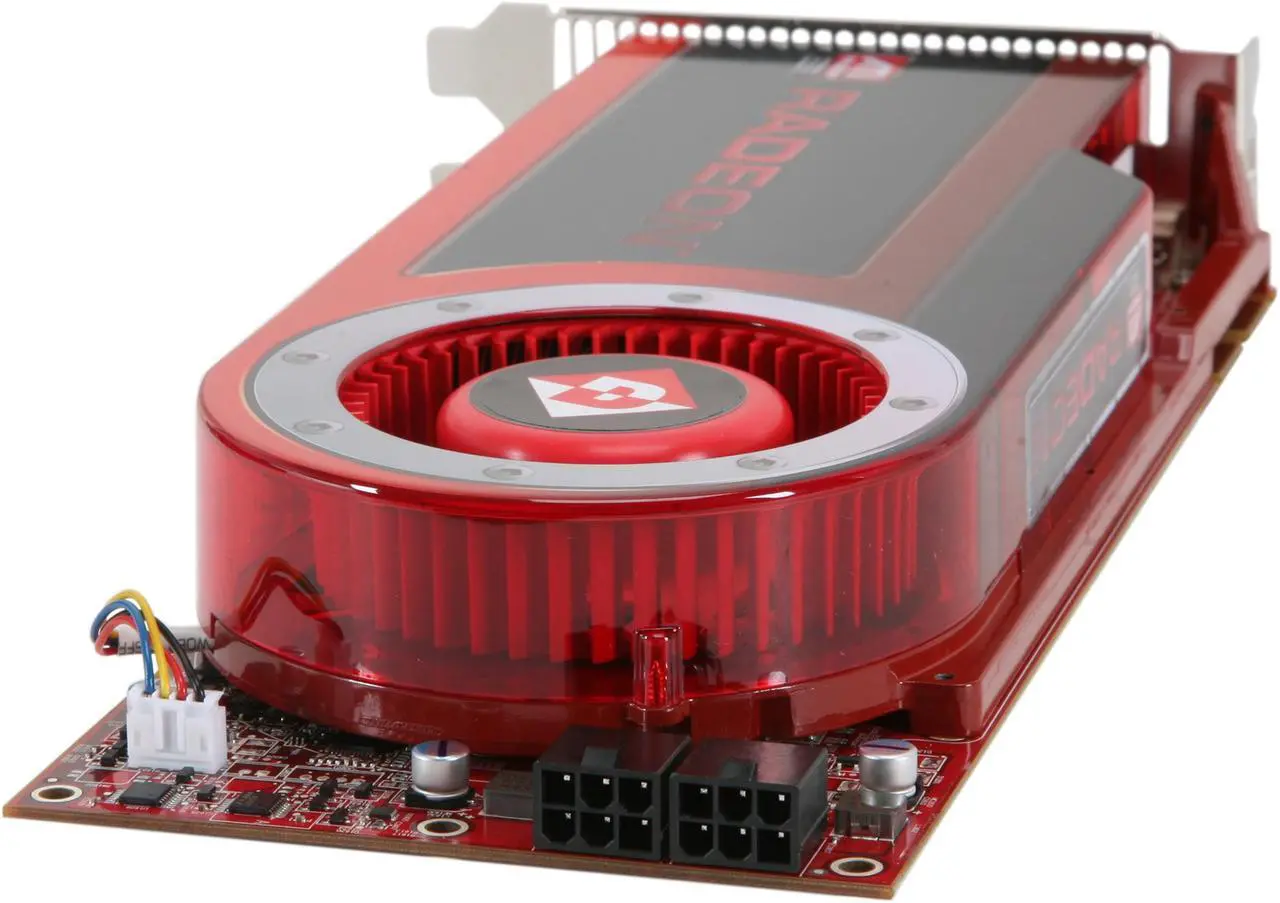

Power Connector 2 x 6-Pin
Dual-Link DVI Supported Yes
HDCP Ready Yes
Packaging

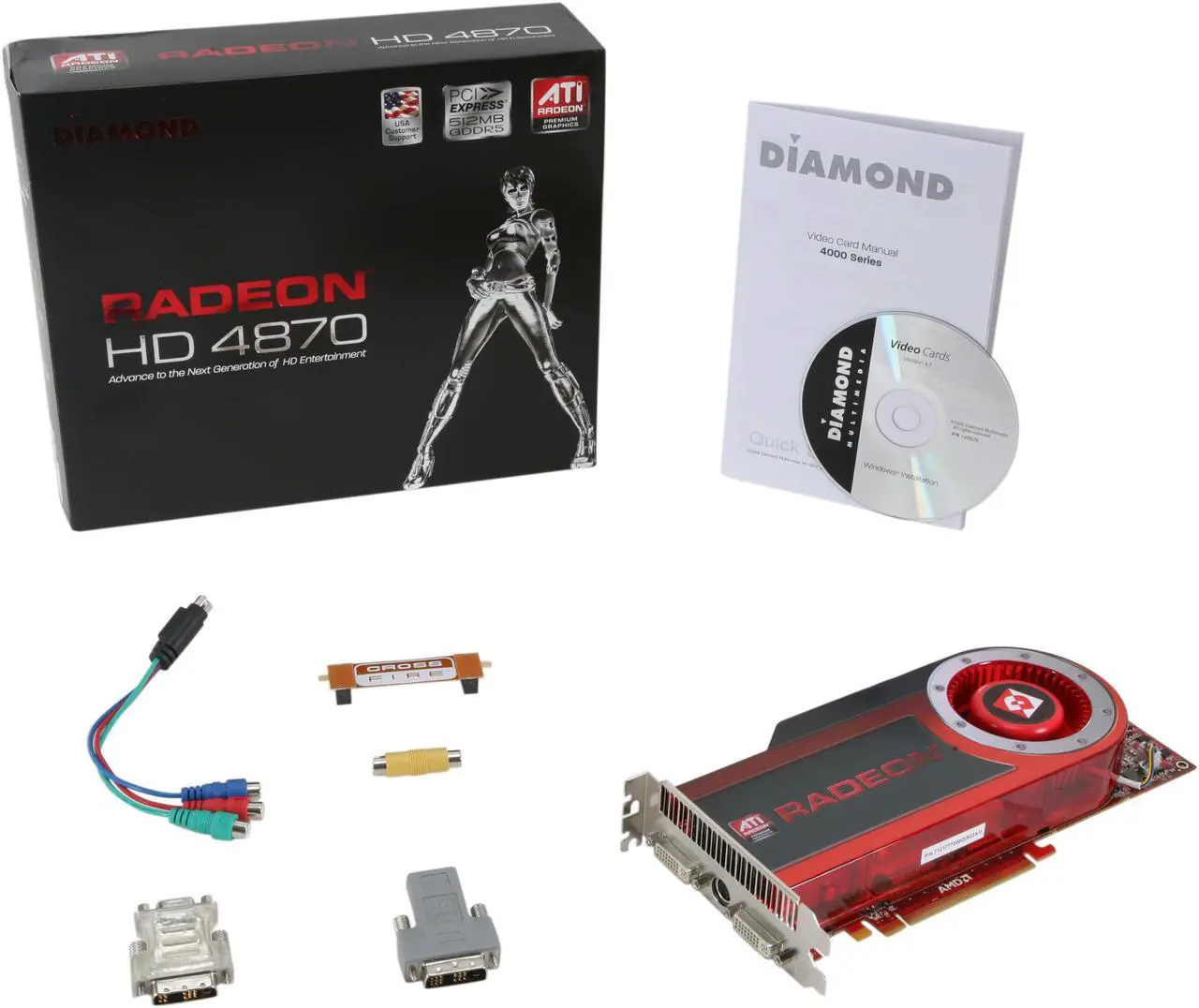

Package Contents 4870PE5512
DVI to VGA/D-sub Adapter
DVI to HDMI Adapter
S-Video to Composite Adapter
CrossFire Bridge
Additional Information
Date First Available June 26, 2008
