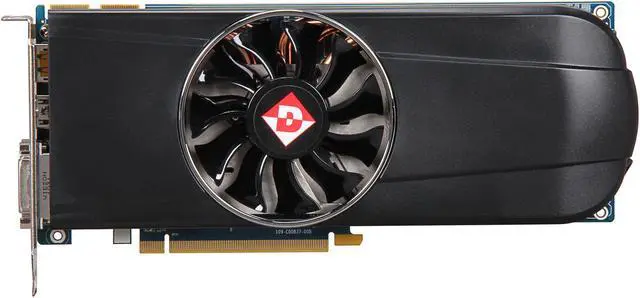

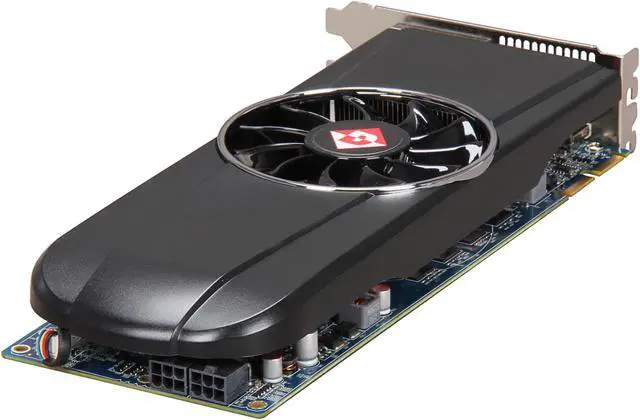

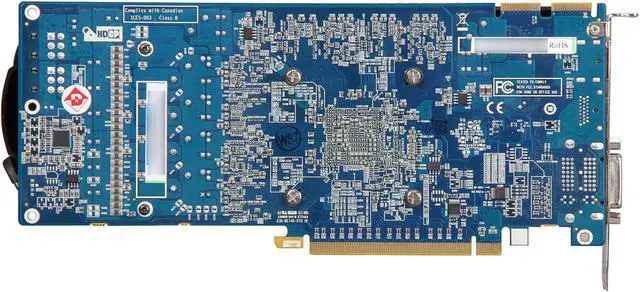

DIAMOND Radeon HD 5850 1GB GDDR5 PCI Express 2.0 x16 CrossFireX Support Graphics Card 5850PE51G

  • 1GB 256-Bit GDDR5
  • Core Clock 725MHz
  • 2 x DVI 1 x HDMI 1 x DisplayPort
  • 1440 Stream Processors
  • PCI Express 2.0 x16
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (67)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Diamond Multimedia 5850PE51G

Model
Brand DIAMOND
Model 5850PE51G
Interface
Interface PCI Express 2.0 x16
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon HD 5000 series
GPU Radeon HD 5850
Core Clock 725MHz
Stream Processors 1440 Stream Processors
Memory
Effective Memory Clock 1000MHz (4.0Gbps)
Memory Size 1GB
Memory Interface 256-Bit
Memory Type GDDR5
3D API
DirectX DirectX 11
OpenGL OpenGL 3.2

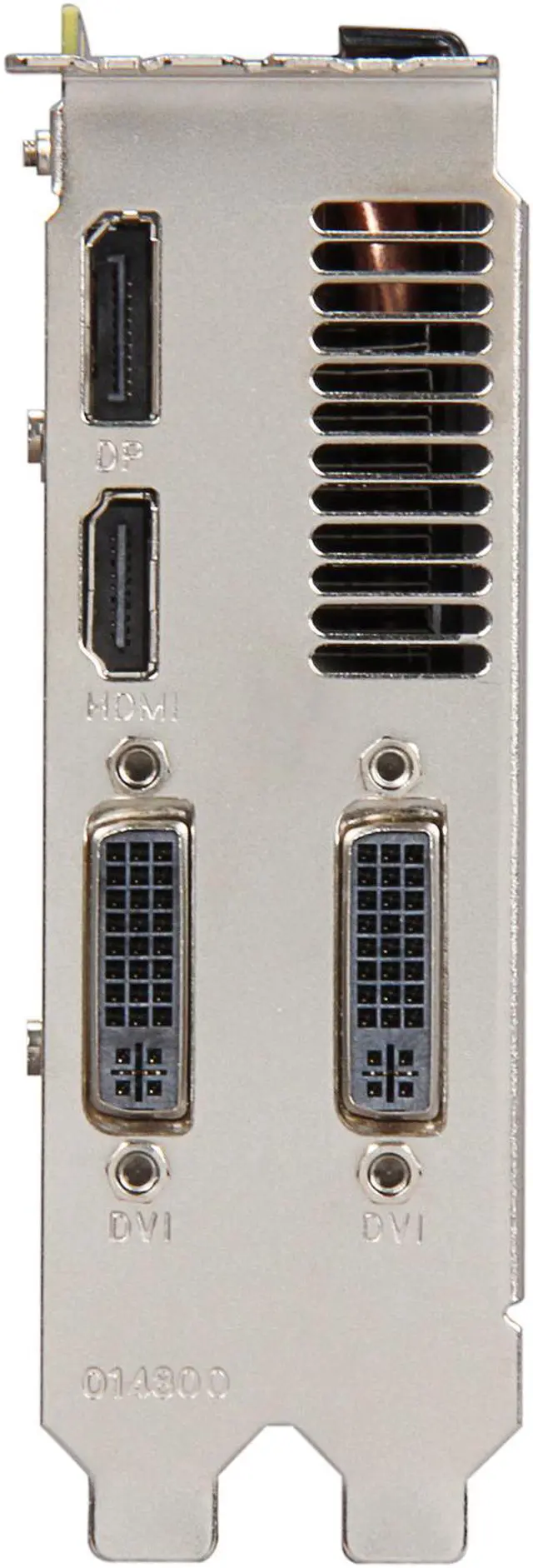

Ports
HDMI 1 x HDMI
DisplayPort 1 x DisplayPort
DVI 2 x DVI
Details
RAMDAC 400MHz
Max Resolution 2560 x 1600
Eyefinity Support Yes
CrossFireX Support Yes
Cooler With Fan
System Requirements 450 Watt or greater power supply with two 75W 6-pin PCI Express power connectors recommended (600 Watt and two 6-pin connectors for ATI CrossFireX technology in dual mode)
Power Connector 2 x 6-Pin
Dual-Link DVI Supported Yes
HDCP Ready Yes

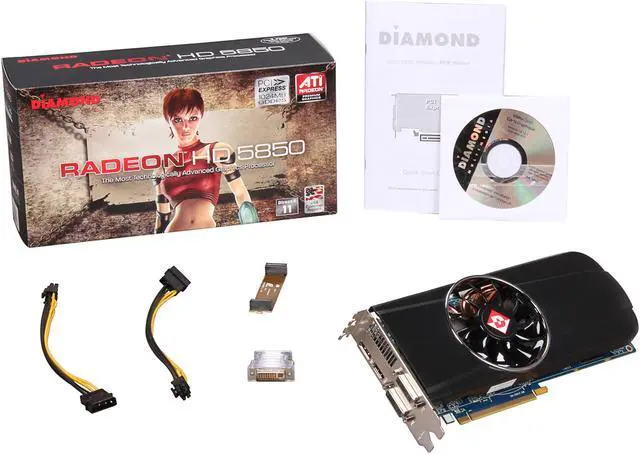

Packaging
Package Contents 5850PE51G
Install CD
Quick Start Guide
DVI-to-VGA Adapter
CROSSFIRE Bridge Interconnect
Additional Information
First Listed on Newegg October 12, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
