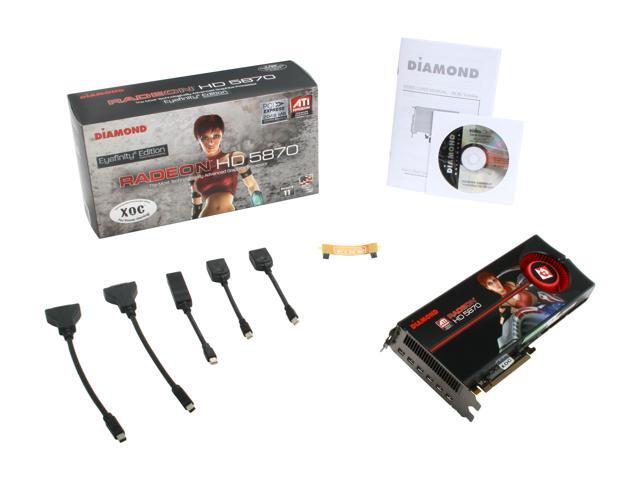

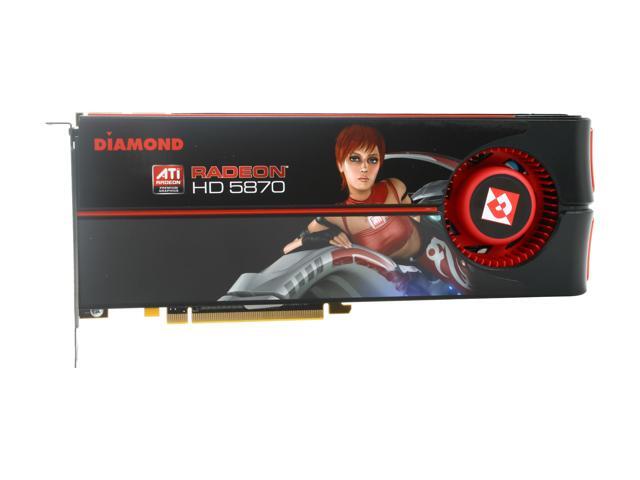

DIAMOND Radeon HD 5870 2GB GDDR5 PCI Express 2.0 x16 CrossFireX Support Graphics Card 5870PE52GOC

(1) Write a Review
Newegg Trade-In loading
  • 2GB 256-Bit GDDR5
  • Core Clock 925 MHz
  • 6 x Mini DisplayPort
  • 1600 Stream Processors
  • PCI Express 2.0 x16
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Diamond Multimedia 5870PE52GOC

Model
Brand DIAMOND
Model 5870PE52GOC
Interface
Interface PCI Express 2.0 x16
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon HD 5000 series
GPU Radeon HD 5870
Core Clock 925 MHz
Stream Processors 1600 Stream Processors
Memory
Effective Memory Clock 1225MHz (4.9Gbps)
Memory Size 2GB
Memory Interface 256-Bit
Memory Type GDDR5
3D API
DirectX DirectX 11
OpenGL OpenGL 3.2
Ports
DisplayPort 6 x Mini DisplayPort
Details
Eyefinity Support Yes
CrossFireX Support Yes
Cooler With Fan
System Requirements 600 Watt or greater power supply is recommended with one 75W 6-pin and one 150W 8-pin PCI Express power connector required (900 Watt and 2 6-pin and 2 8-pin connectors for ATI CrossFireX technology in dual mode) Certified power supplies are recommended.
Power Connector 1 x 6-Pin + 1 x 8-Pin
Features
Features Dynamic power management with ATI PowerPlay technology

ATI Eyefinity technology

ATI Stream technology

Display Formats: 6 mini Display Port
Form Factor & Dimensions
Card Dimensions (L x H) 11.1" x 4.4" x 1.5"
Additional Information
First Listed on Newegg August 23, 2010
