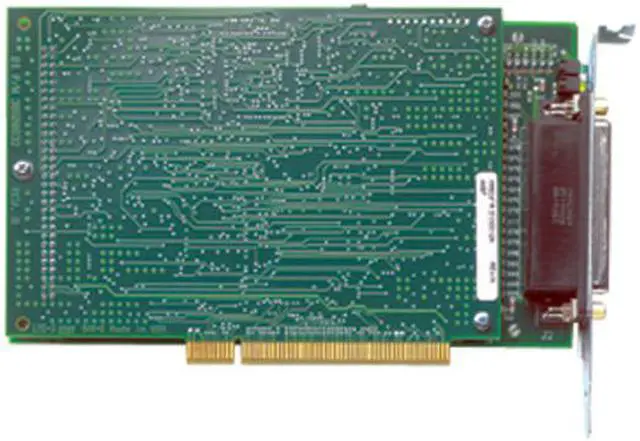

Digi International DataFire SYNC/570i Digital WAN Adapters Model 70001321
- PCI Express to Parallel / Serial Port
+
+
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Digi International 70001321
| Brand | Digi International |
|---|---|
| Series | DataFire |
| Model | 70001321 |
| Type | PCI Express to Parallel / Serial Port |
|---|---|
| Operating Systems Supported | Windows NT 4.0, Windows 2000, Windows XP, Third Party X.25, Frame Relay and SNA solutions for UnixWare, OS/2, QNX, Linux and DOS available |
| Specifications | 4-port 256K UIB PCI Card Slot: Universal 3.3V and 5V support Line Speed: Aggregated performance up to 5 Mbps Memory: Supports 4 DMA channels on 2-port boards; 8 DMA channels on 4-port boards Protocol: Supports frame relay, X.25, PPP and SNA Graphical Interface: Easy-to-use, Full tracking and monitoring Routing: Supports IP/IPX Circuits: Supports up to 256 virtual circuits (X.25) Flow Control: BECN, LMI Frame Relay: Supports up to 64 DLCIs per board Transmission: Multiple CIR options Compliance: Microsoft's NDIS and WAN Miniport driver Data Flow: DTE/DCE support Power Requirements: +5VDC: 1.5 A +3.3VDC: 0.5 mA +12VDC: 90 mA Surge Protection: Surge protection on all data lines Operating Temperature: 10° C to 55° C (50° F to 131° F) Relative Humidity: 5% to 90% (non-condensing) Altitude: 0 to 3,660 meters (0 to 12,000 feet) Safety: UL 1950, CSA 22.2, EN60950 Emissions/Immunity: FCC Part 15 Subpart B, EN55022 (Class B), EN50082-2, ICES-003, CISPR 22 (Class B) Other: Software configurable I/O and memory addresses, UIB automatic interface detection |
| Features | Ideal platform for Frame Relay, X.25, SNA and server based routing DMA-to-shared memory architecture Supports four DMA channels on two-port boards and eight DMA channels on four-port boards Universal PCI bus slot supports 3.3V and 5V Driver Development Kits (DDKs) available for custom development |
|---|
| Dimensions | 4.2 in x 0.68 in x 7.4 in |
|---|---|
| Weight | 8.0 oz |
| First Listed on Newegg | April 20, 2020 |
|---|
