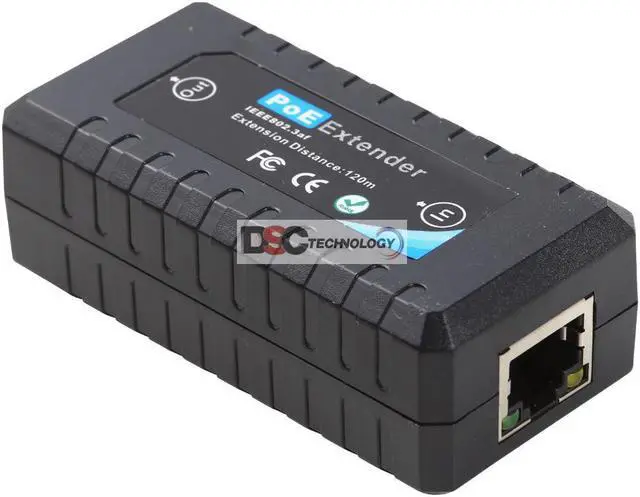

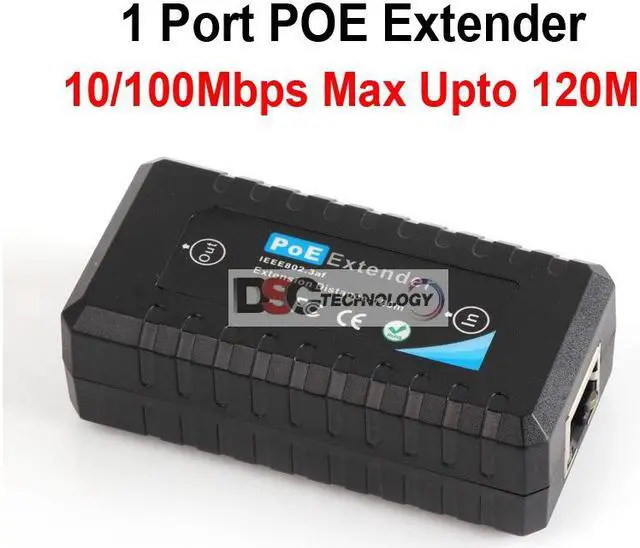

1 Port 10/100M PoE Extender IEEE802.3af For Ethernet Security Systems IP Camera

400Mbps Switching Capacity 13W Max IEEE802.3af In/Out, 1-Port PoE Extender/Repeater IEEE802.3af 1Ch Output Support IP Camera

Features:

• Comply with IEEE 802.af Power over Ethernet

• 10/100M Supported

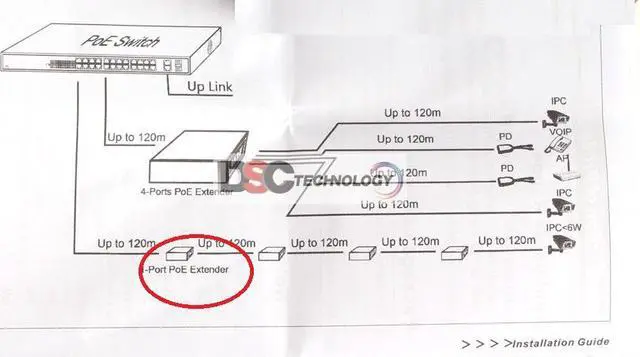

• Extender the range of PoE an additional 120 meters

• Automatically detects and protects PoE equipments from being damaged by incorrect installation

• Plug-and Play no configuration required

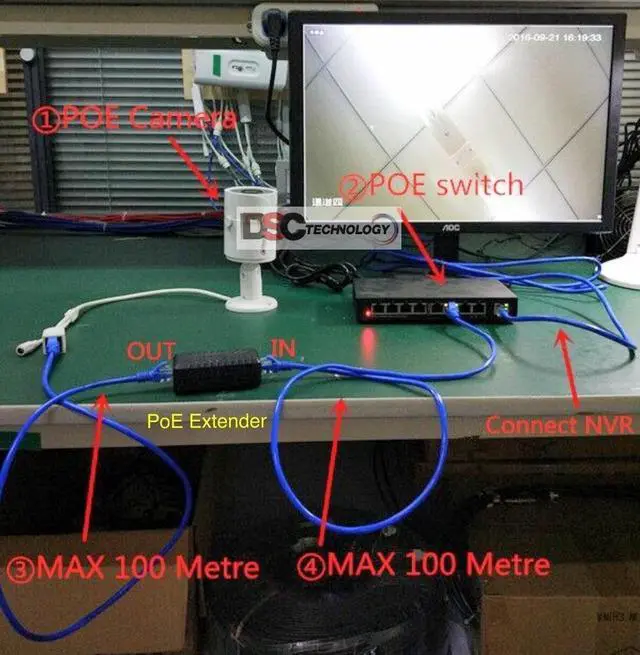

• 1 Port PoE extender can forward both Ethernet and PoE power for 1
  terminal equipment via Cat5 UTP cable.


Other Specification:

• PoE input: 1 RJ45 port

• PoE output: 1 RJ45 port

• Network Medium: Cat5 or better UTP cables (less than 120m)

• Repeater Mode: Store and forward

• MAC Address Table: 2K

• Packet Buffer Memory: 48 Byte

• Switching Capacity: 400Mbps

• PoE Standard: IEEE 802.3af

• Input power: 13 Watts

• Output power: 12.2 Watts

• Power Supply Type: 1/2+,3/6-,Mode A, End-Span

• Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;

• Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;

• Working Temperature: 0°C~40°C

• Working Humidity: 10%~90%,No Condensation

• Storage Temperature: -30°C~70°C

• Storage Humidity: 5%~90%, No Condensation;

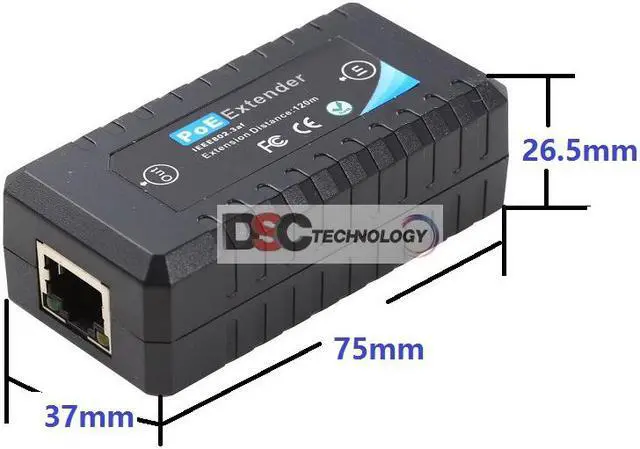

• Dimension: 75x37x26.5mm


Note:

• Please don't place any heavy thing on the PoE extender;

• To prevent the water seeping into the extender, please keep PoE extender away wet environment;

• Suggest to use PoE extender indoors. When installing the extender in outdoor, please install it in a waterproof place.


Package Include:

• 1 x 1-Port PoE Extender
